Product Description

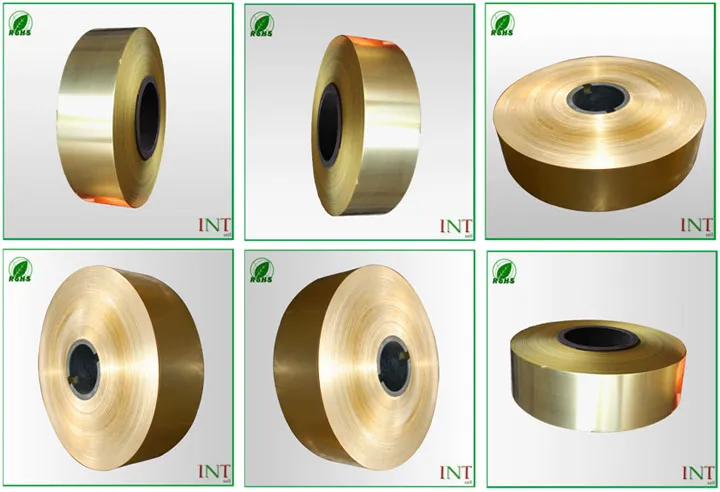

High strength C27000 CuZn35 brass strip
Brass factory, more than 12 years manufacture experience, attained ISO9001, work on OEM and ODM projects..

1. Introduction of the C27000 CuZn35 H65 brass strip

Brass is a binary alloy composed of copper and zinc that has been produced for millennia and is valued for its workability, hardness, corrosion resistance and attractive appearance.

H65 / C2700 / CuZn35 brass. With the copper content 65%, Its performance between H68 and H62, the price is cheaper than the H68, also has a high strength and plasticity, can well withstand with cold and hot pressure processing.

2. Grade and temper for C27000 CuZn35 H65 brass strip

Grade: C2700, C27000, CDA270, C270, CZ107, H65, CuZn35
Temper: O, 1/4H, 1/2H, H, EH,SH

Different countries' Standard comparison table of brass

GB	DIN		EN		ISO	UNS	JIS
H96	CuZn5	2.0220	CuZn5	CE500L	CuZn5	C21000	C2100
H90	CuZn10	2.0230	CuZn10	CW501L	CuZn10	C22000	C2200
H85	CuZn15	2.0240	CuZn15	CW502L	CuZn15	C23000	C2300
H80	CuZn20	2.0250	CuZn20	CW503L	CuZn20	C24000	C2400
H70	CuZn30	2.0265	CuZn30	CW505L	CuZn30	C26000	C2600
H68	CuZn33	2.0280	CuZn33	CW506L	CuZn35	C26800	C2680
H65	CuZn36	2.0335	CuZn36	CW507L	CuZn35	C27000	C2700
H63	CuZn37	2.0321	CuZn37	CW508L	CuZn37	C27200	C2720

3. Chemical composition of C27000 CuZn35 H65 brass strip

Chemical composition
Cu :63.5~68.0
Zn:balance
Pb:≤0.03
B:≤0.01
Fe:≤0.10
Sb :≤0.005
Bi:≤0.002
inpurity:≤0.3

4. Dimension and tolerance of C27000 CuZn35 H65 brass strip

Width mm	Thickness mm
	≤1.0	>1.0~1.5	>1.5~2.5
	Thickness tolerance / ± mm
	Ordinary Level	Ordinary Level	Ordinary Level
≤100	0.2	0.3	0.4
>100~300	0.3	0.4	0.5
>300~600	0.5	0.6	0.6
>600~1000	0.8	0.8	0.8

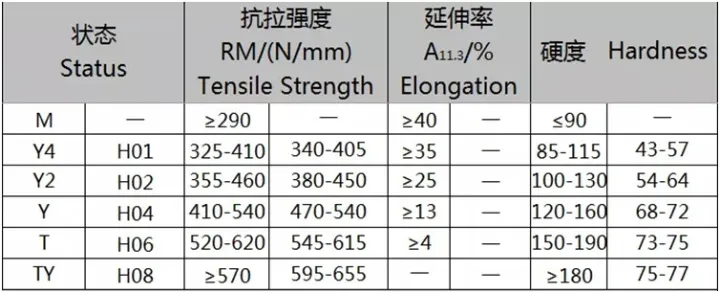

5. Mechanical properties for C27000 CuZn35 H65 brass strip

Mechanical properties

Good processability
Good thermal conductivity
Corrosion Resistant
Good Bend Formability
High Strength

6. Application of C27000 CuZn35 H65 brass strip

C2600 H70, CuZn30 brass is various used for electric appliance, deep-drawing and bending manufacturing parts, radiator shells, ducts, bellows, bullet shells, gaskets, etc.

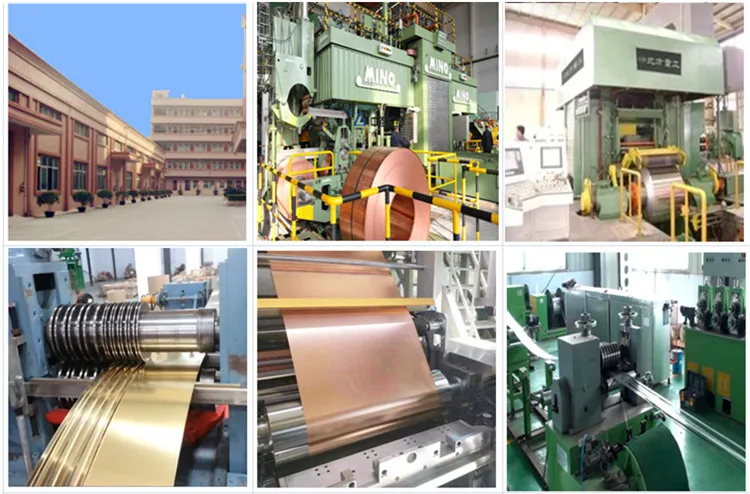

7. Manufacture plant of C27000 CuZn35 H65 brass strip

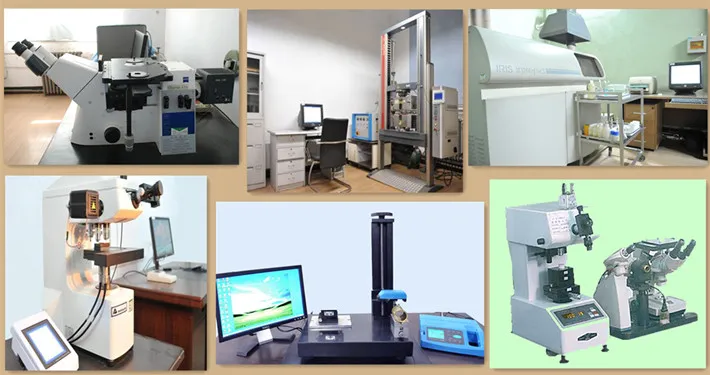

8. Tests and inspection for C27000 CuZn35 H65 brass strip

Test instrument : Metallographic Microscope; Digital Light Processor; Strength Tester; Hardness Tester.

High Strength C27000 Cuzn35 Brass Strip

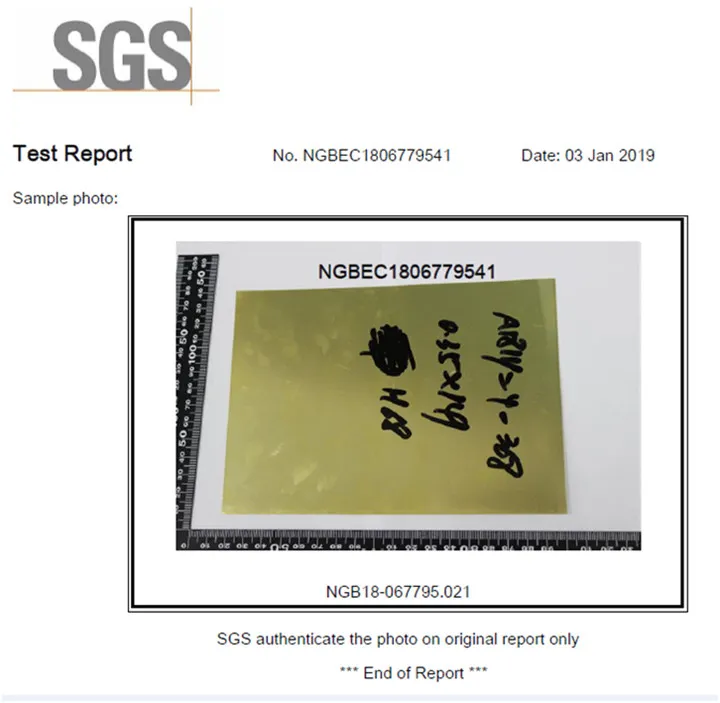

9.Mill certificate for C27000 CuZn35 H65 brass strip

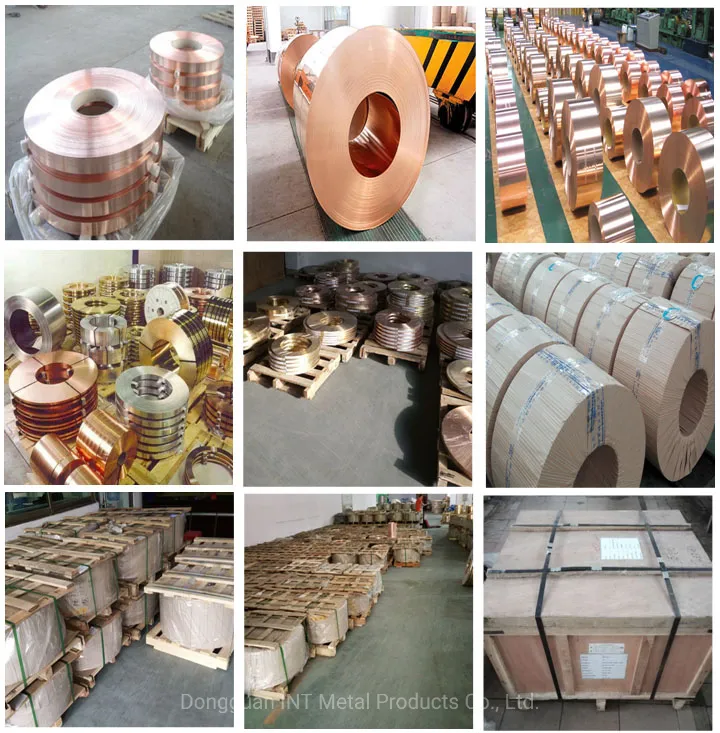

10. Packing and shipping for C27000 CuZn35 H65 brass strip

Packing:
First wrapped by anti-rust paper, second wrapped by plastic film, then packed by wooden box or wooden pallet ..

High Strength C27000 Cuzn35 Brass Strip

Shipping:
We will choose the best way according to customer's requests.
1. By Air, to the indicated airport.
2. By Express (FedEx, UPS, DHL, TNT, EMS), to the indicated address.
2. By Sea, to the indicated sea port.
High Strength C27000 Cuzn35 Brass Strip

11. Questions and Answers

a1. Do you have ISO certificate?
Yes, we obtained ISO9001

a2. How long is your delivery time for C27000 CuZn35 H65 brass strip?
If the master coil is available, 3-7 days do slitting will be ready , if not, will need 20-25 days for new production.

a3. Can you help us to choose suitable material?
Yes, we can recommend the most suitable material according to your application.

a4. How do you control quality?
We produce strictly according to customer's drawings and requests, here are strict control plan in every process, full check of each parts, strive to provide customer 100% quality products, ROHS/SGS test report, material certificate are available.

a5. Do you provide sample? Free or charge?
Yes, if the sample in stock available, free of charge, if not, need to charge some mfg cost.
