C17200 XHMB high hardness beryllium copper foil

Product Description

C17200 XHMB high hardness beryllium copper foil

copper beryllium manufacturer
Unusual wear resistance
High property levels
High yield strength
High hardness values

Beryllium Copper Chemical Composition

ASTM	Cu	Ni	Co	Be
C17200	Balance	0.1	0.1	1.80-2.10
C17000	Balance	1	1	1.60-1.85
C17300	Balance	1	1	1.85-2.10

ASTM	Cu	Ni	Co	Be
C17500	Balance	-	2.4-2.7	0.4-0.7
C17510	Balance	1.4-2.2	0.3	0.2-0.6

beryllium copper C17200

Cube2--C17200 (CDA 172) Beryllium Copper is the most commonly utilized Copper Beryllium alloy and is notable for its highest strength and hardness compared to commercial copper alloys. C17200 alloy contains appr. 2% of beryllium and achieves its ultimate tensile strength can exceed 200 ksi, while the hardness approaches Rockwell C45. Meanwhile, the electrical conductivity is a minimum of 22% IACS in the fully aged condition.C17200 also exhibits exceptional resistance to stress relaxation at elevated temperatures.

Chemical Composition

Element	Component
Be	1.85-2.10%
Co+Ni	0.20% Min
Co+Ni+Fe	0.60% Max.
Cu	Balance

Typical Physical Properties

Density (g/cm3)	8.36
Density before age hardening (g/cm3	8.25
Elastic Modulus (kg/mm2 (103))	13.40
Thermal Expansion Coefficient (20 °C to 200 °C m/m/°C)	17 x 10-6
Thermal Conductivity (cal/(cm-s-°C))	0.25
Melting Range (°C)	870-980

Mechanical property (Before Hardening treatment) :

status	Tensile strength (Kg/mm3)	Hardness (HV)	Conductivity ( IACS%)	Elongation (%)
H	70-85	210-240	22	2-8
1/2H	60-71	160-210	22	5-25
0	42-55	90-160	22	35-70

After Hardening treatment

Brand	Tensile strength (Kg/mm3)	Hardness (HV)	Conductivity (IACS%)	Elongation (%)
C17200-XHMB	1070-1210	330-390	≥17	≥4

Features

1. High thermal conductivity

2. High corrosion resistance, especially suitable for polyoxyethylene (PVC) products mold.

3. High hardness, wear resistance and toughness, as inserts used with mould steel and aluminium can make the mold play a highly efficient, prolong the service life.

4. Polishing performance is good, can achieve high mirror surface precision and complicated shape design.

5. Good tackiness resistance, easy to welding with other metal, easy to machining, there is no need additional heat treatment.

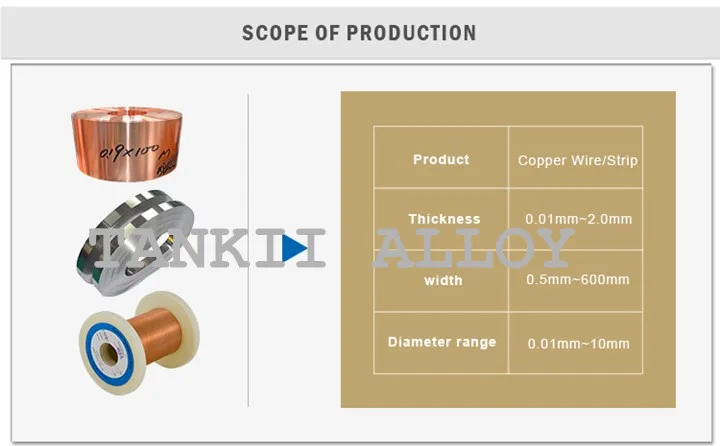

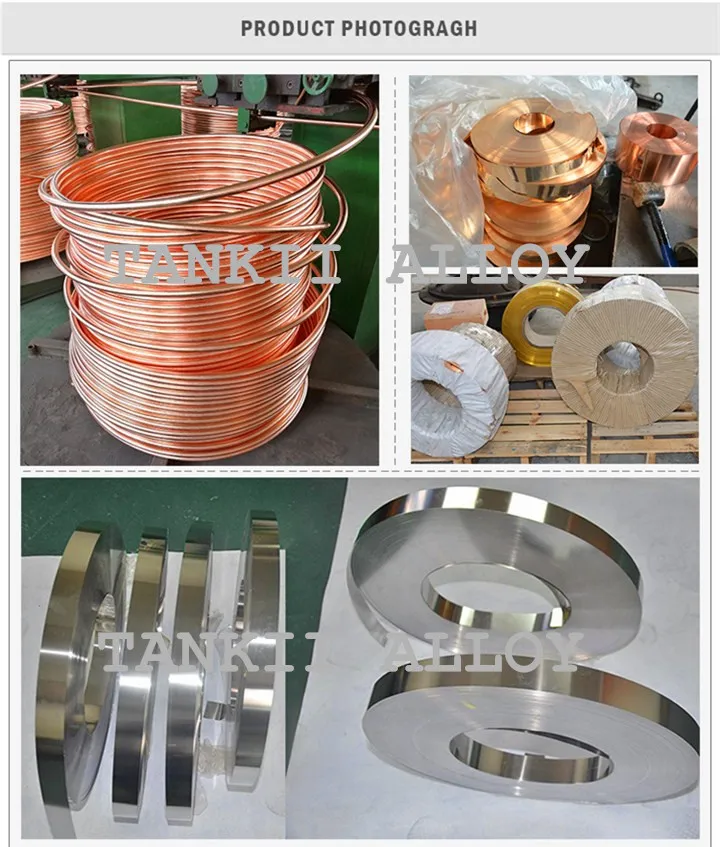

Our product are in the form of wire, ribbon, strip, coil.

Round wire
Ribbon (flat wire)

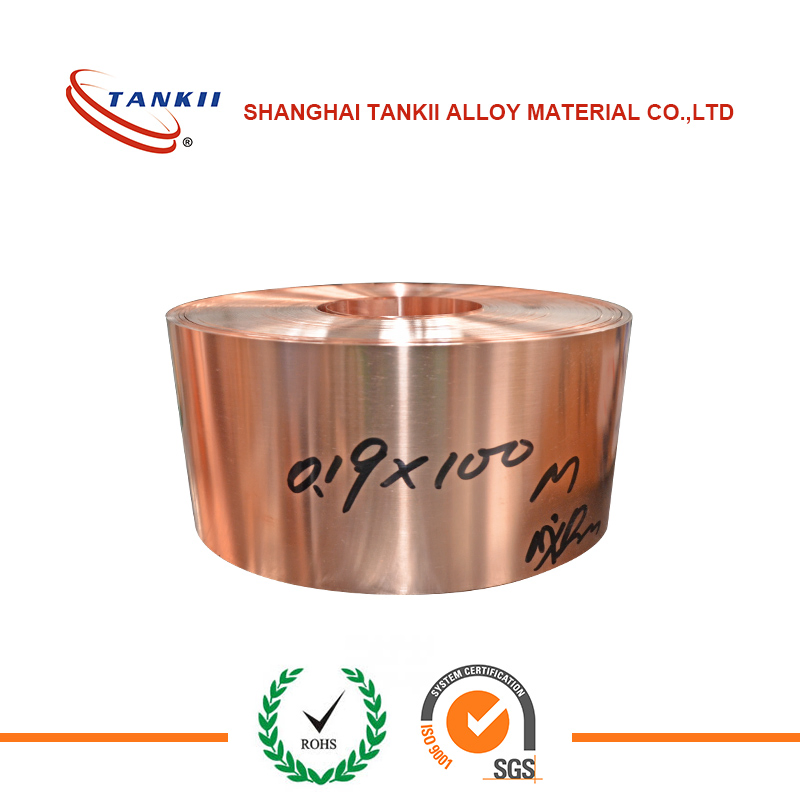

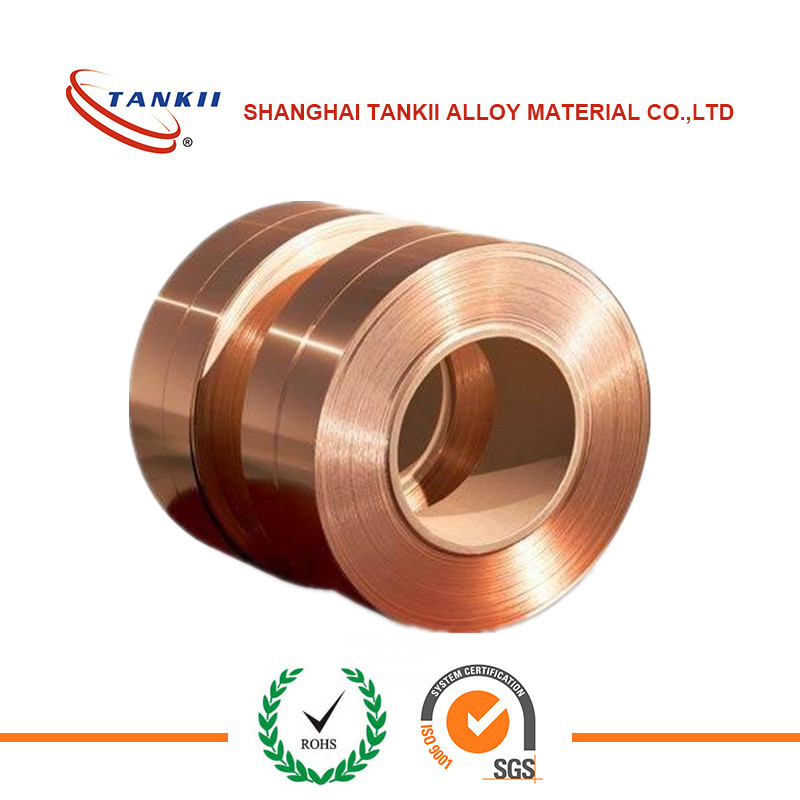

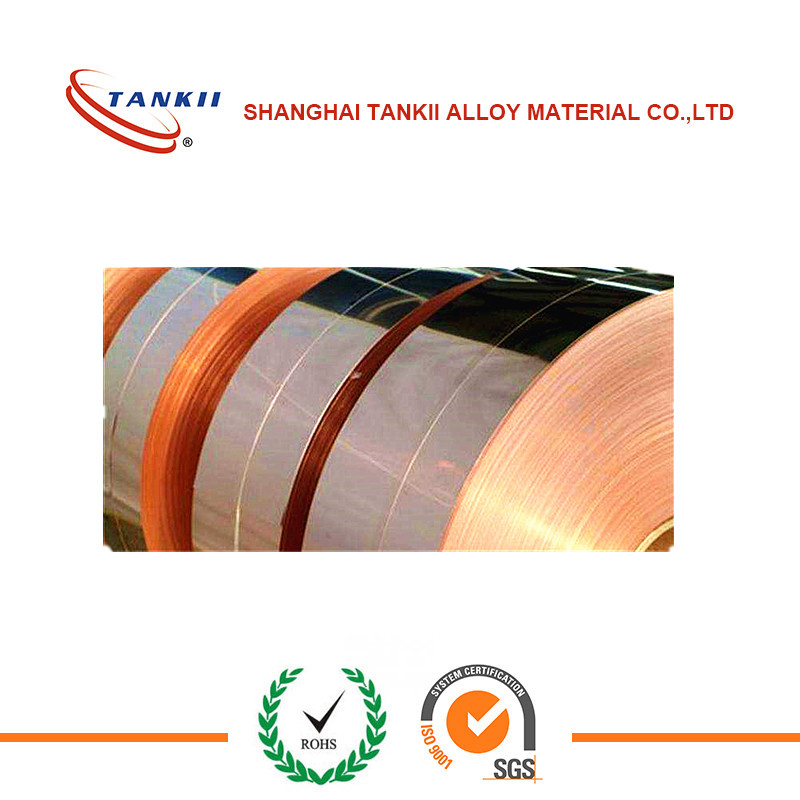

Strip / foil
Stranded wire
Sheet / plate
Features

1. High thermal conductivity

2. High corrosion resistance, especially suitable for polyoxyethylene (PVC) products mold.

3. High hardness, wear resistance and toughness, as inserts used with mould steel and aluminium can make the mold play a highly efficient, prolong the service life.

4. Polishing performance is good, can achieve high mirror surface precision and complicated shape design.

5. Good tackiness resistance, easy to welding with other metal, easy to machining, there is no need additional heat treatment.

PRODUCT APPLICATION

Applications

Beryllium Copper is widely used in mold core, injection mold insert, mold cavity, corrosion resistant die, die casting

machine head, watering the crossing thimble, the punch mould parts, hot runner system such as accessories,

stretching die, casting mould, die-casting mould, and corrosion resistant wear resistant parts such as bearings,

worm gear etc.
