Product Description

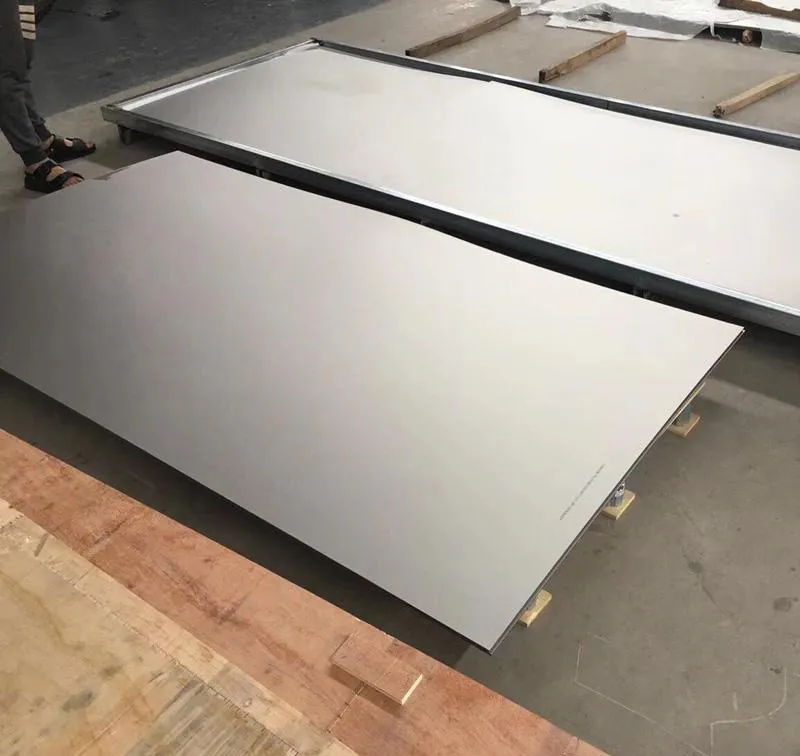

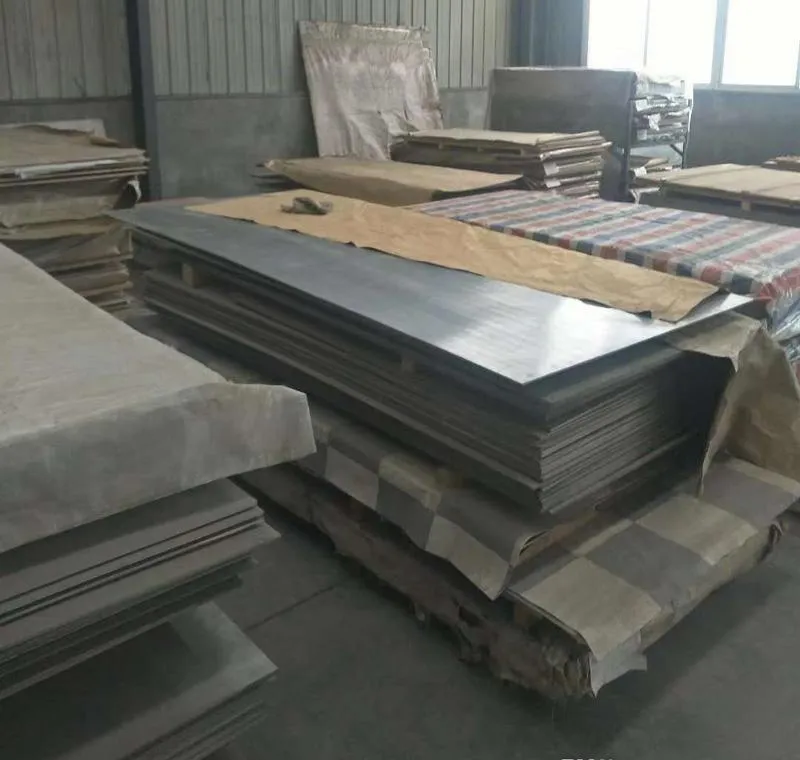

GR5 Titanium Sheet (6AL - 4V), Grade5 titanium plate, 6AL4V titanium sheet, cutting titanium sheet, titanium plate for aerospace
Titanium Grade 5 is the aerospace grade and is not cold formable, so it is used more often when no forming is needed. Grade 5 alloy will have ultimate tensile strength at and above 895 Mpa.
Plate is often used with the goal to get really close to the final dimensions of the part being made. The material is worked to the closest size of the desired part and the grain structure of the finished piece is more homogenous. Titanium sheet is often used as a heat barrier because titanium stops the heat and does not transfer to the rest of the assembly. Titanium plate and sheet have ballistic properties making it great for driver protection in racing.
Applications of product
• Oil drilling equipments
• Industrial precision instruments standard parts
• Medical instruments standard parts
• Aircraft engine
• Machinery, electroplating equipment
• Titanium wind leaf in power used
Mechanical Properties
Grade | Tensile strength, MPa (min) | Yield strength, MPa (min) | Elongation, %(min) | Reduction of Area, %(min) |
Gr5 | 895 | 828 | 10 | - |
Chemical Component
Grade | Ti | Al | V | N, max | C, max | H, max | Fe, max | O, max | Residuals | |
Max each | Max total | |||||||||
Gr5 | Main | 5.5-6.75 | 3.5-4.5 | 0.05 | 0.08 | 0.015 | 0.40 | 0.20 | 0.1 | 0.4 |
