Product Description

Titanium Plates, coil, Sheet, and Foil

We provide high quality titanium plates, titanium sheet, and titanium foil directly from China according to customer's requirements. Sheets and plates made of molybdenum and nickel are also available.

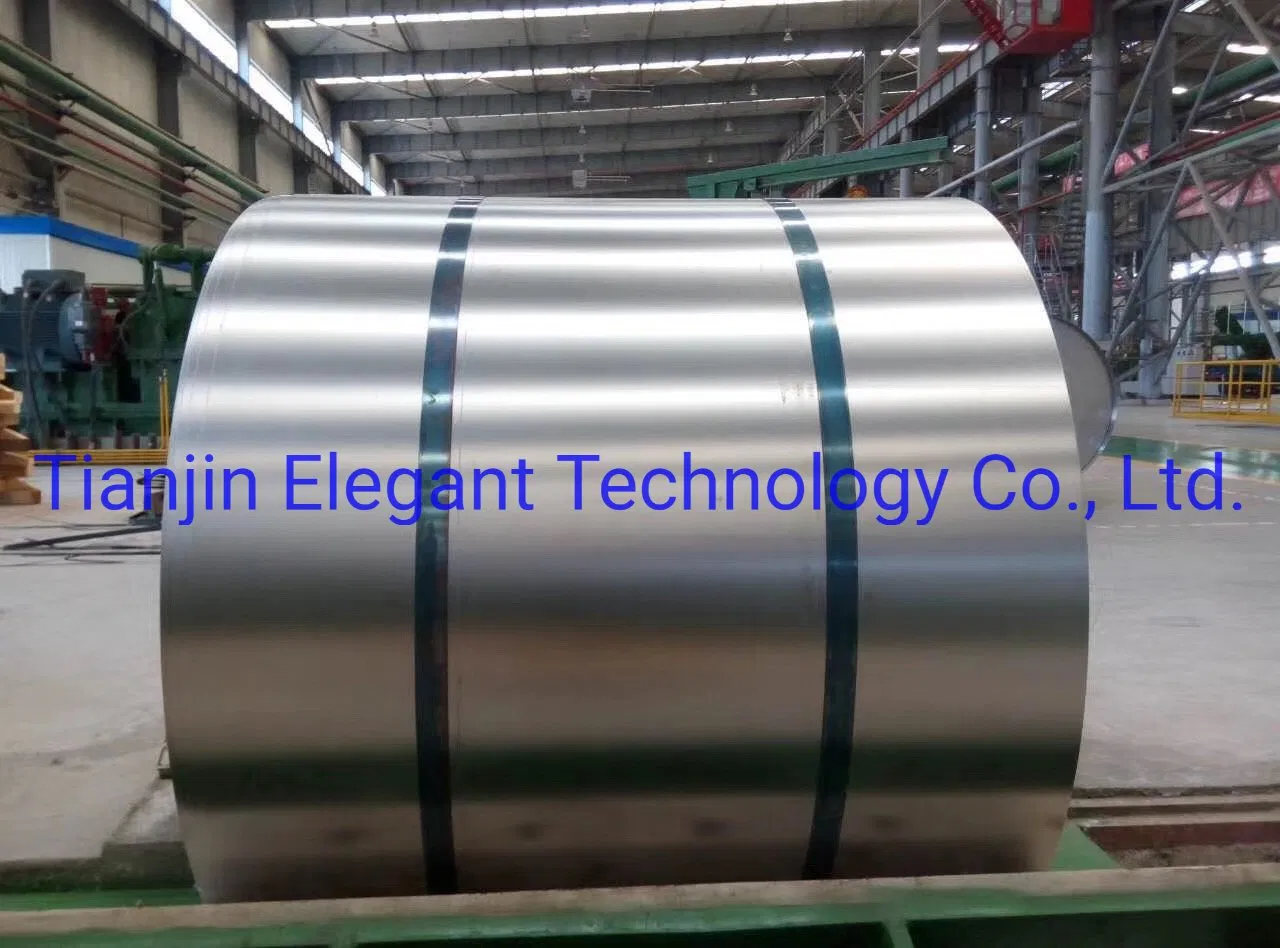

Hot rolling titanium plates/ coils are good material for further processing such as petroleum, chemical, electric power, medicine and environmental protection, and other various fields. Complete in specifications, variety of products, breadth, long Ti-coils, good strip shape, high precision of specification, stable in performance, punctual delivery, four forms: Ti-plates, Ti- coils, Ti-sheets, Ti-foils. We have many different kinds of delivery status such as hot rolling, annealing, shot blasting, acid picking.
Cold rolling titanium plates/ coils are widely used in petroleum, chemical, electric power, medicine and environmental protection, and other various fields. Complete in specifications, variety of products breath, good in shape, high precision of specification, surface cleanliness and consistency, homogeneous in organization.
Grades:
ASTM GR.5, ASTM GR.7, ASTM GR.9, ASTM F136, TC4, TA8, TA9, Ti 15-3-3-3
TA-0, TA1-A, TA1, TA2, ASTM GR.1, ASTM GR.2, ASTM ERT-1, ASTM ERT-2, ASTM F6

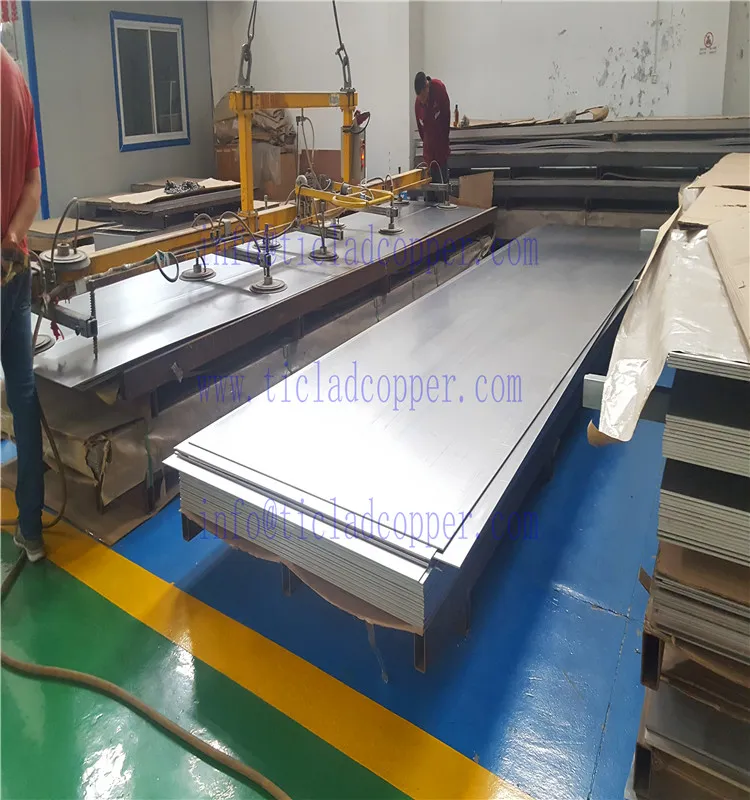

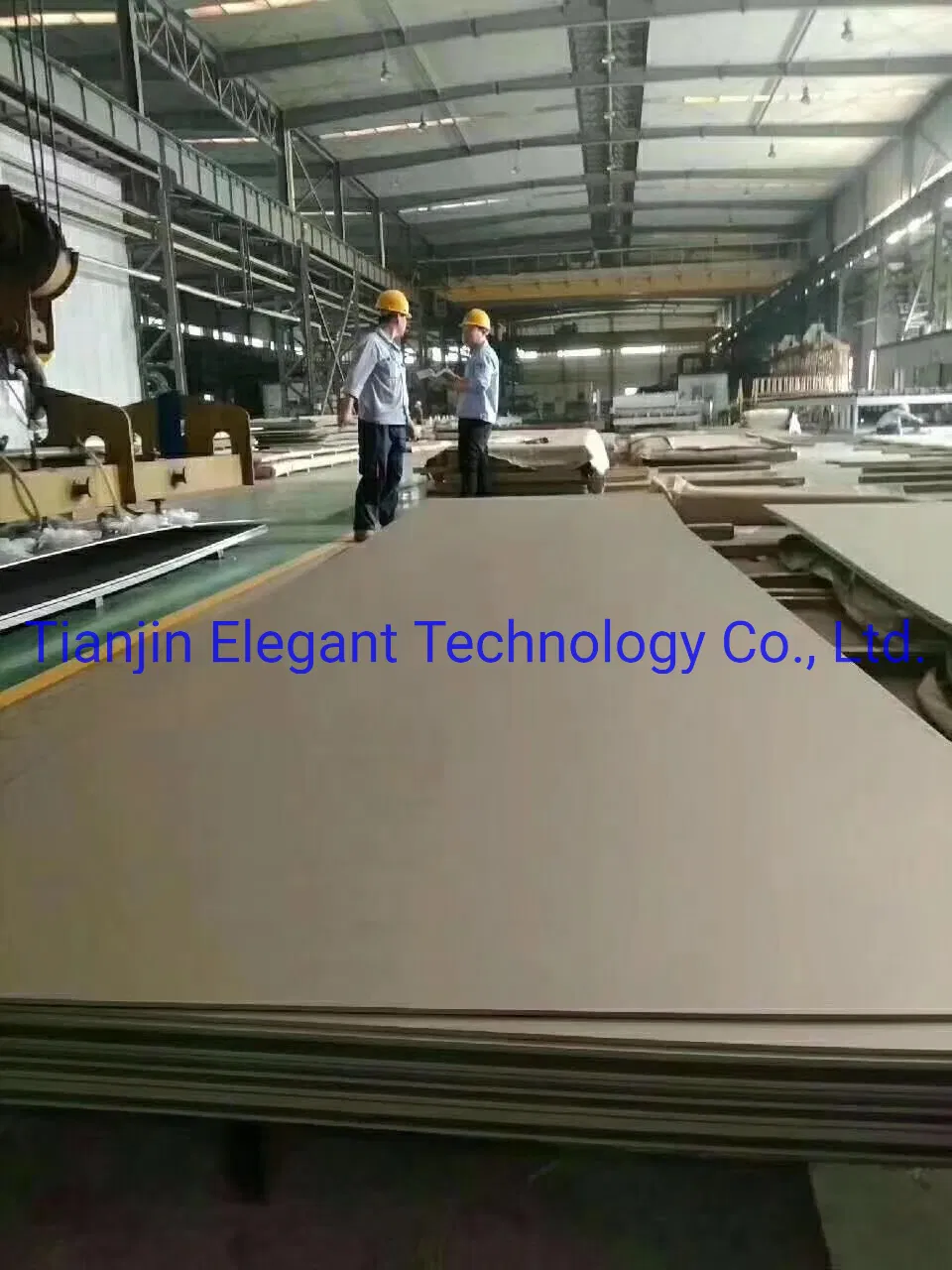

Titanium Plates
Manufactured according to ASTM B265. Custom cuttings on demand.

Materials	Manufacturing Process	Processing State	Standards
TA1, 2, 9, 10, Gr1, 2, 3, 7, 11, 12, 17	Hot rolled (3.0mm < thickness < 60mm)	Hot rolled, annealed Shot blasting Acid picking	ASTM B265-95 GB/T3261-2007
TA1, 2, 9, 10, Gr1, 2, 3, 7, 11, 12, 17	Cold rolled (0.2mm < thickness < 4.0mm)	Cold rolled, annealed smooth	ASTM B265-95 GB/T3261-2007
TC1, TC2, TC4 Gr5, Gr23	Hot rolled (4.1mm < thickness < 60mm)	Hot rolled, annealed Shot blasting Acid picking	ASTM B265-95 GB/T3261-2007
TC1, TC2, TC4 Gr5, Gr23	Cold rolled (0.2mm < thickness < 4.0mm)	Cold rolled, annealed smooth	ASTM B265-95 GB/T3261-2007
Dimensions (TWL) [mm] Actual dimensions depend on the material used.	(0.3-0.5) x ≤600 x ≤1500 (0.6-0.8) x ≤800 x ≤1200 (0.9-6.0) x ≤1000 x ≤3000 (5.0-8.0) x ≤2500 x ≤4000 (8.0-60) x ≤2800 x ≤12000

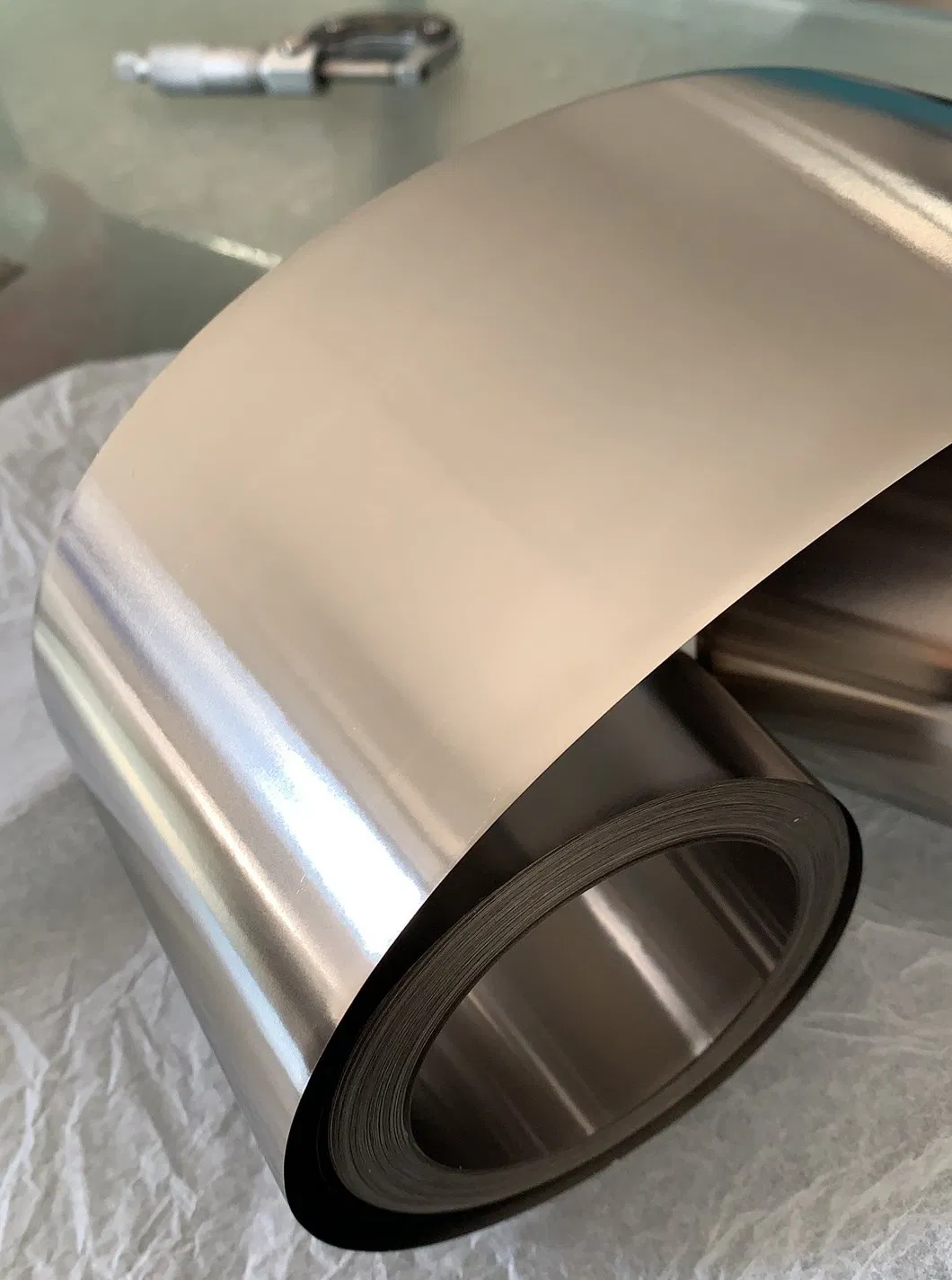

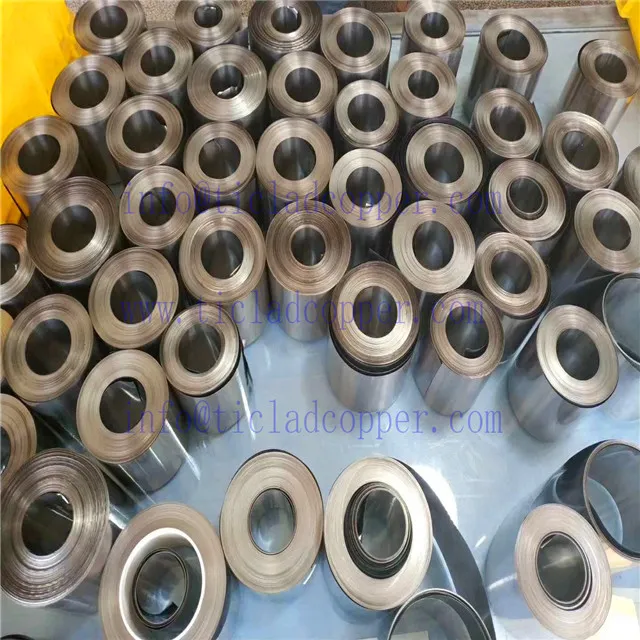

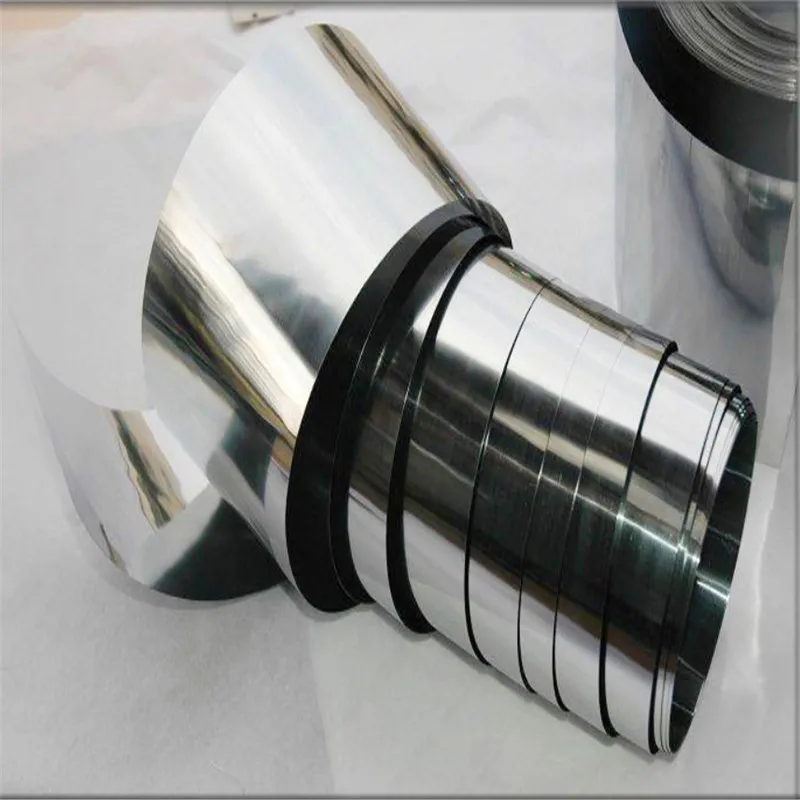

Titanium Foil , Titanium strip

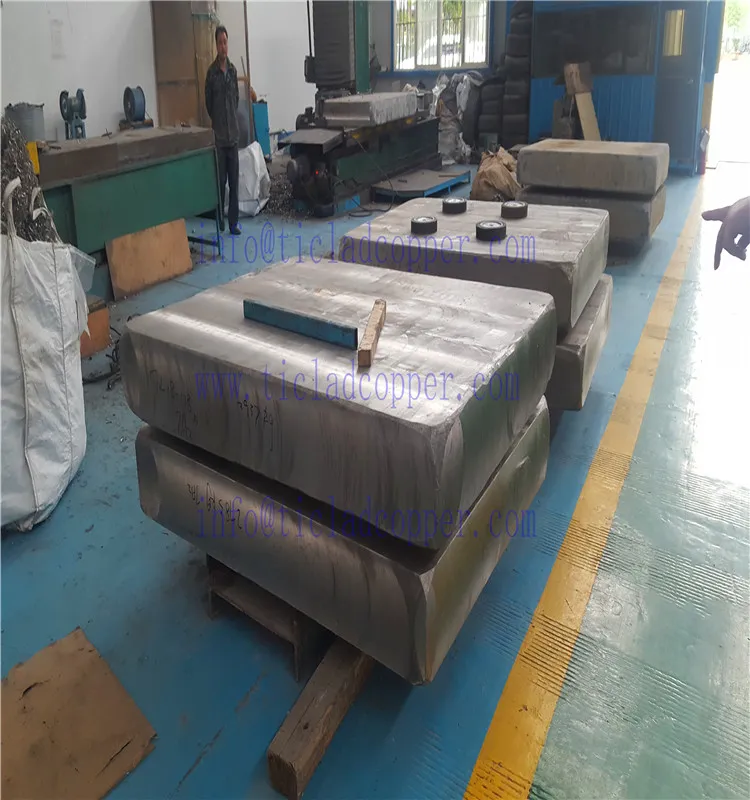

Gr1/Gr2/Gr5 ASTM B381 Forged Titanium Plate

Item Name	Titanium Foil , Titanium strip
Grade	Titanium Gr1,Gr2, Gr5
Standard	ASTM B265,ASME SB265,AMS4911,ASTM F136,ASTM F67,
Surface	Bright
Shape	In coil
Production Method	hot/cold rolled,Annealed
Specification(mm)	Thickness	0.025-0.8 mm Regular thickness: 0.05mm, 0.08mm, 0.1mm, 0.2mm, 0.3mm, 0.4mm, 0.5mm; custom-tailor thickness: 0.008mm, 0.01mm, 0.02mm
	Width	10-500 mm
Features	1.Low Density and High Strength 2..Excellent Corrosion Resistance 3.Good resistance to effect of heat 4.Excellent Bearing to cryogenic property 5.Nonmagnetic and Non-toxic 6.Good thermal properties 7.Low Modulus of Elasticity
Applications	(1) electronics fields (2) chemical industry
