Q460c Q550d Q690d S69ql Bridge Building High Strength Steel Plate
Product Details: Product NameQ460C Q550D Q690D S69QL bridge building high strength steel plateMaterialAlloy SteelGradecold rolled coil :SPCC,SPCC-SD,DC01,DC03,Q195,50#,65Mnhot rolled coil :A36,SS40,Q235,Q345A572GR.50, A572GR......
Send Inquiry
Product Description
Product Details:

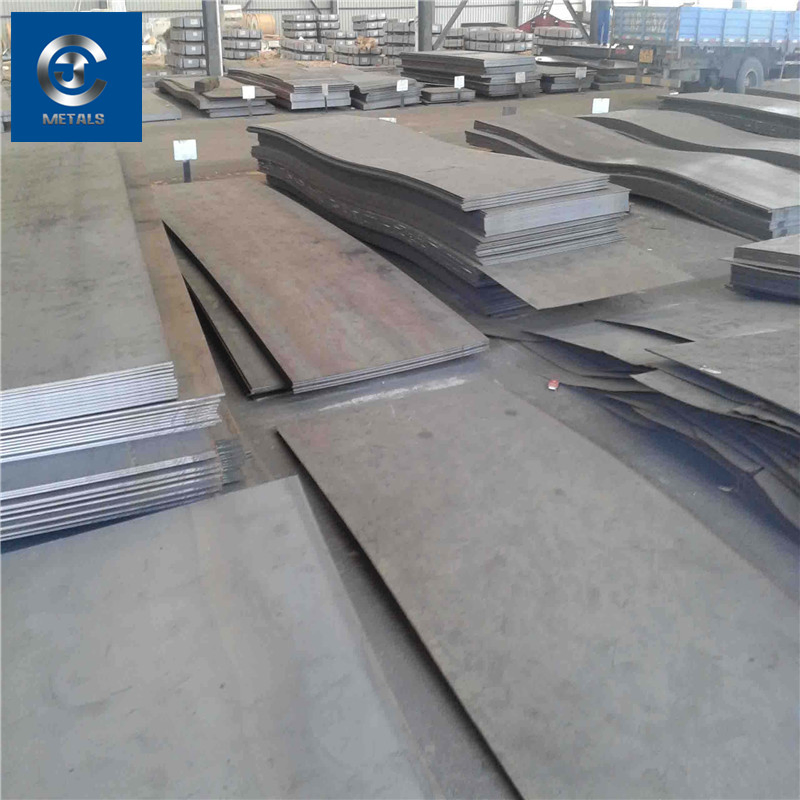

Product Show:
Detection Tools:
Factory Show:
Customer Visiting:
Product Certificate:
| Product Name | Q460C Q550D Q690D S69QL bridge building high strength steel plate |
| Material | Alloy Steel |
| Grade | cold rolled coil :SPCC,SPCC-SD,DC01,DC03,Q195,50#,65Mn hot rolled coil :A36,SS40,Q235,Q345A572GR.50, A572GR.60, SS490, SM490N/NL, S460N/NL, S355M/ML, S420M/ML, S460M/ML, S500Q/QL/QL1,S550Q/QL/QL1,S620Q/QL/QL1, S690Q/QL/QL1, S355G8+N, 350, 350L0, 350L15, Q345A, Q345B, Q345C, Q345D, Q345E, Q390A, Q390B, Q390C, Q390D, Q390E, Q420A, Q420B, Q420C, Q420D, Q420E, Q460C, Q460D, Q460E, Q500C, Q500D, Q500E, Q550C, Q550D, Q550E, Q20C, Q620D, Q620E, Q690C, Q690D, Q690E, 890D, Q890E,Q960D, Q960E, XGCFQ500D, XGCFQ500E. |
| Thickness: | 0.2-4mm or 4~60mm or 60~115mm |
| Width | 500~1500mm or 600~3000mm |
| Type | Wear-resistant steel,Weatherproof steel,Heat-resistant steel; Bridge steel plate, boiler steel plate, automobile manufacturing steel plate and pressure vessel steel plate, roof steel plate,structural steel plate,Spring steel, tool steel, structural steel, high speed steel, galvanized steel, electrical steel. |
| Surface Treatment | Drawing,Polishing, Anodizing,Coating,Galvanized,Embossing |
| Standard | ASME, ASTM, EN ,BS,GB,DIN, JIS etc |
| performance | High temperature, high pressure, low temperature, corrosion resistance |
| Production Process | Hot rolling/Cold rolling |
| Application | 1.Bridge Plate, 2.Boiler Plate, 3.Shipbuilding Plate 4.Automobile Plate, 5.Armor Plate, 6.Car Steel Plate 7.Roof Steel Plate 8.Structural Steel Sheet 9.Electrical Steel Sheet (Silicon Steel Sheet) 10.Spring Steel Sheet 11.Pressure Vessel Plate 12.Multilayer High Pressure Vessel Plate 13.Heat Resistant Steel Plate, 14.Checkered Steel Plate |
| Packaging | 1. cases packed in wooden cases 2. paper packaging 3. plastic packing 4. foam packaging Packaging according to customer requirements or products |
| Delivery | 7-25days orAccording to the product |
| Payment | L/C,D/A,D/P,T/T,Western Union,MoneyGram,According to customer requirements payments for offline orders. |
| Port | Shanghai,Ningbo,Shenzhen,Tianjing,Xianggang,Xiamen,Fuzhou, Etc.. |
| Comparison Table Of Domestic And Foreign Alloy Grade | |||||||
| Material | China | Former Soviet Union | America | England | Japan | French | Germany |
| GB | ГOCT | ASTM | BS | JIS | NF | DIN | |
| High Quality Carbon Structural Steel | 08F | 08KП | 1006 | 040A04 | S09CK | C10 | |
| 8 | 8 | 1008 | 045M10 | S9CK | C10 | ||
| 10F | 1010 | 040A10 | XC10 | ||||
| 10 | 10 | 10,101,012 | 045M10 | S10C | XC10 | C10,CK10 | |
| 15 | 15 | 1015 | 095M15 | S15C | XC12 | C15,CK15 | |
| 20 | 20 | 1020 | 050A20 | S20C | XC18 | C22,CK22 | |
| 25 | 25 | 1025 | S25C | CK25 | |||
| 30 | 30 | 1030 | 060A30 | S30C | XC32 | ||
| 35 | 35 | 1035 | 060A35 | S35C | XC38TS | C35,CK35 | |
| 40 | 40 | 1040 | 080A40 | S40C | XC38H1 | ||
| 45 | 45 | 1045 | 080M46 | S45C | XC45 | C45,CK45 | |
| 50 | 50 | 1050 | 060A52 | S50C | XC48TS | CK53 | |
| 55 | 55 | 1055 | 070M55 | S55C | XC55 | ||
| 60 | 60 | 1060 | 080A62 | S58C | XC55 | C60,CK60 | |
| 15Mn | 15Г | 10,161,115 | 080A17 | SB46 | XC12 | 14Mn4 | |
| 20Mn | 20Г | 10,211,022 | 080A20 | XC18 | |||
| 30Mn | 30Г | 10,301,033 | 080A32 | S30C | XC32 | ||
| 40Mn | 40Г | 10,361,040 | 080a40 | S40C | 40M5 | 40Mn4 | |
| 45Mn | 45Г | 10,431,045 | 080A47 | S45C | |||
| 50Mn | 50Г | 10,501,052 | 030A52 080M50 | S53C | XC48 | ||
| Alloy Structural Steel | 20Mn2 | 20Г 2 | 13,201,321 | 150M19 | SMn420 | 20Mn5 | |
| 30Mn2 | 30Г 2 | 1330 | 150M28 | SMn433H | 32M5 | 30Mn5 | |
| 35Mn2 | 35Г 2 | 1335 | 150M36 | SMn438(H) | 35M5 | 36Mn5 | |
| 40Mn2 | 40Г 2 | 1340 | SMn443 | 40M5 | |||
| 45Mn2 | 45Г 2 | 1345 | SMn443 | 46Mn7 | |||
| 50Mn2 | 50Г 2 | ~55M5 | |||||
| 20MV | 20MnV6 | ||||||
| 35SiMn | 35CГ | En46 | 37MnSi5 | ||||
| 42SiMn | 35CГ | En46 | 46MnSi4 | ||||
| 40B | TS14B35 | ||||||
| 45B | 50B46H | ||||||
| 40MnB | 50B40 | ||||||
| 45MnB | 50B44 | ||||||
| 15Cr | 15X | 5115 | 523M15 | SCr415(H) | 12C3 | 15Cr3 | |
| 20Cr | 20X | 5120 | 527A19 | SCr420H | 18C3 | 20Cr4 | |
| 30Cr | 30X | 5130 | 530A30 | SCr430 | 28Cr4 | ||
| 35Cr | 35X | 5132 | 530A36 | SCr430(H) | 32C4 | 34Cr4 | |
| 40Cr | 40X | 5140 | 520M40 | Scr440 | 42C4 | 41Cr4 | |
| 45Cr | 45X | 51,455,147 | 434A99 | SCr445 | 45C4 | ||
| 38CrSi12CrMo | 38XC/12XM | 620CrB | 12CD4 | 13CrMo44 | |||
| 15CrMo | 15XM | A-387CrB | 1653 | STC42/STT42/ STB42 | 12CD4 | 16CrMo44 | |
| 20CrMo | 20XM | 41,194,118 | CDS12 CDS110 | STC42/STT42/ STB42 | 18CD4 | 20CrMo44 | |
| 25CrMo | 4125 | En20A | 25CD4 | 25CrMo4 | |||
| 30CrMo | 30XM | 4130 | 1717COS110 | SCM420 | 30CD4 | ||
| 42CrMo | 4140 | 708A42 708M40 | 42CD4 | 42CrMo4 | |||
| 35CrMo | 35XM | 4135 | 708A37 | SCM3 | 35CD4 | 34CrMo4 | |
| 12CrMoV | 12XMФ | ||||||
| 12Cr1MoV | 12X1MФ | 13CrMoV42 | |||||
| 25Cr2Mo1VA | 25X2M1ФA | ||||||
| 20CrV | 20XФ | 6120 | 22CrV4 | ||||
| 40CrV | 40XФA | 6140 | 42CrV6 | ||||
| 50CrV | 50XФA | 6150 | 735A30 | SUP10 | 50CV4 | 50CrV4 | |
| 15CrMn | 15XГ,18XГ | ||||||
| 20CrMn | 20XГ CA | 5152 | 527A60 | SUP9 | |||
| 30CrMnSiA | 30XГ CA | ||||||
| 40CrNi | 40XH | 3140H | 640M40 | SNC236 | 40NiCr6 | ||
| 20CrNi3A | 20XH3A | 3316 | 20NC11 | 20NiCr14 | |||
| 30CrNi3A | 30XH3A | 3325/ 3330 | 653M31 | SNC631H SNC631 | 28NiCr10 | ||
| 20MnMoB | 80B20 | ||||||
| 38CrMoA1A | 38XMIOA | 905M39 | SACM645 | 40CAD6.12 | 41CrA1Mo07 | ||
| 40CrNiMoA | 40XHMA | 4340 | 871M40 | SNCM439 | 40NiCrMo22 | ||
| Spring Steel | 60 | 60 | 1060 | 080A62 | S58C | XC55 | C60 |
| 85 | 85 | C1085/ 1084 | 080A86 | SUP3 | |||
| 65Mn | 65Г | 1566 | |||||
| 55Si2Mn | 55C2Г | 9255 | 250A53 | SUP6 | 55S6 | 55Si7 | |
| 60Si2MnA | 60C2Г A | 9260/ 9260H | 250A61 | SUP7 | 61S7 | 65Si7 | |
| Rolling Bearing Steel | GCr9 | ШХ9 | Е51100/ 51100 | SUJ1 | 100С5 | 105Сг4 | |
| GCr9SiMn | SUJ3 | ||||||
| GCr15 | ШХ15 | Е52100 | 534А99 | SUJ2 | 100С6 | 100Cr6 | |
| 52100 | |||||||
| GCr15SiMn | ШХ15СГ | 100CrMn6 | |||||
| Free Cutting Steel | Y12 | A12 | С1109 | SUM12 | |||
| Y15 | В1113 | 220М07 | SUM22 | 10S20 | |||
| Y20 | A20 | С1120 | SUM32 | 20F2 | 22S20 | ||
| Y30 | A30 | С1130 | SUM42 | 35S20 | |||
| Y40Mn | А40Г | С1144 | 225М36 | 45MF2 | 40S20 | ||
| Wear Resistant Steel | ZGMn13 | 116Г 13Ю | SCMnH11 | Z120M12 | X120Mn12 | ||
| Carbon Tool Steel | T7 | y7 | W1-7 | SK7.SK6 | C70W1 | ||
| T8 | у8 | SK6.SK5 | |||||
| T8A | у8А | W1-0.8C | 1104Y175 | C80W1 | |||
| T8Mn | у8Г | SK5 | |||||
| T10 | у10 | W1-1.0C | D1 | SK3 | |||
| T12 | у12 | W1-1.2C | D1 | SK2 | Y2 120 | C125W | |
| T12A | у12А | W1-1.2C | ХС 120 | C125W2 | |||
| T13 | у13 | SK1 | Y2 140 | C135W | |||
| Alloy Tool Steel | 8MnSi | C75W3 | |||||
| 9SiCr | 9XC | BH21 | 90CrSi5 | ||||
| Cr2 | X | L3 | 100Сгб | ||||
| Cr06 | 13X | W5 | SKS8 | 140Cr3 | |||
| 9Cr2 | 9X | L | 100Сгб | ||||
| W | B1 | F1 | BF1 | SK21 | 120W4 | ||
| Сг12 | X12 | D3 | BD3 | SKD1 | Z200C12 | X210Cr12 | |
| Cr12MoV | X12M | D2 | BD2 | SKD11 | Z200C12 | X165CrMoV46 | |
| 9Mn2V | 9Г 2Ф | 2 | 80M80 | 90MnV8 | |||
| 9CrWMn | 9XBГ | 1 | SKS3 | 80M8 | |||
| CrWMn | XBГ | 7 | SKS31 | 105WC13 | 105WCr6 | ||
| 3Cr2W8V | ЗХ2В8Ф | H21 | BH21 | SKD5 | X30WC9V | X30WCrV93 | |
| 5CrMnMo | 5XГ M | SKT5 | 40CrMnMo7 | ||||
| 5CrNiMo | 5XHM | L6 | SKT4 | 55NCDV7 | 55NiCrMoV6 | ||
| 4Cr5MoSiV | 4Х5МФС | H11 | BH11 | SKD61 | Z38CDV5 | X38CrMoV51 | |
| 4CrW2Si | 4XB2C | SKS41 | 40WCDS35-12 | 35WCrV7 | |||
| 5CrW2Si | 5XB2C | S1 | BSi | 45WCrV7 | |||
| High Speed Tool Steel | W18Cr4V | Р18 | Т1 | ВТ1 | SKH2 | Z80WCV 2018-4-1 | S18-0-1 |
| W6Mo5Cr4V2 | Р6МЗ | N2 | ВМ2 | SKH9 | Z85WDCV 06-05-04-02 | S6-5-2 | |
| W18Cr4VCo5 | Р18К5Ф2 | T4 | BT4 | SKH3 | Z80WKCV 18-05-04-01 | S18-1-2-5 | |
| W2Mo9Cr4VCo8 | M42 | BM42 | Z110DKCWV 09-08-04-02-01 | S2-10-1-8 | |||
| Heat Resistant Steel | 2Cr23Ni13 | 20X23H12 | 309/S30900 | 309S24 | SUH309 | Z15CN24.13 | |
| 2Cr25Ni21 | 20X25H20C2 | 310/S31000 | 310S24 | SUH310 | Z12CN25.20 | CrNi2520 | |
| 0Cr25Ni20 | 310/S31008 | SUS310S | |||||
| 0Cr17Ni12Mo2 | 08X17H13M2T | 316/S31600 | 316S16 | SUS316 | Z6CND17.12 | X5CrNiMo1810 | |
| 0Cr18Ni11Nb | 08X18H12E | 347/S34700 | 347S17 | SUS347 | Z6CNNb18.10 | X10CrNiNb189 | |
| 1Cr13Mo | SuS410J1 | ||||||
| 1Cr17Ni2 | 14X17H2 | 431/S43100 | 431S29 | SUS431 | Z15CN16-02 | X22CrNi17 | |
| 0Cr17Ni7A1 | 09X17H7Ю | 631/S17700 | SUS631 | Z8CNA17.7 | X7CrNiA1177 | ||
Product Show:

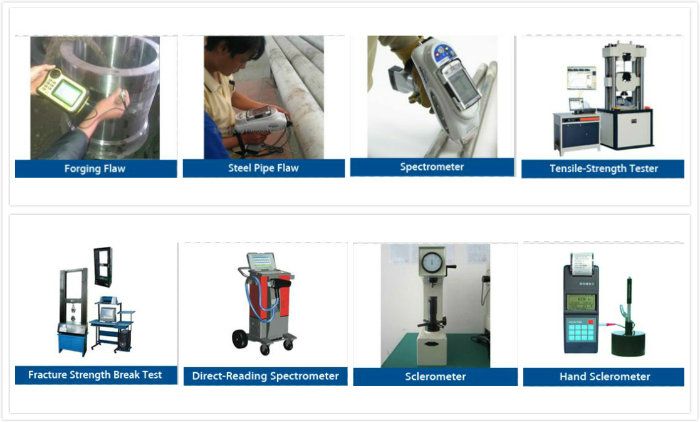

Detection Tools:

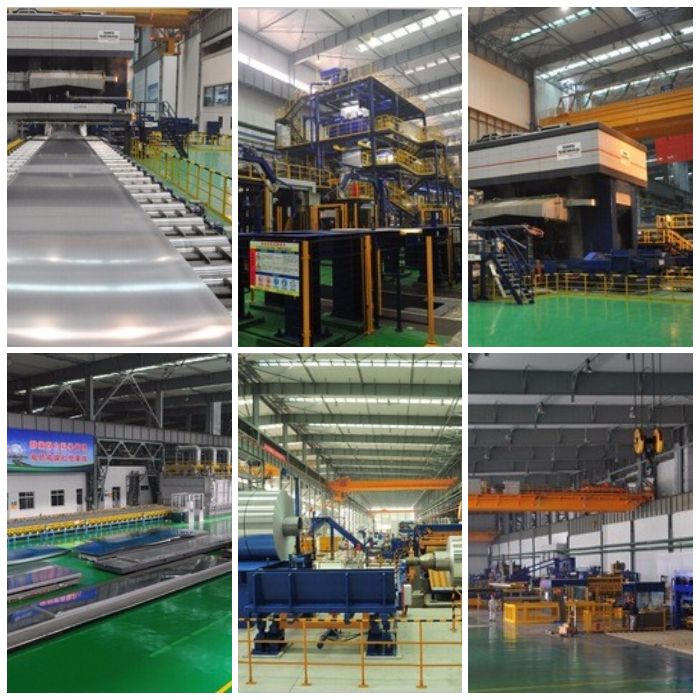

Factory Show:
Customer Visiting:

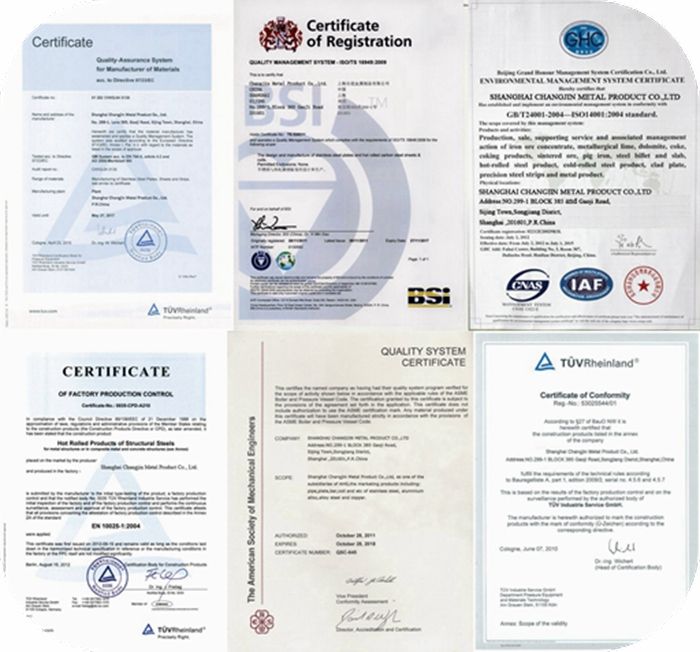

Product Certificate:
