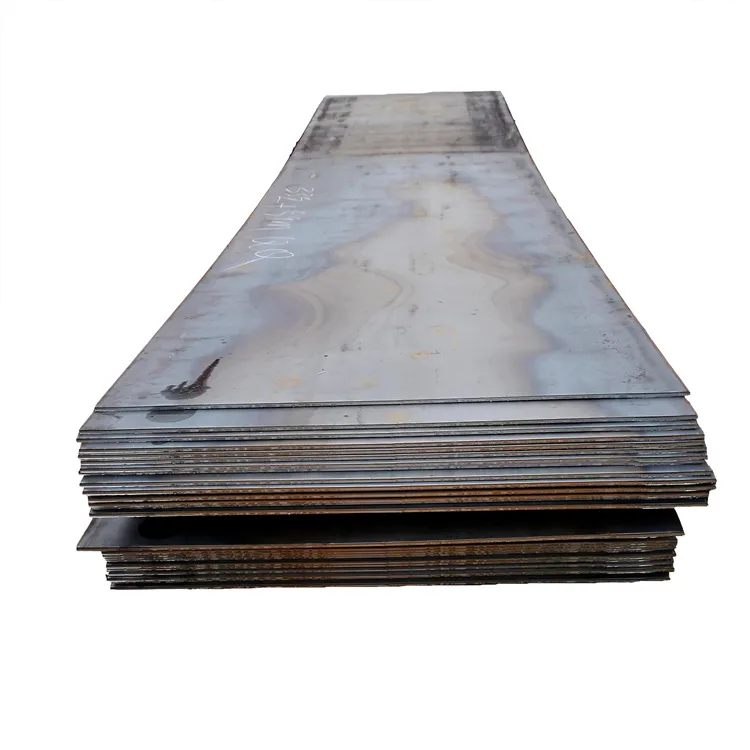

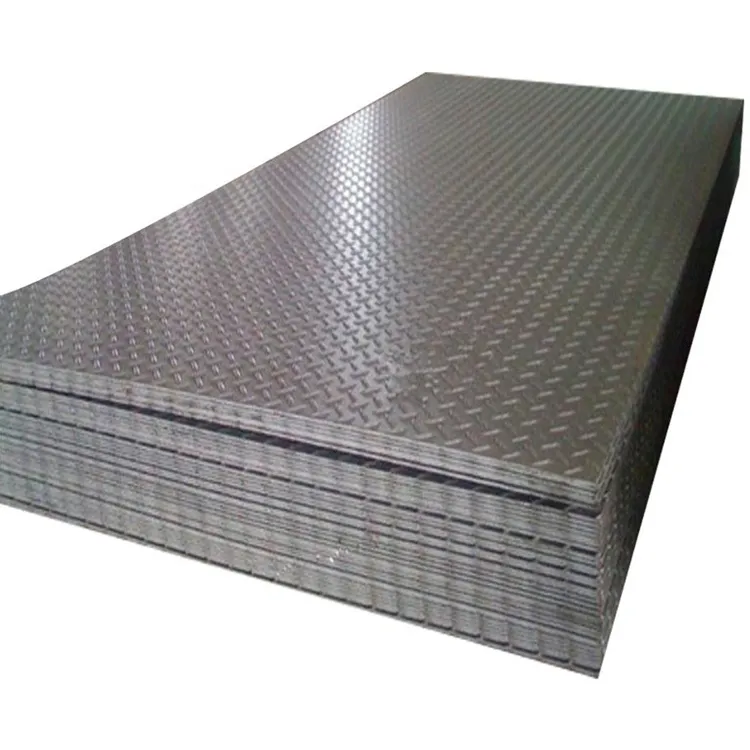

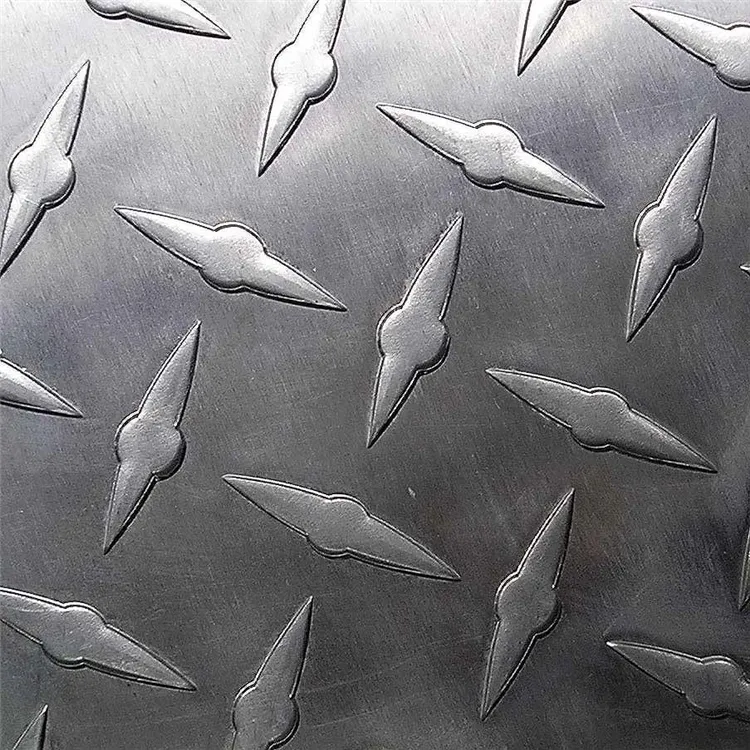

Hot Rolled Checkered Steel Coil / Sheet / Plate
Hot Rolled / Cold Rolled Steel Plate (S235J2 S235JR S355J2 S355JR )Standard: AISI ASTM SUS JIS EN DIN, Steel Plate (Hot rolled ) S235JR ,A235J0 , S235J2 , S275Jr , S275J0 , S275J2 ,S355JR ,S355J2 , S355J0 ; S355K2 , S355N , S355NL EN 1.0038 , 1.0114 , 1.0117 , 1.0044 , 1.0143 , 1.0145 , 1.0045 , 1.0......
Send Inquiry
Product Description
Hot Rolled / Cold Rolled Steel Plate (S235J2 S235JR S355J2 S355JR )
Standard: AISI ASTM SUS JIS EN DIN,
Steel Plate (Hot rolled ) S235JR ,A235J0 , S235J2 , S275Jr , S275J0 , S275J2 ,S355JR ,S355J2 , S355J0 ; S355K2 , S355N , S355NL
EN 1.0038 , 1.0114 , 1.0117 , 1.0044 , 1.0143 , 1.0145 , 1.0045 , 1.0553 , 1.0577 , 1.0596 , 1.0590 ;
GB: Q235B ,Q195 ,Q215 ,Q345B
DIN: ST12 ST13 ,ST14 ST,15 ,St-38 , DC 01 ,DC02 ,DC03 ,DC04
JIS: SS400 ,SPCC ,SPCD ,SPCE
1. Chemical composition % of the ladle analysis of grade S355JR Chemical
Nominal thickness =< 30(mm) CEV max = 0.45 | |||||||
C | Si | Mn | P | S | N | Cu | CEV |
max 0.24 | max 0.55 | max 1.6 | max 0.04 | max 0.04 | max 0.012 | max 0.55 | max 0.47 |
2. Mechanical properties of grade S355JR
Nominal thickness (mm) | to 16 | 16 - 40 | 40 - 63 | 63 - 80 | 80 - 100 | 100 - 125 |
ReH - Minimum yield strength (MPa) | 355 | 345 | 335 | 325 | 315 | 295 |
3.
Nominal thickness (mm) | 3 - 100 | 100 - 125 |
Rm -Tensile strength (MPa) | 470-630 | 450-600 |
Nominal thickness (mm) | 3 - 40 | 40 - 63 | 63 - 100 | 100 - 125 |
A - Minimum elongation Lo = 5,65 √ So (%) | 22 | 21 | 20 | 18 |
Temperature | -20 | 0 | 20 |
Notch impact test. Min. absorbed energy | 27 | 27 | 27 |
4. Application : S355 is used in almost every facet of structural fabrication.
Typical applications include:
Δ Structural steelworks: bridge components, components for offshore structures
Δ Power plants
Δ Mining and earth-moving equipment
Δ Load-handling equipment
Δ Wind tower components
5.Thickness:1.0-1000.0mm
6. Width: 1000mm, 1219mm, 1500mm, 1800. And length: Could be cut into any size as per customer's request. Usually our common sizes: 1219mm*2438mm (4*8ft), 1219mm*3048mm (4*10ft) and 1000mm*2000mm.
7. Remarks
1. Payment terms : T/T ;
2. Port of shipment : Tianjin Xingang port , Shanghai port , Qingdao port ;
3. Delivery time : 15 days ;
4. Package : Iron belt fix ,load in container or bulk ;

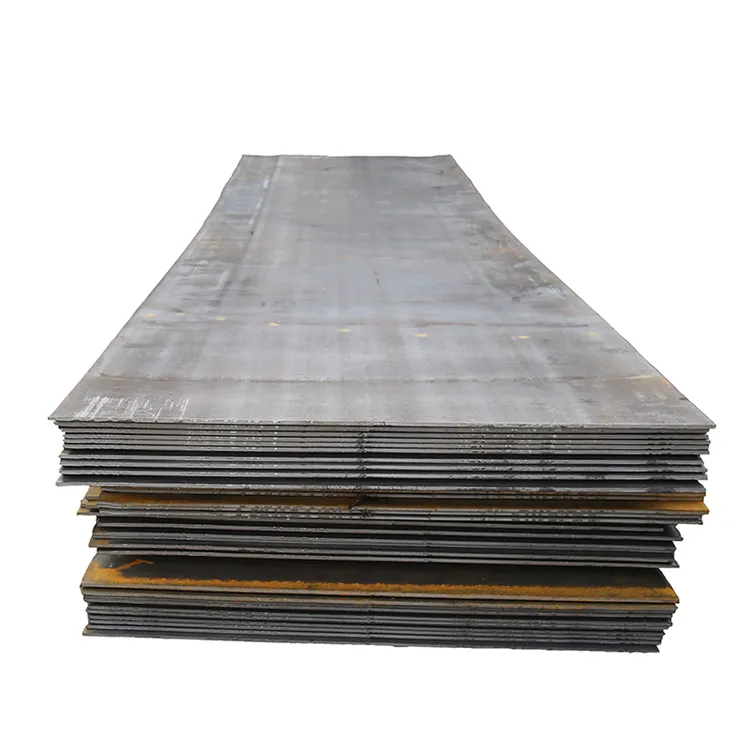

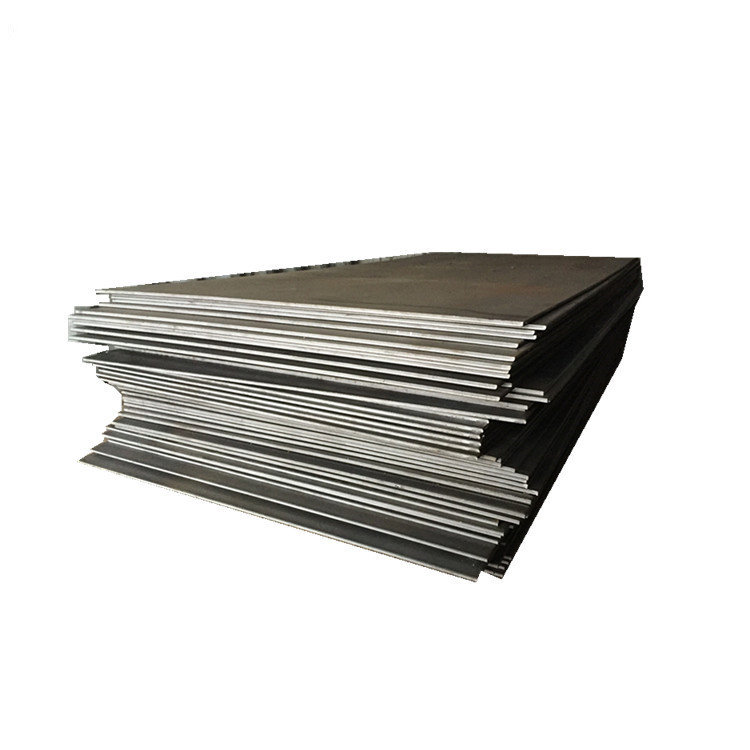

Product show
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. Or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra?
A:Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your MOQ?
A: Usually our MOQ is 5t. But if your quantity is small, the price may be a little higher. When there is a big quantity, the price will be quite lower.
Q:How to buy your ideal products?
A: You can provide us your drawing, and we will produce as your drawing. Or we can design as your requirements if you do not have a clear plan.
Q:How to pay?
A: TT and L/C are acceptable and TT will be more appreciated.30% deposit before producing, 70% balance before loading by TT.
Q:How to install after the goods destination?
A: We will provide installation instruction and video for you. Technicians will be sent to help you if it is necessary. However, the visa fee, air tickets, accommodation, wages will be provided by buyers.
Q:How to get an accurate quotation?
A:Product detail size & Length,product quantities,product material grade.
Q:What other items from this supplier?
A:Angle line structural steel, H beam, I beam, Channel. Square, rectangular, round hollow section pipe. Steel plate, checker plate, corrugated sheet, steel coil. Flat, square, round bar. Screw, Stud bolt, nut, washer, flange and other related pipe kits.
