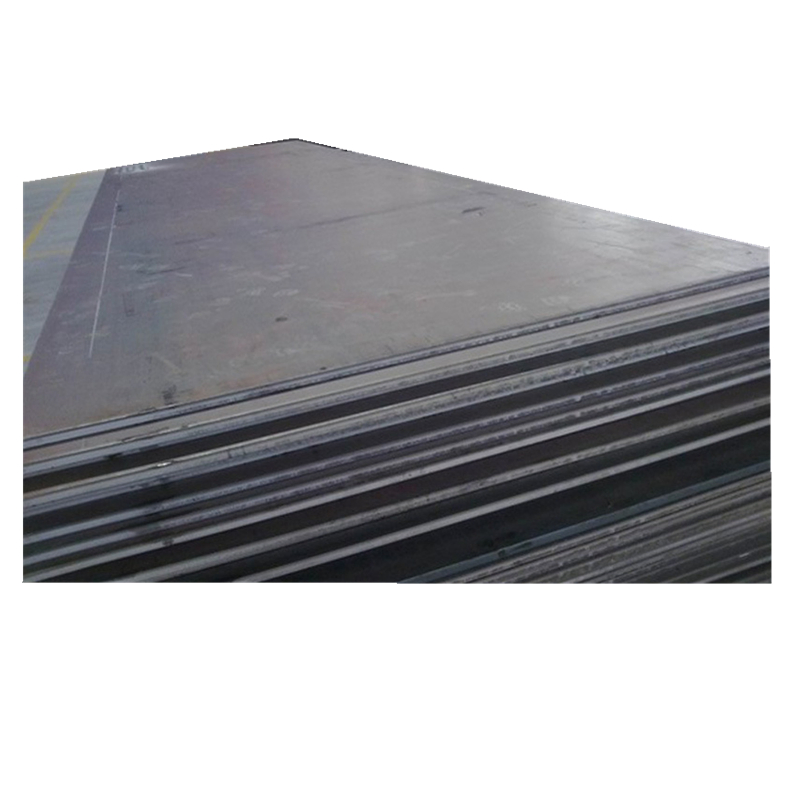

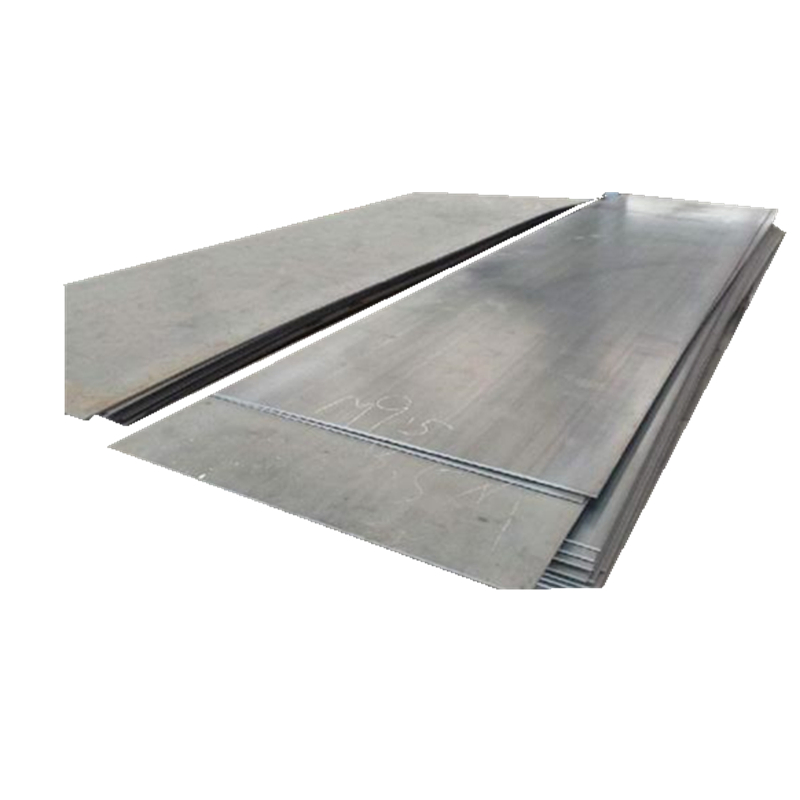

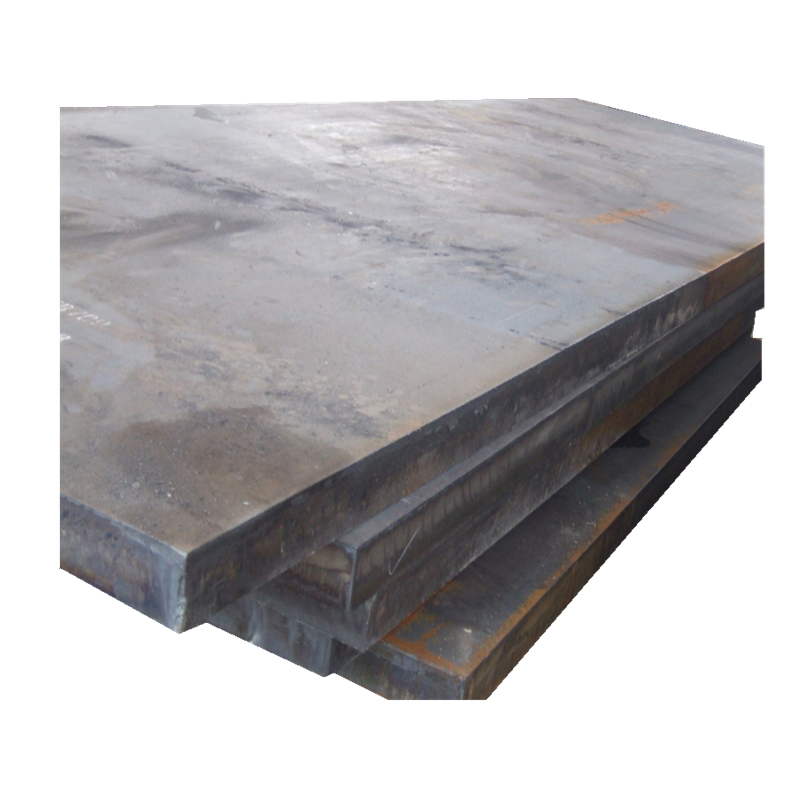

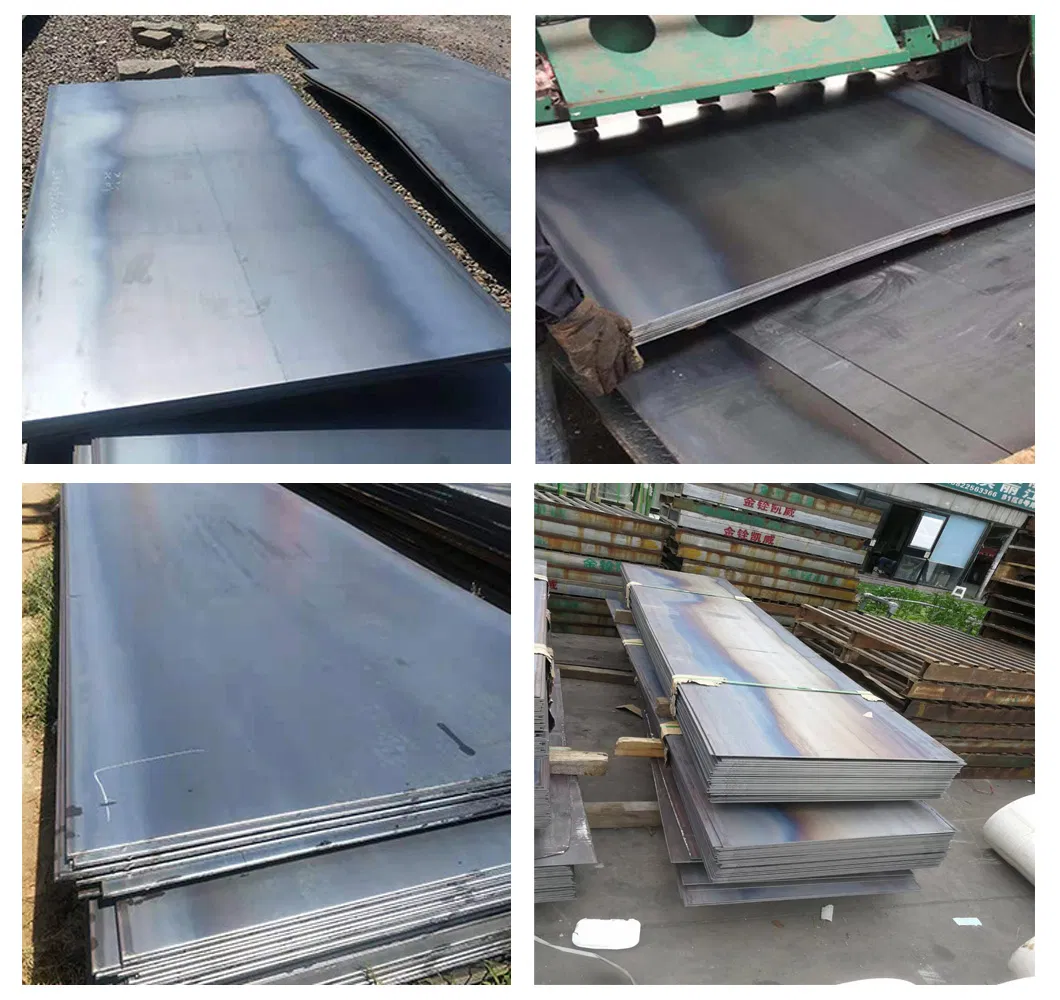

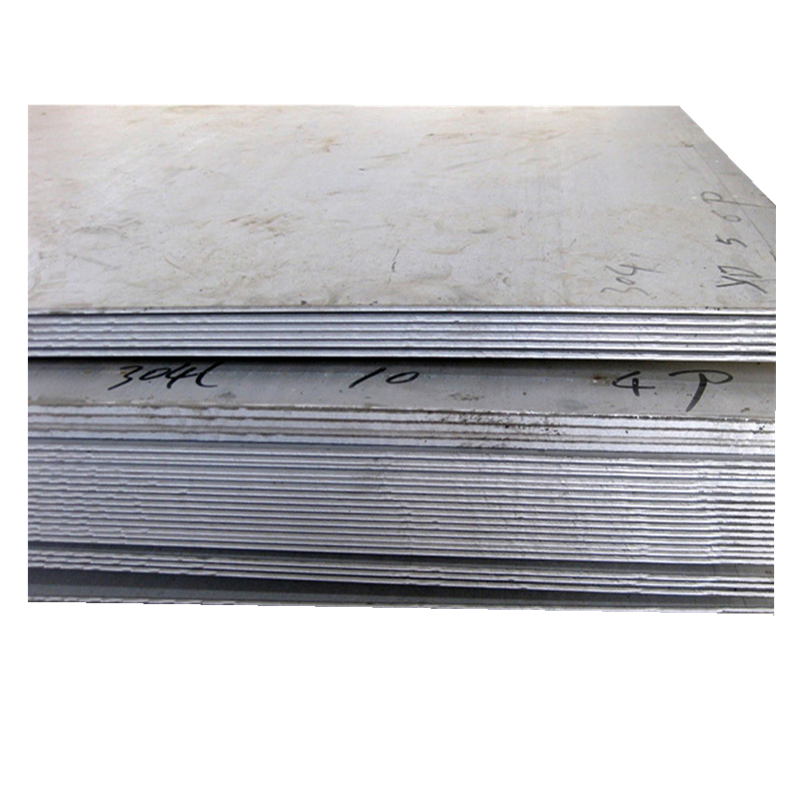

High Strength Ship Steel Sheet Ah32 Ah36 Ah40

Product Description

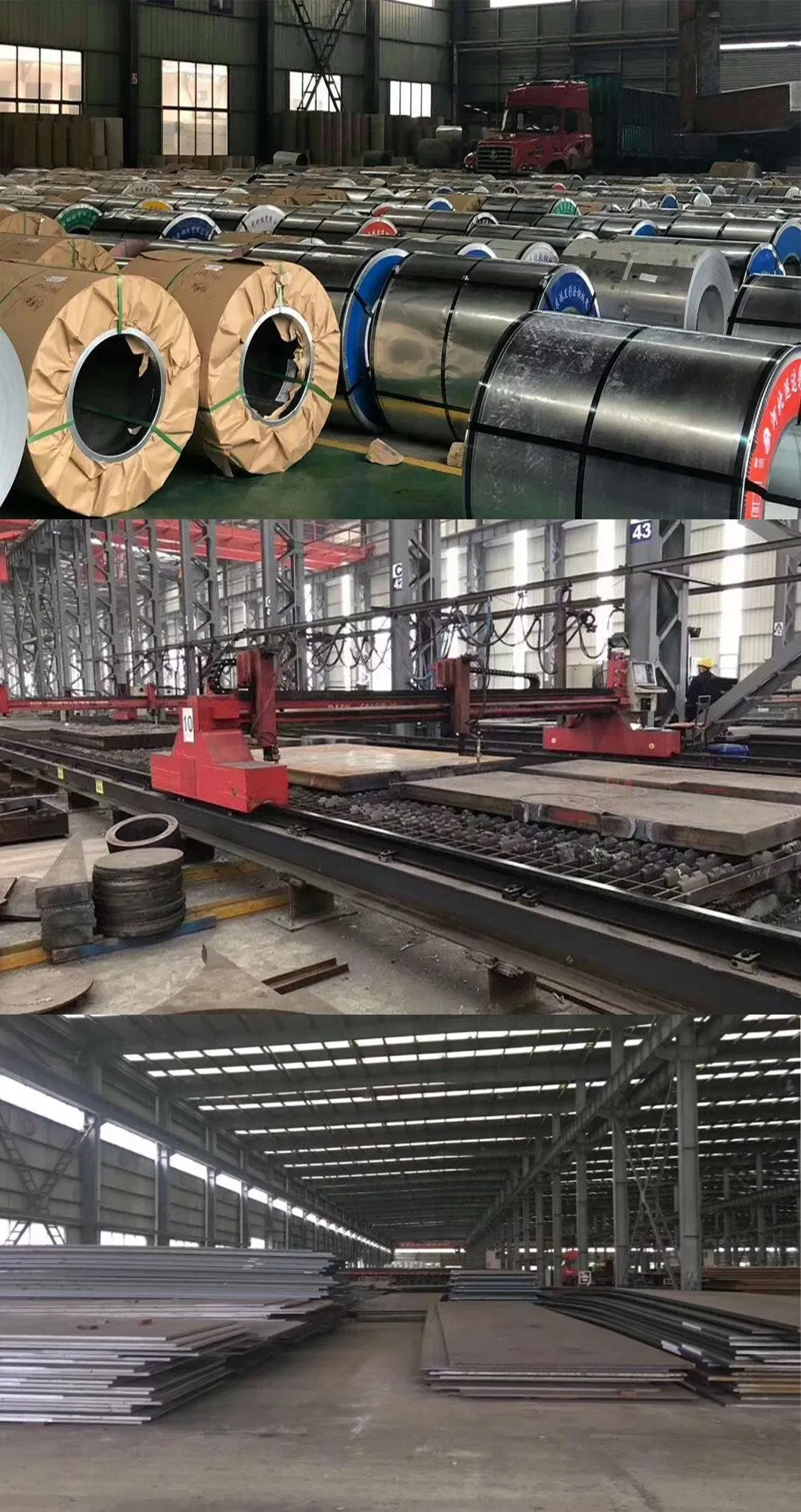

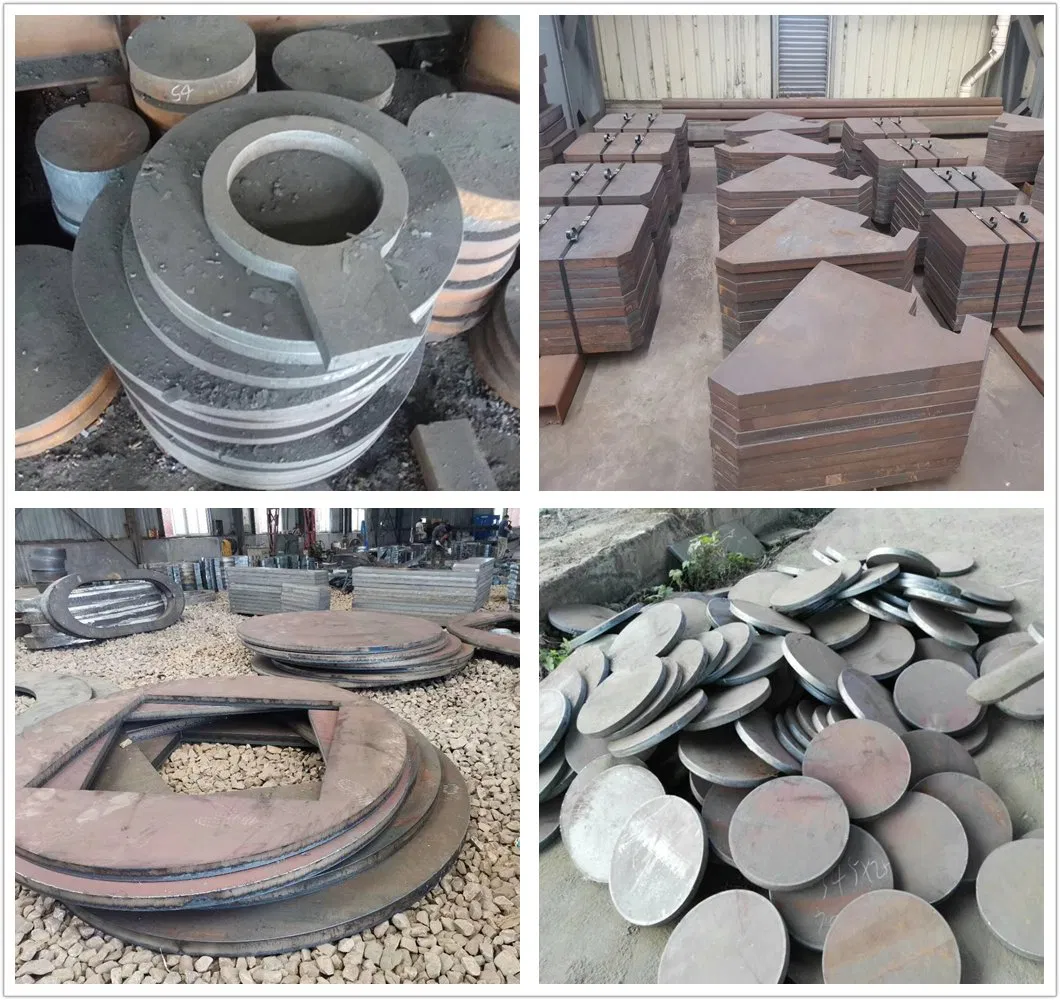

We, Qingdao Quanlong Metal Materials Co.,Ltd., are the manufacturer of ship steel plate for 15 years with 12 years export experience. We can offer the services of cutting, punching and shaping.

Products	Marine Steel Plate
Standard	CCS,ABS,GL,BV,DNV,NK,LR,KR,RINA
Grade	A/B/D/E,A32/D32/E32/F32,A36/D36/E36/F36,A40/D40/E40/F40,A131A/B/D/E/ AH32/DH32/EH32/AH36/DH36/EH36/AH40/DH40/EH40,NVA420/D420/E420, NVA460/D460/E460,NVA500/D500/E500,NVA550/D550/E550….


Thickness	2-300mm (2-100mm usually used)
Width	1000-3000mm (1000-2200mm usually used)
Length	1000-12000mm or as your request
Surface	Clean, finishing,blasting and painting according to customer requirement

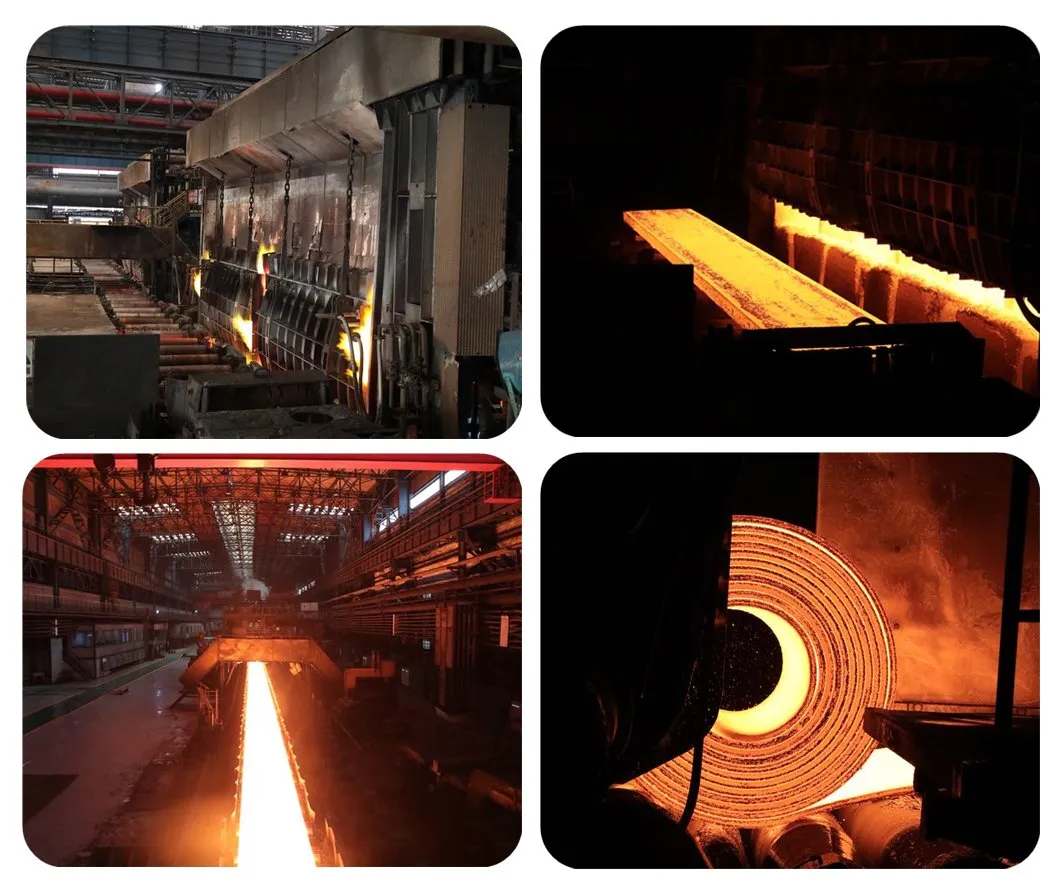

Process	Hot-rolled, Controlled rolling, Normalizing, Annealing, Tempering, Quenching, N+T, Q+T, and other delivery states are available as required
Process

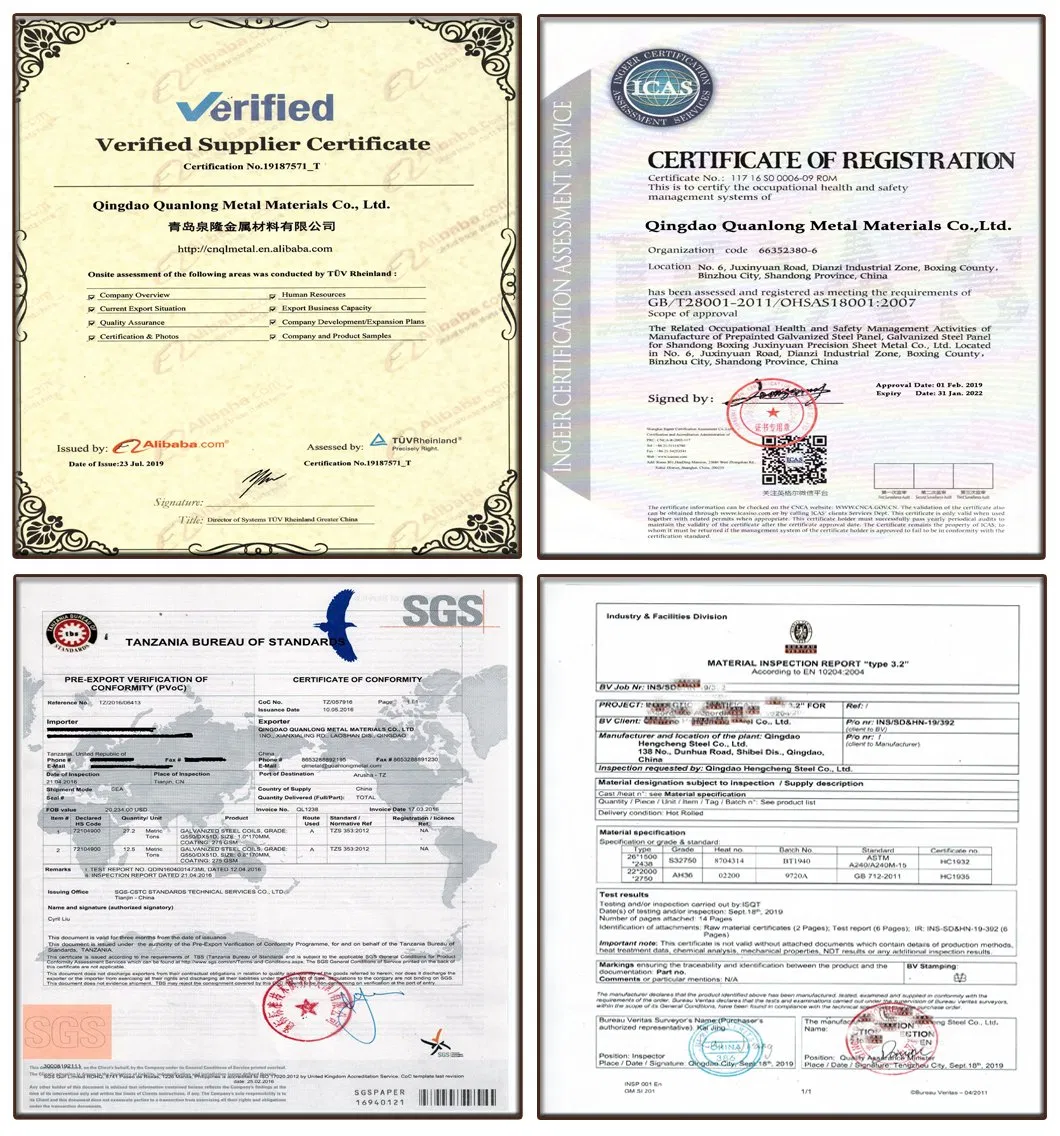

Certificate	API,ISO,SGS,BV,CE etc

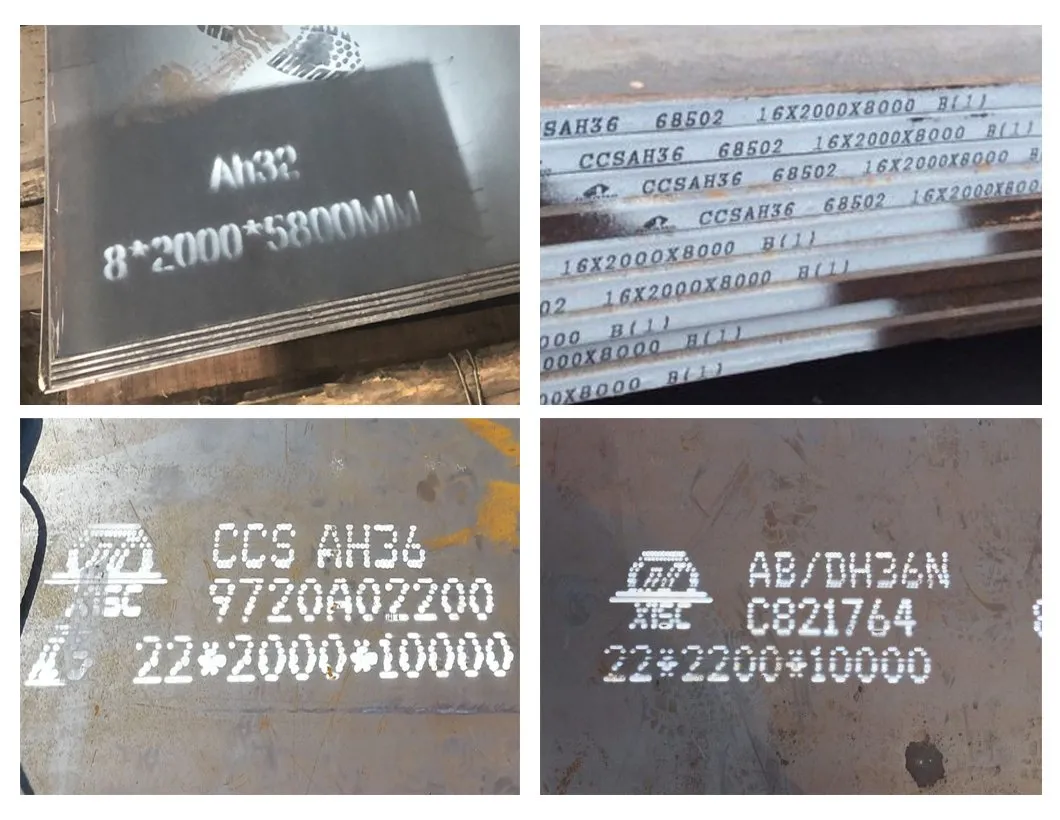

Quality	MTC will be provided with goods, third part inspection is acceptable, for example BV,SGS.
Quality

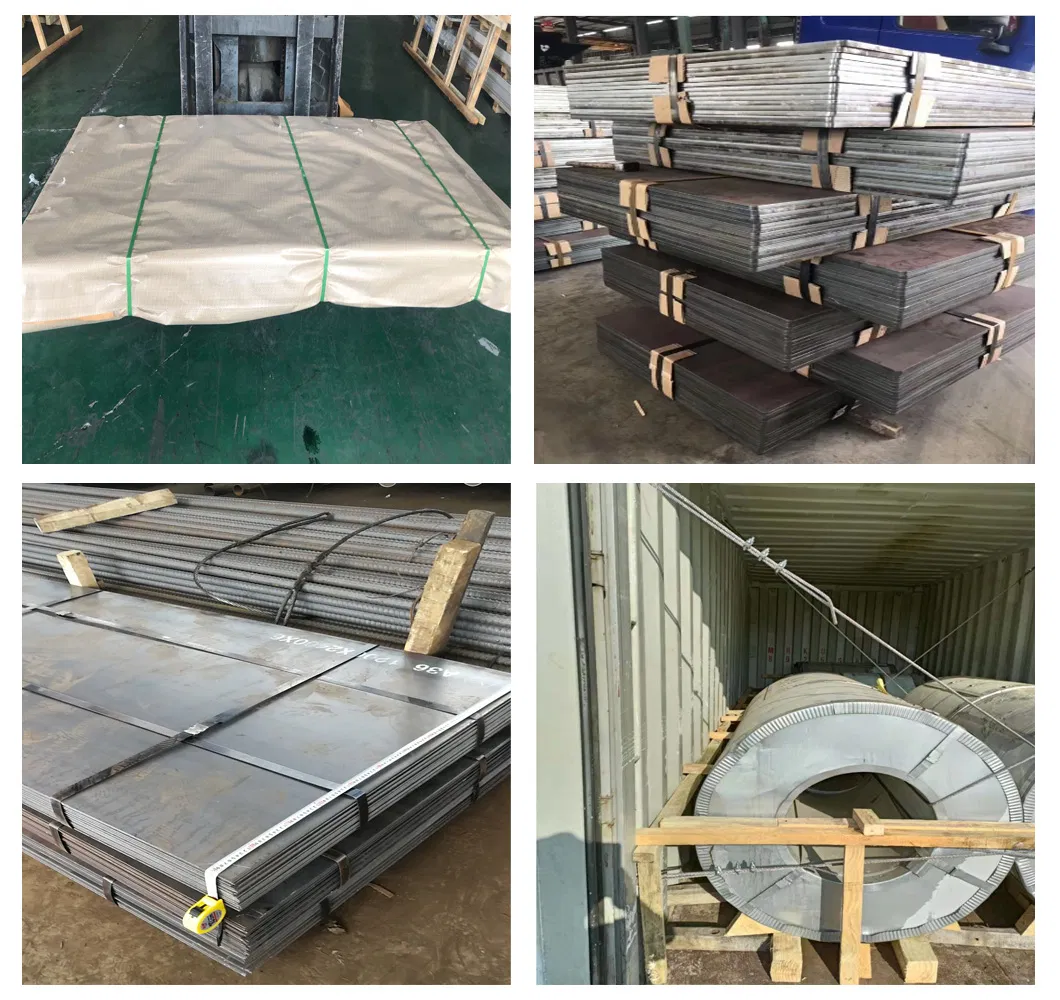

Package	Standard export seaworthy package,suit for all kinds of transport,or as required.
Package
Container Size	20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High)
Container Size	40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High)
Trade term	Ex-Work,FOB,CNF,CFR,CIF,etc
Application	Widely used in a variety of architectural and engineering structures,such as
	1.) metal constructions such as buildings,bridges,ships;
	2.) transmission tower, reaction tower;
	3.) lifting transportation machinery;
	4.) industrial furnace;boilers
	5.) container frame, warehouse goods shelves, etc

Shipbuilding Steel Plate Chemical Composition and Mechanical Properties

Grade	C	Si	Mn	P	S	Als
A	≤0.21	≤0.50	≥2.5C	≤0.035	≤0.035
B	≤0.21	≤0.35	0.8~1.2	≤0.035	≤0.035
D	≤0.21	≤0.35	0.6~1.2	≤0.035	≤0.035	≥0.015
E	≤0.18	≤0.35	0.7~1.2	≤0.035	≤0.035	≥0.015
AH32	≤0.18	≤0.50	0.9~1.6	≤0.035	≤0.035	≥0.015
DH32	≤0.18	≤0.50	0.9~1.6	≤0.035	≤0.035	≥0.015
EH32	≤0.18	≤0.50	0.9~1.6	≤0.035	≤0.035	≥0.015
AH36	≤0.18	≤0.50	0.9~1.6	≤0.035	≤0.035	≥0.015
DH36	≤0.18	≤0.50	0.9~1.6	≤0.035	≤0.035	≥0.015
EH36	≤0.18	≤0.50	0.9~1.6	≤0.035	≤0.035	≥0.015
AH40	≤0.18	≤0.50	0.9~1.6	≤0.035	≤0.035	≥0.015
DH40	≤0.18	≤0.50	0.9~1.6	≤0.035	≤0.035	≥0.015
EH40	≤0.18	≤0.50	0.9~1.6	≤0.035	≤0.035	≥0.015

Grade	Yield strength MPA	Tensile strength MPA	Elongation %	Test temperature °C	V ballistic work
					Thickness mm
					≤50		>50~70		>70~100
					L	T	L	T	L	T
A	≥235	400-520	≥22	20			34	24	41	27
B	≥235	400-520	≥22	0	27	20	34	24	41	27
D	≥235	400-520	≥22	-20	27	20	34	24	41	27
E	≥235	400-520	≥22	-40	27	20	34	24	41	27
AH32	≥315	440-570	≥22	0	31	22	38	26	46	31
DH32	≥315	440-570	≥22	-20	31	22	38	26	46	31
EH32	≥315	440-570	≥22	-40	31	22	38	26	46	31
AH36	≥355	490-630	≥21	0	34	24	41	27	50	34
DH36	≥355	490-630	≥21	-20	34	24	41	27	50	34
EH36	≥355	490-630	≥21	-40	34	24	41	27	50	34
AH40	≥390	510-660	≥20	0	41	27
DH40	≥390	510-660	≥20	-20	41	27
EH40	≥390	510-660	≥20	-40	41	27
