China H13 1.2344 SKD61 Hot Work Die Steel Mould Steel Plate

Product Description

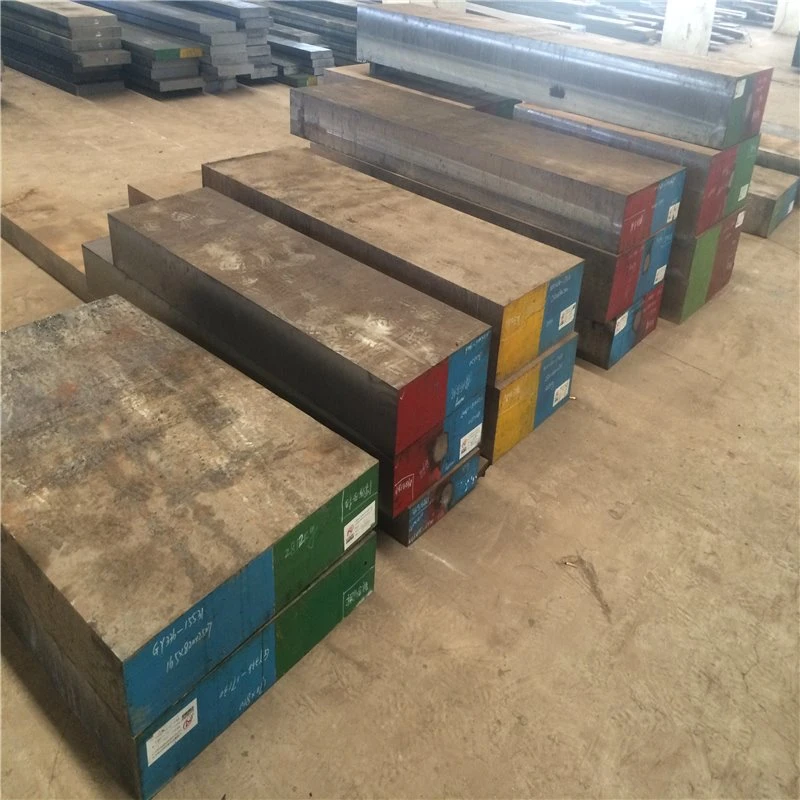

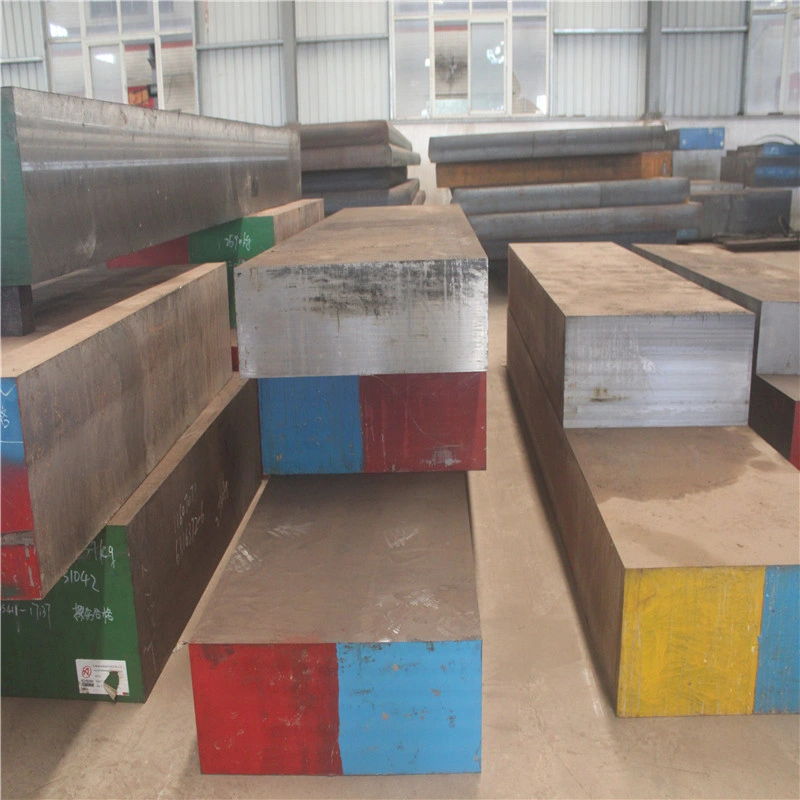

Hot Rolled Hot Work Die Steel Plate with goog resistance (H13 1.2344 SKD61)

It can displace imported senior high quality hot work die steels such as 1.2344/AISI H13.Etc.
1.2344 modified high roughness high isotropy hot work die steel HSSD2344 steel have good thermal stability and thermal fatigue resistance.

Applications
It can displace imported die steels such as AISI H13, widely used in die casting mold, hot extruding die, brass casting die, high strength plastic die etc.

Feature
Electro slag remelting, annealing with diffusion process and ultrafiningheat- treatment has good microstructual homogeneity and finer dispersed carbides.

High isotropy, aspect rations≥0.8

Good tempering performance, high toughness, high temperature strength, good thermal stability and thermal fatigue resistance.

Hardness

Annealing hardness	Quenching hardness	Tempering hardness
≤230HB,	51-55HRC	46-50HRC

Technical service
Die vacuum heat treatment and die surface treatment (N-O,C-N, carburize and nitridation surface treatment).

Chemical composition

C	Si	Mn	P	S	Cr	Mo	V
0.35-0.40	1.00-1.20	0.40-0.60	≤0.015	≤0.003	4.80-5.20	1.20-1.40	0.80-1.00

Recommend heat treatment

Heating temperature			Cooling way	Hardness (HRC)	Tempering temperature /ºC	Tempering number	Hardness (HRV)
First preheating	Second preheating	Last heating
500-600	820-860	1010-1040	Oil cooling	53-55	560-620	2	50-46

Port of loding: Shenzhen China

Terms of Payment: T/T OR L/C

Delivery time:For abundant stock, 15-20 days. For customized products, 30-50 days.
