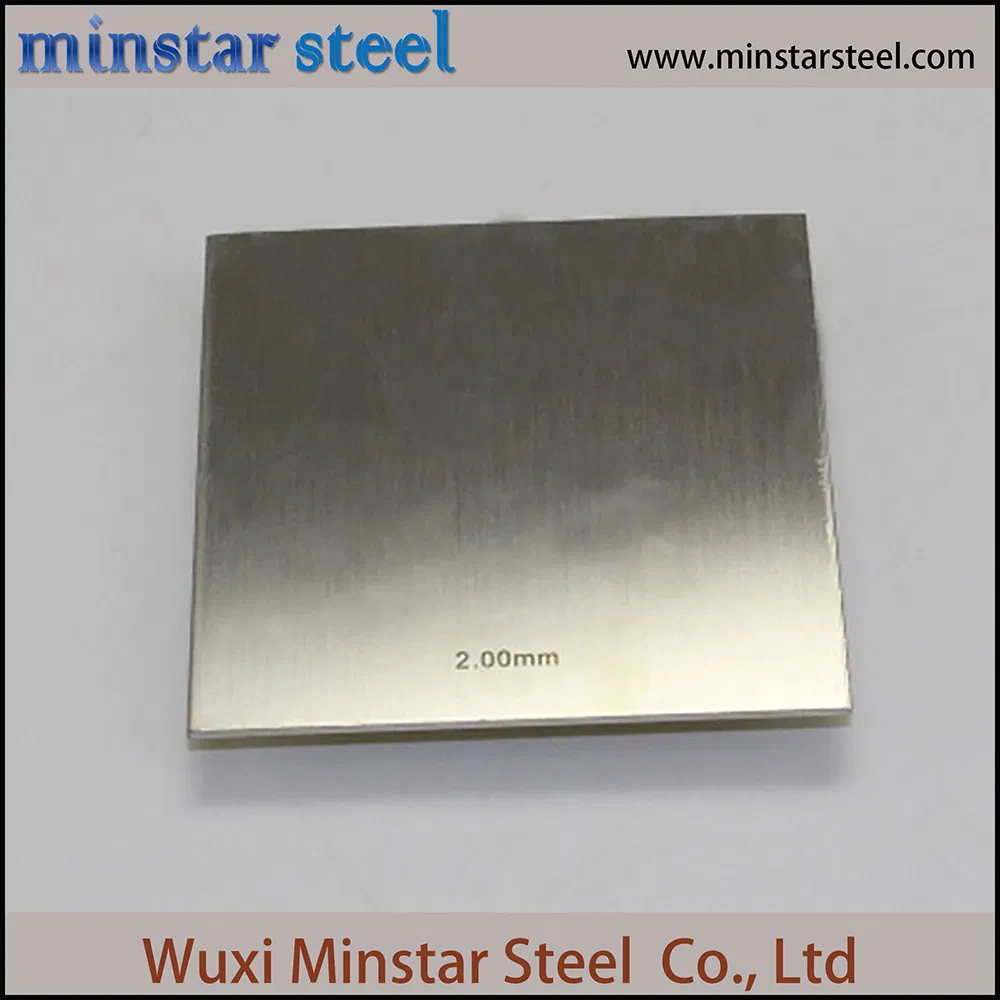

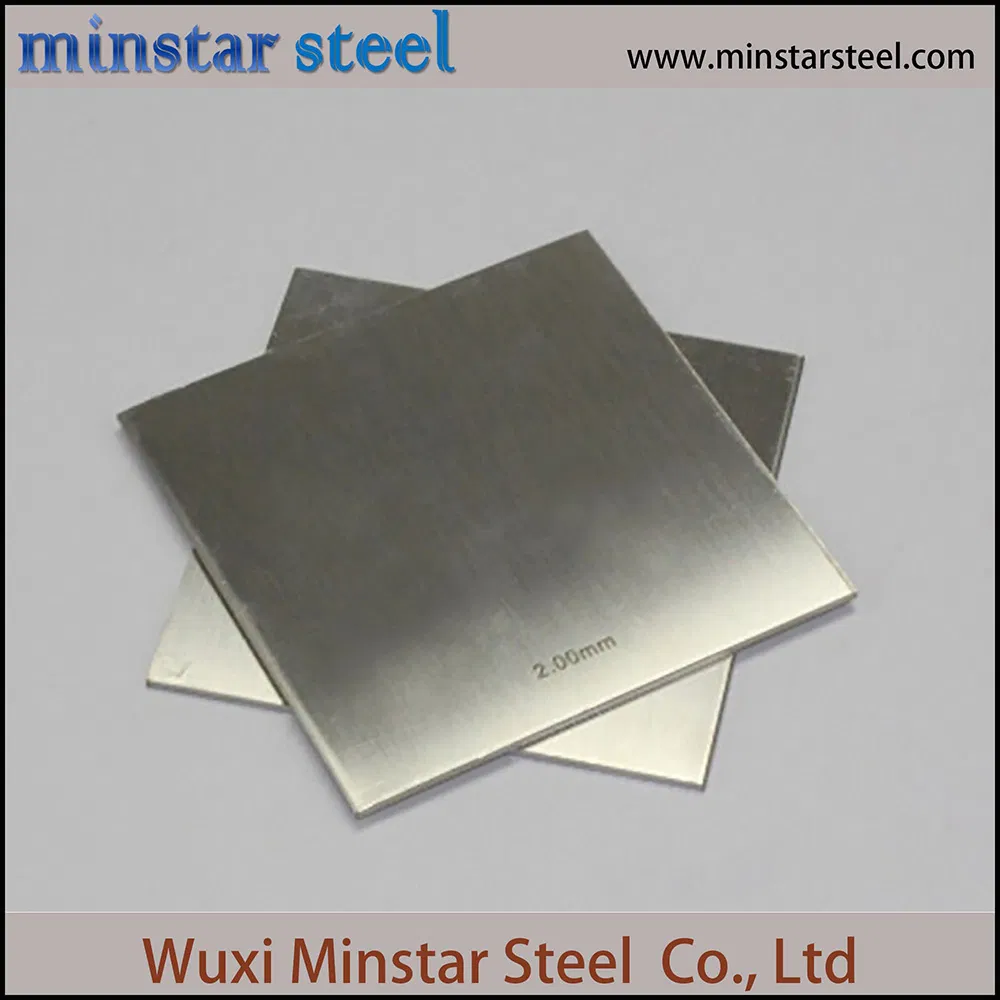

Cold Rolled 2b Finish Duplex 2205 Stainless Steel Sheet/Plate
Quick DetailsStandard: ASTM, AISI, DIN, EN, GB, JISLength: 320mm~10000mmThickness: 0.3mm--12mmWidth: 1000mm--1524mmPlace of Origin: Jiangsu, China (Mainland)Brand Name: TISCO, JISCO, BISCO, KSK, KRUPPModel Number: 2205 stainless steel sheet price per kgType: PlateApplication: chemical, metallurgy, b......
Send Inquiry
Product Description
Quick Details
- Standard: ASTM, AISI, DIN, EN, GB, JIS
- Length: 320mm~10000mm
- Thickness: 0.3mm--12mm
- Width: 1000mm--1524mm
- Place of Origin: Jiangsu, China (Mainland)
- Brand Name: TISCO, JISCO, BISCO, KSK, KRUPP
- Model Number: 2205 stainless steel sheet price per kg
- Type: Plate
- Application: chemical, metallurgy, boiler
- Certification: ISO SGS BV
- Surface: 2B/NO.4/HL/NO.1/BA
- Special Use: High-strength Steel Plate
- Technique: hot rolled,cold rolled
- Sample: Free
- Best Service: Aftersale services
- Quality Assurance: The third party testing
- Note: We can also do other materials
- Delivery: Short
- Small order: Take sth seriously
- Stocks: 500tons
Packaging & Delivery
| Packaging Details: | Export standard package :bundled wooden box or be required For 2205 stainless steel sheet price per kg |
|---|---|
| Delivery Detail: | 15--30 DAYS |
2205 2205 stainless steel sheet price per kg
2205 is a duplex (austenitic-ferritic) stainless steel containing about 40 - 50% ferrite in the annealed condition. 2205 has been a practical solution to chloride stress corrosion cracking problems experienced with 304/304L or 316/316L stainless.
The high chromium, molybdenum and nitrogen contents provide corrosion resistance superior to 316/316L and 317L stainless in most environments.
2205 is not suggested for operating temperatures up to 600°F.
The design strength of 2205 is significantly higher than 316/316L, often permitting lighter wall construction.
2205 has good notch impact toughness down to temperatures below - 40°F. 2205 is welded with E2209 or ER2209 fillers.
Chemistry
| Ni | Cr | Mo | Mn | Si | C | N | S | P | Fe |
MIN | 4.5 | 22.0 | 3.0 | - | - | - | 0.14 | - | - | - |
MAX | 6.5 | 23.0 | 3.5 | 2.0 | 1.0 | 0.03 | 0.2 | 0.02 | 0.03 | Balance |
Specifications
ASME SA 182, ASME SA 240, ASME SA 479, ASME SA 789, ASME SA 789 Section IV Code Case 2603
ASTM A 240, ASTM A 276, ASTM A 276 Condition A, ASTM A 276 Condition S, ASTM A 479, ASTM A 790
NACE MR0175/ISO 15156
NORSOK MDS D45 Grade F51
UNS S31803, UNS S32205
W. NR./EN 1.4462
Inventory
2205 Coil, 2205 Pipe, 2205 Plate, 2205 Sheet, 2205 Welding Products
Common Trade Names
2205 Stainless, Duplex 2205
Features
- High resistance to chloride stress corrosion cracking
- Chloride pitting and crevice corrosion resistance superior to 317L stainless
- Good general corrosion resistance
- High strength
- Good sulfide stress corrosion resistance
- Useful up to 600°F
- Chemical process vessels, piping, and heat exchangers
- FGD scrubber systems
- Pulp mill digesters, bleach washers, chip presteaming vessels
- Food process equipment
- Oil field piping, heat exchangers
Applications
Physical Properties
Density: 0.278 lb/inch3
Melting Point: 2525- 2630°F
Poisson's Ratio: 0.3
Electrical Resistivity: 481 Ohm - circ mil/ft
Temperature, °F | 70 | 212 | 392 | 572 |
Coefficient* of Thermal Expansion, in/in°F x 10-6 | - | 8 | 8 | 8 |
Thermal Conductivity | 8 | 9 | 10 | 11 |
Modulus of Elasticity, Dynamic psi x 106 | 28 | 26 | 25 | 24 |
* 70°F to indicated temperature.
Mechanical Properties
Minimum Specified Properties, ASTM A 240
Ultimate Tensile Strength, ksi | 95 |
0.2% Yield Strength, ksi | 65 |
Elongation, % | 25 |
Hardness MAX, Brinell | 290 |
Minimum Elevated Tensile Properties, Plate
Temperature, °F | 212 | 302 | 392 | 482 |
Ultimate Tensile Strength, ksi | 86 | 83 | 80 | 78 |
0.2% Yield Strength, ksi | 52 | 49 | 46 | 44 |
Corrosion Resistance
| PREn | Critical Pitting Temperature, CPT |
2205 | 34 | 130°F |
316L | 24 | 62°F |
