Product Description

ASME SA516 GR 70 Plate Boiler and Pressure Vessel Hot Rolled Astm A516 Gr 70 Mechanical Specifications

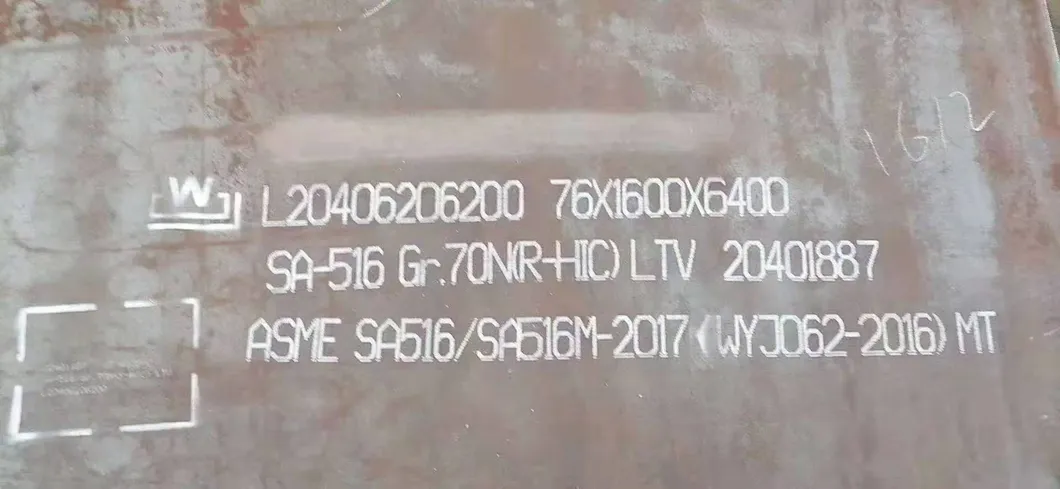

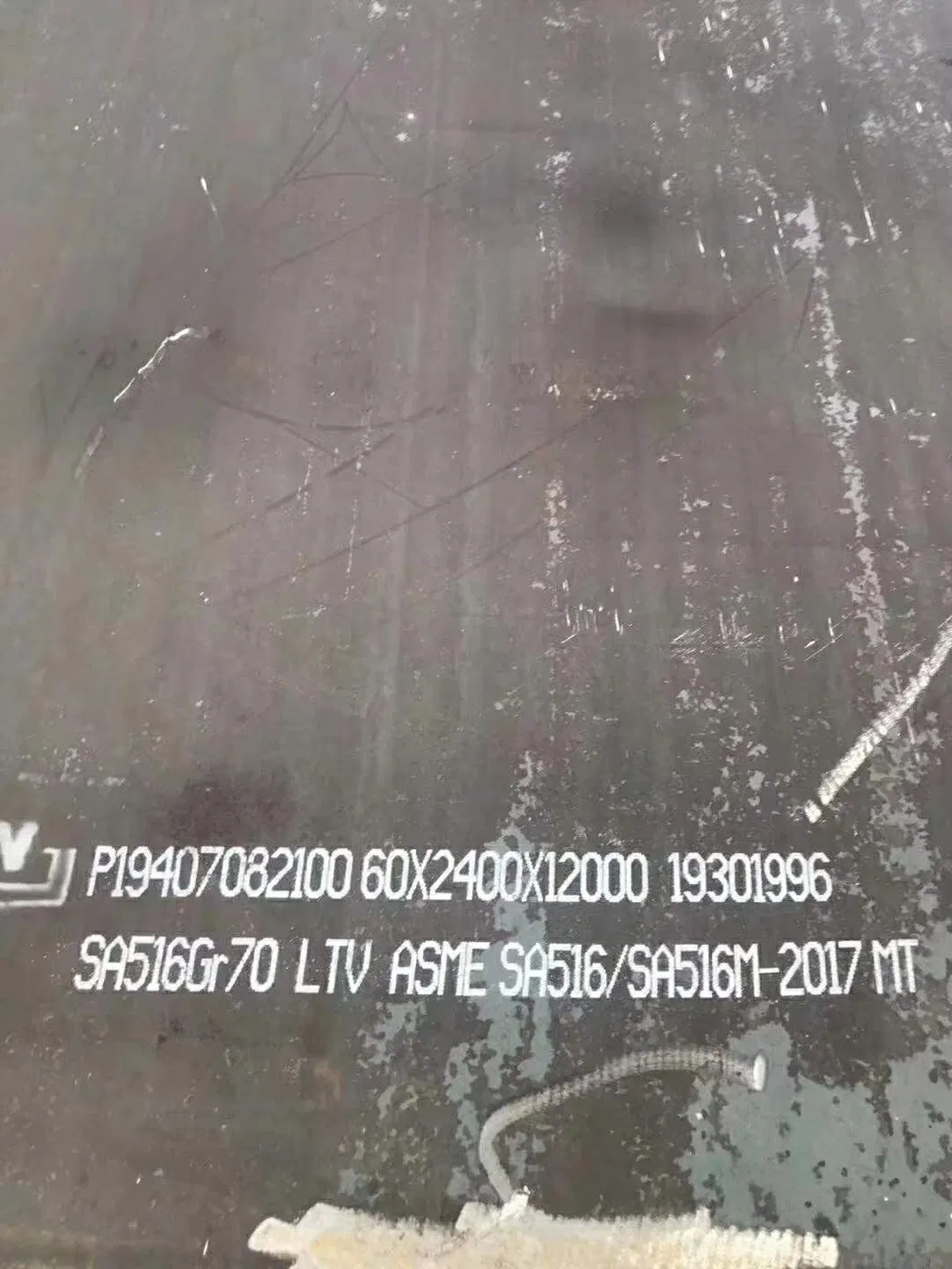

ASME SA516 Steel Plate

SA516Gr70|ASME SA516 Grade 70|SA516 Gr.70 STEEL PLATE

ASME SA516 standard specification for pressure vessel plates, carbon steel for moderate and lower- temperature service.

ASME SA516 plates 40mm and under in thickness is normally supplied in the as-rolled condition. The plates may be ordered normalized or stress relieved, or both. ASME SA516 grade plates over 40mm in thickness shall be normalized.

Supplementary Technology: HIC Test | NACE MR0175 | Z15 | Z25 | Z35 | S1 | S2 | S3 | S4.1
S5 | S6 | S7 | S8 | S9| S11 | S12 | S14 | S17

Thickness: 6MM to 300MM,

Width: 1500mm to 4050mm,

Length: 3000mm to 15000mm

Gangsteel is specialized in supplying ASME SA516 steel plate in SA516 grade 70. For more information of SA516 grade 70 steel plates, please check them in following:

SA516 Grade 70 Chemical Composition
Grade SA516 grade 70	The Element Max (%)
Grade SA516 grade 70	C	Si	Mn	P	S
Thick <12.5mm	0.27	0.13-0.45	0.79-1.30	0.035	0.035
Thick12.5-50mm	0.28	0.13-0.45	0.79-1.30	0.035	0.035
Thick50-100mm	0.30	0.13-0.45	0.79-1.30	0.035	0.035
Thick100-200mm	0.31	0.13-0.45	0.79-1.30	0.035	0.035
Thick>200mm	0.31	0.13-0.45	0.79-1.30	0.035	0.035

Carbon Equivalent: Ceq = C+Mn/6+(Cr+Mo+V)/5+(Ni+Cu)/15%

Grade	SA516 Grade 70 Mechanical Property
Grade	Thickness	Yield	Tensile	Elongation
SA516 grade 70	mm	Min Mpa	Mpa	Min %
	6-50	260	485-620	21%
	50-200	260	485-620	17%

Shipbuilding steel plate| Alloy steel plates| High strength plate| Carbon steel plate| Stainless steel plate

Equivalent steel grade of SA516 grade 70
Europe	Belgium	Germany	France	Italy	Sweden	India	Japan
		E St E315		Fe 460-2-KG	SS29,12,01

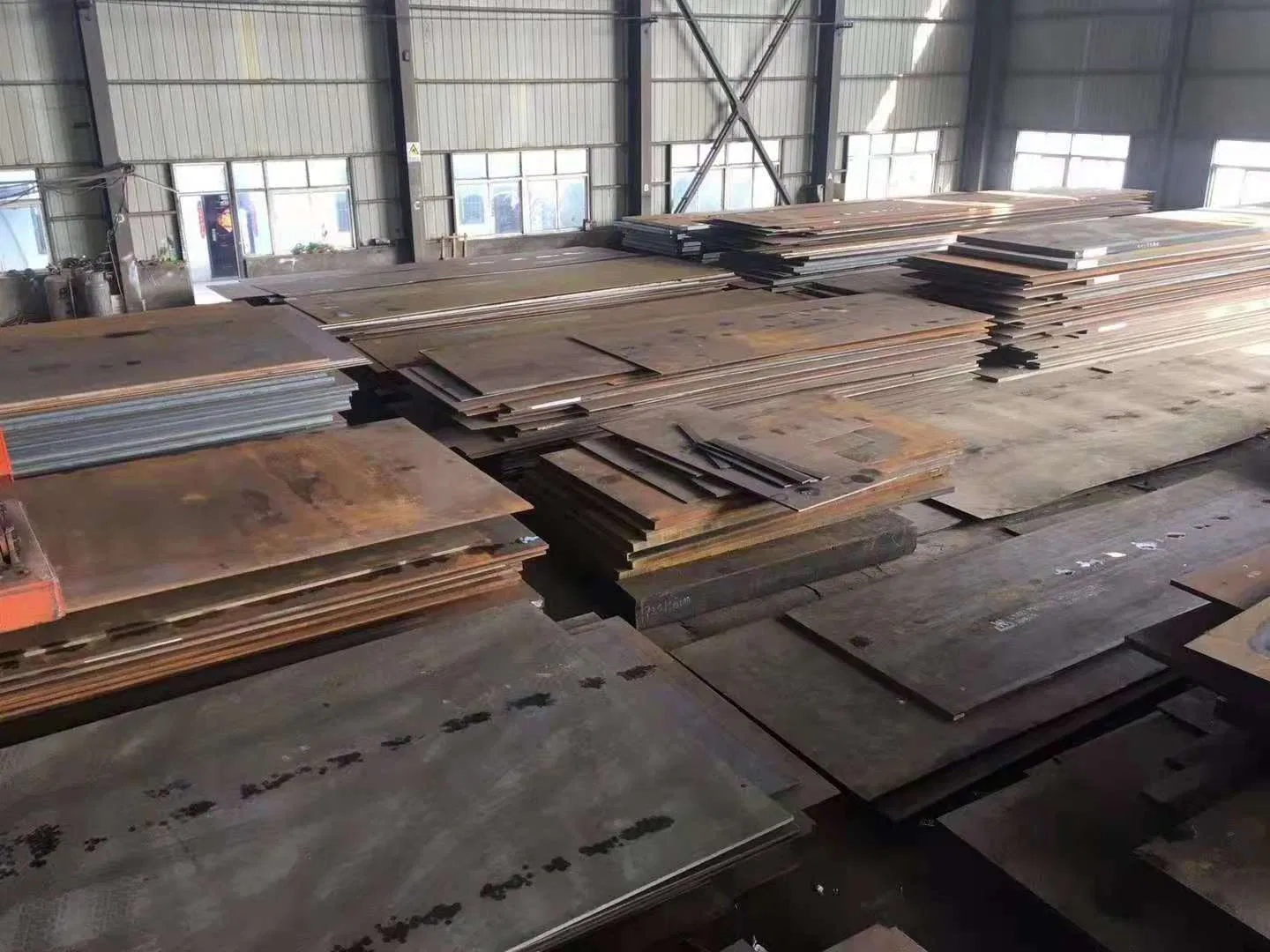

If you need more stock steel plates in pressure vessel steel plate, please click warehouse sizes.

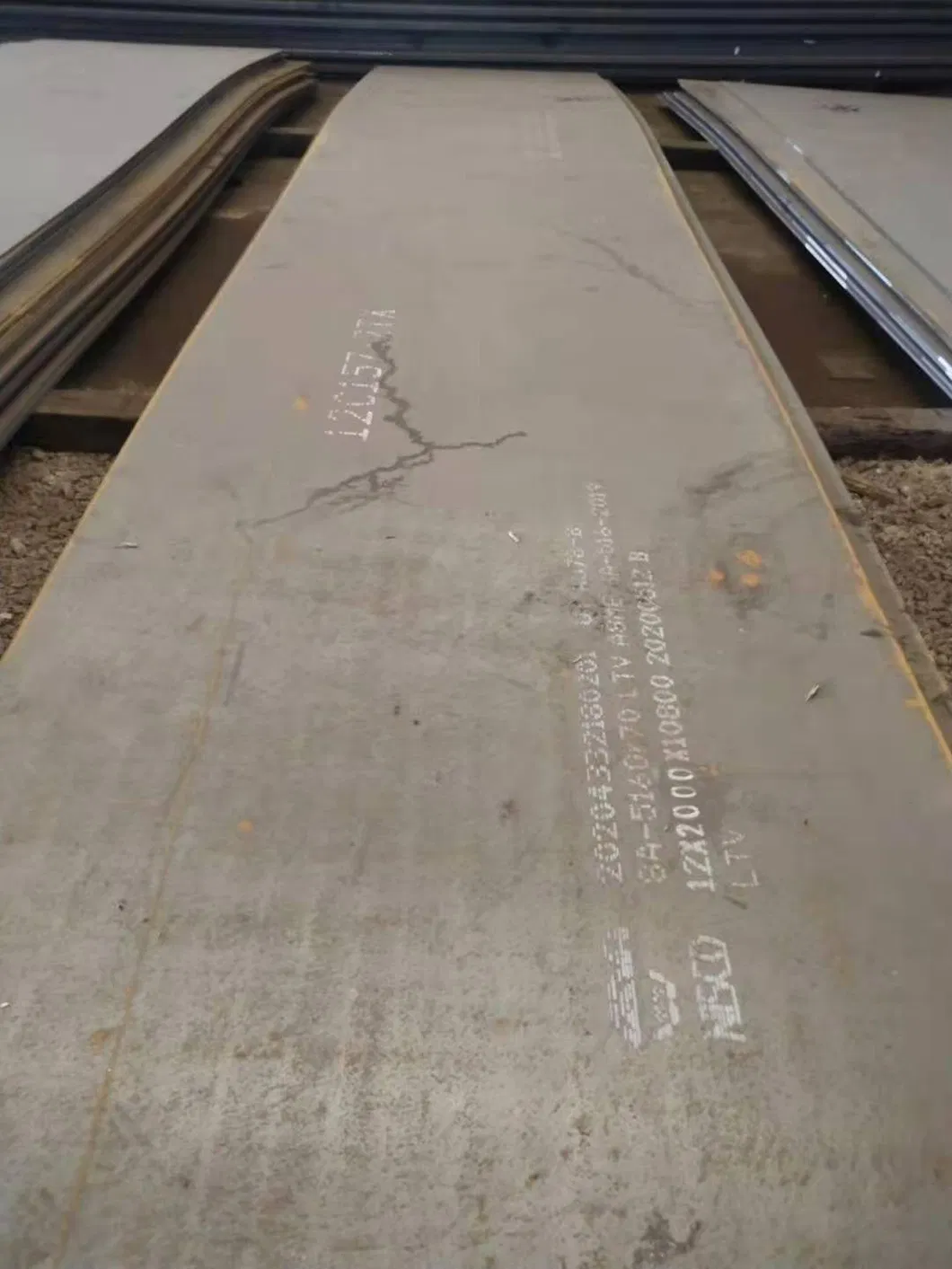

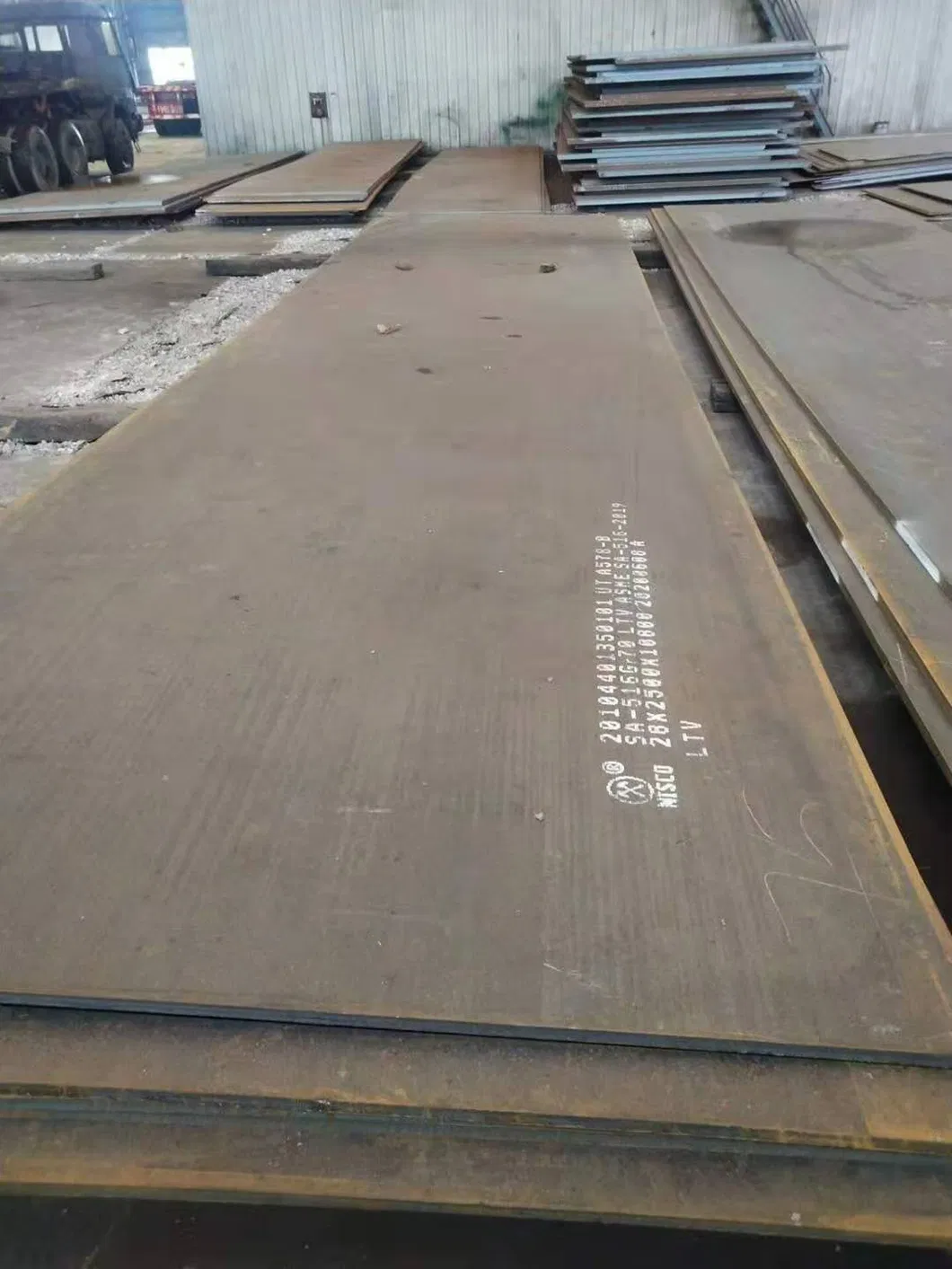

Carbon Steel Plate 20mm Thick ASTM A572, Gr 50, S355 (Grade 50ksi)
