China Building Material Nm360 Nm450 Abrasion Resistant Wear Steel Plate

Product Description

Qingdao Quanlong Metal Materials Co.,Ltd mainly engaged in Corten steel plate, Wear plate,Boiler steel plate,Shipbuilding steel plate and so on.

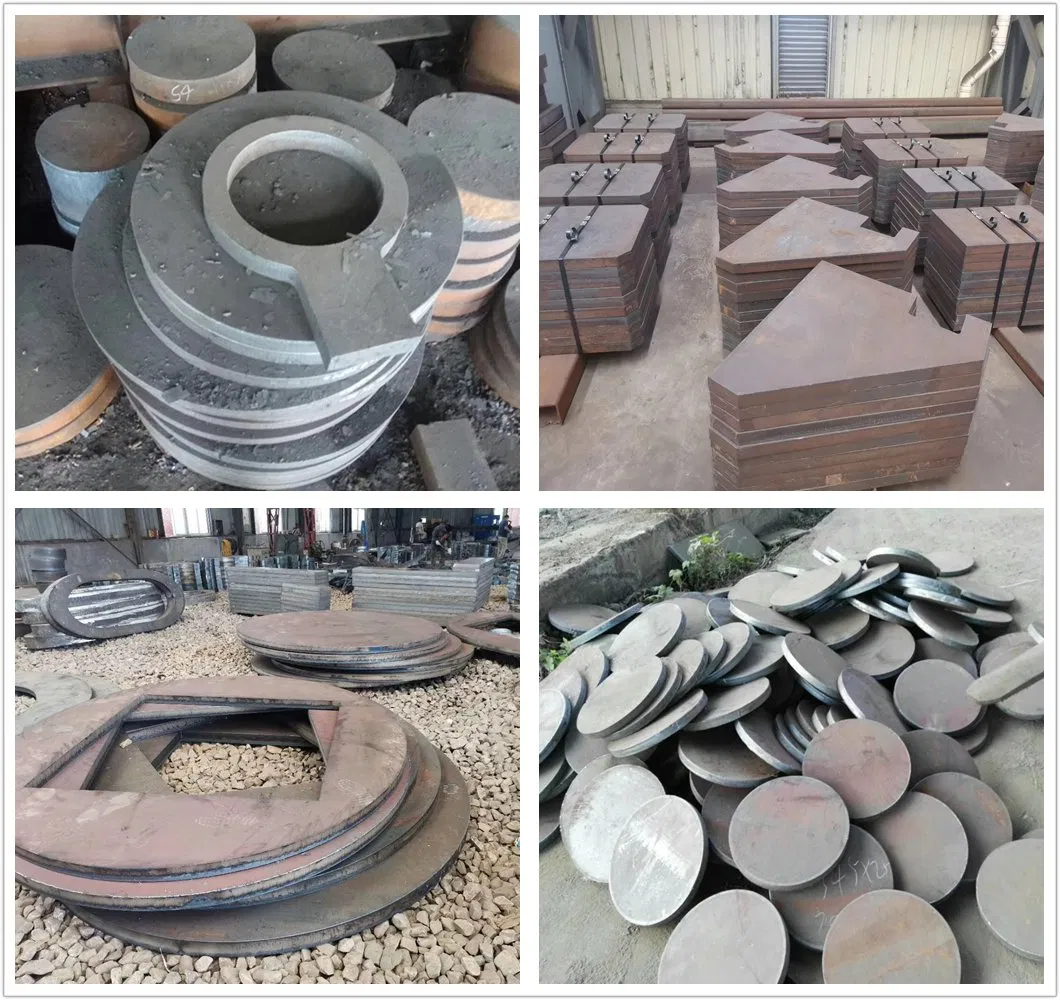

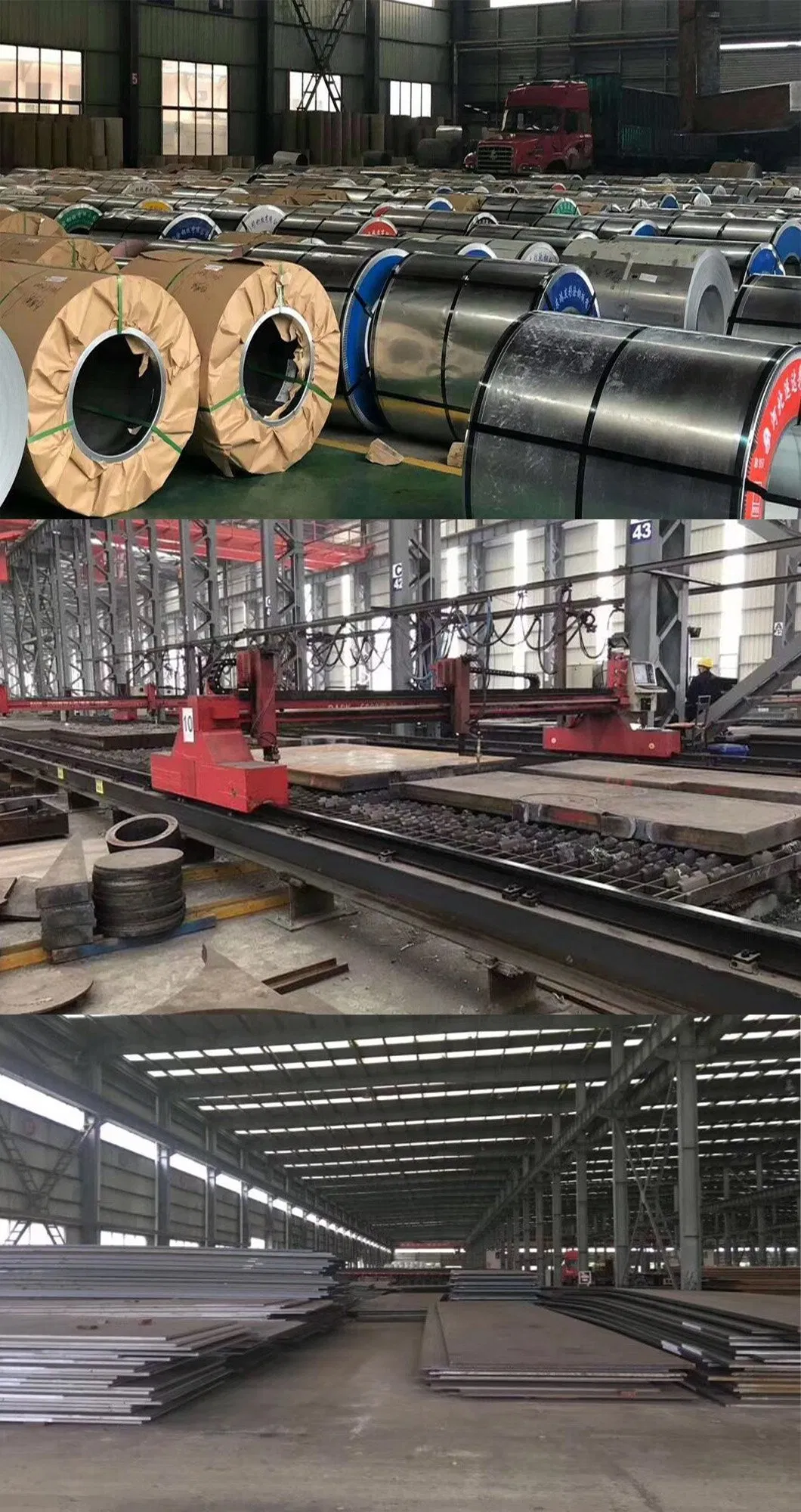

We can cut and punch according to customer requirements,it also can also be shaped processing,suface can Clean, Finishing,Blasting and Painting....

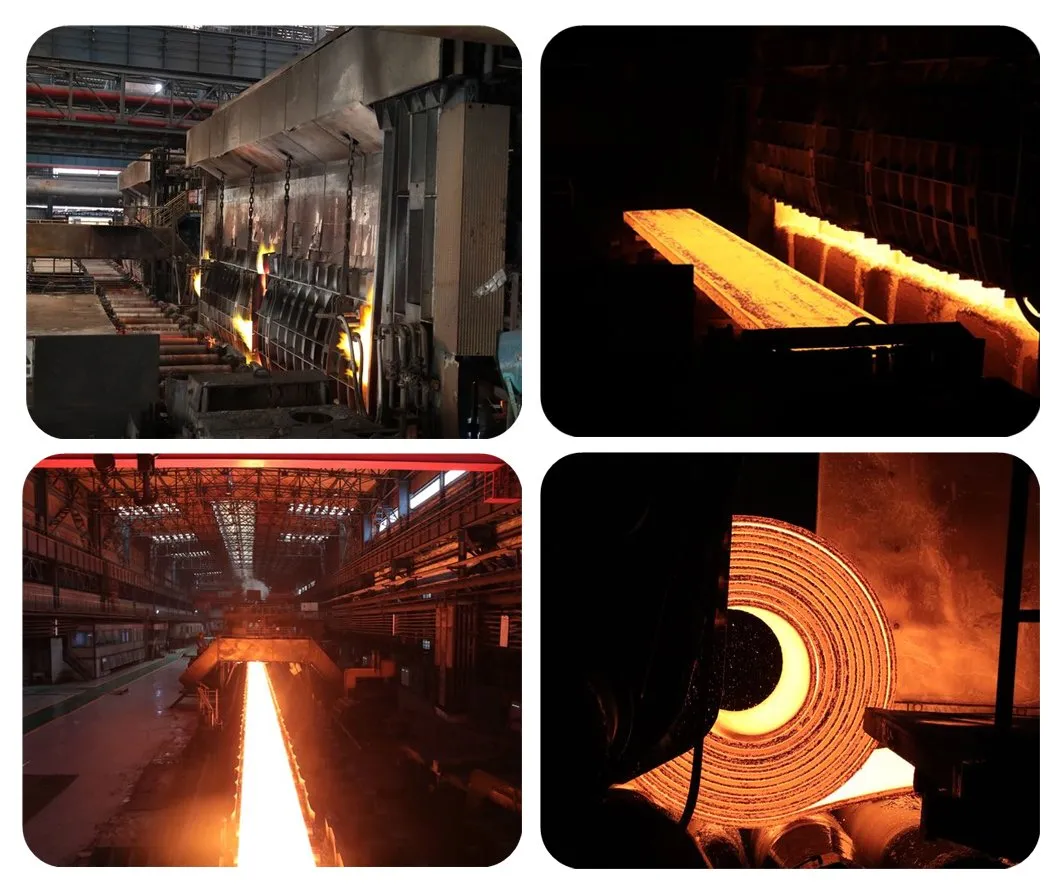

Delivery States have Hot-rolled, Controlled rolling, Normalizing, Annealing, Tempering,
Quenching, N+T, Q+T,and other delivery states are available as required.

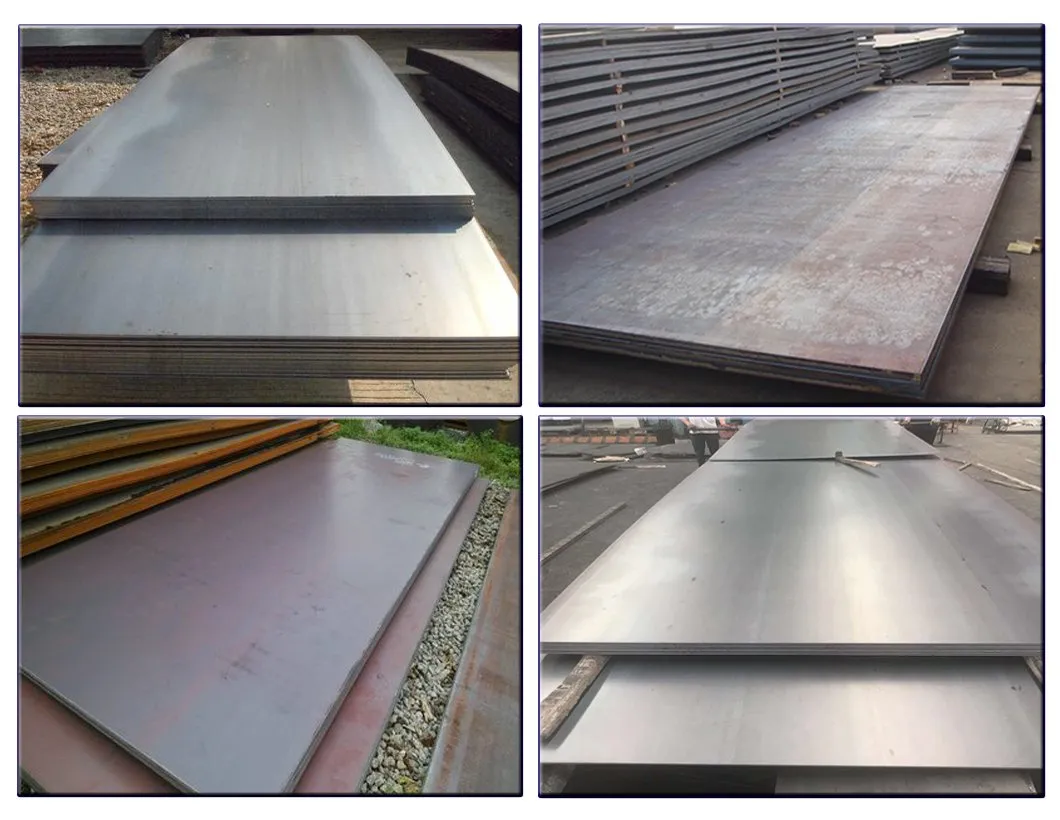

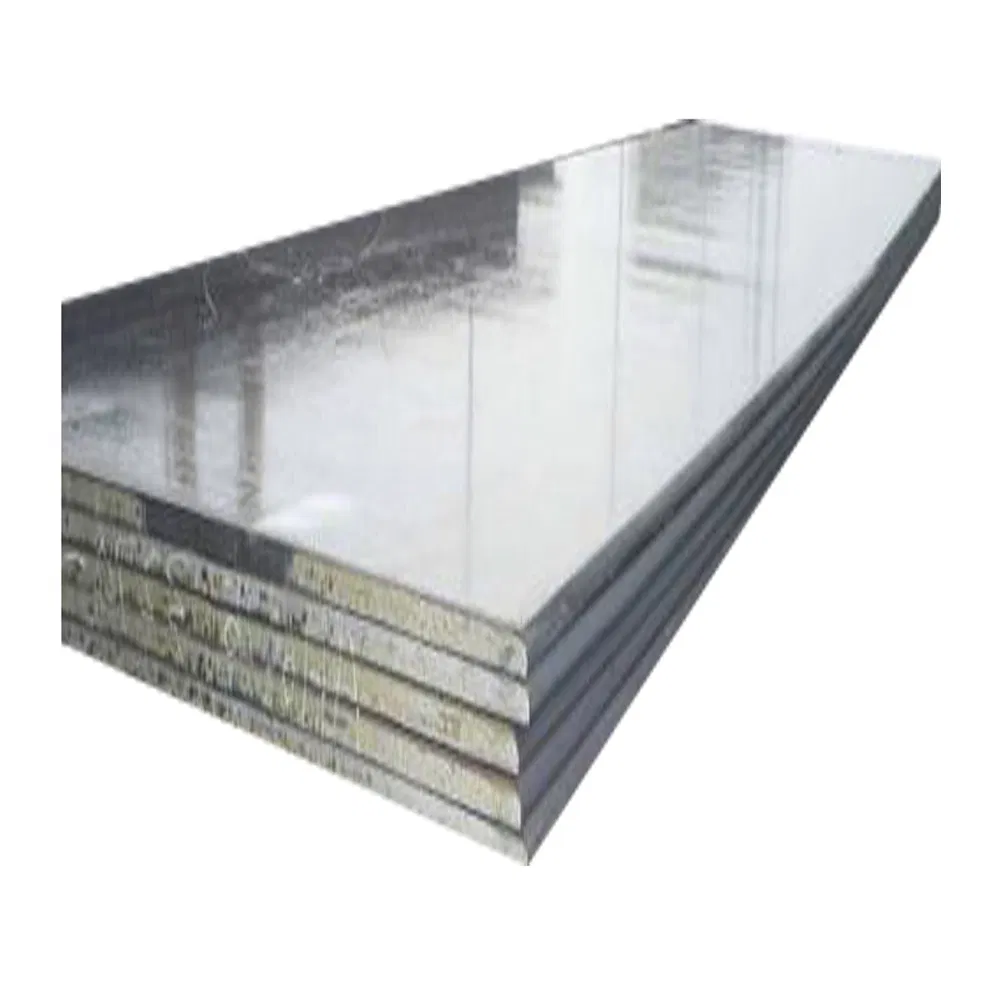

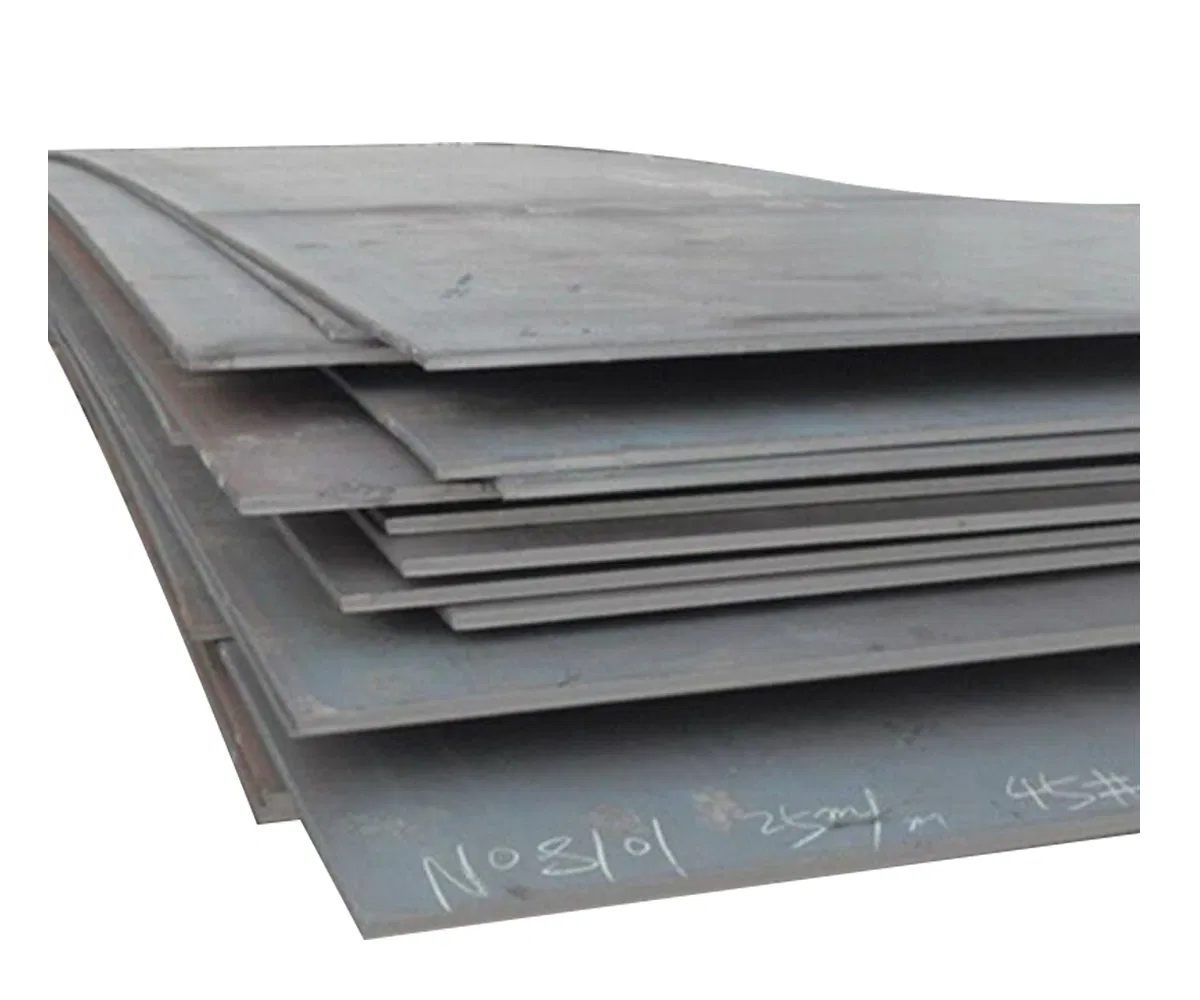

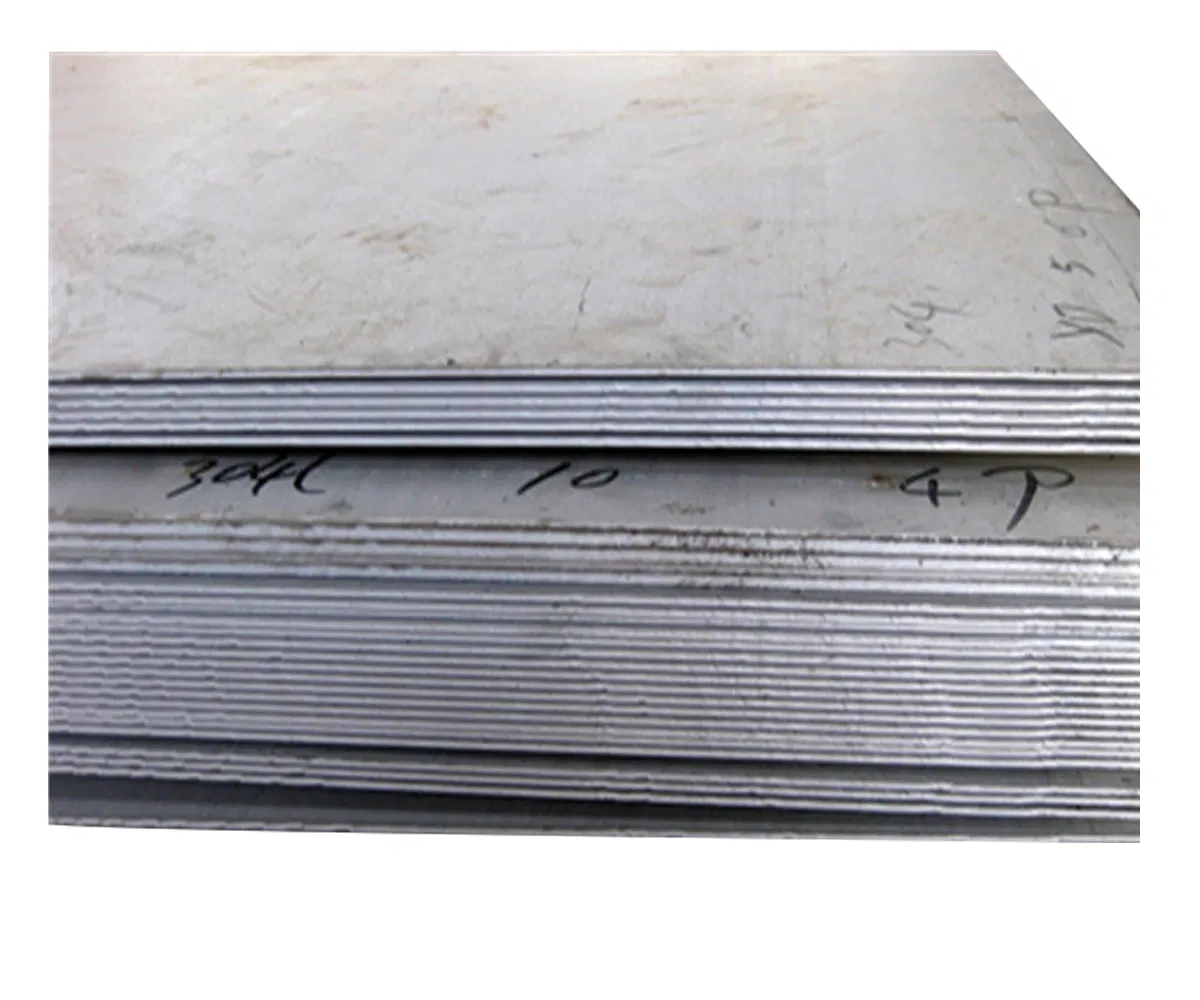

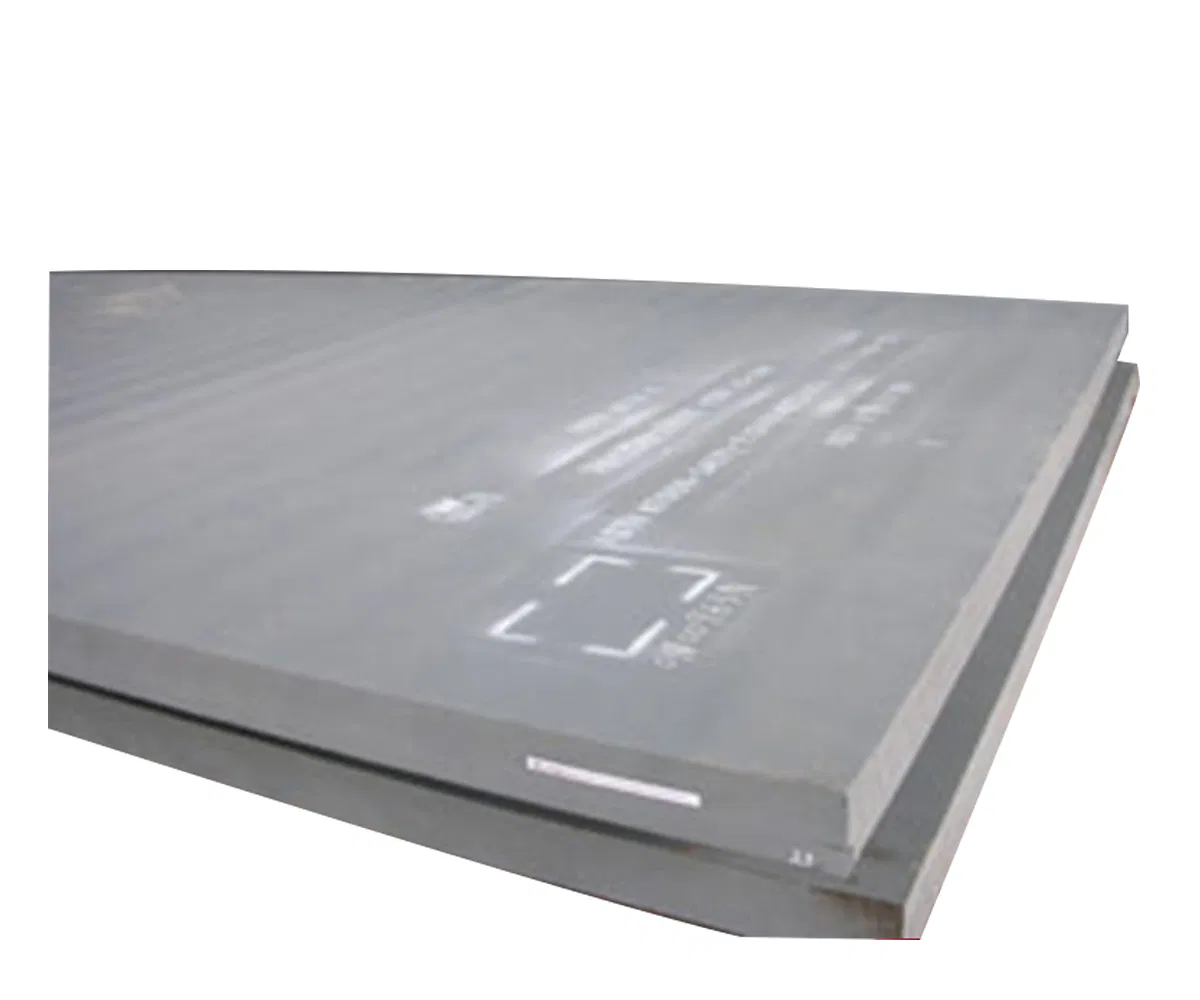

Wear Resistant Steel Plate
Standard Grade	DIN: XAR300,XAR400, XAR450, XAR500, XAR600, DILLIDUR400V,DILLIDUR450V,DILLIDUR500V; X120Mn12; 1.3401; SSAB WELDOX700,WELDOX900,WELDOX960; NF: FORA400,FORA500,Creusabro4800,Creusabro8000; EN: QUARD400,QUARD450,QUARD500 ; RAEX320,RAEX400,RAEX450, RAEX500;DUrostat400,DUrostat450,DUrostat500; JIS: JFE-EH360,JFE-EH400,JFE-EH500, WEL-HARD400, WEL-HARD500; SUMIHARD-K340,SUMIHARD-K400,SUMIHARD-K500 GB: NM360,NM400,M450,NM500,NM550,NM600,NR360,NR400,B-HARD360, B-HARD400,B-HARD450,KN-55,KN-60,KN-63.
Thickness	2-300mm (2-100mm usually used)
Width	1000-3000mm (1000-2200mm usually used)
Length	1000-12000mm or as your request
Surface	Clean, finishing,blasting and painting according to customer requirement
Delivery States	Hot-rolled, Controlled rolling, Normalizing, Annealing, Tempering, Quenching, N+T, Q+T,and other delivery states are available as required

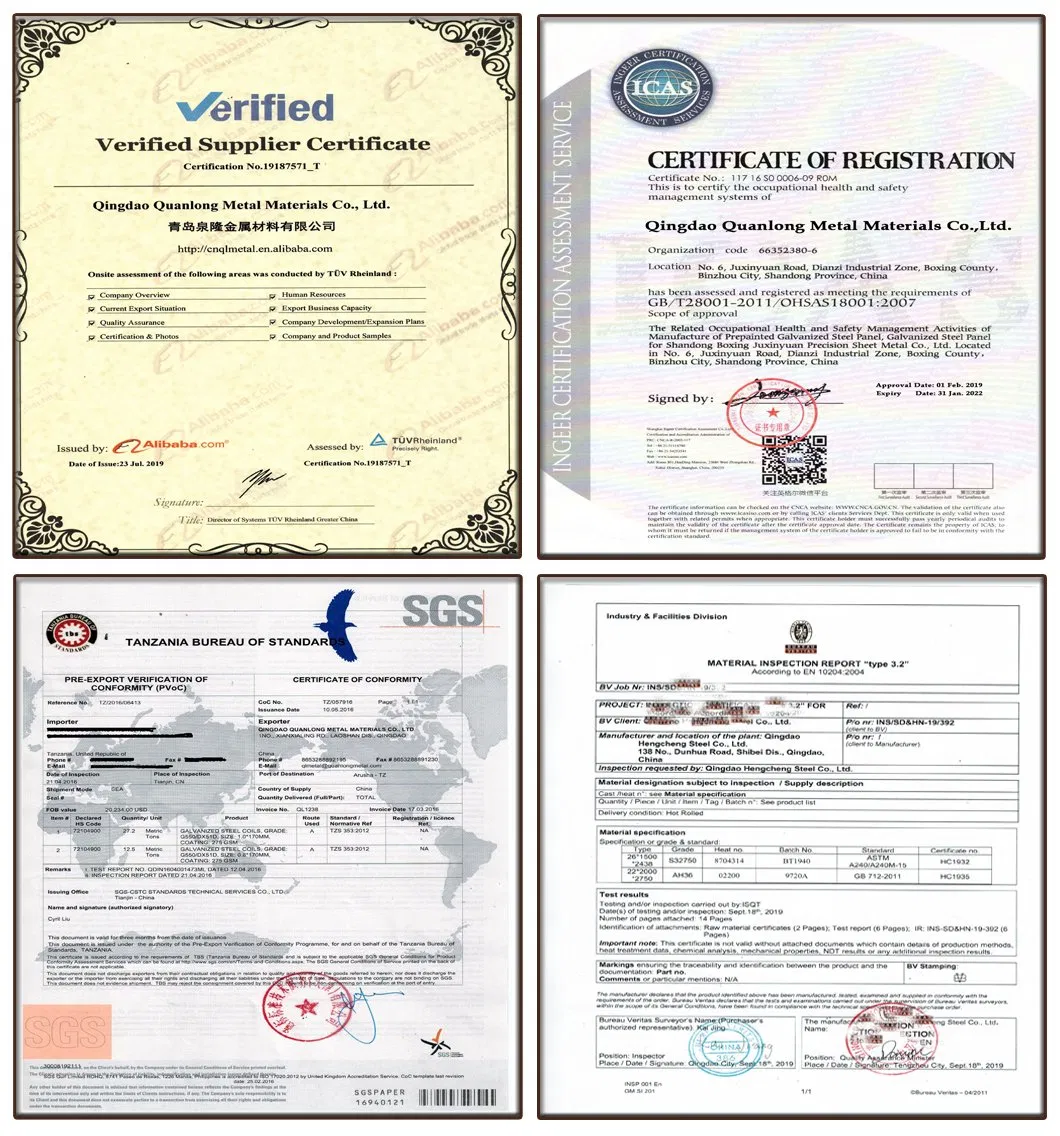

Certificate	API,ISO,SGS,BV,CE etc
Quality	MTC will be provided with goods, third part inspection is acceptable, for example BV,SGS.

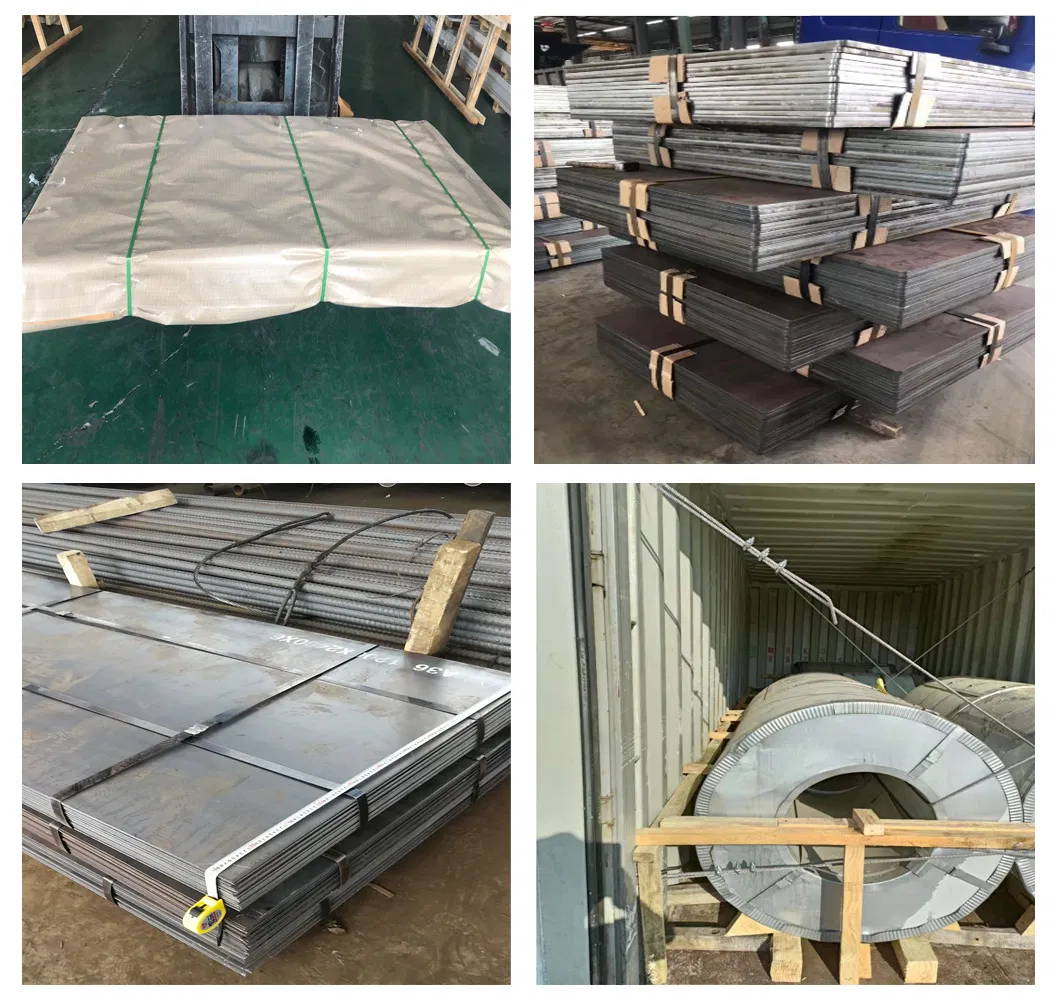

Package	Standard export seaworthy package,suit for all kinds of transport, or as required.
Container Size	20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High)
Container Size	40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High)
Trade term	Ex-Work,FOB,CNF,CFR,CIF,etc
Application	Widely used in a variety of architectural and engineering structures,such as 1.) metal constructions such as buildings,bridges,ships; 2.) transmission tower, reaction tower; 3.) lifting transportation machinery; 4.) industrial furnace;boilers 5.) container frame, warehouse goods shelves, etc

Chemical composition and mechanical properties

Material	C	Si	Mn	P		S	Cr		Mo	Cu		Ni	B
XAR400	0.20	0.80	1.50	0.025		0.010	1.00		0.50	--		--	0.005
XAR450	0.22	0.80	1.50	0.025		0.012	1.30		0.50	0.30		--	0.005
XAR500	0.28	0.80	1.50	0.025		0.010	1.00		0.50	--		--	0.005
XAR600	0.40	0.80	1.50	0.025		0.010	1.50		0.50	--		1.50	0.005
Material		Yield Strength Reh MPa			Tensile Strength Rm MPa			Elongation			BH (Brinell Hardness)
XAR400		1150			1300			≥12			360-440
XAR450		1200			1350			≥10			410-490
XAR500		1500			1600			≥9			450-530
XAR600		--			--			--			≥550
