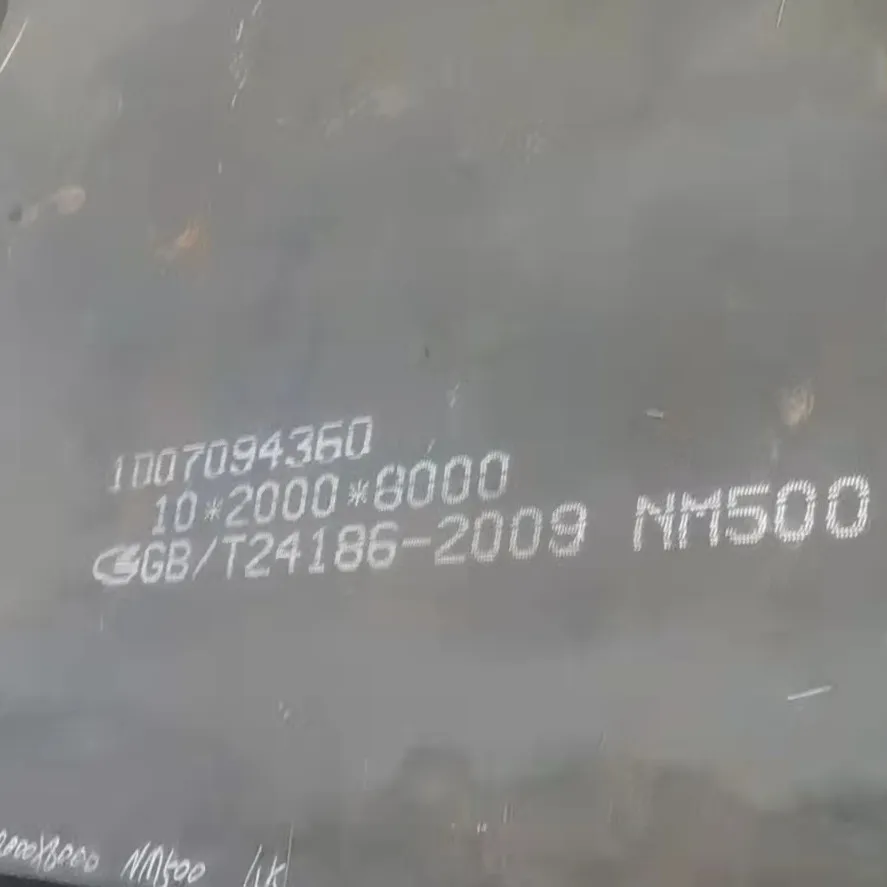

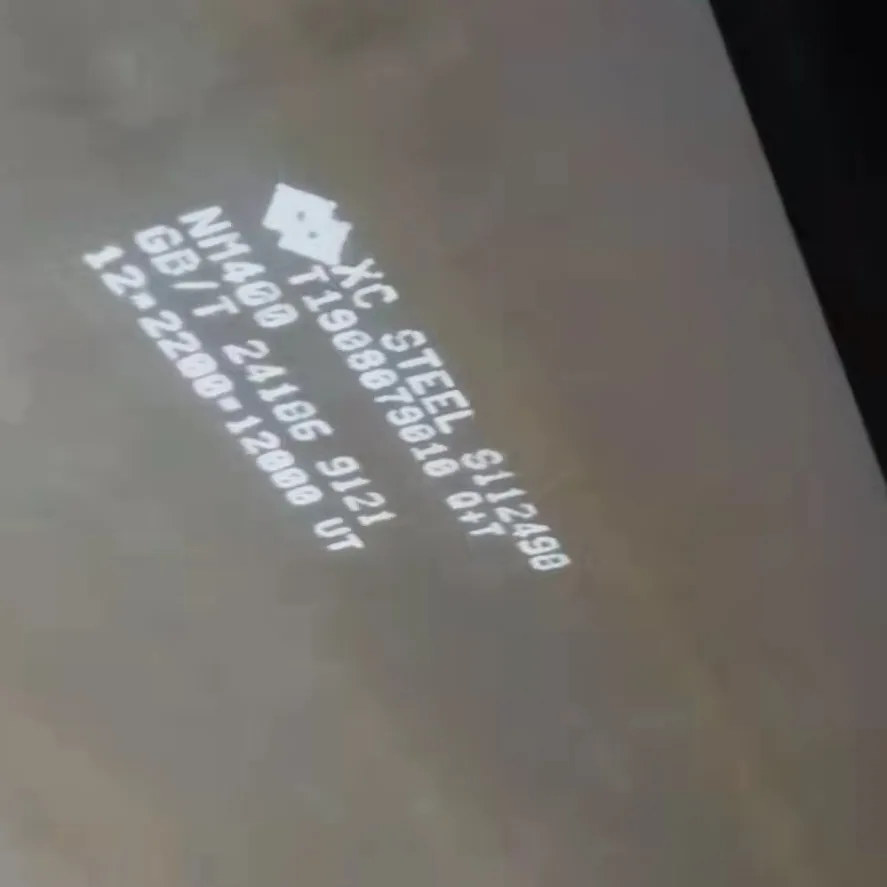

2000mm 2200mm Width Abrasion Resistant Steel Plate Ar400 Ar500 in Stock

Product Description

2000mm 2200mm Width Abrasion Resistant Steel Plate AR400 AR500 In Stock

Specification of our products

Description	Abrasion Resistant Steel Plate
HRC	5.0 - 80.0mm
Related Material	NM360,NM400,NM450,NM500,NM550,NM600,
	AR360 AR400 AR450 AR500 AR600
Specifications	Thickness:5mm-80mm
	width :1500mm 2000mm 2200mm
	Length: 6m 8m 10m or cutting any length as request
Price Term	EX-Work, FOB, CFR, CIF
Main Market	Europe,South America, Africa ,Oceania ,such as :USA,Germany,India,Iran,Dubai,Iraq,Vietnam,Ireland,
	Singapore,and else
Payment Term	T/T, L/C, Western Union
Delivery Time	According to customer' s quantity.
Package	Export standard package: bundled wooden box or be required;
	The inner size of container is below:
	(1)20 foot GP: 5.8m(length)x 2.13m(width)x 2.18m(high)
	about 24-26 CBM(2)40 foot GP: 11.8m(length)x 2.13m(width)
	x 2.72m(high)about 68 CBM
	We will packing as the factory, and reach the stander of export.
	Or as the customer request. In addition,
	We will make the products with good surface protection.

Abrasion Resistant (AR) steel plate is typically made in the as-rolled condition. These types/grades of steel plate products have been developed specifically for long service life in harsh conditions. AR products are suitable for a variety of applications in areas such as mining/quarrying, conveyors, material handling and construction, and earthmoving. Designers and plant operators choose AR plate steel when striving to extend service life of critical components, and reduce the weight of each unit put into service. The benefits of employing wear-resistant plate steel in applications involving impact and/or sliding contact with abrasive material are immense.

Abrasive resistant alloy steel plates generally offer good resistance to sliding and impact abrasion. The high carbon content in the alloy increases the hardness and toughness of the steel, making it an ideal material for applications that require high impact or high abrasion resistance. It is possible to get high hardness with a high carbon steel, and the steel will have good resistance to penetration. However, the wear rate will be rapid compared to heat treated alloy plate because high carbon steel is brittle, so particles can be more easily torn from the surface. As a result, high carbon steels are not used for high wear applications.

Chemical Composition of our Abrasion Resistant Steel Plate

Grade	C	Si	Mn	P	S	Cr	Ni	Mo	B
AR500	0.30	0.7	1.70	0.025	0.015	1.00	0.70	0.50	0.005
AR450	0.26	0.7	1.70	0.025	0.015	1.00	0.70	0.50	0.005
AR400	0.25	0.7	1.70	0.025	0.015	1.50	0.70	0.50	0.005
AR300	0.18	0.7	1.70	0.025	0.015	1.50	0.40	0.50	0.005

Mechanical properties of our Abrasion Resistant Steel Plate

Grade	Yield Strength MPa	Tensile Strength MPa	Elongation A	Impact Strength Charpy V 20J	Hardness Range
AR500	1250	1450	8	-30C	450-540
AR450	1200	1450	8	-40C	420-500
AR400	1000	1250	10	-40C	360-480
AR300	900	1000	11	-40C	-

Abrasion Resistant Steel Plate Applications:

The AR400 are premium abrasion resistant steel plates that are heat-treated and exhibit through-hardening. Improved forming and weding capabilities.
AR450 is an abrasion resistant plate used in a variety of applications where slightly greater strength is desired beyond AR400.
AR500 plates are suitable for mining, forestry and construction applications.
AR600 is utilized in high-wear areas such as aggregate removal, mining, and the manufacture of buckets and wear bodies.

Shipping Information

1.Delivery: Within 7-30 days after the confirmation of the order

2.Transport cargo to port by truck and will covered on the road and also covered at port.

3.Shipping by bulk or container

Packaging	Standard seaworthy export packing, other types of packing can be customized as every requirement.
Shipping packaging	Bundled with firm steel straps, easy for loading and unloading.
Shipping time	5-7 work days after delivery
Shipping way	BY SEA
Shipping port	ShangHai
