Home > Products > Steel Sheet & Plate > 10crmo9-10/SA387 Gr. 22 /13crmo4-5 /09mnnidr Boiler and Pressure Vessel Steel Plate

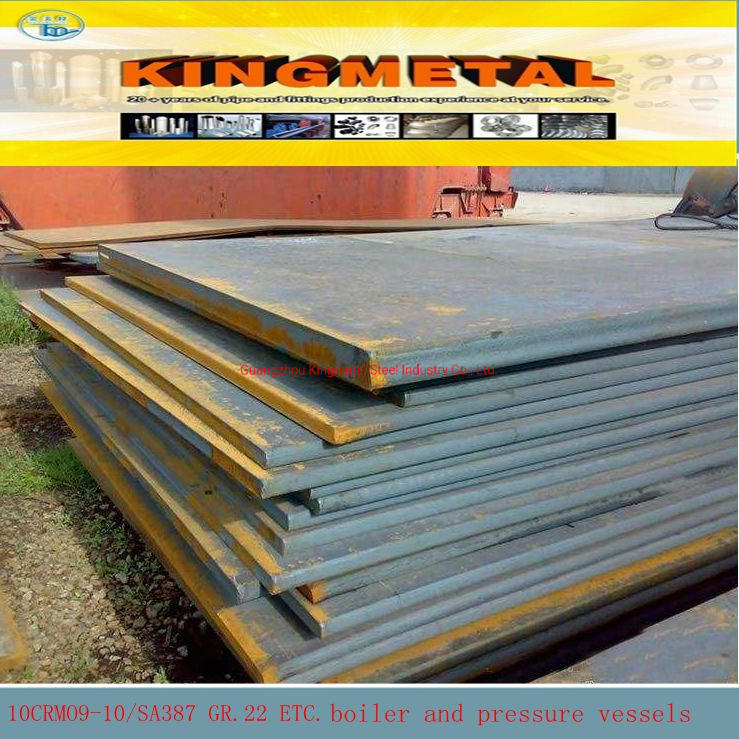

10crmo9-10/SA387 Gr. 22 /13crmo4-5 /09mnnidr Boiler and Pressure Vessel Steel Plate
VarietiesGradeSpecifications(mm)StandardThicknessWidthLengthPressure Vessel SteelQ245R6~150900~48003000~25000GB 713Q345R6~200Q370R10~6007MnCrMoVR12~60GB 1918912MnNiVRA285 Gr.A/B/C6~50ASTM A285/A285MA515 Gr.60/65/706~200ASTM A515/A515MA516 Gr.55/60/65/706~200ASTM A516/A516MA537 CL.16~100ASTM A537/A53......
Send Inquiry
Product Description
| Varieties | Grade | Specifications(mm) | Standard | ||
| Thickness | Width | Length | |||
| Pressure Vessel Steel | Q245R | 6~150 | 900~4800 | 3000~25000 | GB 713 |
| Q345R | 6~200 | ||||
| Q370R | 10~60 | ||||
| 07MnCrMoVR | 12~60 | GB 19189 | |||
| 12MnNiVR | |||||
| A285 Gr.A/B/C | 6~50 | ASTM A285/A285M | |||
| A515 Gr.60/65/70 | 6~200 | ASTM A515/A515M | |||
| A516 Gr.55/60/65/70 | 6~200 | ASTM A516/A516M | |||
| A537 CL.1 | 6~100 | ASTM A537/A537M | |||
| A537 CL.2 | 6~150 | ||||
| A537 CL.3 | |||||
| A737 Gr.B/C | 6~150 | ASTM A737/A737M | |||
| P235/265/295/355GH | 6~200 | EN 10028-2 | |||
| P275NH | 6~200 | EN 10028-3 | |||
| P355N/NH | |||||
| P460NH | |||||
| P355M | 6~63 | EN 10028-5 | |||
| P420M | |||||
| P460M | |||||
| P355Q/QH | 6~150 | EN 10028-6 | |||
| P460Q/QH | |||||
| P500Q/QH | |||||
| SPV235 | 6~200 | JIS G 3115 | |||
| SPV315/355/410/450/490 | 6~150 | ||||
| SGV410/450/480 | 6~200 | JIS G 3118 | |||
| SB 410/450/480 | 6~200 | JIS G 3103 | |||
