1050 1060 Aluminium Checkered Steel Plate Chequered Steel Plate

Product Description

Qingdao Hengze Steel Co.,ltd------Professional manufacturer of carbon/galvanized/stainless steel/aluminum checkered steel sheet/plate etc.steel products for more than 10 years.And we can produce diamond,round bean,5bar etc.patterns,could you please tell us the size and quantity you need, we'd like to update the latest price according to your needs.
Application: It is widely used in the fields of transportation, construction, decoration, equipment, machinery, shipbuilding and other fields

Grade	Carbon/Galvanized	Stainless	Aluminium
	Q235,SS400,St37-2,St52,ASTMA36,A283GRC,S235JR...	201,202,301,302,304,304L,310S, 310, 309, 309S, 316, 316L, 316Ti,403, 405, 409, 409L, 410, 410S, 420, 430.......	1050,1060,1100,2024,2204,3003, 5052, 5754......
Thickness	1-10mm(2-8mm usually used)
Width	1000-2000mm (1250 and 1500mm usually used)
Length	1000-12000mm or as your request
Surface	Carbon,Galvanized,Stainless,Aluminium

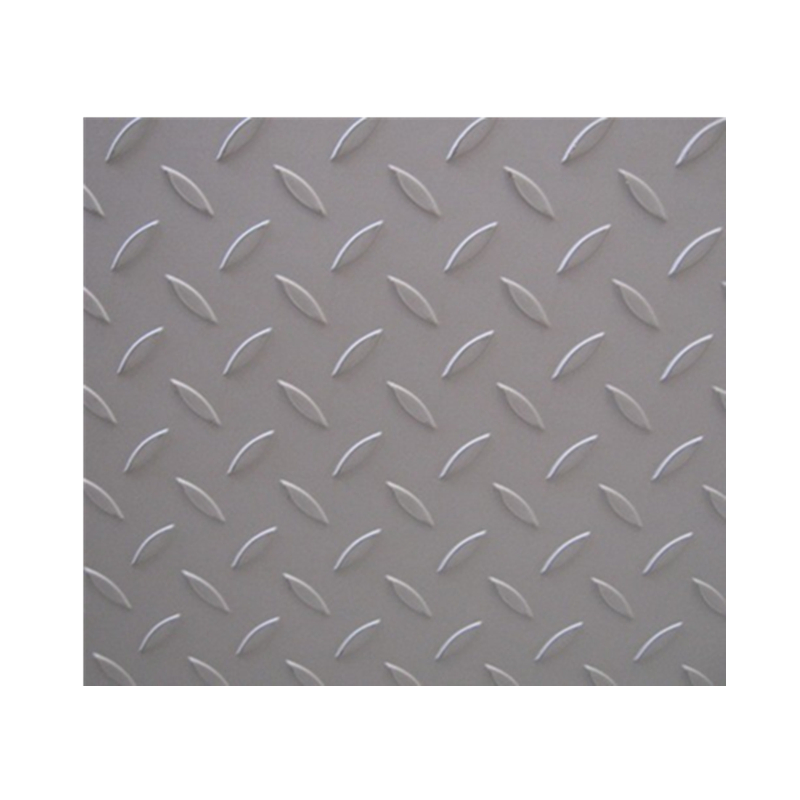

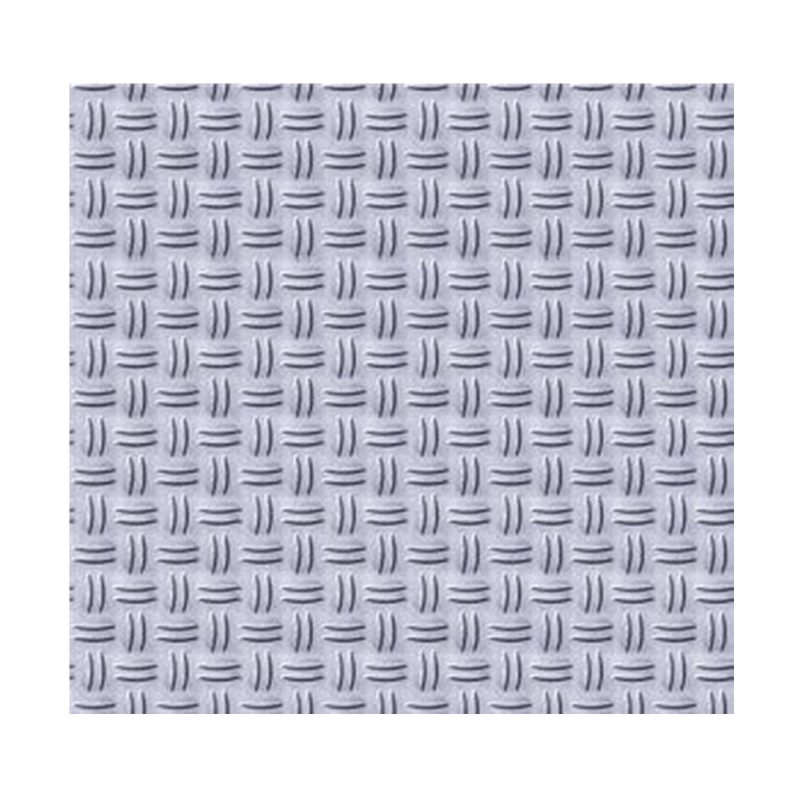

Pattern	Diamond,Round Bean,Hyacinth Bean,5 Bar......

Carbon Checkered Plate Theoretical Weight(Kg/ m²)
Pattern/Thc(mm)		(Diamond)				(Tear Drop)			(Round Bean)
2.5		21.6				21.3			21.1
3		25.6				24.4			24.3
3.5		29.5				28.4			28.3
4		33.4				32.4			32.3
4.5		37.3				36.4			36.2
5		42.3				40.5			40.2
5.5		46.2				44.3			44.1
6		50.1				48.4			48.1
7		59				52.6			52.4
8		66.8				56.4			56.2
Stainless Checkered Plate Theoretical Weight(Kg/ m²)
Thickness(mm)					(Kg/ m²)
2.5					22.6
3					26.6
3.5					30.5
4					34.4
4.5					38.3
5					42.3
6					50.1
8					66.8
Aluminium Checkered Plate Theoretical Weight(Kg/ m²)
Material Thc(mm)	LY12 (2024)		LY11 (2.8)	L1-L6() Pure Aluminium			LY11 (2017)	LF6 KF43		LY11
1	3.45		-	-			-	-		-
1.2	4.01		-	-			-	-		-
1.5	4.84		-	4.67			-	4.62		-
1.8	5.68		-	-			-	-		-
-	-		-	-			-	-		-
2	6.23		6.9	6.02			5.06	5.96		-
2.5	7.62		8.3	7.38			7.46	7.3		-
3	9.01		9.7	8.73			8.86	8.64		9.1
3.5	-		11.1	10.09			10.26	9.98		-
4	-		12.5	11.44			11.66	11.32		11.95
4.5	-		-	12.8			-	-		-
5	-		-	-			-	-		15.35

1050 1060 Aluminium Checkered Steel Plate Chequered Steel Plate

FAQ
Q: What kind of pattern does your factry do?
A: Main pattern is Diamond,Round Bean,Hyacinth Bean,5 Bar
Q: Can you accept customization?
A: Yes.we can do customization for you.
Q: Can you accept trail orders?
A: Generally our MOQ is 5 ton. But if you want to place a trail order as the beginning of our cooperation,
we can accept smaller quantity at frist. Surely we will have further and longer partnership after the beginning.
