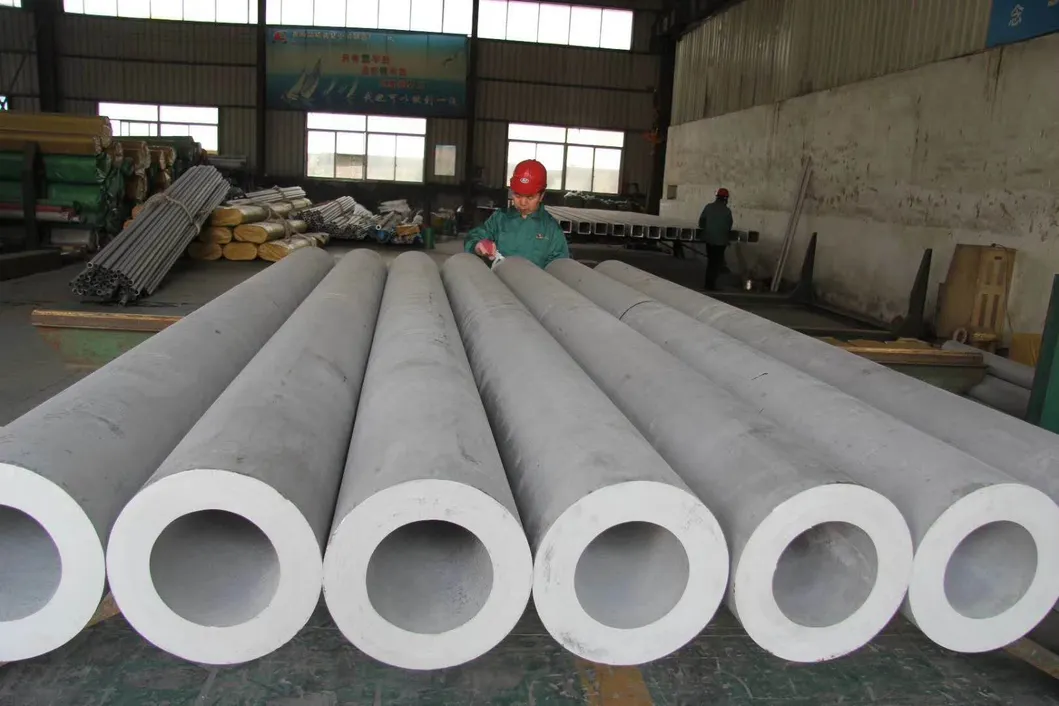

Uns N08904 Seamless Pipe DIN 1.4539 Seamless Pipe of Stainless

Product Description

Stainless Steel 904L Seamless Pipe, Steel 904L Seamless Pipe, DIN 1.4539 Seamless Pipe, Austenitic Stainless Steel 904L Seamless Pipe, Stainless Steel UNS N08904 Seamless Pipes, 904L SS Seamless Pipe Supplier in China ...

SS UNS N08904 Seamless Pipes, Inox 904L Seamless Pipe, 904L Stainless Steel Seamless Pipe Dealer, Stainless Steel 904L Seamless Piping, ASTM A312 SS TP 904L Seamless Pipes, SS 1.4539 Seamless Pipes in India, UNS N08904 SS Seamless Pipes Manufacturer in China

904L Stainless Steel Pipe DIN 1.4539 Steel pipe

01) Commodity name: Seamless and welded austenitic stainless steel pipe
02) Process method: Cold drawn/cold pilgered
03) Surface finish: Annealed/cold pilgered/manual polished/mechanical polished
04) Material: 904L (DIN 1.4539 ,N08904 )
05) Standards: ASTM (ASME) A 790/ A 790M
06) Size:
A) O. D.: 6~426mm
B) W. T.: 0.5---25mm
07) Length: Max. 12 meters
08) Delivery conditions: Solution annealed, pickled, grey white, with plain ends or beveled end
Uns N08904 Seamless Pipe DIN 1.4539 Seamless Pipe of Stainless

Uns N08904 Seamless Pipe DIN 1.4539 Seamless Pipe of Stainless

STANDARD	WERKSTOFF NR.	UNS	JIS	AFNOR	BS	KS	EN
SS 904L	1.4539	N08904	SUS 890L	Z2 NCDU 25-20	904S13	STS 317J5L	X1NiCrMoCu25-20-5

Production according to national and international standards (e.g. ASME, ASTM, API, EN, DNV, etc.)

Chemical Composition :

Grade		C	Mn	Si	P	S	Cr	MO	Ni	CU
904L	Min	-	-	-	-	-	19.0	4.00	23.00	1.00
904L	max	0.20	2.00	1.00	0.045	0.035	23.0	5.00	28.00	2.00

Mechanical properties

Grade	Tensile Strength (MPa) min	Yield Strength 0.2% Proof (MPa) min	Elongation (% in 50mm) min	Hardness
				Rockwell B (HRB)	Brinell (HB)
904L	490	220	35	70-90 typical	-
Rockwell Hardness value range is typical only; other values are specified limits.

Physical propertie

Grade	Density (kg/m3)	Elastic Modulus (GPa)	Mean Co-eff of Thermal Expansion (Âµm/m/Â°C)			Thermal Conductivity (W/m.K)		Specific Heat 0-100Â°C (J/kg.K)	Elec Resistivity (nÎ©.m)
			0-100Â°C	0-315Â°C	0-538Â°C	At 20Â°C	At 500Â°C
904L	8000	200	15	-	-	13	-	500	850

Grade specifications

Grade	UNS No	Old British		Euronorm		Swedish SS	Japanese JIS
		BS	En	No	Name
904L	N08904	904S13	-	1.4539	X1NiCrMoCuN25-20-5	2562	-
These comparisons are approximate only. The list is intended as a comparison of functionally similar materials not as a schedule of contractual equivalents. If exact equivalents are needed original specifications must be consulted.
