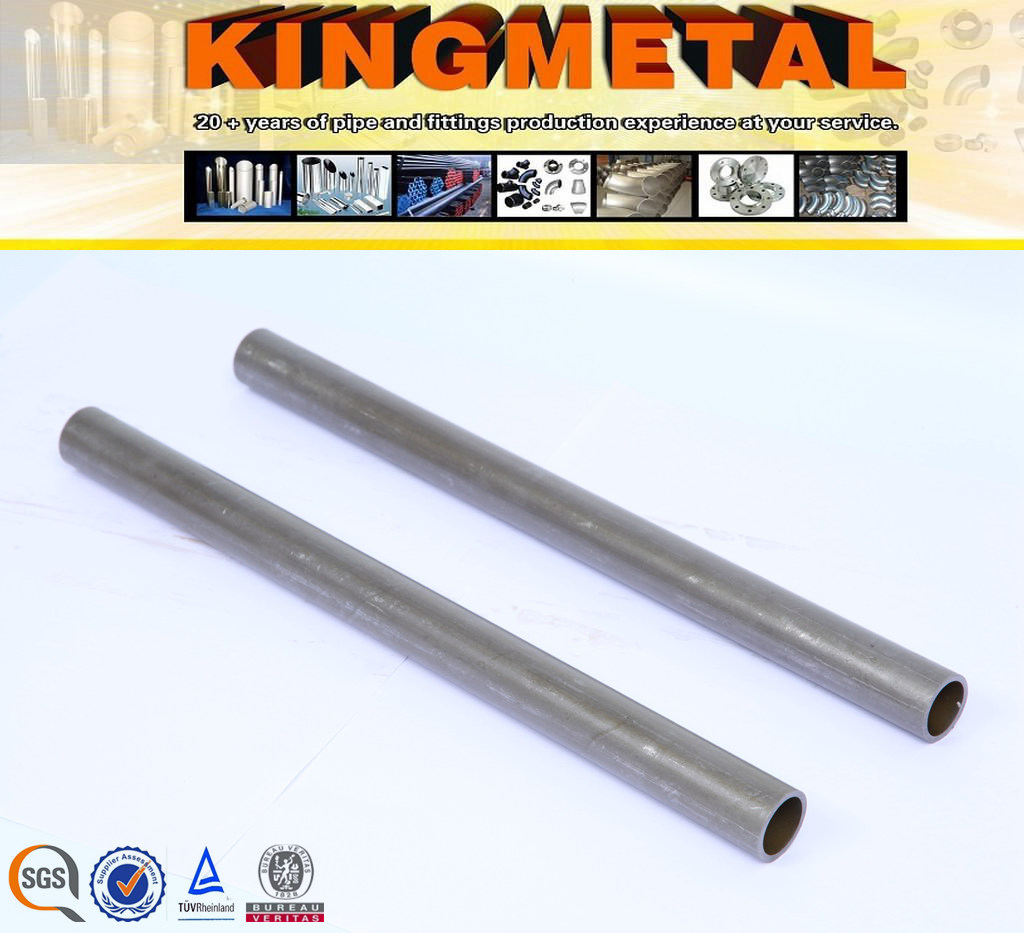

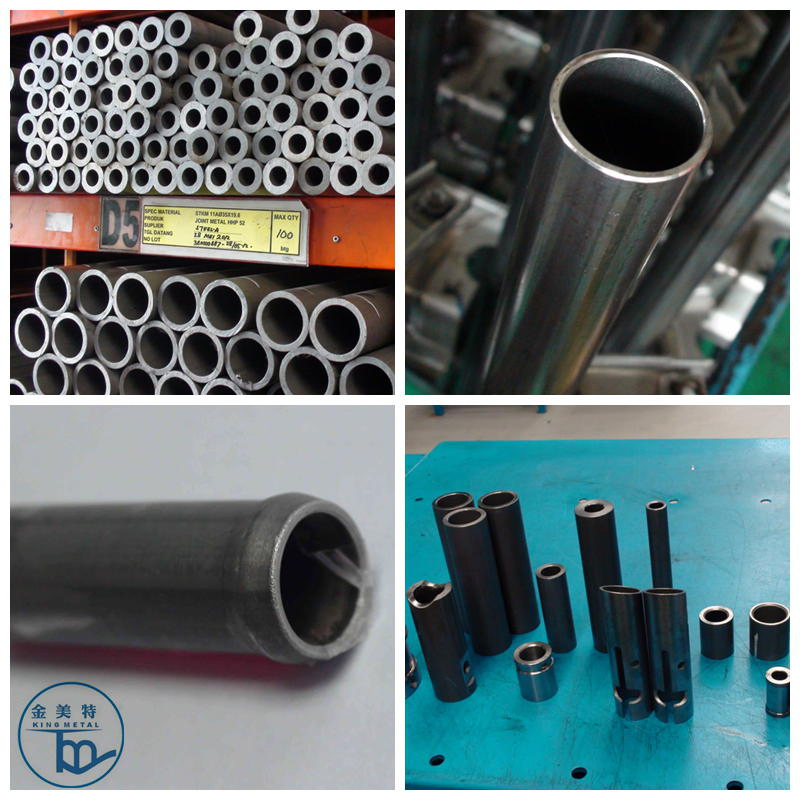

Stkm 11A Precision Part Automotive Tube

Product Description

Precision automotive pipe STAM 11A
Automotive steel pipe
OD: 6mm - 610mm
WT: 1mm-25mm

SAE 1006~1026 / JIS G 4051K / KS D 3752
STAM 290GA~440G (G type) / STAM 470G~540G (H type)
STKM 11~20

Applications

1. Automotive
- Couplings
- Suspension
- Mount
- Compressor
- Chassis Bushing
- Shock absorber

2. Engineering machine Purpose
- Locker arm Shaft
- Tie Rod
- Fuel Pump Housing Tube

3. Hydraulic, Pneumatic Pressure Purpose
- Cylinder for Heavy construction vehicle and Engineering machine
- Mother Tube

WE, KINGMETAL, IS A PROFESSIONAL MANUFACTURER IN STEEL INDUSTRY SINCE 1989,

WITH OVER 20 YEARS EXPERIENCE IN EXPROING,

WE BELIEVE WE CAN SUPPORT OUR CUSTOMER WELL AND GROW STRONGER AND STRONGER TOGETHER.

WE INSIST ON GOOD QUALITY, GOOD SERVICE, AND COMPETITIVE PRICE.

MECHANICAL PROPERTIES
1	Hardness	: -
2	Elongation	: Min 30%
3	Tensile Streng	: Min 40 kgf/mm2 (390 N/mm2)
4	Yeild Strength	: Min 24 kgf/mm2 (235 N/mm2)
5	Test Bending.	:
CHEMICAL COMPOSITION
1	Carbon	: 0,25 max
2	Mangan	: 0.30 to 0.90
3	Silicon	: 0,35 max
4	Phosfor	: 0,035 max
5	Sulfur	: 0,035 max
