ASTM A312 Tp316L Stainless Steel Pipes & Tubes
ASTM A312 TP316L Stainless Steel Pipes & TubesTrusted Exporter of Industrial ASTM A312 TP316L Stainless Steel Pipes & TubesWe supply a full range of ASTM A312 TP316L Stainless Steel Pipes & Tubes schedules ranging from Sch 5 thru Double Extra Heavy, we deliver ASTM A312 TP316L Stainless ......
Send Inquiry
Product Description
ASTM A312 TP316L Stainless Steel Pipes & Tubes
Trusted Exporter of Industrial ASTM A312 TP316L Stainless Steel Pipes & Tubes
We supply a full range of ASTM A312 TP316L Stainless Steel Pipes & Tubes schedules ranging from Sch 5 thru Double Extra Heavy, we deliver ASTM A312 TP316L Stainless Steel Pipes & Tubes with Exceptional sizes & Quality
ASTM A312 TP316L Stainless Steel Pipes & Tubes
Introduction:
BEWELL is the most acclaimed manufacturer, exporter, distributor and supplier of industrial ASTM A312 TP316L Stainless Steel Pipes & Tubes with required test certificates. You can also Order small quantities, we will be happy to quote best price for small and large quantities & can typically deliver the ASTM A312 TP316L Stainless Steel Pipes & Tubes in minimum time frame anywhere around the globe.
Our broad product range makes your individual wishes possible and also meets the extraordinary demands.
ASTM A312 TP316L Stainless Steel Pipes & Tubes specification
Tubing Size : 1/8″NB TO 30″NB IN
Specialized in : Large Diameter Size
Tubing Schedule: SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
Tubing Type : Seamless / ERW / Welded / Fabricated / LSAW Pipes
Form : Round, Square, Rectangular, Hydraulic Etc.
Length : Single Random, Double Random & Cut Length.
Tubing End : Plain End, Beveled End, Treaded.
Production according to national and international standards (e.g. ASME, ASTM, API, EN, DNV, etc.)
Origin: Europe, Japan, Korea, Taiwan
We can produce according to Your Required Specification
Table 1. Composition ranges for 316 grade of stainless steels.
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
|---|---|---|---|---|---|---|---|---|---|---|
| 316 | Min | - | - | - | 0 | - | 16.0 | 2.00 | 10.0 | - |
| Max | 0.08 | 2.0 | 0.75 | 0.045 | 0.03 | 18.0 | 3.00 | 14.0 | 0.10 | |
| 316L | Min | - | - | - | - | - | 16.0 | 2.00 | 10.0 | - |
| Max | 0.03 | 2.0 | 0.75 | 0.045 | 0.03 | 18.0 | 3.00 | 14.0 | 0.10 | |
| 316H | Min | 0.04 | 0.04 | 0 | - | - | 16.0 | 2.00 | 10.0 | - |
| max | 0.10 | 0.10 | 0.75 | 0.045 | 0.03 | 18.0 | 3.00 | 14.0 | - |
Mechanical Properties of 316 Stainless Steel Pipes & Tubes
Table 2. Mechanical properties of 316 grade stainless steels.
| Grade | Tensile Str(MPa) min | Yield Str0.2% Proof(MPa) min | Elong(% in 50mm) min | Hardness | |
|---|---|---|---|---|---|
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| 316 | 515 | 205 | 40 | 95 | 217 |
| 316L | 485 | 170 | 40 | 95 | 217 |
| 316H | 515 | 205 | 40 | 95 | 217 |
Note: 316H also has a requirement for a grain size of ASTM no. 7 or coarser.
Physical Properties of 316 Stainless Steel Pipes & Tubes
Table 3. Typical physical properties for 316 grade stainless steels.
| Grade | Density(kg/m3) | Elastic Modulus(GPa) | Mean Co-eff of Thermal Expansion (µm/m/0C) | Thermal Conductivity(W/m.K) | |||
|---|---|---|---|---|---|---|---|
| 0-1000C | 0-3150C | 0-5380C | At 1000C | At 5000C | |||
| 316/L/H | 8000 | 193 | 15.9 | 16.2 | 17.5 | 16.3 | 21.5 |
Grade Specification Comparison of 316 Stainless Steel Pipes & Tubes
Table 4. Grade specifications for 316 grade stainless steels.
| Grade | UNSNo | Old British | Euronorm | SwedishSS | JapaneseJIS | ||
|---|---|---|---|---|---|---|---|
| BS | En | No | Name | ||||
| 316 | S31600 | 316S31 | 58H, 58J | 1.4401 | X5CrNiMo17-12-2 | 2347 | SUS 316 |
| 316L | S31603 | 316S11 | - | 1.4404 | X2CrNiMo17-12-2 | 2348 | SUS 316L |
| 316H | S31609 | 316S51 | - | - | - | - | - |
ASTM A312 TP316L Stainless Steel Pipes & Tubes certificates:
ISO 9001:2008 Certified Company
TEST CERTIFICATE
We can provide ASTM A312 TP316L Stainless Steel Pipes & Tubes Mill Test Certificate as per EN 10204 as per 3.1/3.2 TC
ASTM A312 TP316L Stainless Steel Pipes & Tubes uses & application:
We supply ASTM A312 TP316L Stainless Steel Pipes & Tubes to Oil & Gas, Refineries, Fertilizers, Heat-Exchangers, Paper & Pulp, Pharmaceuticals, Chemicals, Water Treatment, Dairy, Sugar & Food Processing, Construction, Mining, Shipbuilding, Offshore, Defence, Ports, Railway, Nuclear Power, Power Plant, Cement, Government Org., Engineering Co., Oil Mills, and other industrial projects.

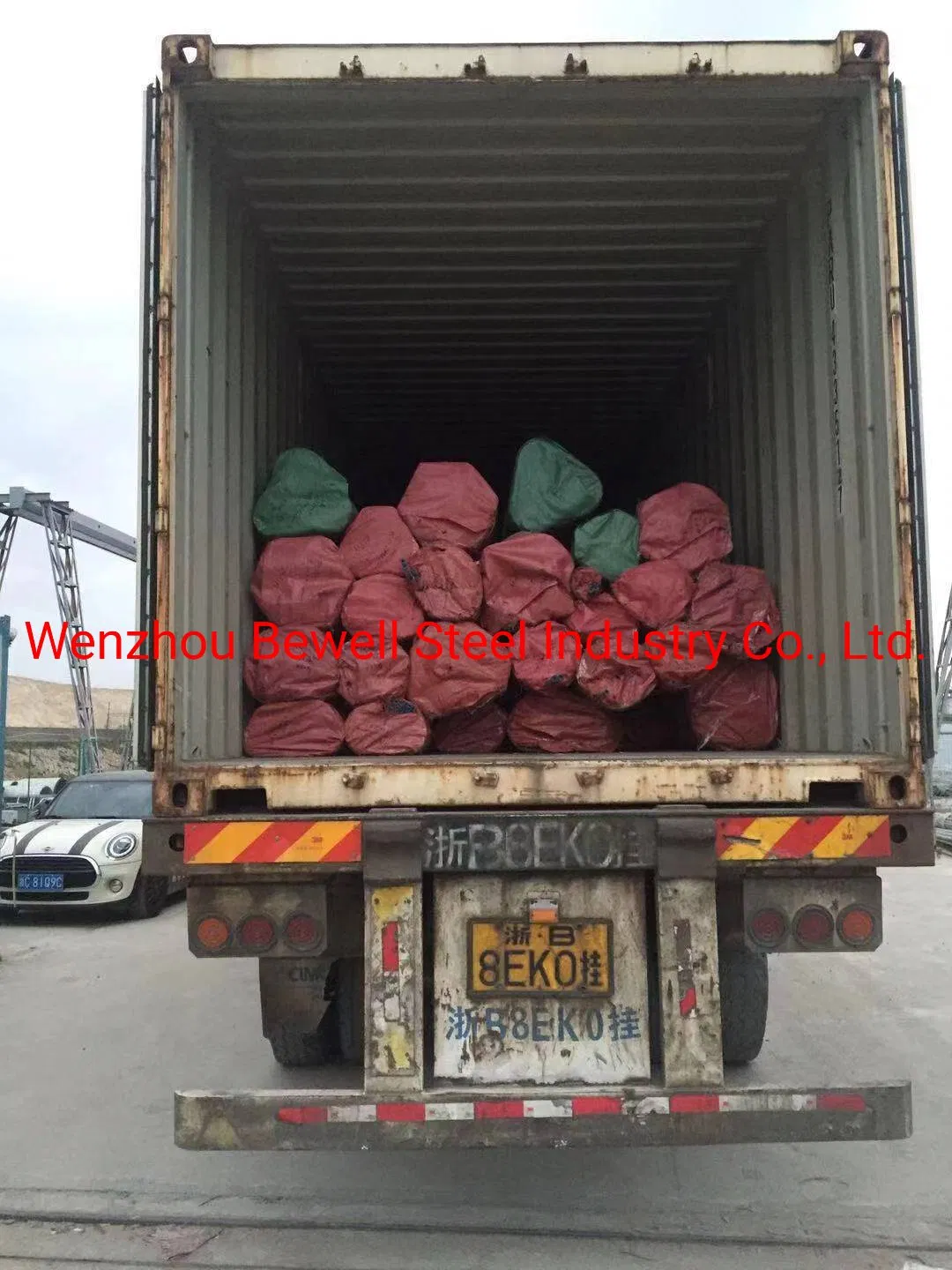

ASTM A312 TP316L Stainless Steel Pipes & Tubes packing, Shipping & delivery time:
3 Weeks + Sailing Time

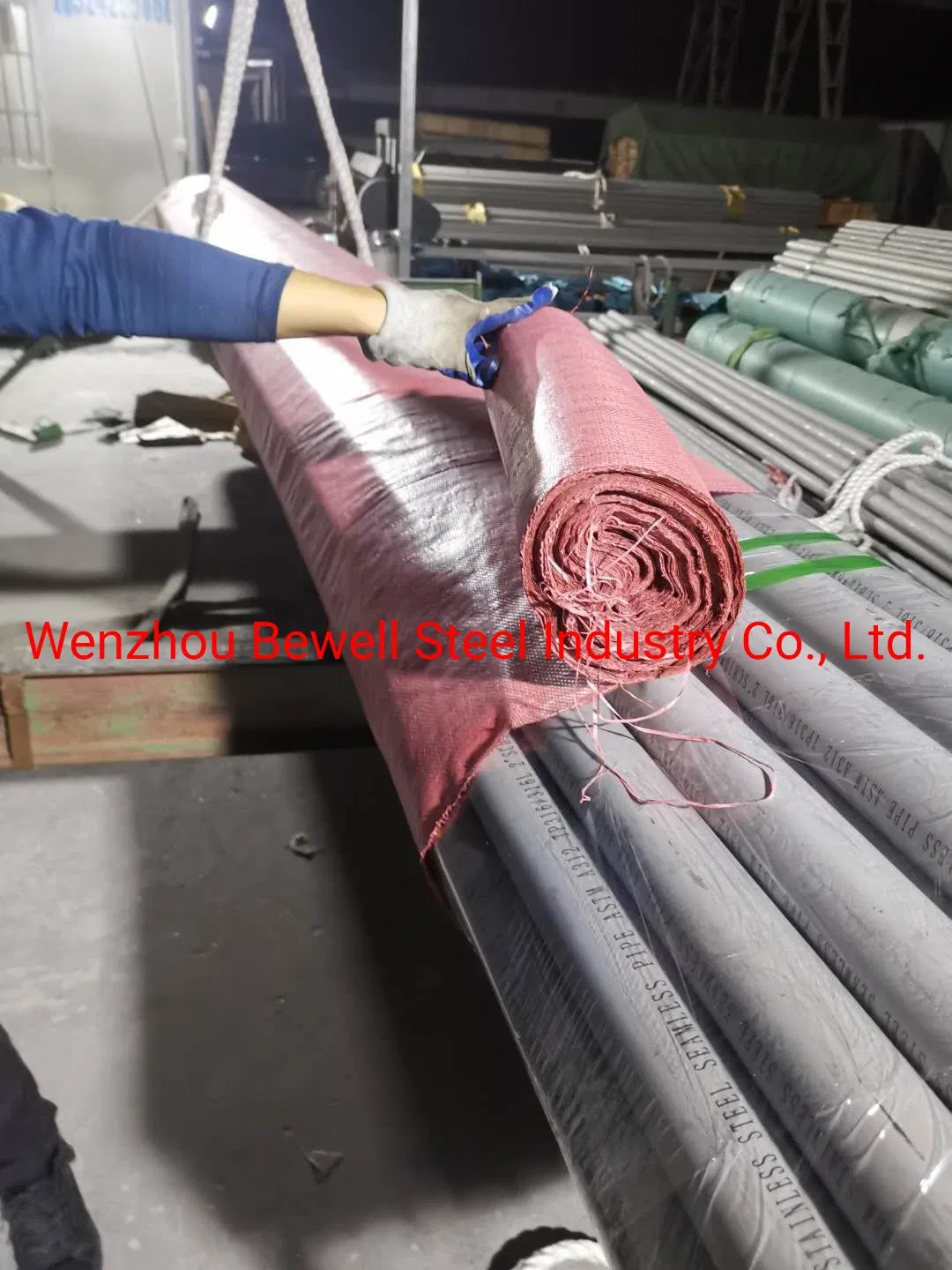

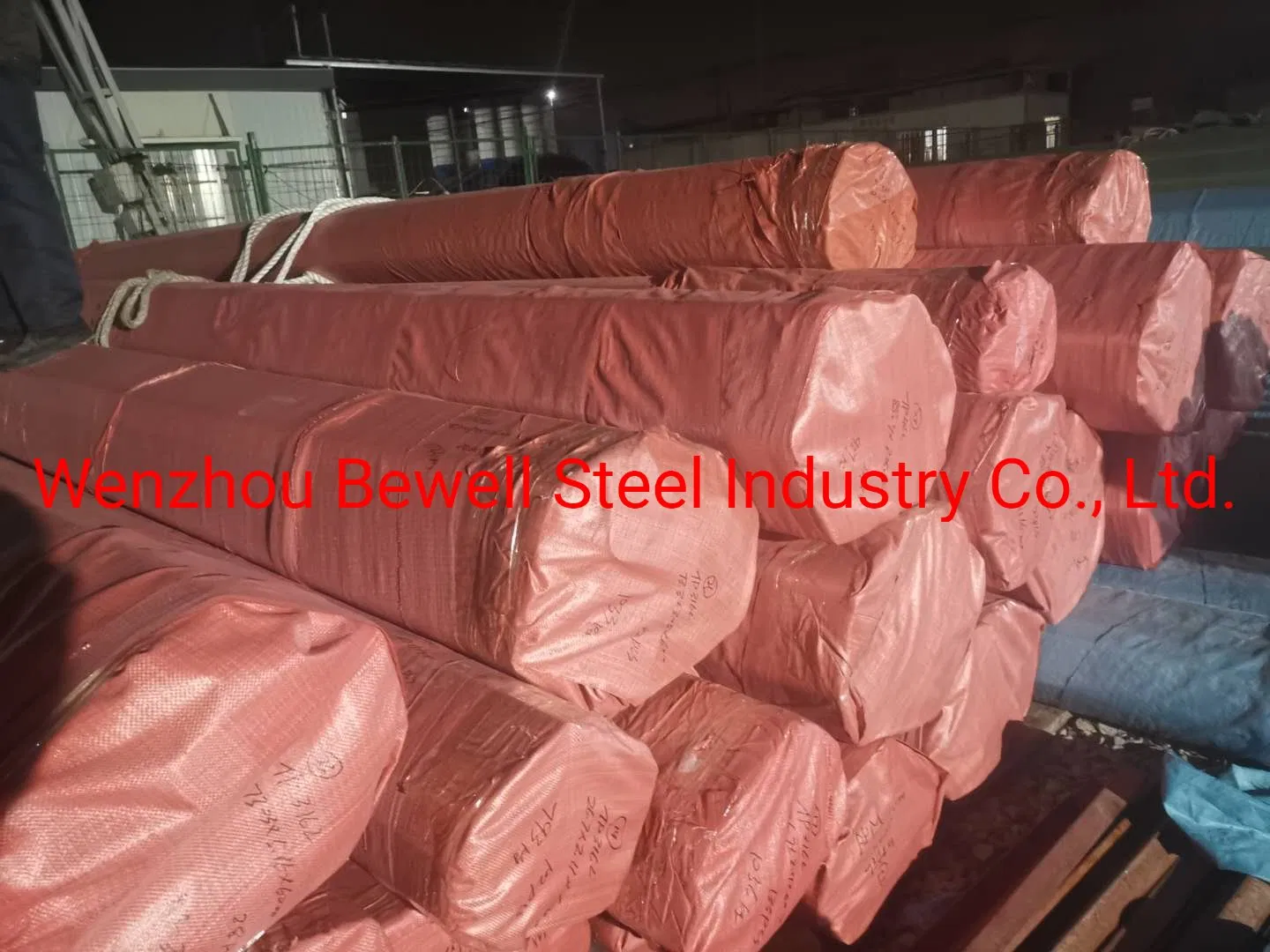

ASTM A312 TP316L Stainless Steel Pipes & Tubes packing (Ready to ship)

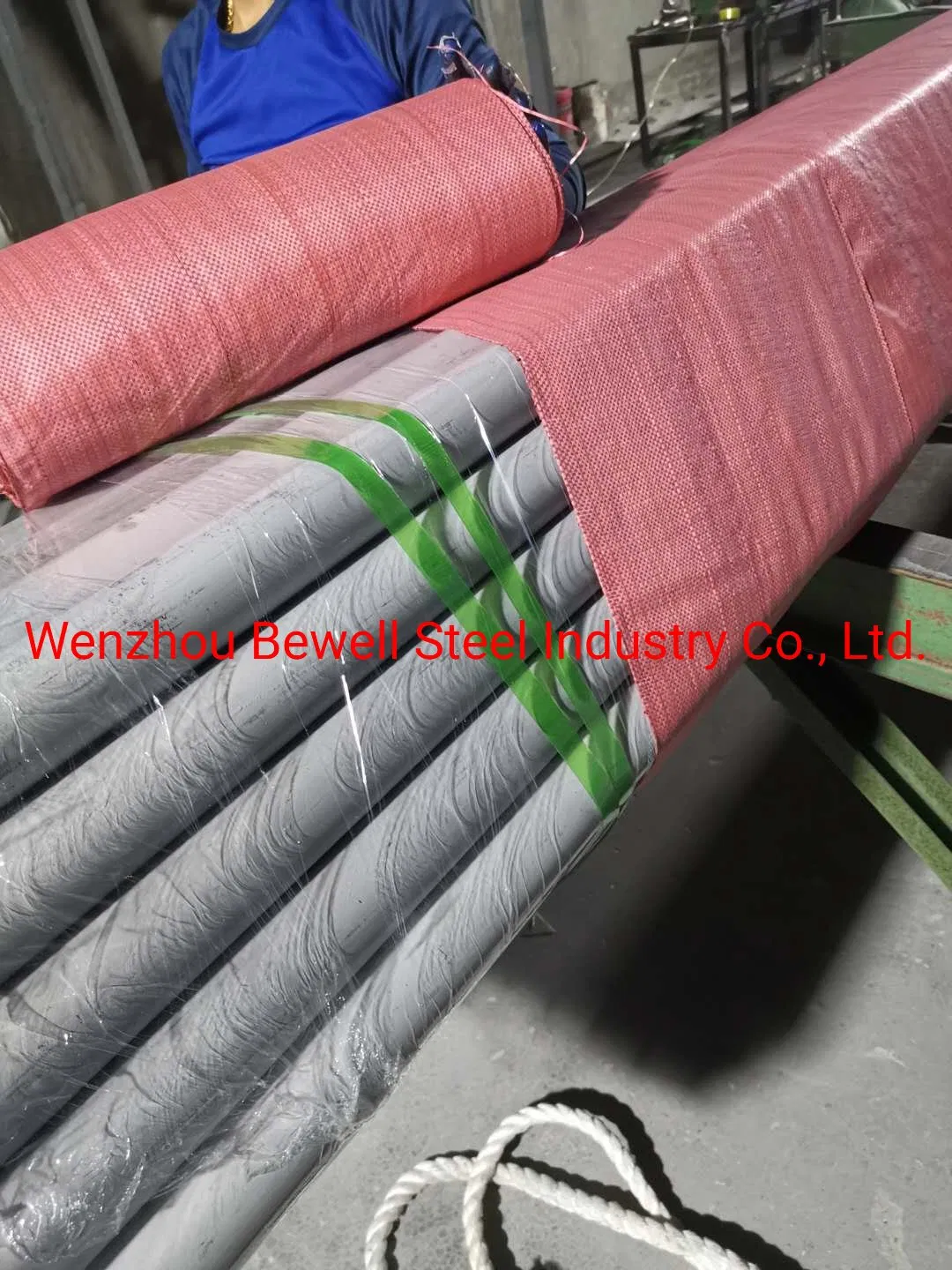

ASTM A312 TP316L Stainless Steel Pipes & Tubes packing (Ready to ship)
Packing details:
PVC packing, carton packing, or as customer request woodeng case.
ASTM A312 TP316L Stainless Steel Pipes & Tubes have to arrive safely, quickly and without damages at their destination in any part of the world. Packing is also an essential part of quality assurance.
Offer ASTM A312 TP316L Stainless Steel Pipes & Tubes best price
Available Pipe & Tubing Steel Materials:
ASTM A269 Stainless Steel Pipe & Tubing
ASTM A106 Carbon Steel Pipes & Tubing
ASTM A53 Carbon Steel Pipes & Tubing
ASTM B163 Nickel 200 Pipes & Tubing
ASTM B163 Nickel 201 Pipes & Tubing
ASTM B165 Monel 400 Pipes & Tubing
ASTM B164 Monel Pipes & Tubing
ASTM B127 Monel Pipes & Tubing
ASTM B163 Inconel Pipes & Tubing
ASTM B775 Inconel Pipes & Tubing
ASTM B163 Inconel 600 Pipes & Tubing
ASTM B775 Inconel 600 Pipes & Tubing
ASTM B167 Inconel 601 Pipes & Tubing
ASTM B775 Inconel 601 Pipes & Tubing
ASTM B444 Inconel 625 Pipes & Tubing
ASTM B704 Inconel 625 Pipes & Tubing
ASTM B729 Alloy 20 Pipes & Tubing
ASTM B468 Alloy 20 Pipes & Tubing
ASTM B163 Incoloy Pipes & Tubing
ASTM B163 Inconel 800 Pipes & Tubing
ASTM B163 Incoloy 800 Pipes & Tubing
ASTM B515 Inconel 800 Pipes & Tubing
ASTM B515 Incoloy 800 Pipes & Tubing
ASTM B163 Incoloy 800H Pipes & Tubing
ASTM B515 Incoloy 800H Pipes & Tubing
ASTM B163 Incoloy 800HT Pipes & Tubing
ASTM B515 Incoloy 800HT Pipes & Tubing
ASTM B423 Incoloy 825 Pipes & Tubing
ASTM B705 Incoloy 825 Pipes & Tubing
ASTM B622 Hastelloy Pipes & Tubing
ASTM B626 Hastelloy Pipes & Tubing
ASTM B622 Hastelloy C276 Pipes & Tubing
ASTM B626 Hastelloy C276 Pipes & Tubing
ASTM B622 Hastelloy C22 Pipes & Tubing
ASTM B626 Hastelloy C22 Pipes & Tubing
ASTM B622 Hastelloy B2 Pipes & Tubing
ASTM B626 Hastelloy B2 Pipes & Tubing
ASTM A249 254 SMO Pipes & Tubing
ASTM A249 254 SMO Pipes & Tubing
ASTM A574 Alloy Steel Pipes & Tubing
ASTM A312 TP316L Stainless Steel Pipes & Tubes Advanced Manufacturing Process:
Top technology in steel pipe manufacturing
Machine processing (interior and exterior)
ASTM A312 TP316L Stainless Steel Pipes & Tubes we export to:
Bahrain, Brazil, Chile, Egypt, India, Iran, Iraq, Kuwait, Lebanon, Middle East, Mexico, Nigeria, Oman, Saudi Arabia, South Africa, South America, Qatar, Russia, Turkey, United States, UAE, Venezuela, Yemen & around the globe.
