API 5CT K55 Seamless Carbon Steel Oil Casing Pipe and Tubing OCTG
7" API 5CT K55 Seamless Carbon Steel Oil Casing Pipe and Tubing OCTG1.OCTG Casing,Tubing ,Drill Pipe Technical ParatemetersStandardAPI 5CT/ API 5DP ISO11960GradeGroup.1H40/PSL.1, J55/PSL.1, J55/PSL.2, J55/PSL.3,K55/PSL.1, K55/PSL.2, K55/PSL.3,N80(1)/PSL.1, N80(1)/PSL.2, N80(Q)/PSL.1,N80(Q)/PSL.......
Send Inquiry
Product Description
7" API 5CT K55 Seamless Carbon Steel Oil Casing Pipe and Tubing OCTG
1.OCTG Casing,Tubing ,Drill Pipe Technical Paratemeters
| Standard | API 5CT/ API 5DP ISO11960 | |
| Grade | Group.1 | H40/PSL.1, J55/PSL.1, J55/PSL.2, J55/PSL.3, K55/PSL.1, K55/PSL.2, K55/PSL.3, |
| N80(1)/PSL.1, N80(1)/PSL.2, N80(Q)/PSL.1, N80(Q)/PSL.2, N80(Q)/PSL.3 | ||
| Group.2 | M65/PSL.1, M65/PSL.3, L80/PSL.2, L80(1)/PSL.1, L80(1)/PSL.3, L80(9Cr)/PSL.1, L80(13Cr)/PSL.1, C90/PSL.1, C90/PSL.2, C90/PSL.3, T95/PSL.1, T95/PSL.2T95/PSL.3 | |
| Group.3 | P110/PSL.1, P110/PSL.2, P110/PSL.3, | |
| Group.4 | Q125/PSL.1, Q125/PSL.2, Q125/PSL.3, | |
| Minimum Order Quantity | 1 pcs | |
| Outside DiameterRanges | Tubing | 1.66 inch to 4 1/2 inch or 42.16mm to 114.3mm |
| Casing | 4 1/2 inch to 20 inch or 114.3mm to 508mm | |
| Wall Thickness | According to API 5CT Standard | |
| Length | Tubing | R1 (6.10m to 7.32m), R2 (8.53m to 9.75m), R3 (11.58m to 12.80m) |
| Casing | R1 (4.88m to 7.62m), R2 (7.62m to 10.36m), R3 (10.36m to 14.63m) | |
| Type | Seamless | |
| Type of End-Finish | Tubing | P, I, N, U |
| Casing | P, S, B, L | |
| Item | Tolerance | |
| OD | D<114.3mm | ±0.79mm |
| D≥114.3mm | +1%D | |
| -0.5%D | ||
| WT | -12.50% | |
| Weight | Single Lengths | +6.5%,-3.5% |
| Carload 18 144 kg (40 000 lb) or more | -1.75% | |
| Carload less than 18 144 kg (40 000 lb) | - 3,5 % | |
2.Product showcast
Available Size
API Oil Casing Pipe | ||||||
Outer Diameter | Wall Thickness | Grade | Thread | Length | ||
In | Mm | Kg/m | Lb/ft | |||
4 1/2" | 114.3 | 14.14-22.47 | 9.50-15.10 | J55/N80/P110/K55/L80 | LTC/STC/BTC | R1/R2/R3 |
5" | 127 | 17.11-35.86 | 11.50-24.10 | J55/N80/P110/K55/L80 | LTC/STC/BTC | R1/R2/R3 |
5 1/2" | 139.7 | 20.83-34.23 | 14.00-23.00 | J55/N80/P110/K55/L80 | LTC/STC/BTC | R1/R2/R3 |
6 5/8" | 168.28 | 29.76-35.72 | 20.00-24.00 | J55/N80/P110/K55/L80 | LTC/STC/BTC | R1/R2/R3 |
7" | 177.8 | 25.30-56.55 | 17.00-38.00 | J55/N80/P110/K55/L80 | LTC/STC/BTC | R1/R2/R3 |
7 5/8" | 193.68 | 35.72-63.69 | 24.00-42.80 | J55/N80/P110/K55/L80 | LTC/STC/BTC | R1/R2/R3 |
8 5/8" | 219.08 | 35.72-72.92 | 24.00-49.00 | J55/N80/P110/K55/L80 | LTC/STC/BTC | R1/R2/R3 |
9 5/8" | 244.48 | 48.07-86.91 | 32.30-58.40 | J55/N80/P110/K55/L80 | LTC/STC/BTC | R1/R2/R3 |
10 3/4" | 273.05 | 48.73-97.77 | 32.75-65.70 | J55/N80/P110/K55/L80 | LTC/STC/BTC | R1/R2/R3 |
11 3/4" | 298.45 | 62.50-89.29 | 42.00-60.00 | J55/N80/P110/K55/L80 | LTC/STC/BTC | R1/R2/R3 |
13 3/8" | 339.72 | 71.43-107.15 | 48.00-72.00 | J55/N80/P110/K55/L80 | LTC/STC/BTC | R1/R2/R3 |

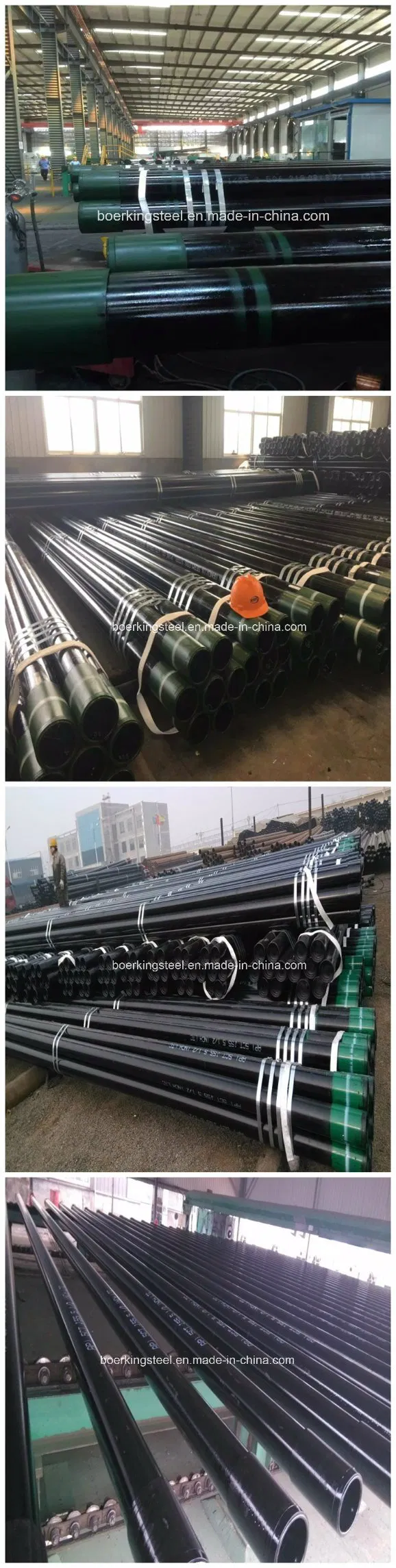

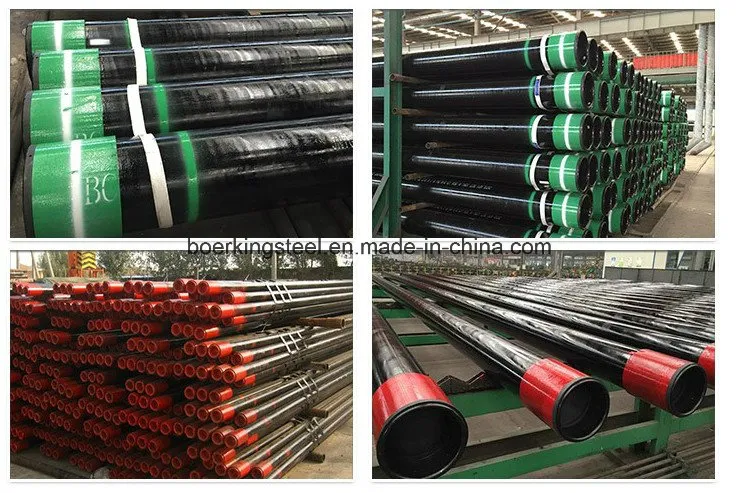

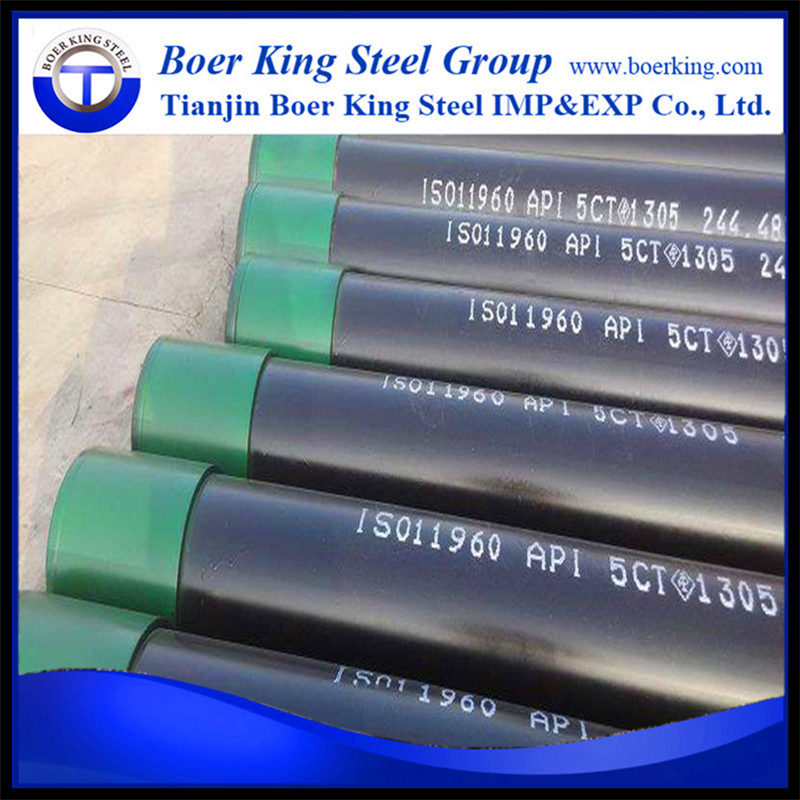

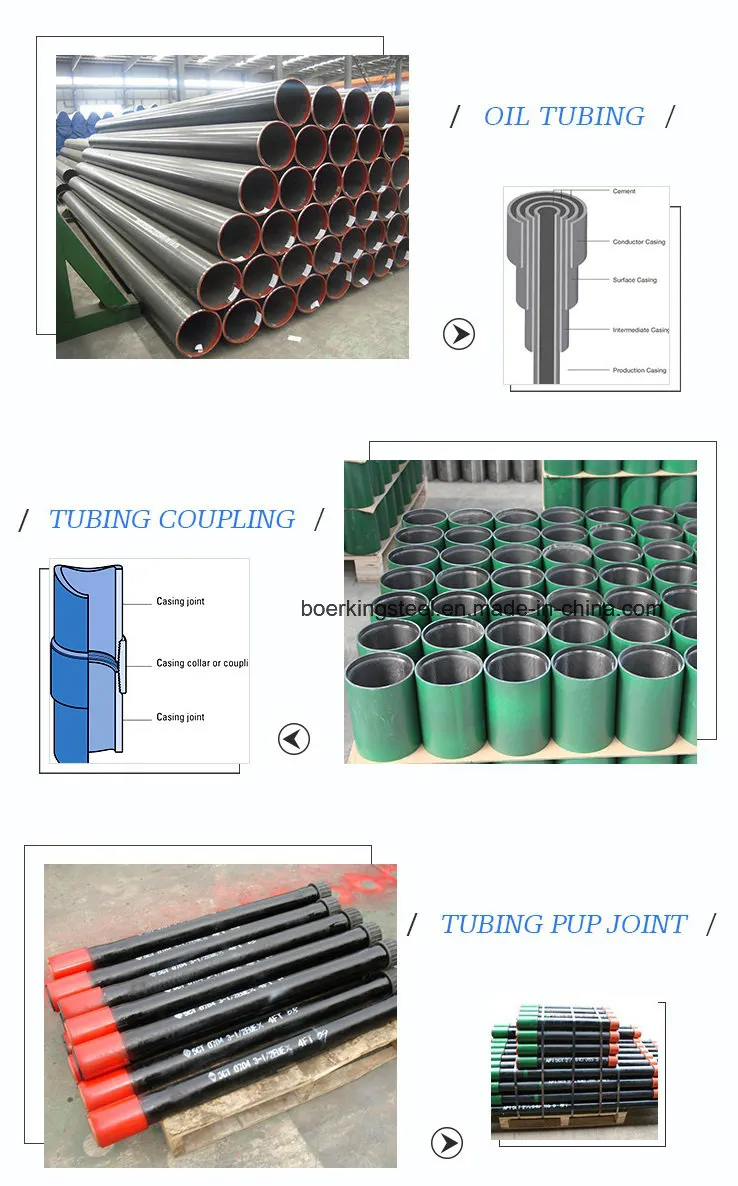

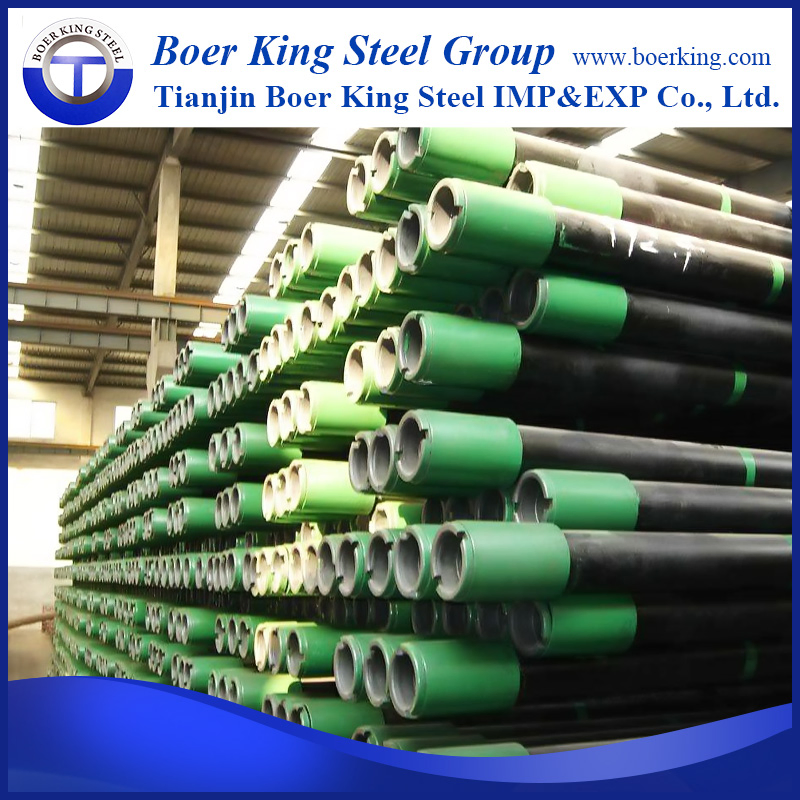

Product show

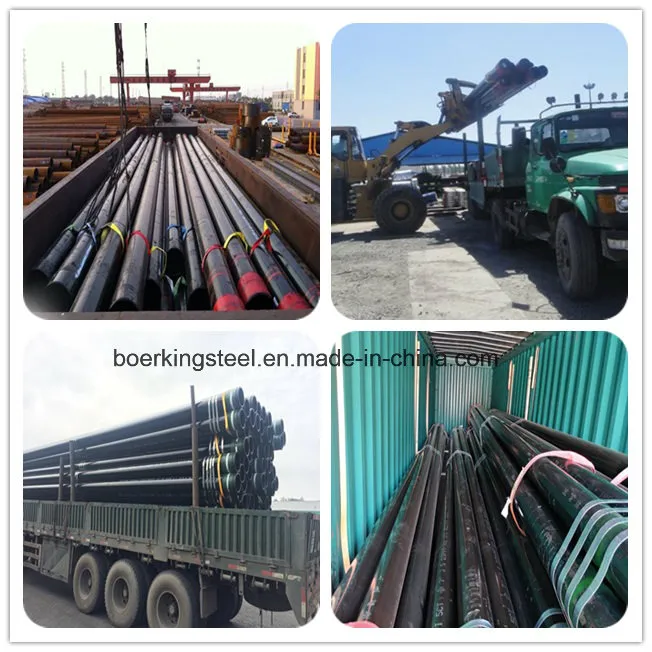

Packing&Shipping
Shipping--- by container (Apply to a few or common quantity) or in bulk ( Apply to huge quantity)
Container sizes:
20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High)
40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High)
40ft HC:12032mm(Lengh)x2352mm(Width)x2698mm(High)
For 20feet container load 25tons-28tons pipes whose max. length is 5.8m.
For40feet container load 25tons-26tons pipes whose max. length is 12m.
Company information
Tianjin Boer King Steel Co.,Ltd. is located in Shuang Gang industrial zone of Jinnan district ,Tianjin. Our company is 36km away from Tianjin port, 6km away from Tianjin airport and 40km away from Tianjin railway station.
We have established quality management system according to ISO9001:2008 and carry out the total quality management. Now, We sell 160,000 tons steel pipes per year, including the steel pipes for the high, medium and low pressure boilers, shipping, transporting liquid products, the petroleum cracking process, the fertilizer facilities, the structure ,the hollow sucker rod , oil well casing and drill pipe, galvanized steel pipe and some stainless steel. Provide high quality products to in different industries customers .
In recent years, the company products are not only sold well in domestic market but also exported to different countries and areas in the world. Our products are very popular in the overseas market. A number of overseas well-known enterprises have established a long-term business relationship with us.
Warmly welcome customers home and abroad to visit our company and give us valuable suggestions. We would like to have long term cooperation with customers from all over the world on the basis of mutual prosperity and development.
