Steel Products Manufacture in China

Steel Products manufacture in China

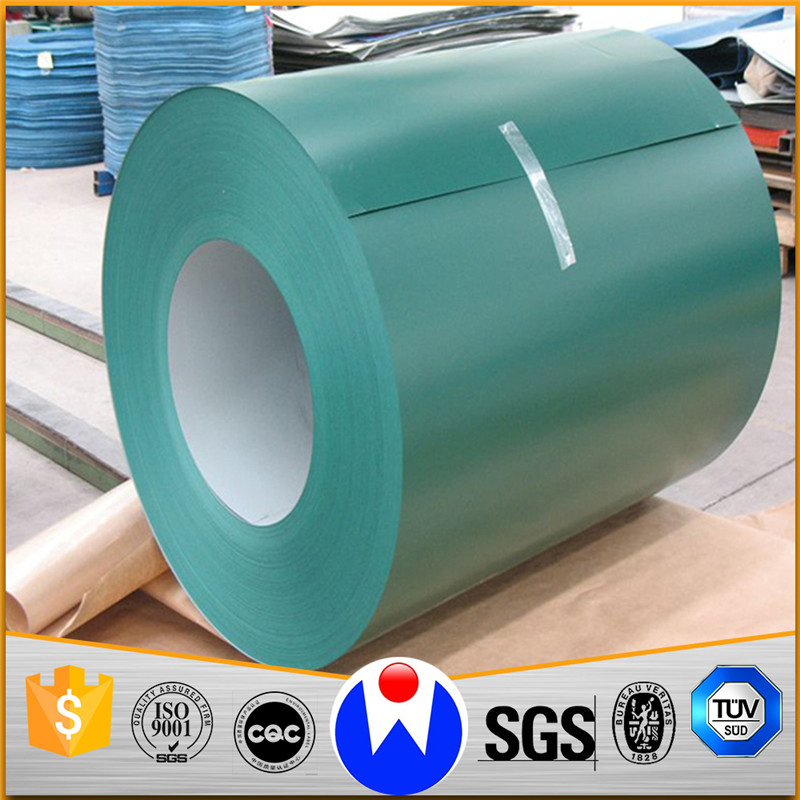

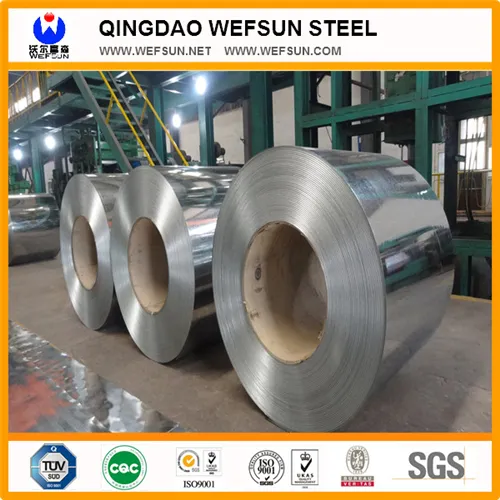

Ppgi, ppgi steel, ppgi steel coil Specifications:

1. Thickness: 0.13-0.9mm
2. Width: 600-1250mm

3. Material: Q195, Q235, Q235B, Q215, DX51D+Z, DX53D+ZSPCC, SGCC
4. Zinc coating: 60-120G/M2

5. Surface Structure: Galvanized, zero spangle, regular spangle or normal spangle

6. Surface treatment: Chromated and oiled, chromated and non-oiled


Applications:

1) Pre-galvanized steel tubes and pipes.

2) Galvanized steel channels and profiles.

3) Armoring cable.

4) Construction, the manufacturing of cars, ships, containers and household electric appliances, other industries usage


Supply PPGI PPGL Prepainted Steel sheet coil /plate

Factory of color color prepainted galvalnized steel sheet coils /plate

Manufacture of GI GL PPGI PPGL coil corrugated roofing sheet /plate

Mill of Pre Painted color coated steel plate/sheet(thick: 0.13-0.9mm)
Brief Introduction:

1. Color steel is coated with organic layer, which provides higher anti-corrosion property and a longer lifespan than that of galvanized steel sheets.
2. The base metals for Color steel consist of cold rolled, HDG electro-galvanized and hot-dip alu-zinc coated steel. The finish coats of Color steels can be classified into groups as follows: Polyester, silicon modified polyesters, polyvinylidene fluoride, high-durability polyester, etc.

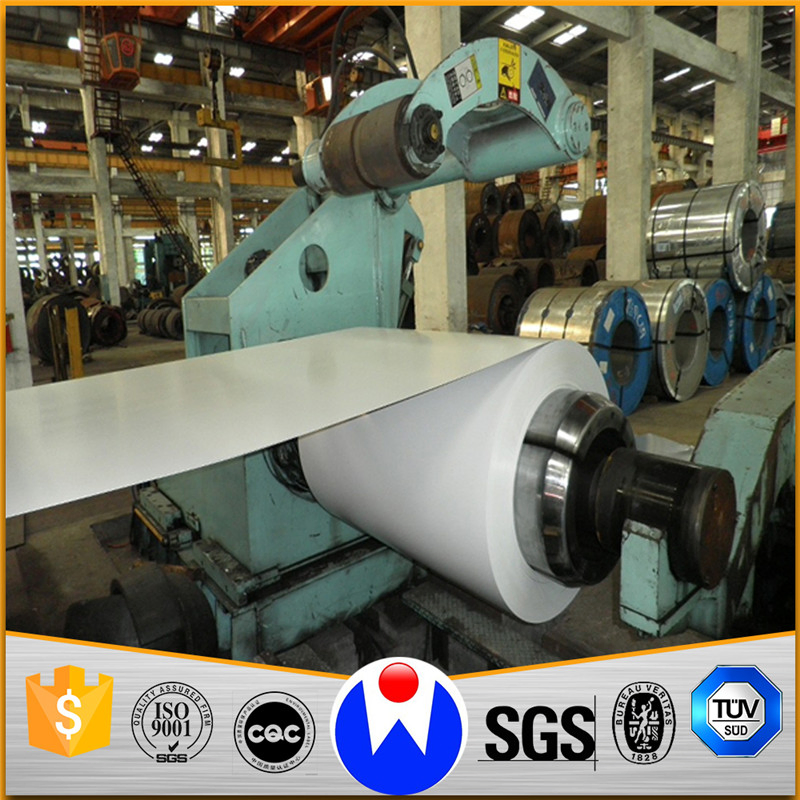

3. The production process has evolved from one-coating-and-one-baking to double-coating-and-double-baking, and even three-coating-and-three-baking.

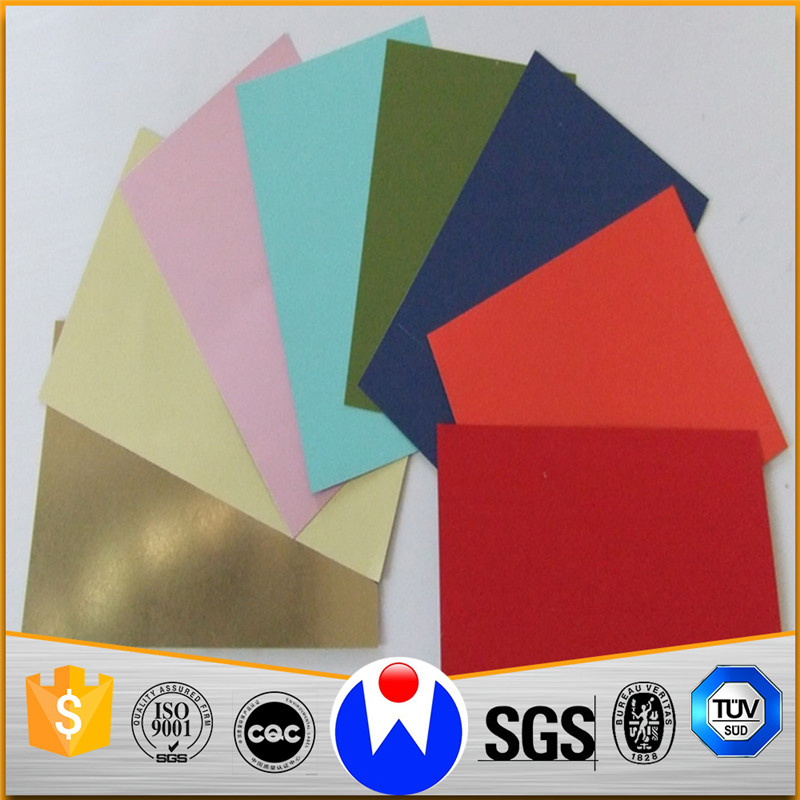

4. The color of the Color steel has a very wide selection, like orange, cream-colored, dark sky blue, sea blue, bright red, brick red, ivory white, porcelain blue, etc.
5. The Color steels can also be classified into groups by their surface textures, namely regular prepainted sheets, embossed sheets and printed sheets.
Ppgi, ppgi steel, ppgi steel coils Certificate: ISO 9001/2008
The main specification is as belows:
Standards: GB/T12754, JIS3312, EN 10169 ASTM A755
Thickness: 0.13-0.9mm; Width: 600-1250mm
Tolerance: +2/0mm, thickness tolerance: +0.02/-0.02mm (or according to customers' request).
Coating mass: Top; 16-25, Back: 7-10
Coil weight: 5-8 metric tons
Coil DM: I. D: Φ 508m/610mm O. D: Max Φ 1500mm
Coating type: PE, SMP, HDP, PVDF
Common performance of front coating:
Color coated galvanized steel fence panel /ppgi for roofing building materials (1). Thickness: ≥ 20μ M
(2). Pencil Hardness: 2H
(3). 60° Specular glossiness of coating: >60
(4). 180° Bend: ≤ 3T
(5). Impact: ≥ 9J
(6). Salt Fog Resistant: ≥ 500h
(7). Color difference: <3Δ E
PPGI, ppgi steel, ppgi steel coils Application:

1. Construction: (Outside) workshop, agricultural warehouse, residential precast unit, corrugated roof, wall, rainwater drainage pipe, terrace, retailer booth, roller shutter door
(Inside) door, doorcase, light steel roof structure, folding screen, ceiling, elevator, stairway, vent gutter
2. Electrical appliance: Refrigerator, washer, switch cabinet, instrument cabinet, air conditioning, micro-wave oven, bread maker
3. Furniture: Central heating slice, lampshade, chifforobe, desk, bed, locker, bookshelf
4. Carrying trade: Exterior decoration of auto and train, clapboard, container, isolation lairage, isolation board
5. Others: Writing panel, garbage can, billboard, timekeeper, typewriter, instrument panel, weight sensor, photographic equipment

PPGI PPGI COIL PPGI steel coil
