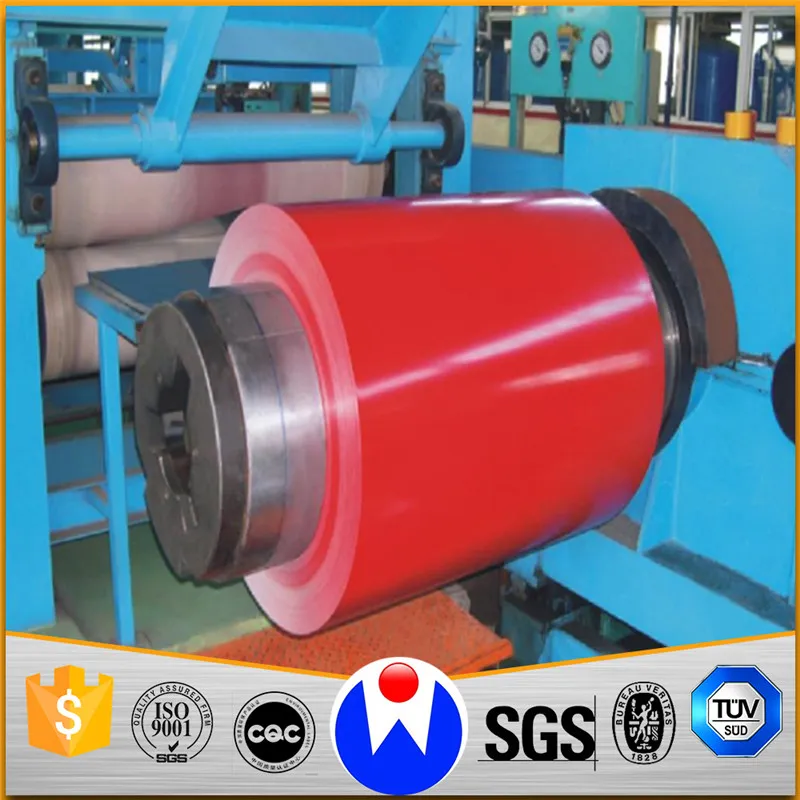

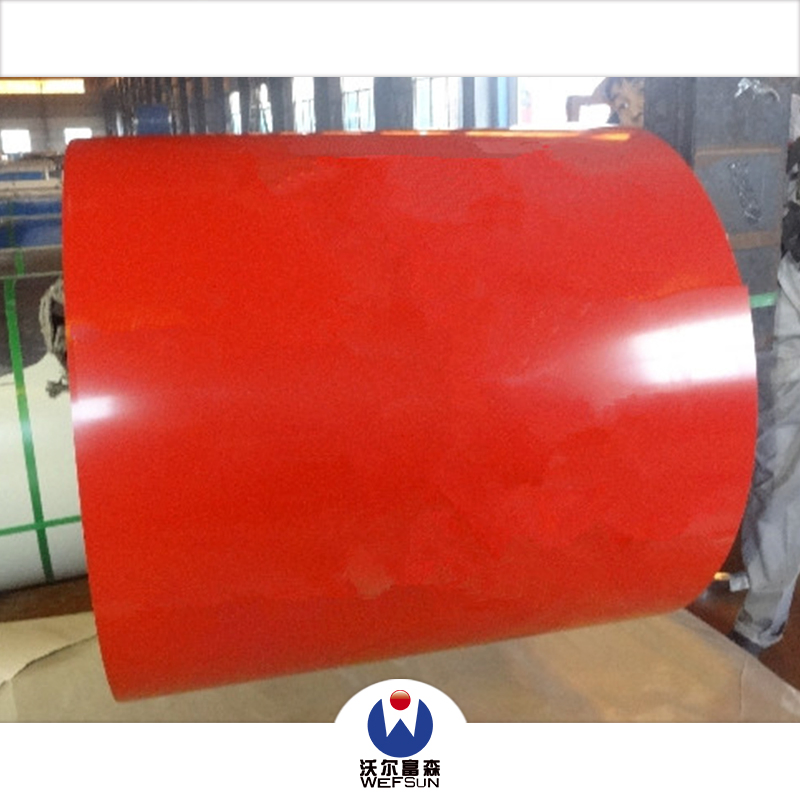

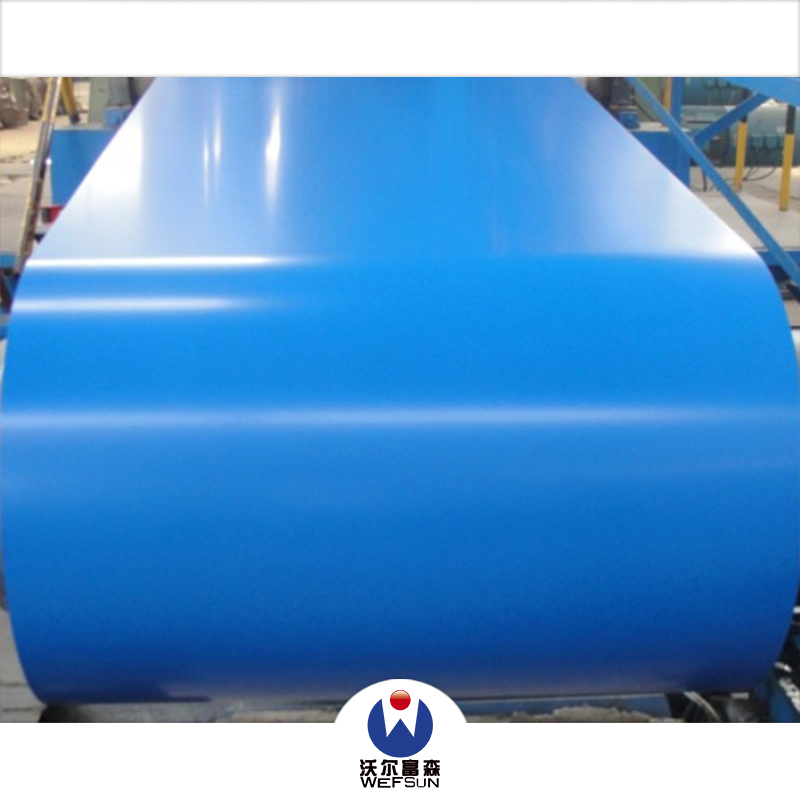

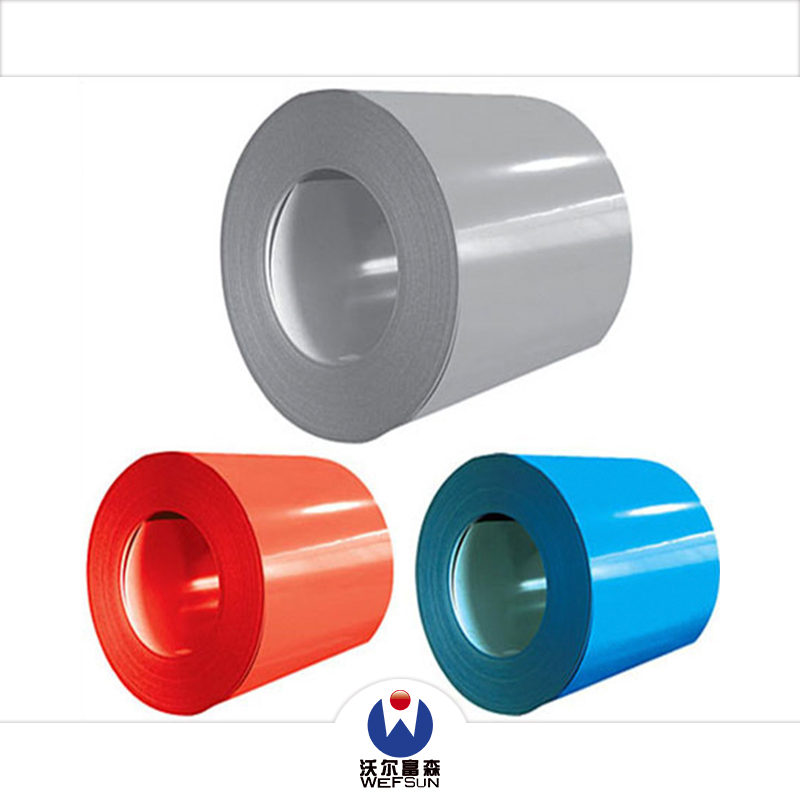

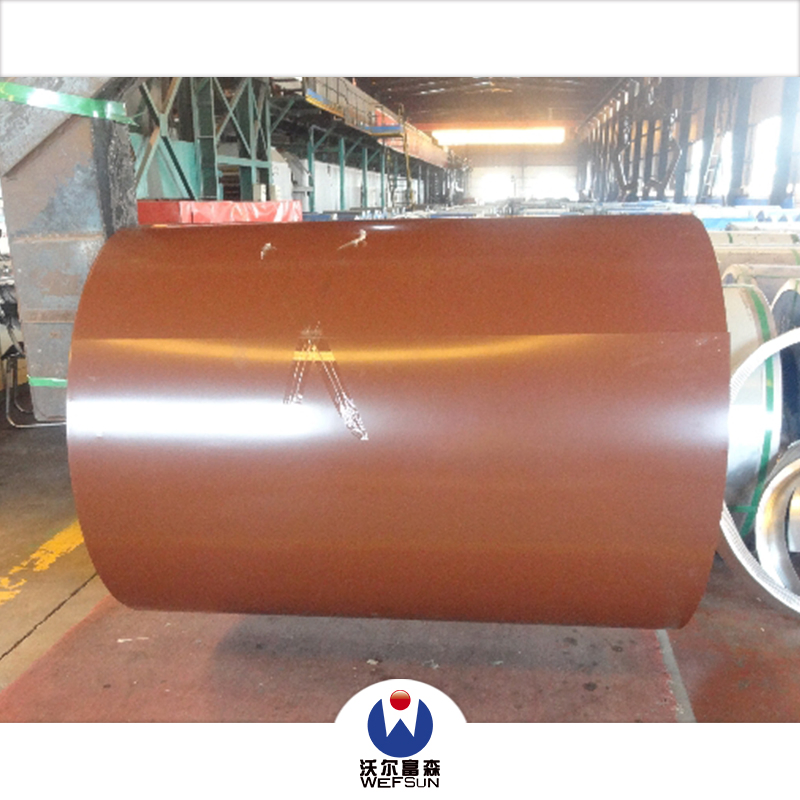

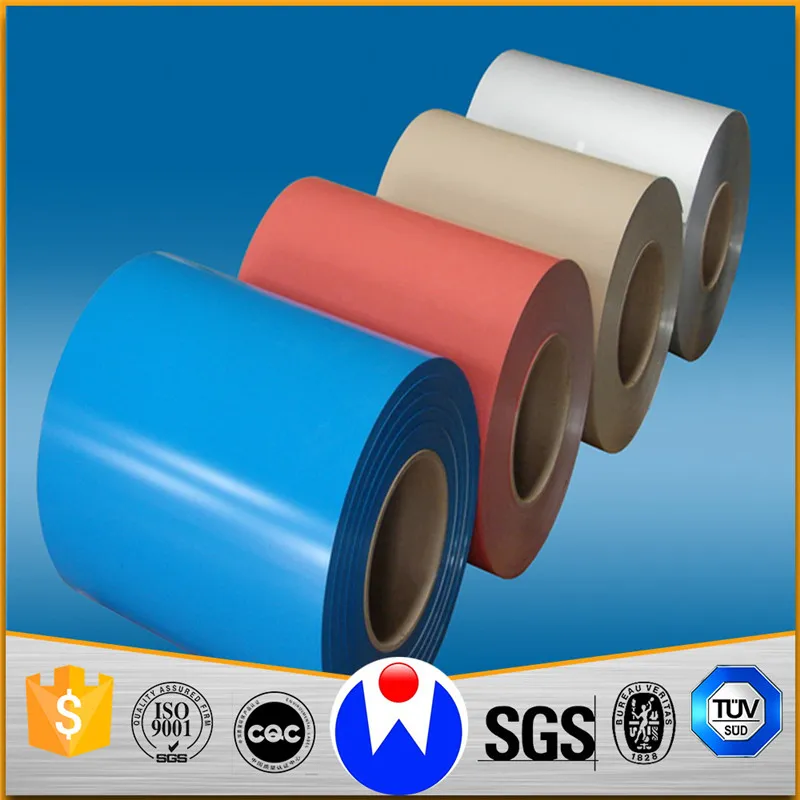

PPGI Color Coated Steel Coil
PPGI/Color Coated Steel CoilPre Painted color coated steel plate/sheet(thick:0.14-1.5mm)Grade:SGCC,DX51D,CGCCThick:0.14-1.5,Width:600-1250mm PPGI PPGL Prepainted Steel coil:color color prepainted galvalnized steel coilsMill of Pre Painted color coated steel plate/sheet(thick:0.14-1.5mm) Brief Intr......
Send Inquiry
Product Description
PPGI/Color Coated Steel Coil
Pre Painted color coated steel plate/sheet(thick:0.14-1.5mm)
Grade:SGCC,DX51D,CGCC
Thick:0.14-1.5,Width:600-1250mm
PPGI PPGL Prepainted Steel coil:
color color prepainted galvalnized steel coils
Mill of Pre Painted color coated steel plate/sheet(thick:0.14-1.5mm)
Brief Introduction
1. Color steel is coated with organic layer, which provides higher anti-corrosion property and a longer lifespan than that of galvanized steel sheets.
2. The base metals for Color steel consist of cold rolled, HDG electro-galvanized and hot-dip alu-zinc coated steel. The finish coats of Color steels can be classified into groups as follows: polyester, silicon modified polyesters, polyvinylidene fluoride, high-durability polyester, etc.
3. The production process has evolved from one-coating-and-one-baking to double-coating-and-double-baking, and even three-coating-and-three-baking.
4. The color of the Color steel has a very wide selection, like orange, cream-colored, dark sky blue, sea blue, bright red, brick red, ivory white, porcelain blue, etc.
5. The Color steels can also be classified into groups by their surface textures, namely regular prepainted sheets, embossed sheets and printed sheets.
Certificate: ISO 9001/2008
The main specification is as belows:
Standards: GB/T12754, JIS3312 , EN 10169 ASTM A755
Thickness: 0.14-1.5mm; Width: 600-1250mm
Tolerance : +2/0mm,thickness tolerance :+0.02/-0.02mm (or according to customers' request).
Coating mass: Top;10-15, Back: 5-10
Coil weight: 5-8 metric tons
Coil DM:I.D: Φ508m/610mm O.D: Max Φ1500mm
Coating type: PE, SMP, HDP, PVDF
Common performance of front coating:
(1). Thickness: ≥20μm
(2). Pencil Hardness: 2H
(3). 60° specular glossiness of coating: >60
(4). 180°bend: ≤3T
(5). Impact: ≥9J
(6). Salt Fog Resistant: ≥500h
(7). Color difference: <3ΔE
Application
1. Construction: (Outside) workshop, agricultural warehouse, residential precast unit, corrugated roof, wall, rainwater drainage pipe, terrace, retailer booth, roller shutter door
(Inside) door, doorcase, light steel roof structure, folding screen, ceiling, elevator, stairway, vent gutter
2. Electrical appliance: refrigerator, washer, switch cabinet, instrument cabinet, air conditioning, micro-wave oven, bread maker
3. Furniture: central heating slice, lampshade, chifforobe, desk, bed, locker, bookshelf
4. Carrying trade: exterior decoration of auto and train, clapboard, container, isolation lairage, isolation board
5. Others: writing panel, garbage can, billboard, timekeeper, typewriter, instrument panel, weight sensor, photographic equipment
Pre Painted color coated steel plate/sheet(thick:0.14-1.5mm)
Grade:SGCC,DX51D,CGCC
Thick:0.14-1.5,Width:600-1250mm
PPGI PPGL Prepainted Steel coil:
color color prepainted galvalnized steel coils
Mill of Pre Painted color coated steel plate/sheet(thick:0.14-1.5mm)
Brief Introduction
1. Color steel is coated with organic layer, which provides higher anti-corrosion property and a longer lifespan than that of galvanized steel sheets.
2. The base metals for Color steel consist of cold rolled, HDG electro-galvanized and hot-dip alu-zinc coated steel. The finish coats of Color steels can be classified into groups as follows: polyester, silicon modified polyesters, polyvinylidene fluoride, high-durability polyester, etc.
3. The production process has evolved from one-coating-and-one-baking to double-coating-and-double-baking, and even three-coating-and-three-baking.
4. The color of the Color steel has a very wide selection, like orange, cream-colored, dark sky blue, sea blue, bright red, brick red, ivory white, porcelain blue, etc.
5. The Color steels can also be classified into groups by their surface textures, namely regular prepainted sheets, embossed sheets and printed sheets.
Certificate: ISO 9001/2008
The main specification is as belows:
Standards: GB/T12754, JIS3312 , EN 10169 ASTM A755
Thickness: 0.14-1.5mm; Width: 600-1250mm
Tolerance : +2/0mm,thickness tolerance :+0.02/-0.02mm (or according to customers' request).
Coating mass: Top;10-15, Back: 5-10
Coil weight: 5-8 metric tons
Coil DM:I.D: Φ508m/610mm O.D: Max Φ1500mm
Coating type: PE, SMP, HDP, PVDF
Common performance of front coating:
(1). Thickness: ≥20μm
(2). Pencil Hardness: 2H
(3). 60° specular glossiness of coating: >60
(4). 180°bend: ≤3T
(5). Impact: ≥9J
(6). Salt Fog Resistant: ≥500h
(7). Color difference: <3ΔE
Application
1. Construction: (Outside) workshop, agricultural warehouse, residential precast unit, corrugated roof, wall, rainwater drainage pipe, terrace, retailer booth, roller shutter door
(Inside) door, doorcase, light steel roof structure, folding screen, ceiling, elevator, stairway, vent gutter
2. Electrical appliance: refrigerator, washer, switch cabinet, instrument cabinet, air conditioning, micro-wave oven, bread maker
3. Furniture: central heating slice, lampshade, chifforobe, desk, bed, locker, bookshelf
4. Carrying trade: exterior decoration of auto and train, clapboard, container, isolation lairage, isolation board
5. Others: writing panel, garbage can, billboard, timekeeper, typewriter, instrument panel, weight sensor, photographic equipment
