PCM/VCM/Ppm Pre-Coated Metal Coil for Cabinet and Refrigerator Door Making

Introduce of Prime VCM Steel Coil:

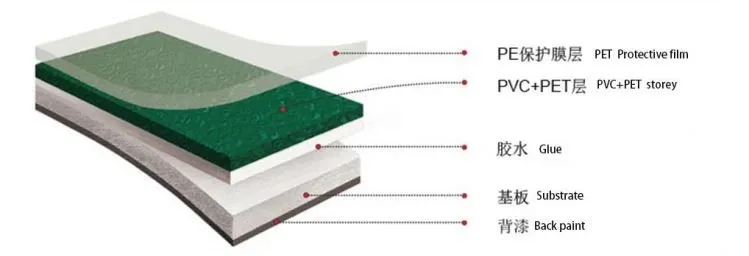

VCM Steel Coil s a metal color laminated steel plate with a steel plate as the base material and a surface coated with vinyl chloride. The printed film product is laminated to the surface of the steel plate by means of bonding. Thanks to the wide variety of products used for filming, beautiful patterns and patterns can be produced.


Production Flow of Prime VCM Steel Coil :

Entry end→uncoiler→ pre cleaning→entry looper→cleaning→ coating machine→coating and drying furnace
→initial coating machine →initial coating drying furnace →cooling and fine coating machine→ cooling
→ paint drying furnace exit looper→ cutting machine →coiling machine


Advantage of Prime VCM Steel Coil :

 Beautify

 Various Colors

 Uniform surface/finish

 Long Durability of product

 Color Stability

 Chemical Resistance

 Good adhesion of the paint film

 Corrosion protection



A: Usually,we pack our goods in bulks,pallets or wooden cases,suitable for shipping container.


Product Name	Prime VCM Steel Coil
Standard	AISI, ASTM, BS, DIN, GB/T-12754-2006, JIS G3302, EN10142
Grade	SPCC, SPCD, SPCE, DC01-06, CGCC, CGCH, CGCD1-CGCD3, CGC340-CGC570
Material	PPGI PPGL
Type of Substrate	Galvanized Steel / Galvalume Steel / Aluminum
Thickness	0.12mm~2mm
Width	600-1500mm
Paint Thickness	Top Side:15-30um Back:5-25um
Painted Surface	Printing / Filmed / Matte / wrinkled
Top Painted	PVDF / HDP / SMP / PE / PU
Primer Painted	Polyurethane / Epoxy / PE
Back painted	Epoxy / Modified Polyester
Coil Weight	2-10 Tons
Coil Inter Diameter	508mm/610mm
Coil Outer Diameter	800mm-1500mm
Color	RAL color or customized
Package	Standard export packing or as customer's requirements

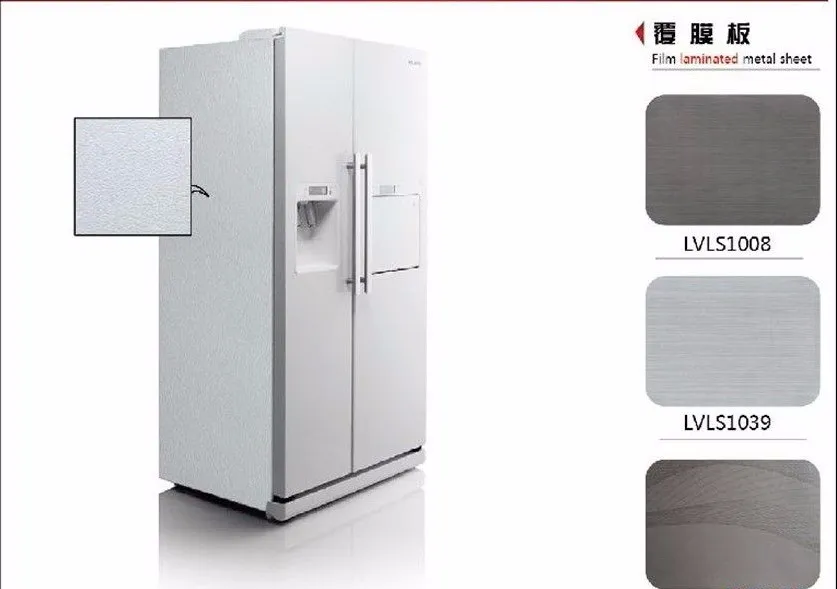

Application	1.Refrigerator, Freezer, Warmer, Washer, Air cleaner, Air condition, ect. 2.Rice cooker, Microwave oven, Taster oven, Coffee machine, Dish-washing, Machine,ect. 3.Computer panels, DVD panels, TV back panels, ect.
