SS304 0.25mm Nickel Plating Stainless Steel Precision Coil/ Strip Manufacture
Product Decription---------------------------------------------------------------------------------------SUS304 Mechanical properties in the annealed conditionThickness(mm)Width(mm)Hardness(hv)Tensile Strength(mpa)Yield Strength(mpa)0.05-1.5<500>200>650>205Main IngredientNiCrMnCReference......
Send Inquiry
Product Description
Product Decription---------------------------------------------------------------------------------------
SUS304 Mechanical properties in the annealed condition
304 stainless steel common material list
304 ultar thin, super-hard material list
Chemical composition---------------------------------------------------------------------------------
Surface Finished-------------------------------------------------------------------------------------------
Packing&Shipping-----------------------------------------------------------------------------------
SUS304 Mechanical properties in the annealed condition
| Thickness(mm) | Width(mm) | Hardness(hv) | Tensile Strength(mpa) | Yield Strength(mpa) |
|---|---|---|---|---|
| 0.05-1.5 | <500 | >200 | >650 | >205 |
| Main Ingredient | Ni | Cr | Mn | C |
|---|---|---|---|---|
| Reference No. | 8.00/10.5 | 18.00/20.00 | ≤2.0 | ≤0.08 |
304 stainless steel common material list
| em | XRX-SUS304-S | XRX-SUS304-1/4H | XRX-SUS304-1/2H | XRX-SUS304-3/4H | XRX-SUS304-H |
| Hardness | <200 | 150-190 | 250-300 | 310-360 | 370-410 |
| Hardness Code | S | 1/4H | 1/2H | 3/4H | H |
| Common thichness: 0.1/0.12/0.15......1.5(Irregular thickness can be customized) | |||||
| Surface | 2B,2D,No.3,DF,BA,8K | ||||
304 ultar thin, super-hard material list
| tem | Hardness | Hardness Code | Thickness |
| XRX-SUS304-EH | >410 | EH | 0.08…0.03 |
| Item Name: | Competitive price Grade 316L Stainless steel coil |
| Standard: | ASTM,AISI,DIN,EN,GB,JIS |
| Grade: | 201,304,310S,316,316L,430,409,410 |
| Thickness: | 0.15mm-3.0mm |
| Width: | 1000mm-1500mm,or customized |
| Edge: | Slit edge/Mill edge |
| Surface: | 2B,BA,HL,Mirror,2D,NO.1 |
| Packaging: | Standard exporter package or as your requirements |
| Origin: | Foshan, China (Mainland) |
| Supply Ability: | 5000 Tons per Month |
| Price terms: | EX-Work,FOB,CIF,CFR,CNF |
| Payment terms: | T/T,30%advanced payment before production and balance before shipment; OR Irrevocable L/C at sight. |
| MOQ: | FCL, 25 metric tons per 20 GP, can be assorted with different sizes. LCL for trial order is acceptable. |
| Delivery time: | 10-15 days after receiving deposit by T/T or L/C. |
| Sample: | Samples free and express charges bear by you. |
Chemical composition---------------------------------------------------------------------------------
| Grade | C(Max) | Mn(Max) | P(Max) | S(Max) | Si(Max) | Cr | Ni | Mo | N(Max) | Cu/Others |
| 304 | 0.08 | 2.00 | 0.045 | 0.030 | 1.000 | 18.00-20.00 | 8.00-10.50 | - | 0.10 | - |
| 304L | 0.030 | 2.00 | 0.045 | 0.030 | 1.000 | 18.00-20.00 | 8.00-12.00 | - | 0.10 | - |
| 310S | 0.08 | 2.00 | 0.045 | 0.030 | 1.500 | 24.00-26.00 | 19.00-22.00 | - | - | - |
| 316 | 0.080 | 2.00 | 0.045 | 0.030 | 1.000 | 16.00-18.00 | 10.00-14.00 | 2.00-3.00 | - | - |
| 316L | 0.030 | 2.00 | 0.045 | 0.030 | 1.000 | 16.00-18.00 | 10.00-14.00 | 2.00-3.00 | 0.10 | - |
| 409 | 0.08 | 1.00 | 0.040 | 0.010 | 1.000 | 10.50-11.75 | 0.50 | - | - | Ti=6x(C+N) |
| 430 | 0.12 | 1.00 | 0.040 | 0.030 | 1.000 | 16.00-18.00 | 0.75 | - | - | - |

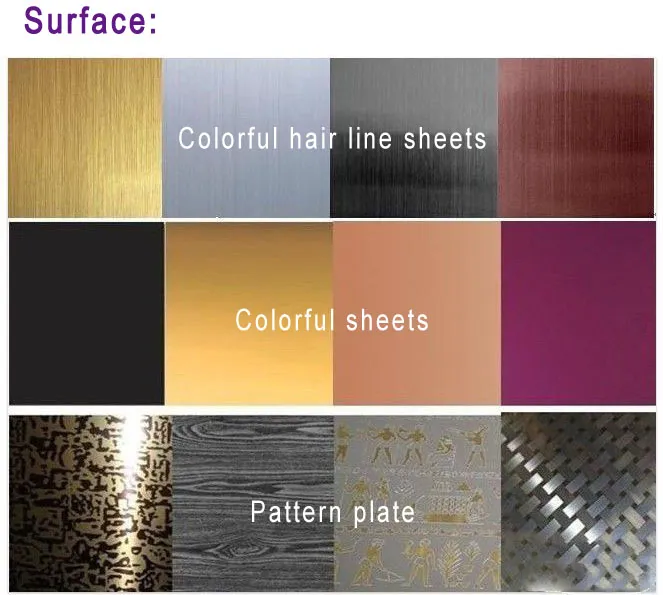

Surface Finished-------------------------------------------------------------------------------------------
| Surface Finished | Characteristics | Application |
| BA | Bright heat treatment after cold rolling. | Ktchen utenstil, Kitchen ware, Architectural purpose. |
| 2B | Finished by heat treatment, pickling after cold rolling, followed by skin pass line to more brighter and smooth surface. | General application medical instruments, Tableware. |
| NO.1 | Finished by hot-rolling, annealing and pickling, characterized by white pickled surface. | Chemical industry equipment, Industrial tanks. |
| 8K(Mirror) | A mirror-like reflective surface by polishing with finer abrasives over 800 mesh. | Refletor, Mirror, Interior- Exterior decoration for building. |
| Hair Line | Finished by continuous linear polishing. | Architecture industries, Escalators, Kitchen ware, Vehicles. |

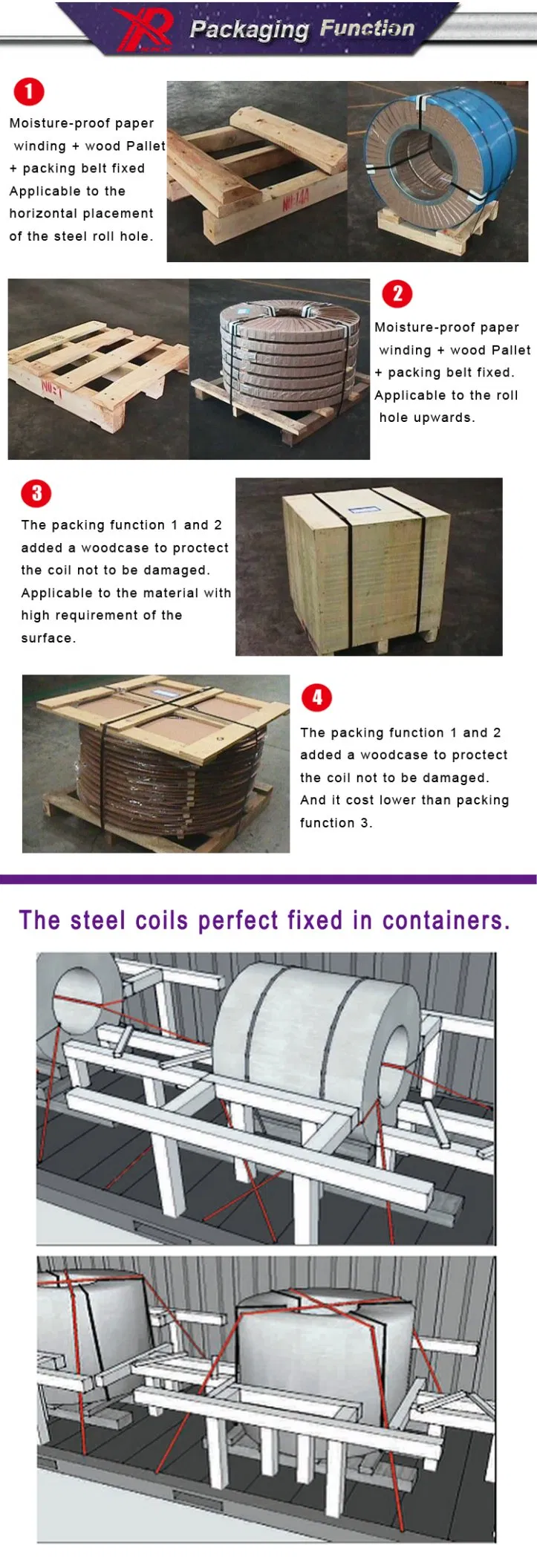

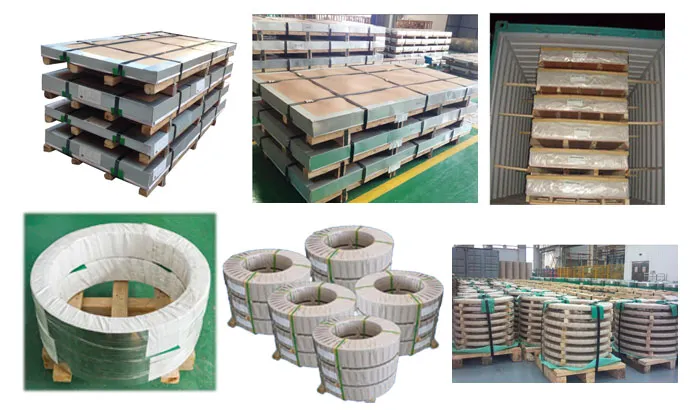

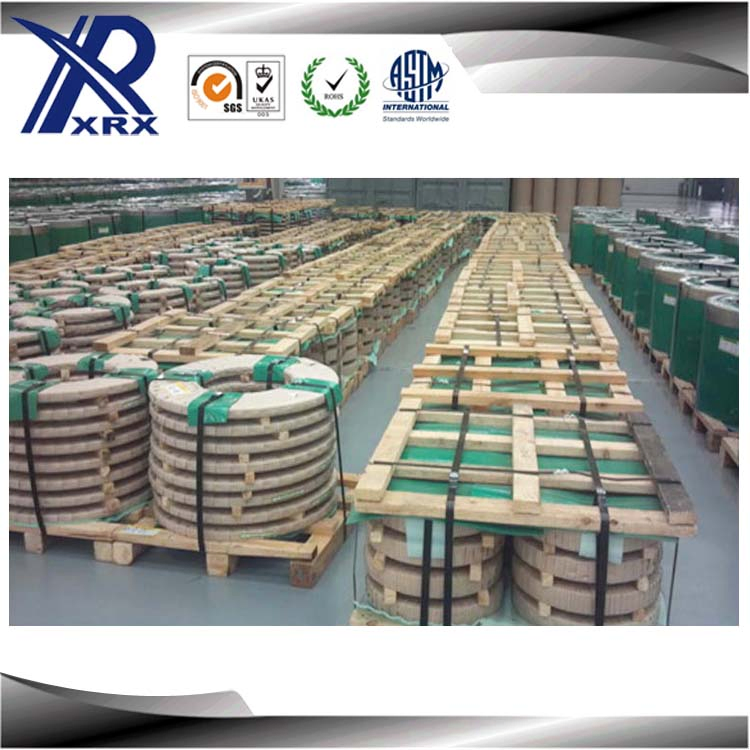

Packing&Shipping-----------------------------------------------------------------------------------
| Contact: Mrs. Sharon Tel.: 0086-755-86055888 Fax: 0086-755-82317372 Mobilephone/ 0086-13760280798 |
