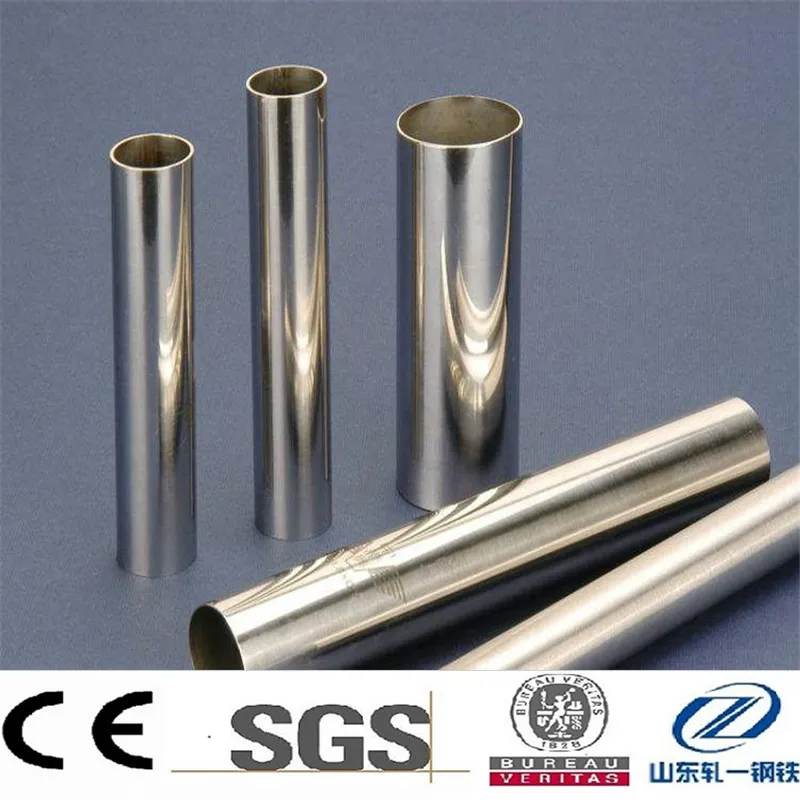

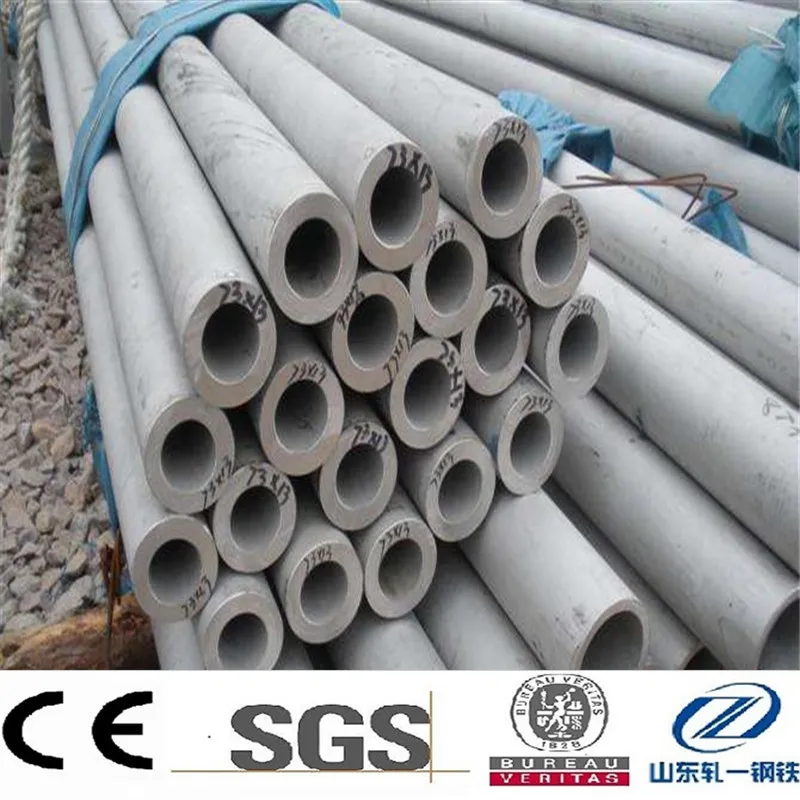

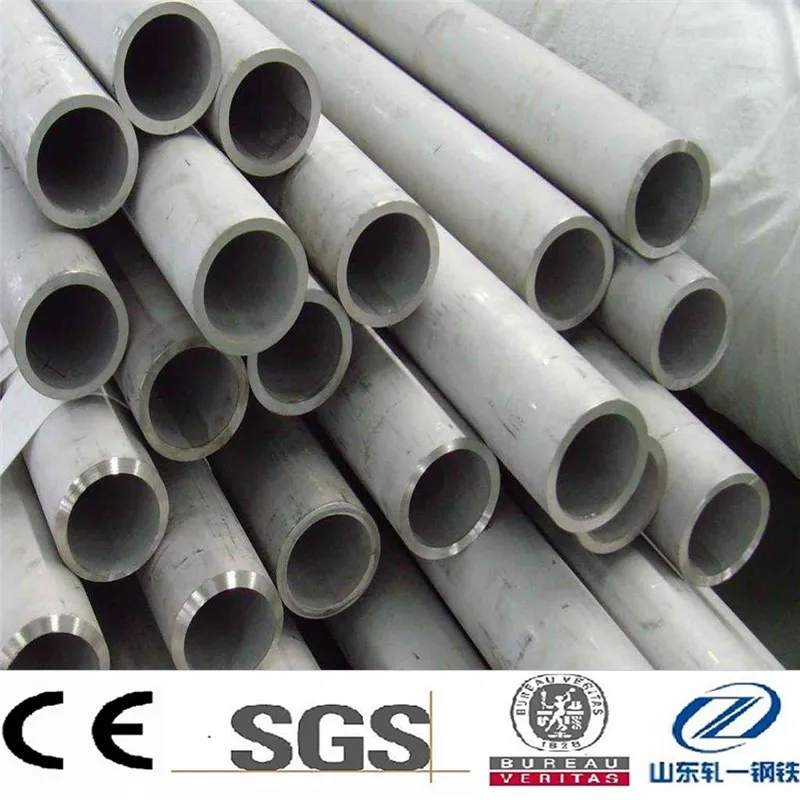

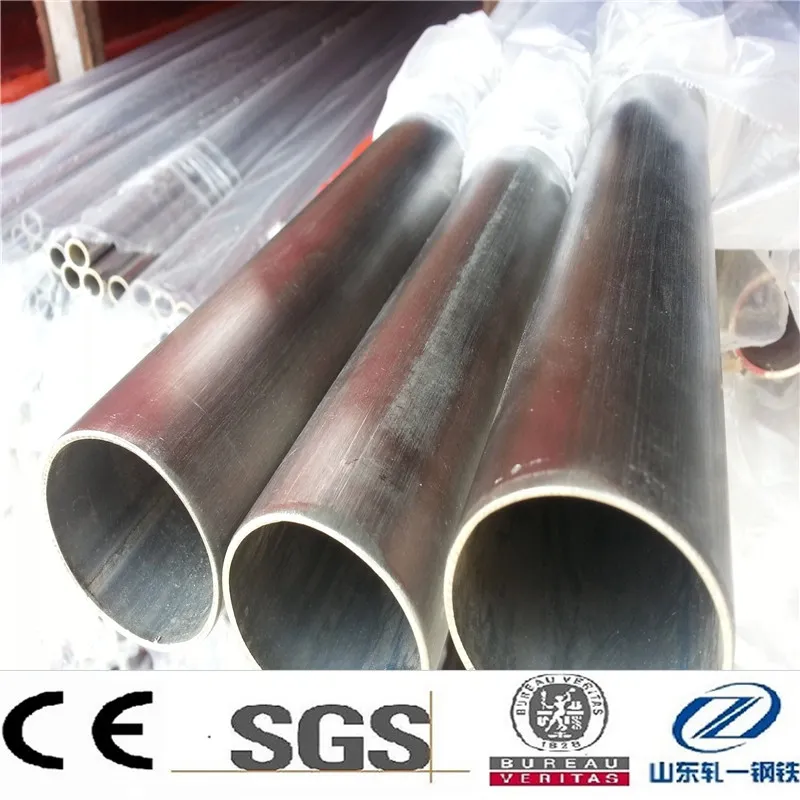

Incoloy800h Alloy Seamless Stainless High Temperature Steel Tube
incoloy800H alloy seamless stainless high temperature steel tubeSimple description:Incoloy800H is an iron-nickel-chromium alloy having the same basic composition as Incoloy 800, with significantly higher creep rupture strength. The higher strength results from close control of carbon, aluminum and t......
Send Inquiry
Product Description
Simple description:
Incoloy800H is an iron-nickel-chromium alloy having the same basic composition as Incoloy 800, with significantly higher creep rupture strength. The higher strength results from close control of carbon, aluminum and titanium contents in conjunction with a high temp anneal. The 800H modification was to control carbon (0.05 to 0.10%) and grain size to (>ASTM 5) to optimize stress rupture properties. Incoloy 800 H has further modifications to the combined titanium and aluminum levels (0.85 to 1.2%) to ensure optimum high temperature properties. The alloy is dual certified and combines the properties of both forms.
The chemical balance allows the alloy to exhibit excellent resistance to carburization, oxidation and nitriding atmospheres. 800HT will not become embrittled even after long periods of usage in the 1200-1600 deg F range where many stainless steels become brittle. Excellent cold forming characteristics typically associated with the nickel-chromium alloys are exhibited with 800HT. When cold formed extensively the grain size produces a visibly undulated surface called "orange peel". 800HT can be welded by the common techniques used on stainless steels.
Typical applications for the alloy include ethylene pyrolysis, hydrocarbon cracking, cracking furnaces for vinyl chloride, diphenol and acetic acid. The alloy is also used for valves, fittings and other components exposed to corrosive attack from 1100 to 1800 deg F.
Round bar ranging from 3/4" to 6" diameter, and light gauge sheet and plate. Incoloy 800 H material can be supplied in random lengths, cut to order or machined to customer requirements. Machining includes drilling, threading, milling, CNC shapes, turning, tapping, flanges and others.
Chemical Composition of incoloy800H:
| Chemical Requirements | |||||||
| Ni | Cr | Mn | C | Si | Fe | C | |
| Max | 35 | 23 | 1.5 | 0.1 | 1 | 0.75 | |
| Min | 30 | 19 | 39.5 | ||||
Mechanical properties of incoloy800H:
Mechanical Property Requirements | |||||
|---|---|---|---|---|---|
| Ultimate Tensile, min. | Yield Strength (0.2% OS) | Elong. in 2 in. or 50mm (or 4D) min., % | R/A | Hardness |
Min | 80 KSi | 35 KSi | 25 |
|
|
Max |
|
|
|
|
|
Min | 550 MPa | 240 MPa |
|
|
|
Max |
|
|
|
|
|
| Steel Grade | Tensile Strength, N/mm2 (min) | Yield Strength, N/mm2 (min) | Elongation, % (min) |
|---|---|---|---|
| TP304 | 515 | 205 | 35 |
| TP304L | 485 | 170 | 35 |
| TP316 | 515 | 205 | 35 |
| TP316L | 485 | 170 | 35 |
| TP321 | OD < 17,1 mm - 515; OD > 17,1 mm - 485 | OD < 17,1 mm - 205; OD > 17,1 mm - 170 | 35 |
ASTM A312 Chemical Composition:
| Steel Grade | C | Si | Mn | Cr | Ni | Mo | S | P |
|---|---|---|---|---|---|---|---|---|
| TP304 | 0,08 | 0,75 | 2 | 18 - 20 | 8 - 11 | - | 0,03 | 0,04 |
| TP304L | 0,035 | 0,75 | 2 | 18 - 20 | 8 - 13 | - | 0,03 | 0,04 |
| TP316 | 0,08 | 0,75 | 2 | 16 - 18 | 11 - 14 | 2 - 3 | 0,03 | 0,04 |
| TP316L | 0,035 | 0,75 | 2 | 16 - 18 | 10 - 15 | 2 - 3 | 0,03 | 0,04 |
| TP321 | 0,08 | 0,75 | 2 | 17 - 20 | 9 - 13 | - | 0,03 | 0,04 |

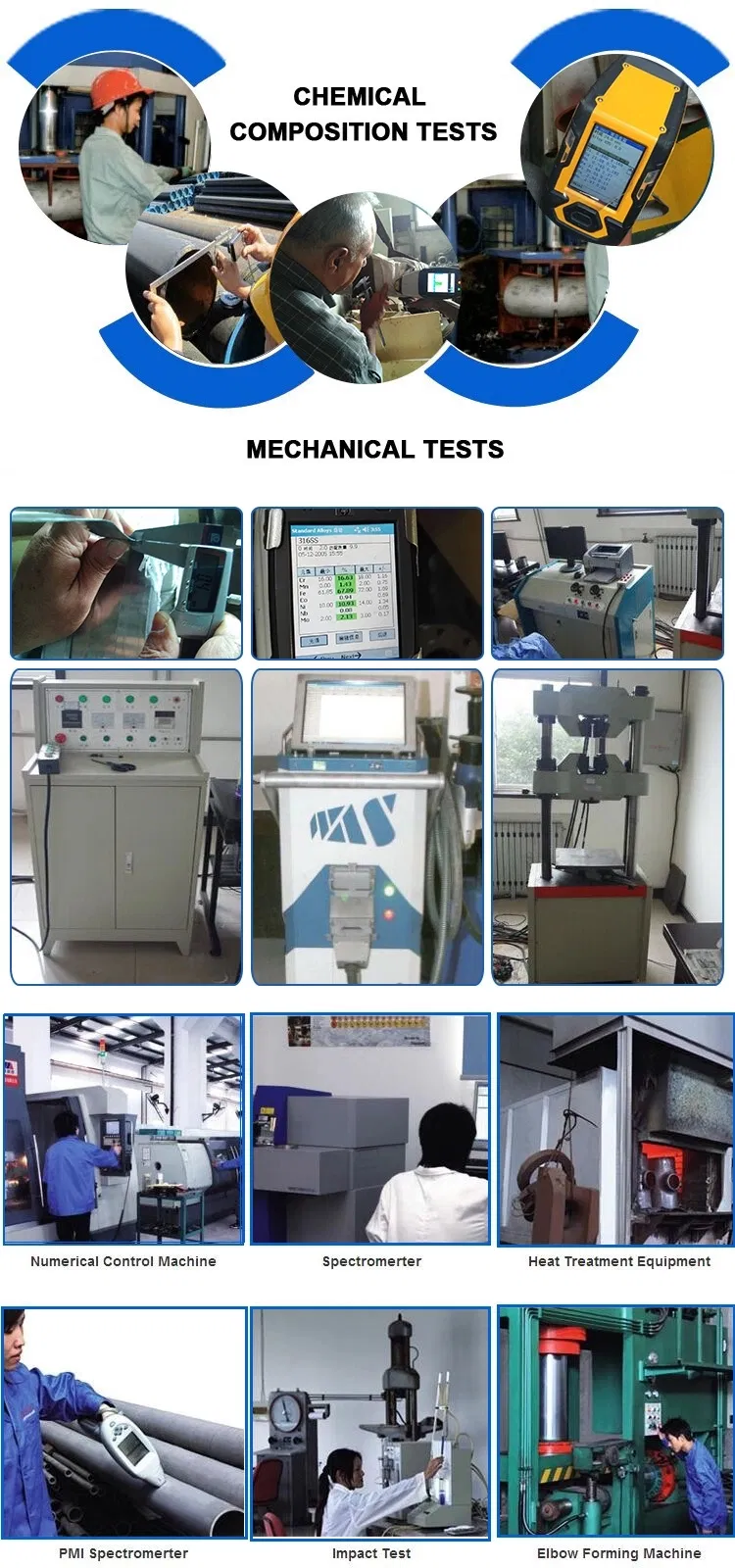

Inspection:
F A Q
1. How can I know whether you are a reliable company?
We are engaged in gift box for nearly 7 years and have high visibility in domestic. We welcome you to inspect our company at any time.
2. Can you guarantee your products?
Yes, we guarantee your 100% satisfaction on all our products. Please feel free to feedback us immediately.
3. Do you provide samples?
Yes, we can provide most of the product samples. We will charge a little sample fee. But we will return the charge if you place an order. if you asked to use DHL, Blue Dart Express, FedEx, etc. to send samples, you can inform us in advance to prepare.
4. Can I visit your company?
Of course, If you want to order our products and visit our company, please contact us to make an appointment.
5. Can you make boxes according to my request ?
Yes,customization service is available,OEM business is appreciated.
When you place the orders,we arrange the production asap,When finish the orders, we will inform you and also we arrange the shipping in the same time.
6. How much is the freight?
It depends on the number and transport methods. When asked about the freight, we want you to let us know your detailed information , such as the product name and quantity and your favorite mode of transport, as well as your designated port or airport. We thank you for providing us the information to estimate the cost.
