Product Description

In Stock ASTM A276 310S Stainless Steel Angle

Specification of our products

Products Name	Stainless Steel Angle Bar / Stainless Steel Channel Bar
Grade	201 304 310S 316L 321 2205.etc
Standard	ASTM GB DIN
Size of Angle Bar	30303 - 20020010mm * 6m length
Size of Channel Bar	50303 - 20010010mm * 6m length
Service	Cutting
Packing	waterproof paper surround or wooden pallets
Brand	TSINGSHAN

Stanard Size and weight per meter of stainless steel angle bar

Size / A×B mm	Thickness / t mm
	3	4	5	6	7	8	9	10
20×20	0.894	1.13	1.38
25×25	1.13	1.45	1.77	2.06
30×30	1.37	1.77	2.17	2.53
35×35	1.61	2.09	2.57	3.01
40×40	1.85	2.41	2.97	3.49
45×45	2.12	2.76	3.40	4.00
50×50	2.36	3.07	3.79	4.46	5.13	5.76	6.42	7.06
60×60			4.58	5.42	6.24	7.03
63×63			5.03	5.95	6.84	7.71	8.60	9.48
70×70			5.42	6.42	7.39	8.34	9.31	10.3
75×75			5.82	6.89	7.95	8.97	10.0	11.1
80×80				7.37	8.50	9.61	10.7	11.8
90×90				8.33	9.65	11.90	12.2	13.4
100×100				9.28	10.8	12.20	13.6	15.0

Stanard Size and weight per meter of stainless steel channel bar

Size(mm) H×B	Thickness (mm)
	3	4	5	6	7	8	9	10	12
40×20	1.79
50×25	2.27
60×30	2.74	3.56	4.37	5.12
70×35	3.23	4.21	5.17	6.08
80×40	3.71	4.84	5.96	7.03
90×45	4.25	5.55	6.83	8.05
100×50	4.73	6.18	7.62	8.98	10.3	11.7	13.0	41.2
120×60			9.20	10.9	12.6	14.2
130×65			10.1	11.9	13.8	15.5	17.3	19.1
140×70				12.9	14.9	16.8	18.8	20.7
150×75				13.9	16.0	18.1	20.2	22.2	26.3
160×80				14.8	17.1	19.3	21.6	23.8	28.1
180×90				16.7	19.4	22.0	24.5	27.0	32.0
200×100				18.6	21.6	24.5	27.4	30.2	35.8

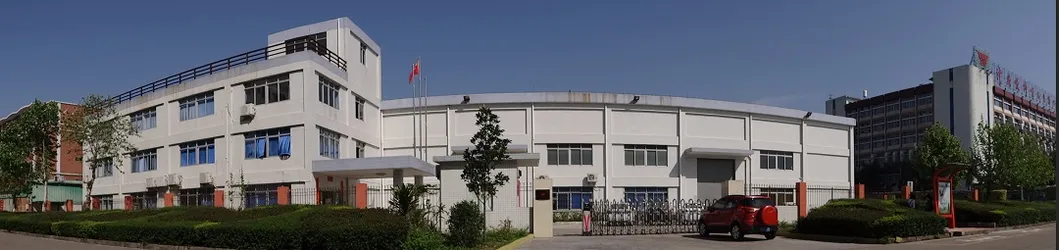

About Our Company

in Stock ASTM A276 310S Stainless Steel Angle

Our company is a collection of stainless steel material wholesale and material processing, storage, distribution as one of the large stainless steel industry and trade enterprises. Company is located in the stainless steel trading center - wuxi, with a total investment of 10 million yuan, the annual sales in more than 300 million yuan, the company is now with taiyuan, east, and Zhang Pu, macro flourishing |, community, zhejiang qingshan, and many other well-known steel mills to establish long-term, stable relations of cooperation. And distribution Sweden, North America, South Africa, Japan, South Korea and other imported stainless steel plate.

Our products cover 310S, 309S, 316L, 321, 304L, TP304, 347H, 17-4PH, 317L, 2507, 2205-904L and other materials, high temperature resistant stainless steel series, duplex stainless steel series, super stainless steel series and other materials. The company has plasma cutting machine, coil material opening equipment, laser cutting machine, 8K mirror, grinding wire drawing, film and titanium plating equipment, stainless steel materials can be opened, strip, plate cutting, oil mill wire drawing, the whole coil of oil film wire drawing, 8K mirror, titanium and other processing. Another company features business: thick plate whole plate zero cutting, cutting round, cutting square, cutting shaped, casting parts, forging parts, product thickness up to 150MM, all kinds of special materials and specifications can be customized to the steel mill, according to customer requirements. Company materials are widely used in machinery, chemical, petroleum, boiler, heat exchanger, food machinery, beverage machinery, medical equipment and other industries

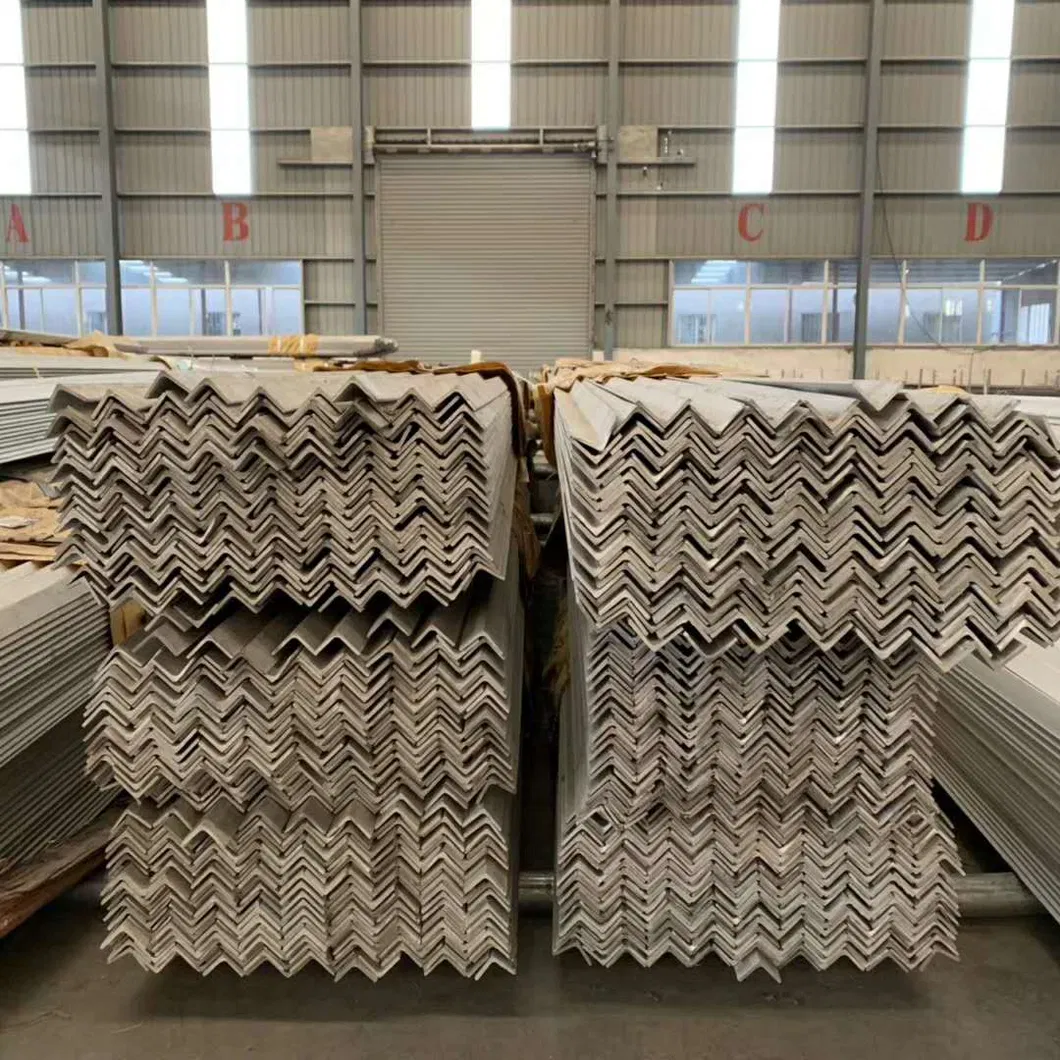

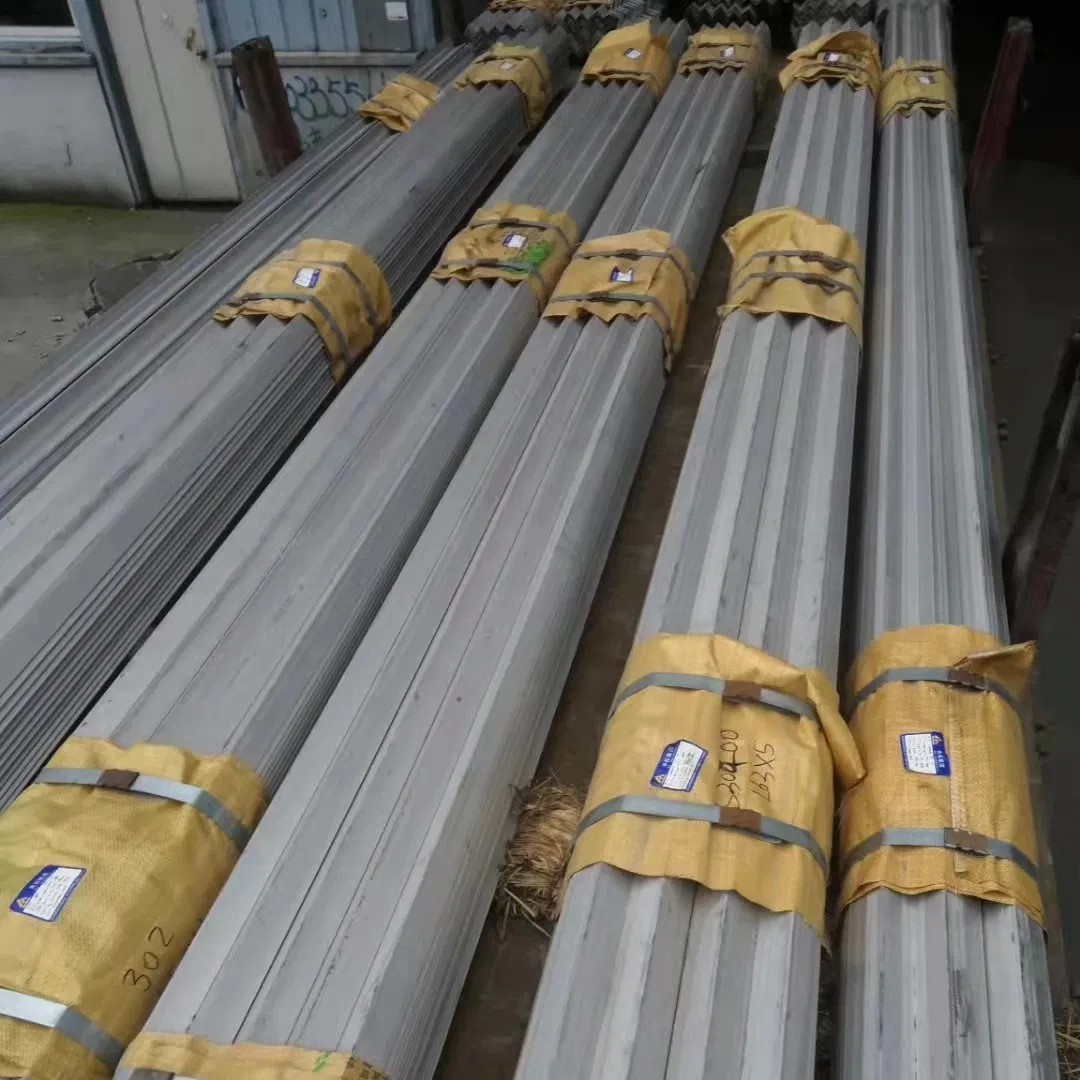

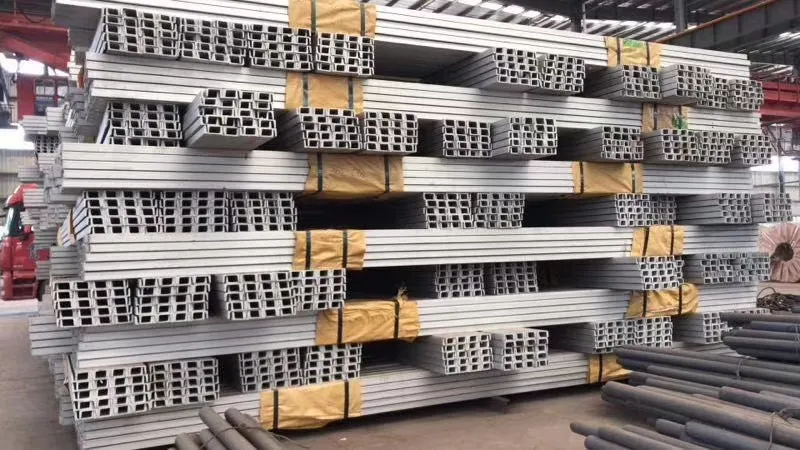

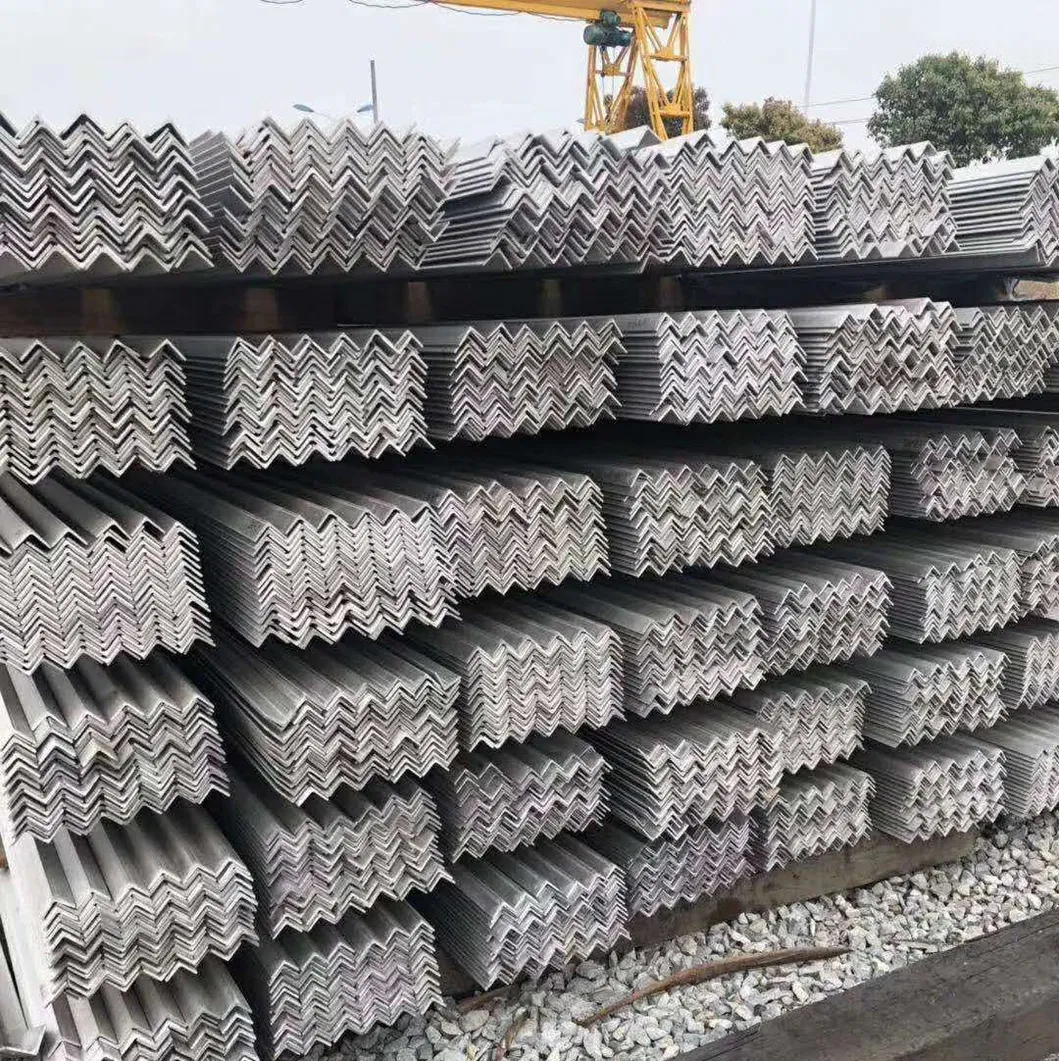

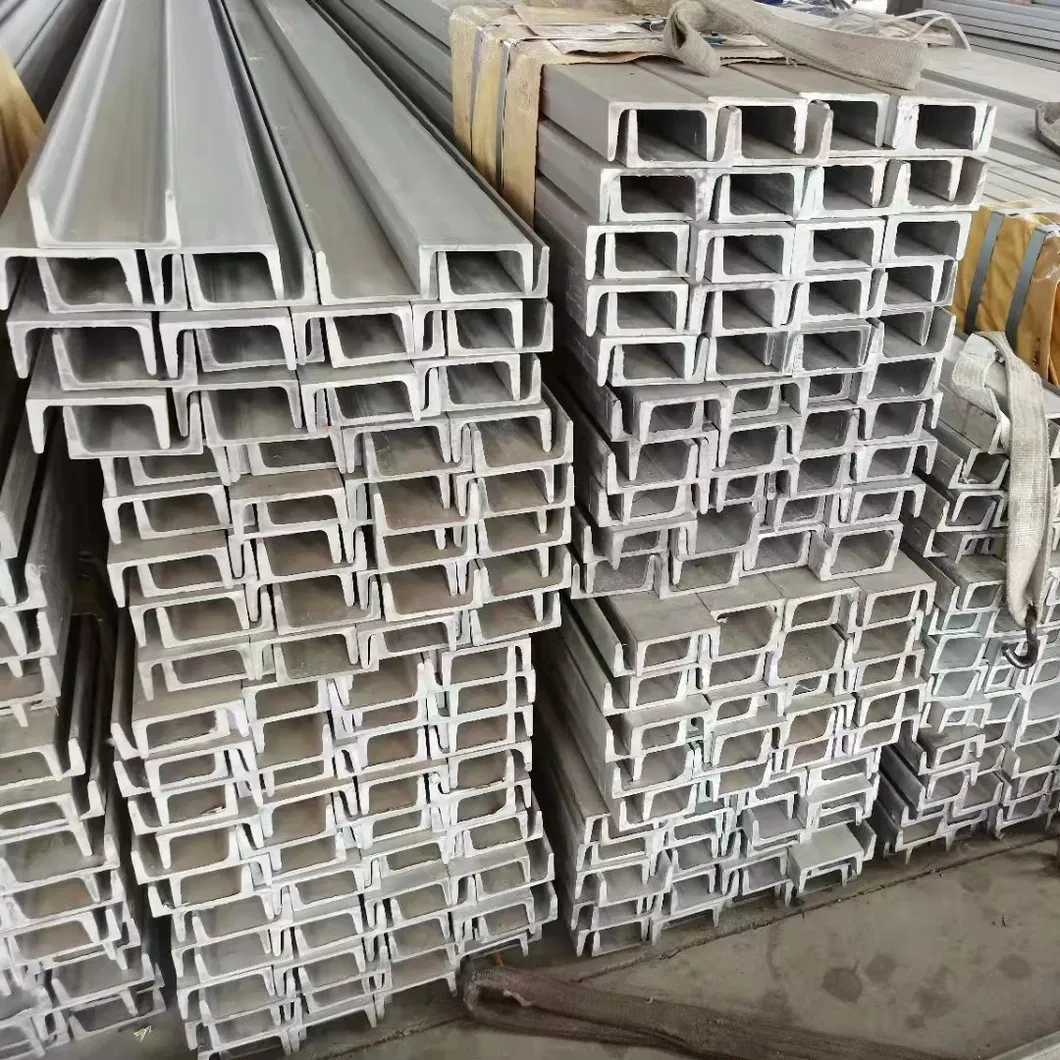

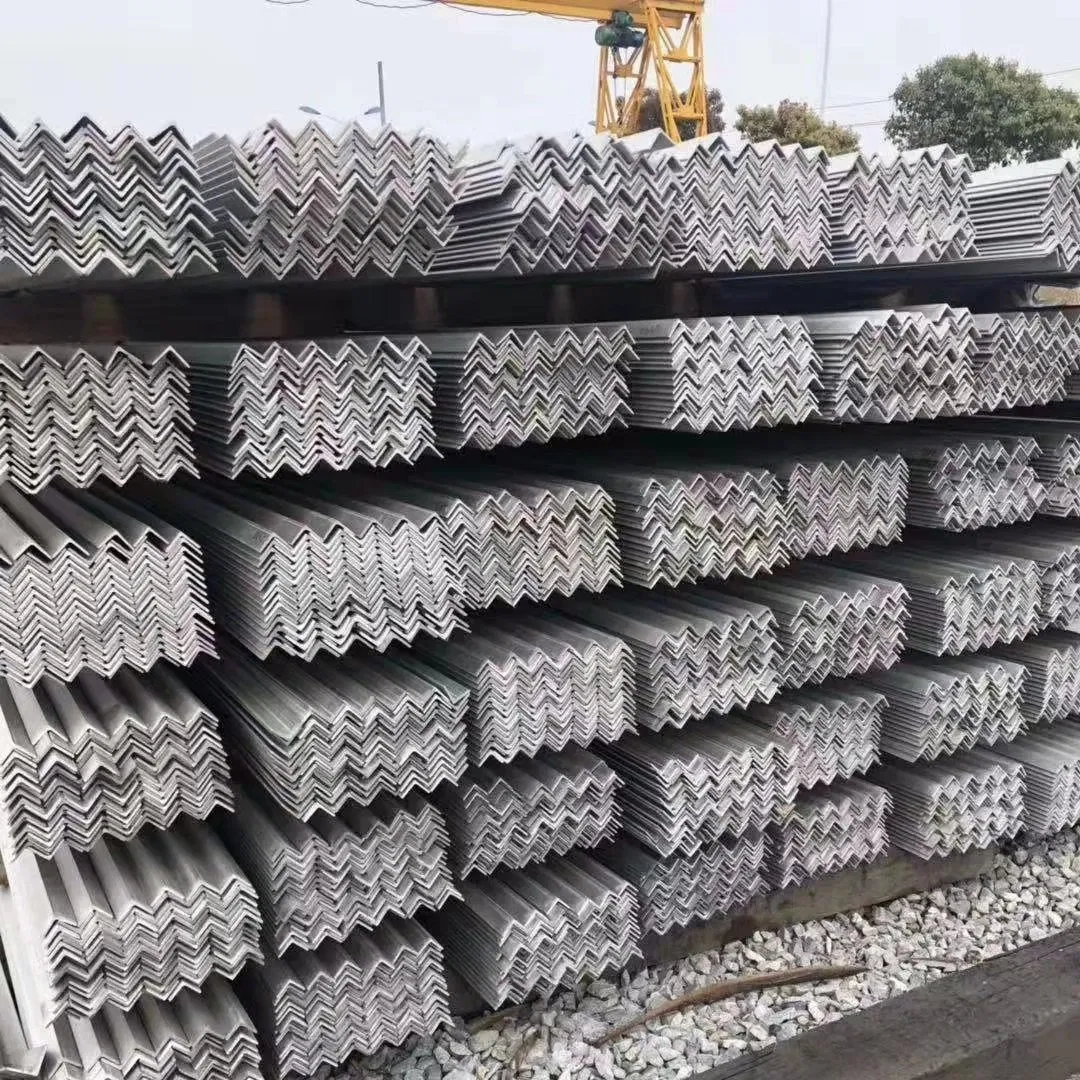

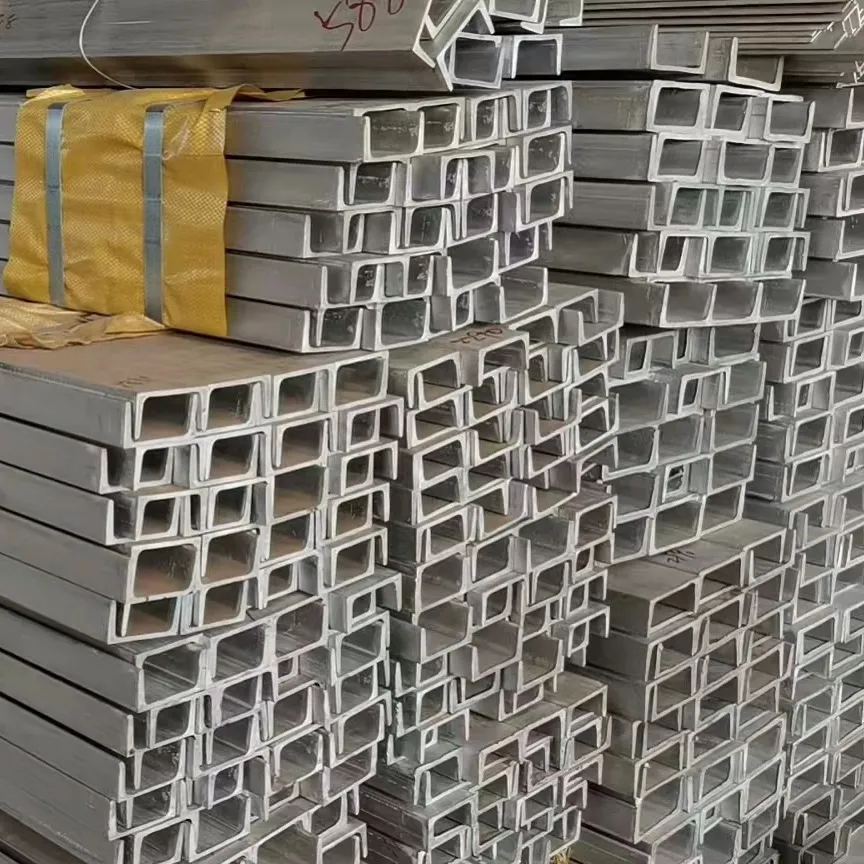

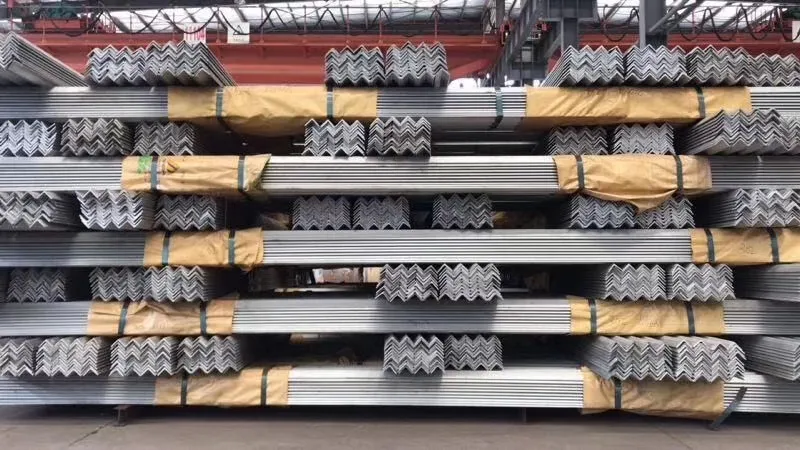

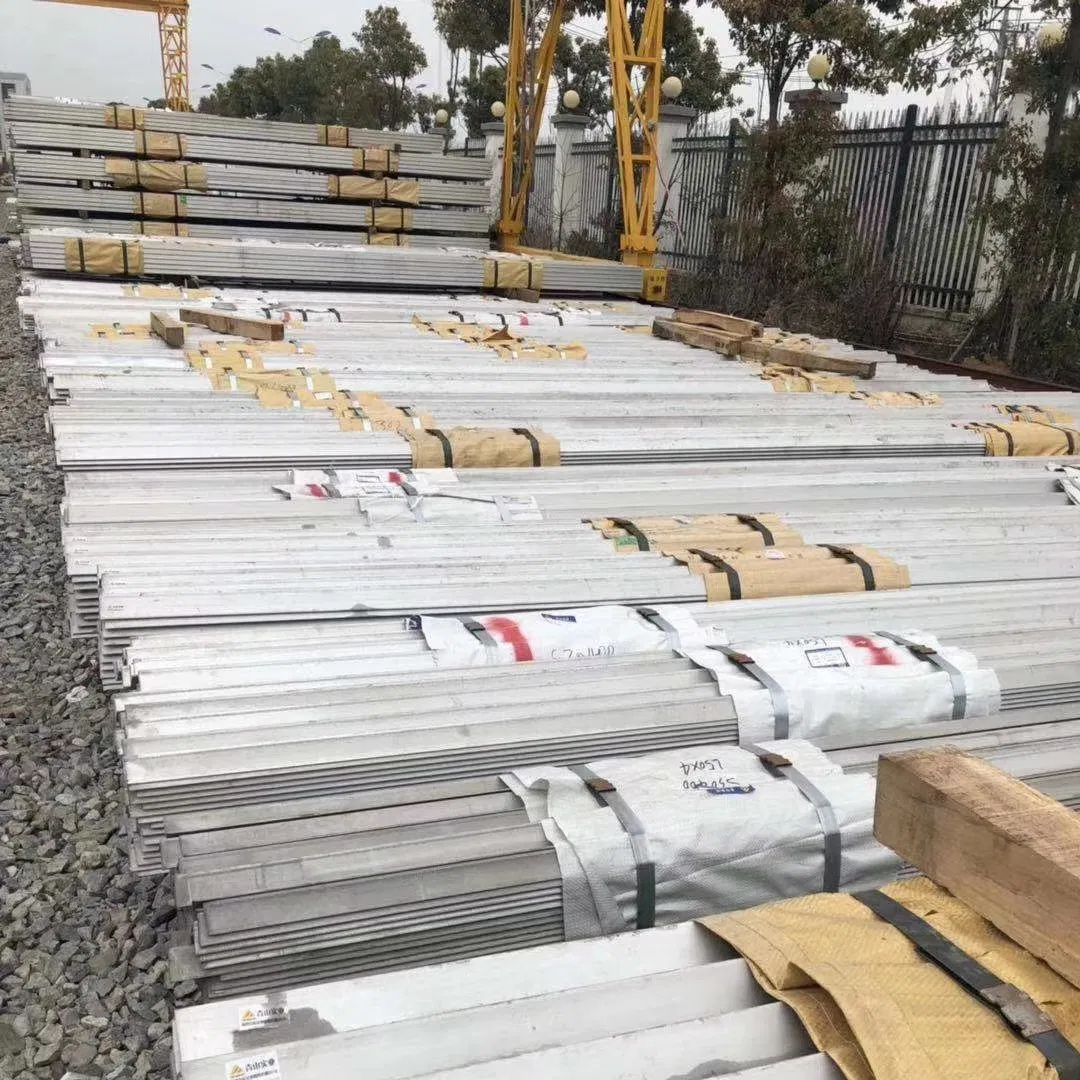

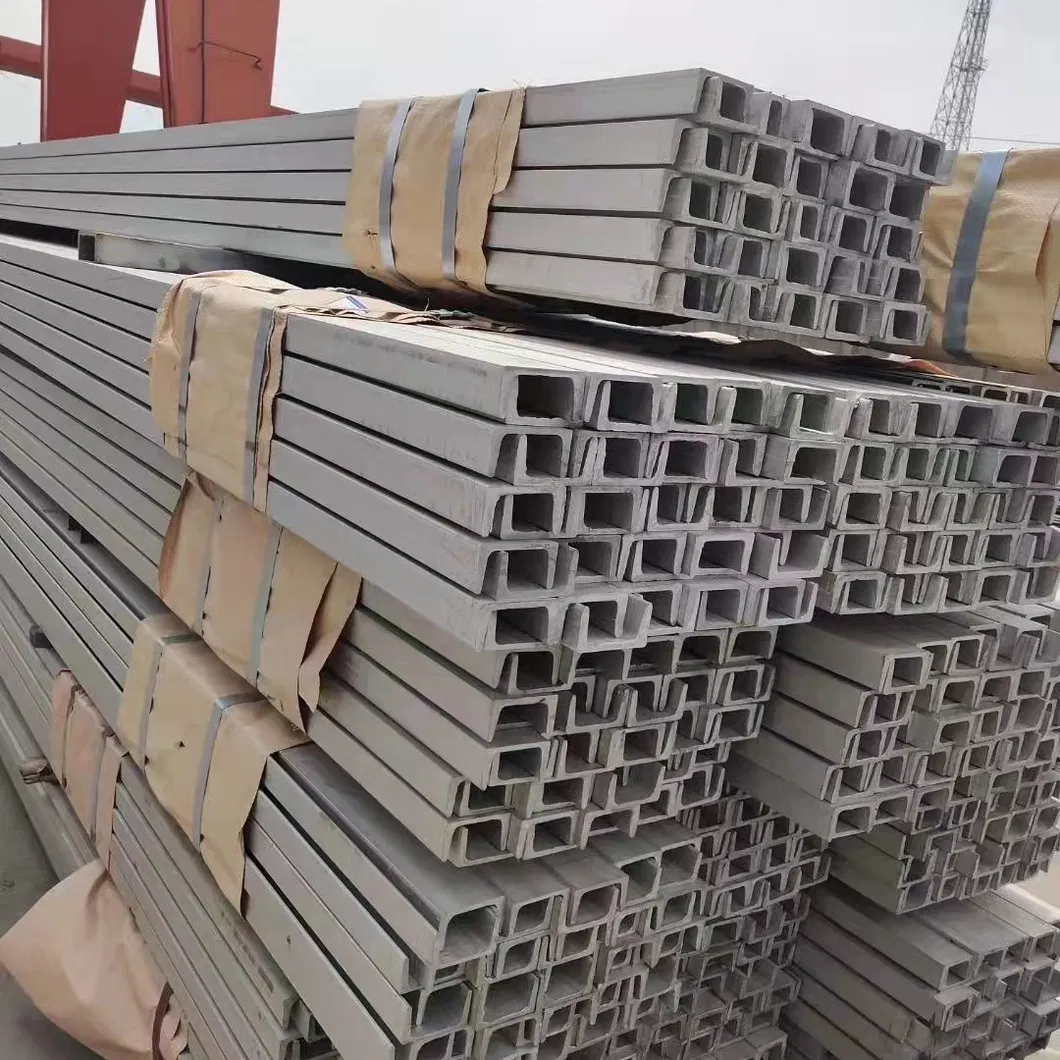

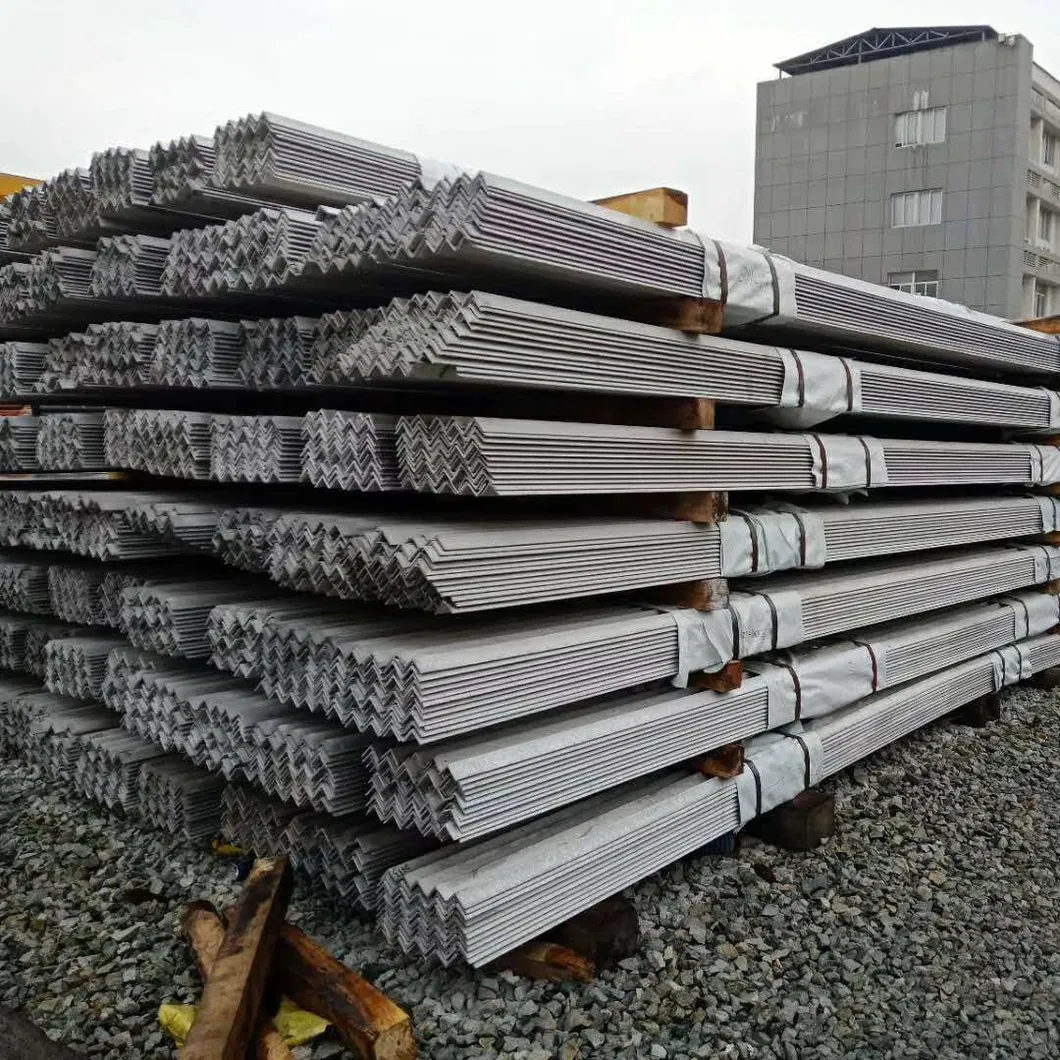

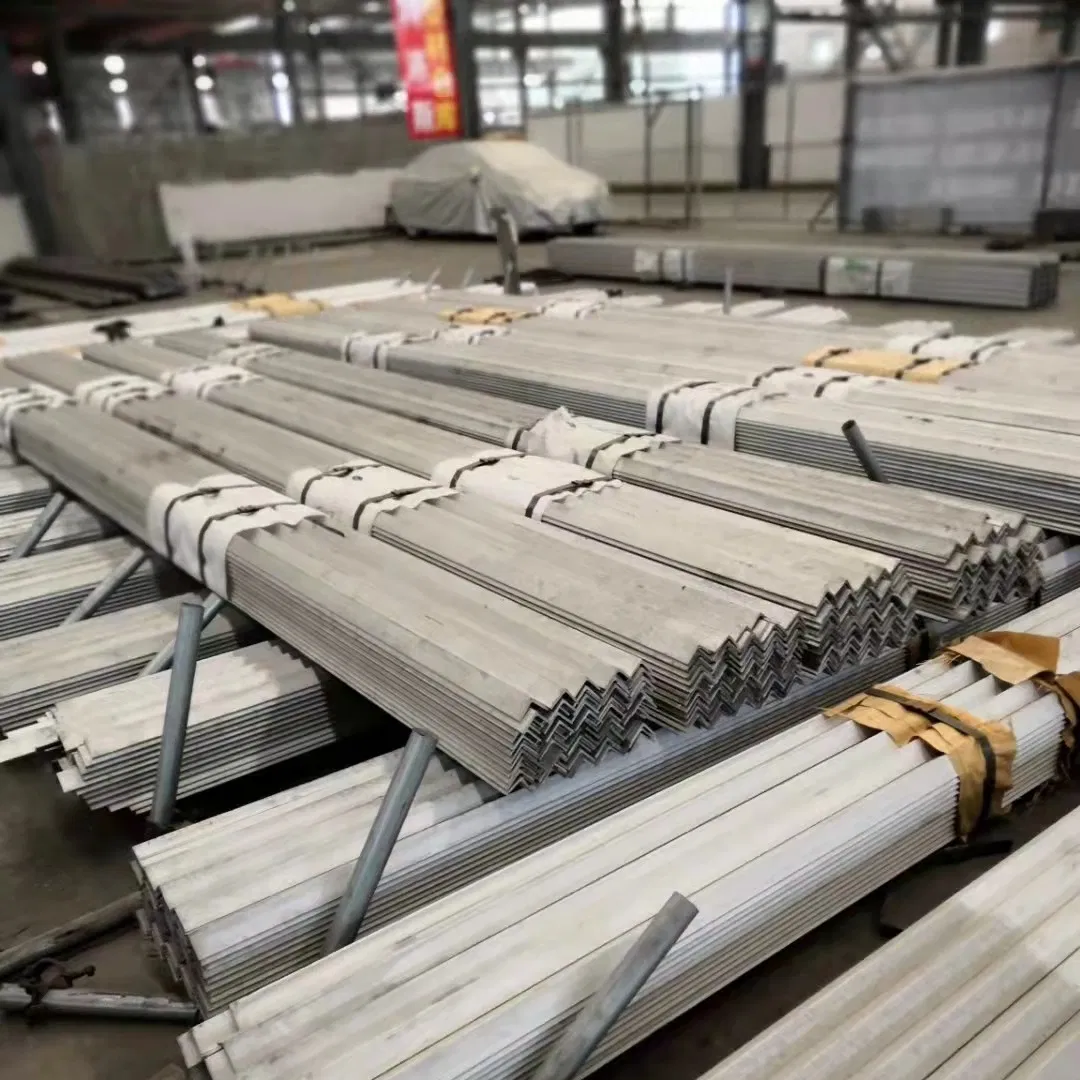

Products Photos

Application of our products

Stainless steel angle bar and stainless steel channel bar mainly used to make frame structures, such as the high-voltage power transmission tower, the frame on both sides of the main beam of the steel structure bridge, the column and boom of the tower crane on the construction site, the column and beam of the workshop, etc, and air-conditioning and solar-powered shelves are hung under the windows. Widely used in building structures and engineering construction, such as: house beams, ship beams, industrial furnaces, etc.

Our stainless steel ange bar and stainless steel channel bar applicated in all kinds of areas.
