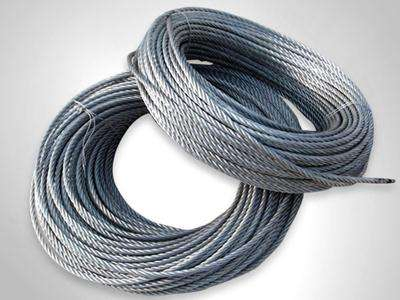

Hoist Electro Galvanized Steel Wire Rope 6* 36ws -Iwrc
well-drilling hoist electro steel wire rope 6*36S-IWRCTianli Stainless Steel offers a complete line of stainless steel wire rope cable for marine, industrial and architectural applications. All of our stainless steel wire cable is made from 316 (1.4401 A4) and 304 (1.4301 A2) stainless steel. Our wi......
Send Inquiry
Product Description
Tianli Stainless Steel offers a complete line of stainless steel wire rope cable for marine, industrial and architectural applications.
All of our stainless steel wire cable is made from 316 (1.4401 A4) and 304 (1.4301 A2) stainless steel.
Our wire rope product line also includes both Black Nylon Coated Wire & White Nylon Coated Wire & Clear Nylon Coated Wire.
We also offer a complete line of Wire Rope Accessories including Thimbles, Turnbuckles, Clips, Sleeves, Swage Turnbuckles & Terminals.
Our stainless steel wire rope cable will meet and exceed your expectations.

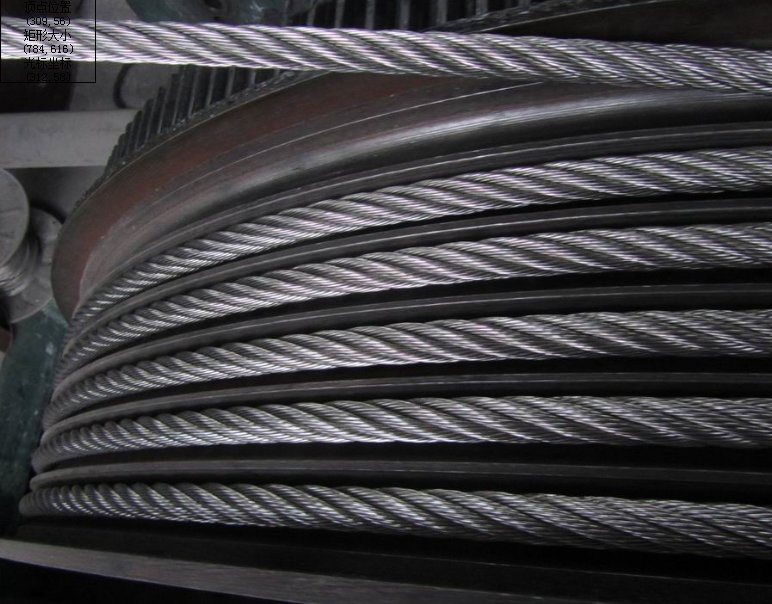

Our stainless steel wire rope cable can be supplied on a spool or cut to your specific request.
common wire rope cable type we supply:
1x7 1x19 1x37
7x7 7x19 7x37
6x7+FC/PP 6x19+FC/PP/WSC/IWS/IWRC 6x19S
6X36WS+IWRC/FC 6X37+FC/IWRC
7x7 Stainless Steel Wire Rope Specification:
| Structure | Rope diameter mm | kg/1000m | Minimum Breaking force N | Minimum Breaking force kg |
| 7x7 | 0.3 | 0.36 | 53.9 | 5.5 |
| 0.36 | 0.5184 | 83.3 | 8.5 | |
| 0.45 | 0.81 | 142.1 | 14.5 | |
| 0.54 | 1.1664 | 205.8 | 21 | |
| 0.6 | 1.44 | 215.6 | 22 | |
| 0.72 | 2.0736 | 362.6 | 37 | |
| 0.8 | 2.56 | 460.6 | 47 | |
| 0.9 | 3.24 | 539 | 55 | |
| 1 | 4 | 637 | 65 | |
| 1.2 | 5.76 | 882 | 90 | |
| 1.6 | 10.24 | 2100 | 214 | |
| 1.8 | 12.96 | 2254 | 230 | |
| 2 | 16 | 2940 | 300 | |
| 2.4 | 23.04 | 4100 | 418 | |
| 2.5 | 25 | 4400 | 449 | |
| 3 | 36 | 6370 | 650 | |
| 3.5 | 49 | 7640 | 780 | |
| 4 | 64 | 9510 | 970 | |
| 5 | 100 | 14700 | 1500 | |
| 6 | 144 | 18600 | 1898 |
Inch mm convert table ( 1 ft=12 inch ; 1 inch = 25.4 mm ) :
| inch | mm | inch | mm | inch | mm | inch | mm | ||||||||||||||||
| 1/2 | 0.5 | 12.7 | 3/32 | 0.09375 | 2.381 | 3/64 | 0.046875 | 1.191 | 35/64 | 0.546875 | 13.891 | ||||||||||||
| 1/4 | 0.25 | 6.35 | 5/32 | 0.15625 | 3.969 | 5/64 | 0.078125 | 1.984 | 37/64 | 0.578125 | 14.684 | ||||||||||||
| 3/4 | 0.75 | 19.05 | 7/32 | 0.21875 | 5.556 | 7/64 | 0.109375 | 2.778 | 39/64 | 0.609375 | 15.478 | ||||||||||||
| 1/8 | 0.125 | 3.175 | 9/32 | 0.28125 | 7.144 | 9/64 | 0.140625 | 3.572 | 41/64 | 0.640625 | 16.272 | ||||||||||||
| 3/8 | 0.375 | 9.525 | 11/32 | 0.34375 | 8.731 | 11/64 | 0.171875 | 4.366 | 43/64 | 0.671875 | 17.066 | ||||||||||||
| 5/8 | 0.625 | 15.875 | 13/32 | 0.40625 | 10.319 | 13/64 | 0.203125 | 5.159 | 45/64 | 0.703125 | 17.859 | ||||||||||||
| 7/8 | 0.875 | 22.225 | 15/32 | 0.46875 | 11.906 | 15/64 | 0.234375 | 5.953 | 47/64 | 0.734375 | 18.653 | ||||||||||||
| 1/16 | 0.0625 | 1.588 | 17/32 | 0.53125 | 13.494 | 17/64 | 0.265625 | 6.747 | 49/64 | 0.765625 | 19.447 | ||||||||||||
| 3/16 | 0.1875 | 4.763 | 19/32 | 0.59375 | 15.081 | 19/64 | 0.296875 | 7.541 | 51/64 | 0.796875 | 20.241 | ||||||||||||
| 5/16 | 0.3125 | 7.938 | 21/32 | 0.65625 | 16.669 | 21/64 | 0.328125 | 8.334 | 53/64 | 0.828125 | 21.034 | ||||||||||||
| 7/16 | 0.4375 | 11.113 | 23/32 | 0.71875 | 18.256 | 23/64 | 0.359375 | 9.128 | 55/64 | 0.859375 | 21.828 | ||||||||||||
| 9/16 | 0.5625 | 14.288 | 25/32 | 0.78125 | 19.884 | 25/64 | 0.390625 | 9.922 | 57/64 | 0.890625 | 22.622 | ||||||||||||
| 11/16 | 0.6875 | 17.463 | 27/32 | 0.84375 | 21.431 | 27/64 | 0.421785 | 10.716 | 59/64 | 0.921875 | 23.416 | ||||||||||||
| 13/16 | 0.8125 | 20.638 | 29/32 | 0.90625 | 23.019 | 29/64 | 0.453125 | 11.509 | 61/64 | 0.953125 | 24.209 | ||||||||||||
| 15/16 | 0.9375 | 23.813 | 31/32 | 0.96875 | 24.606 | 31/64 | 0.484375 | 12.303 | 63/64 | 0.984375 | 25.003 | ||||||||||||
| 1/32 | 0.03125 | 0.794 | 1/64 | 0.01562 | 0.397 | 33/64 | 0.515625 | 13.097 | 64/64 | 1 | 25.4 | ||||||||||||
| Chemical Composition of common Stainless Steel | ||||||||
| % | ||||||||
| Component | C | Si | Mn | P | S | Cr | Ni | Mo |
| 304 | MAX 0.08 | MAX 1.00 | MAX 2.00 | MAX 0.045 | MAX 0.03 | 17.00-19.00 | 8.00-10.00 | |
| 304L | MAX 0.03 | MAX 1.00 | MAX 2.00 | MAX 0.045 | MAX 0.03 | 18.00-20.00 | 8.00-10.00 | |
| 316 | MAX 0.08 | MAX 1.00 | MAX 2.00 | MAX 0.045 | MAX 0.03 | 16.00-18.00 | 10.00-14.00 | 2.00-3.00 |
| 316L | MAX 0.03 | MAX 1.00 | MAX 2.00 | MAX 0.045 | MAX 0.03 | 16.00-18.00 | 12.00-15.00 | 2.00-3.00 |
1. Can samples be sent free?
For quality reference, we can supply 1-2 samples for free. But the freight will be collected.
2.Are your products of good quality? How can I trust you?

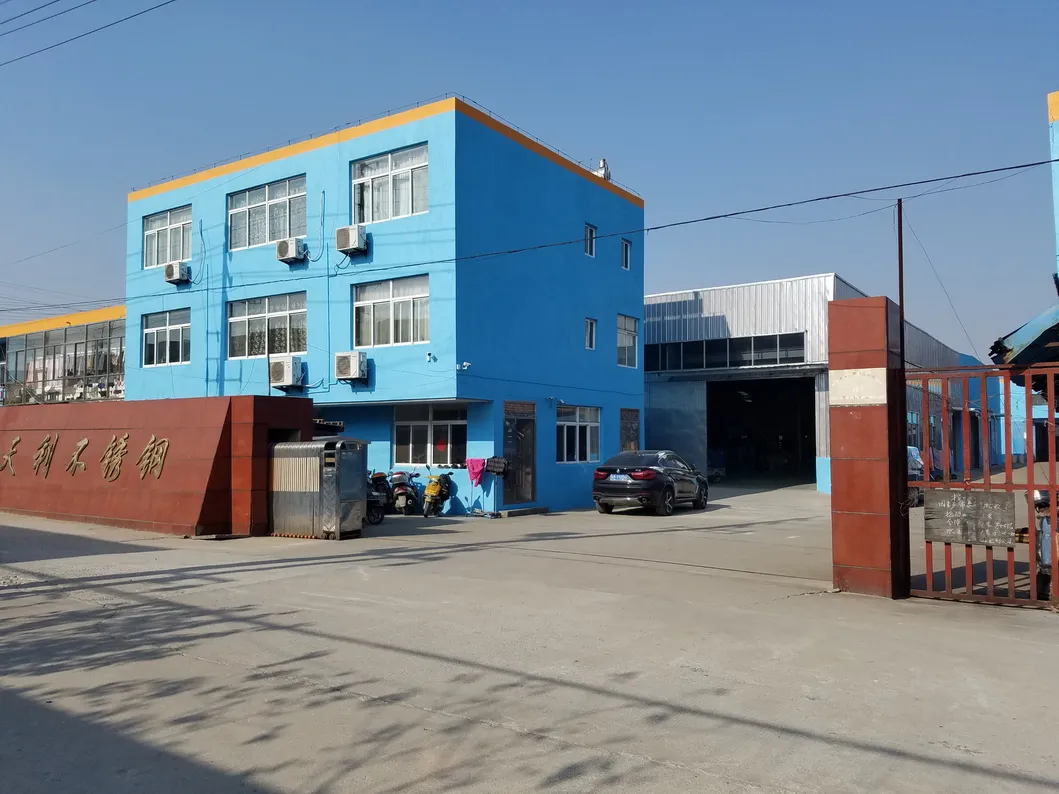

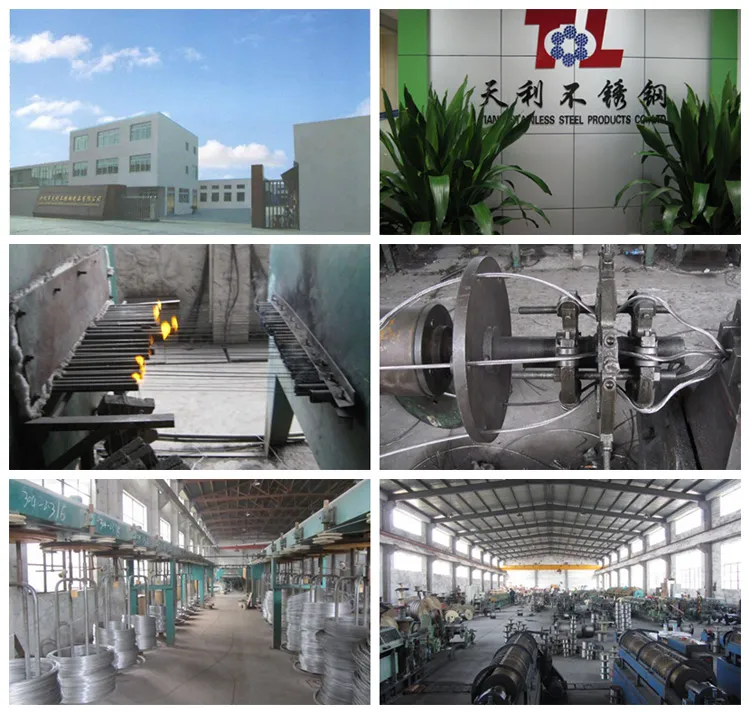

Yes. We are a professional manufacturer of stainless steel products in China, having 20 years of experience in this field. Our products are sell in our domestic market and export to overseas, we win good reputations from our customers. If this is your first time to contact us, please trust us, we'll not let you down.
3.Can I place an order as appointed type?
Yes, this is achievable.
4.What is your payment terms?
TT deposit 50% upon order confirmation, then balance against the copy of B/L Or L/C at sight.
5.How to order:
In ordering stainless steel link chain, you are requested to give us complete information as specified below:
a. Material: 201,304,316,etc .
b. Size: Diameter, inside length, outside width
c. Applications
d. Breaking load
e. Packaging requirements
