Heat Resistant 1.4845 Stainless Steel Pipe En 10088-2 Stainless Steel Pipe Grade 310S 2520
Heat Resistant 1.4845 Stainless Steel Pipe EN 10088-2 Stainless Steel Pipe Grade 310S 2520 Specification of 310S stainless steel pipe Product Name310s stainless steel pipeMaterial300seriesTechniqueseamless pipe / seamless pipeThicknessSCH10 - XXSDiameterDN10 - DN400Surfacepolish and normal surfaceC......
Send Inquiry
Product Description
Heat Resistant 1.4845 Stainless Steel Pipe EN 10088-2 Stainless Steel Pipe Grade 310S 2520
Specification of 310S stainless steel pipe| Product Name | 310s stainless steel pipe |
| Material | 300series |
| Technique | seamless pipe / seamless pipe |
| Thickness | SCH10 - XXS |
| Diameter | DN10 - DN400 |
| Surface | polish and normal surface |
| Certifications | ISO/SGS/BV |
| MOQ | 1 ton |
| Price term | FOB / CIF /CFR /EXW |
| Payment term | T/T,L/C(30% deposit byT/T and 70% payment before delivery) |
| Delivery time | 5-10 days,Based on stock and order quantity |
| Sample | we could offer the sample for free charge but do not pay the cost of freight. |
| Note | We can produce other standard as the customers' requirement. |
Chemical composition of 310S Stainless Steel
| Chemical composition | C | Si | Mn | P | S | Ni | Cr | ||
| ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.030 | 24-26 | 19.00~21.00 | |||
| Physical Characteristics | Hardness | Tensile strength(бb)(Mpa) | Yield Strengthσ0.2 (MPa) | ||||||
| ≤201HBW;≤92HRB;≤210HV | 515-1035 | ≥205 | |||||||
Mechanical Properties of 310S stainless steel
| Grade | Tensile Strength ksi (min.) | Yield Strength 0.2% Offset ksi (min.) | Elongation - % in 50 mm (min.) | Hardness (Brinell) MAX | Hardness (Rockwell B) MAX |
| 310/310S | 75 | 30 | 40 | 217 | 95 |
- Provides excellent corrosion resistance
- High chromium content allows for good aqueous corrosion resistance
- Excellent resistance at normal temperatures and also has good resistance to oxidizing and carburizing atmospheres
- Good resistance to oxidation in intermittent service in air at temperatures up to 1040°C and 1150°C in continuous service.
- Good resistance to thermal fatigue and cyclic heating.
- Widely used where sulphur dioxide gas is encountered at elevated temperatures.
- Continuous use in 425-860°C range not recommended due to carbide precipitation, if subsequent aqueous corrosion resistance is needed
- Generally used at temperatures starting from about 800 or 900°C - above the temperatures at which 304H and 321 are effective.
Application of 310S stainless steel
The higher alloyed stainless steels generally have excellent strength at elevated temperatures along with outstanding resistance to creep deformation and environmental attack. Therefore, Alloy 310 is used widely in industries such as heat treatment and chemical processing. Some examples include:
- Furnace Parts
- Oil Burner Parts
- Heat Exchangers
- Welding Filler Wire and Electrodes
- Annealing Covers
- Combustion Tubes
- Fire Box Sheets

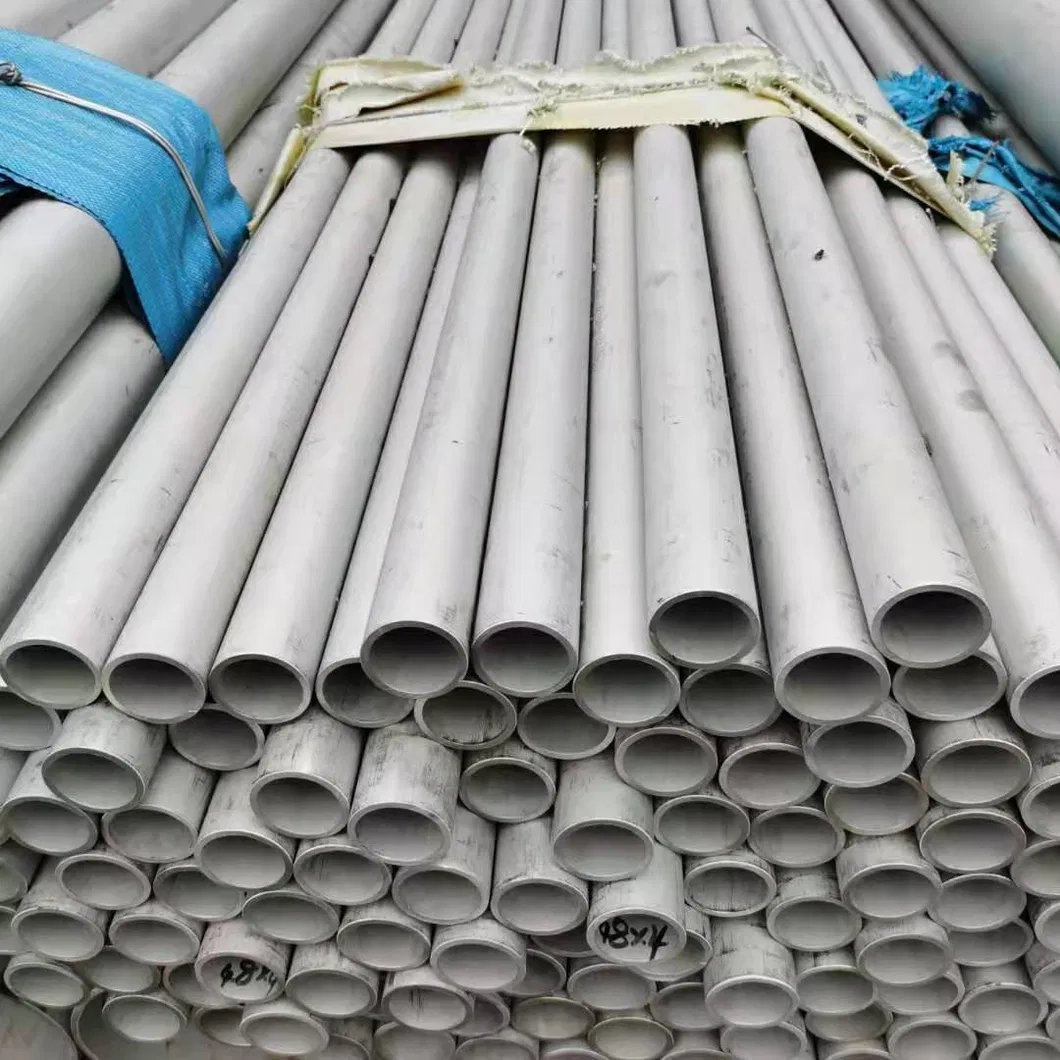

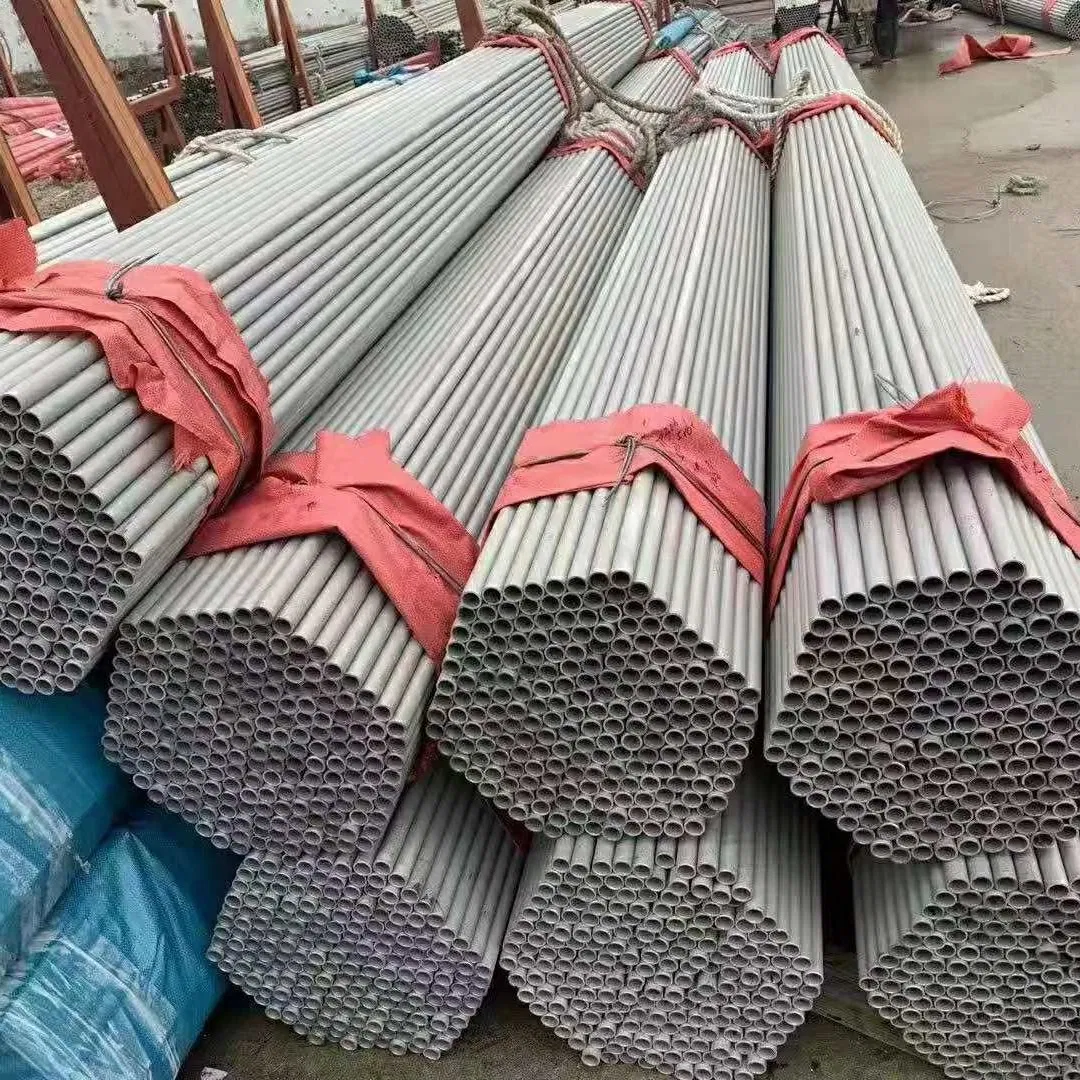

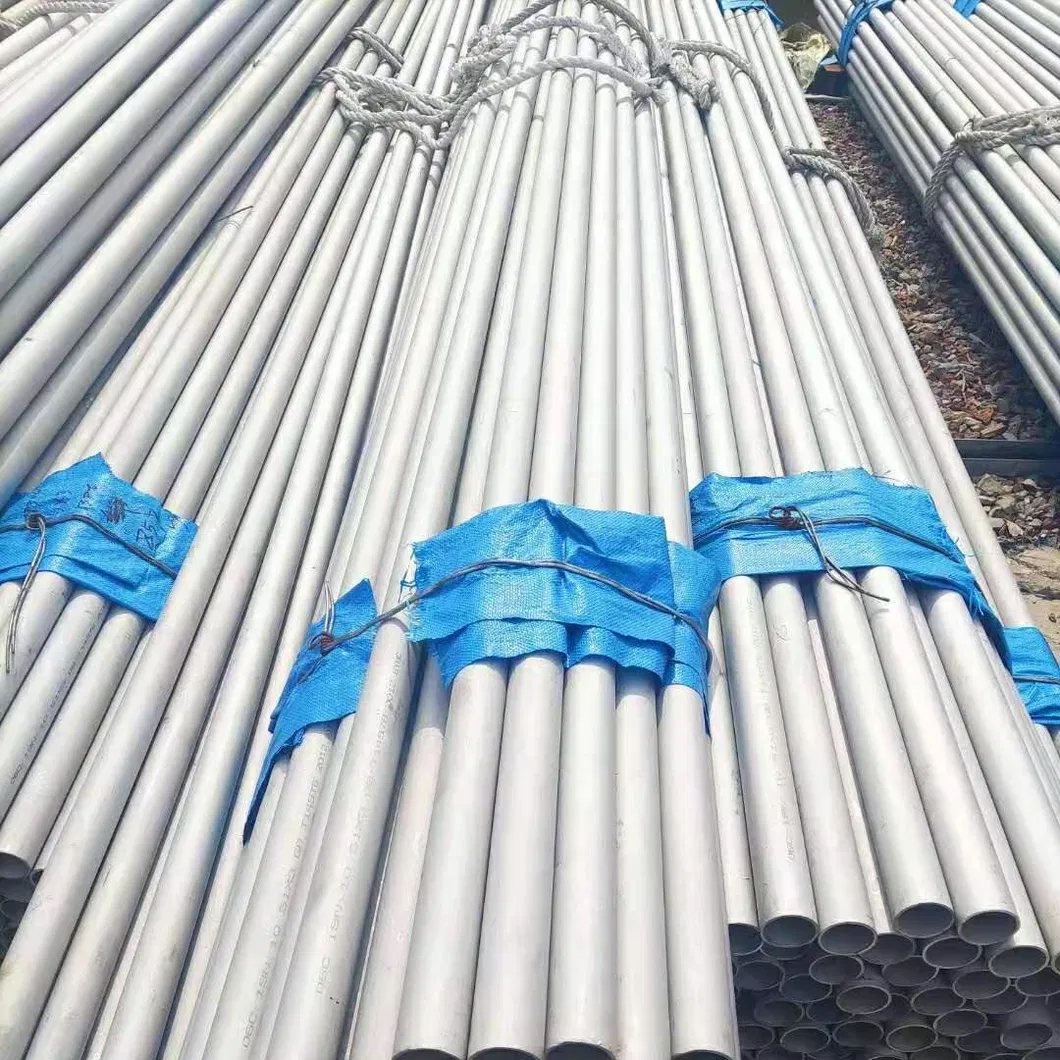

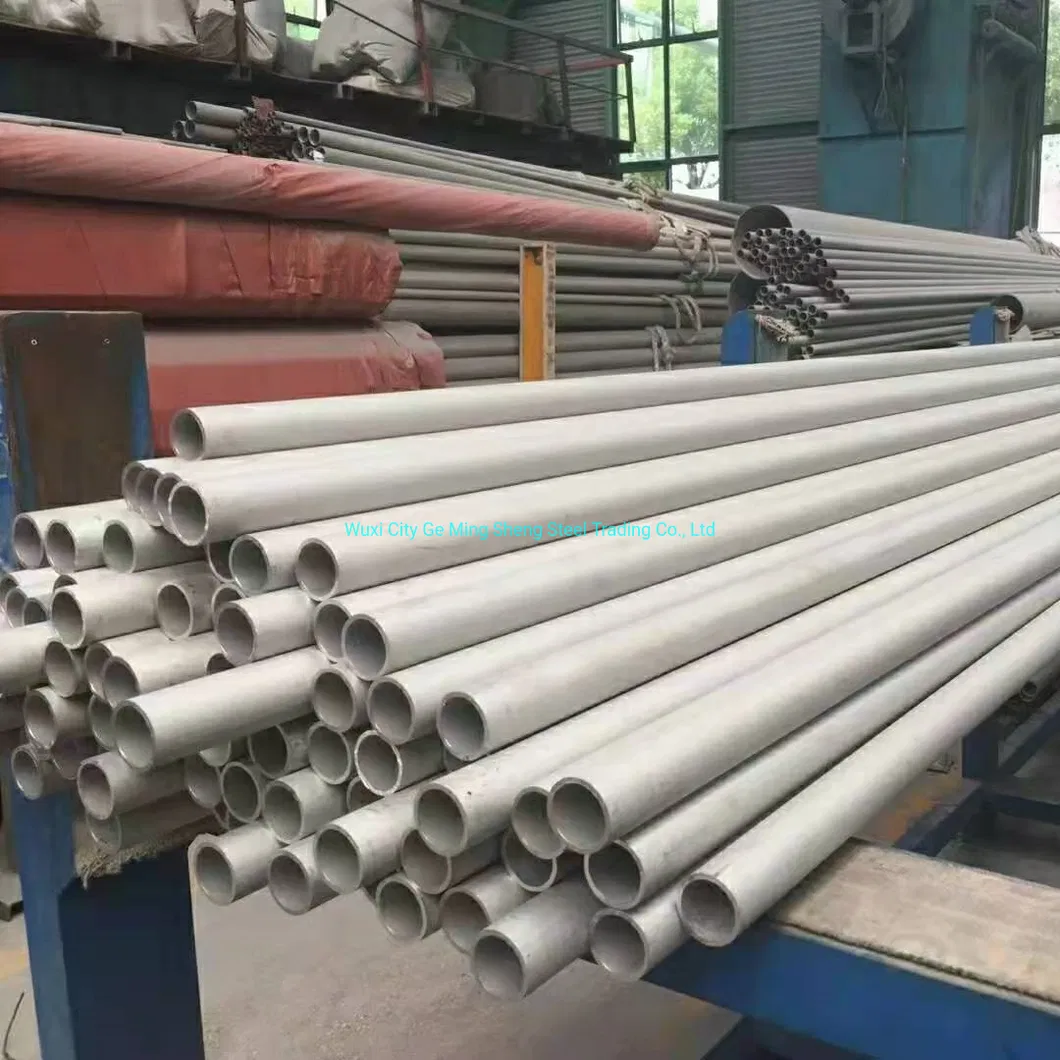

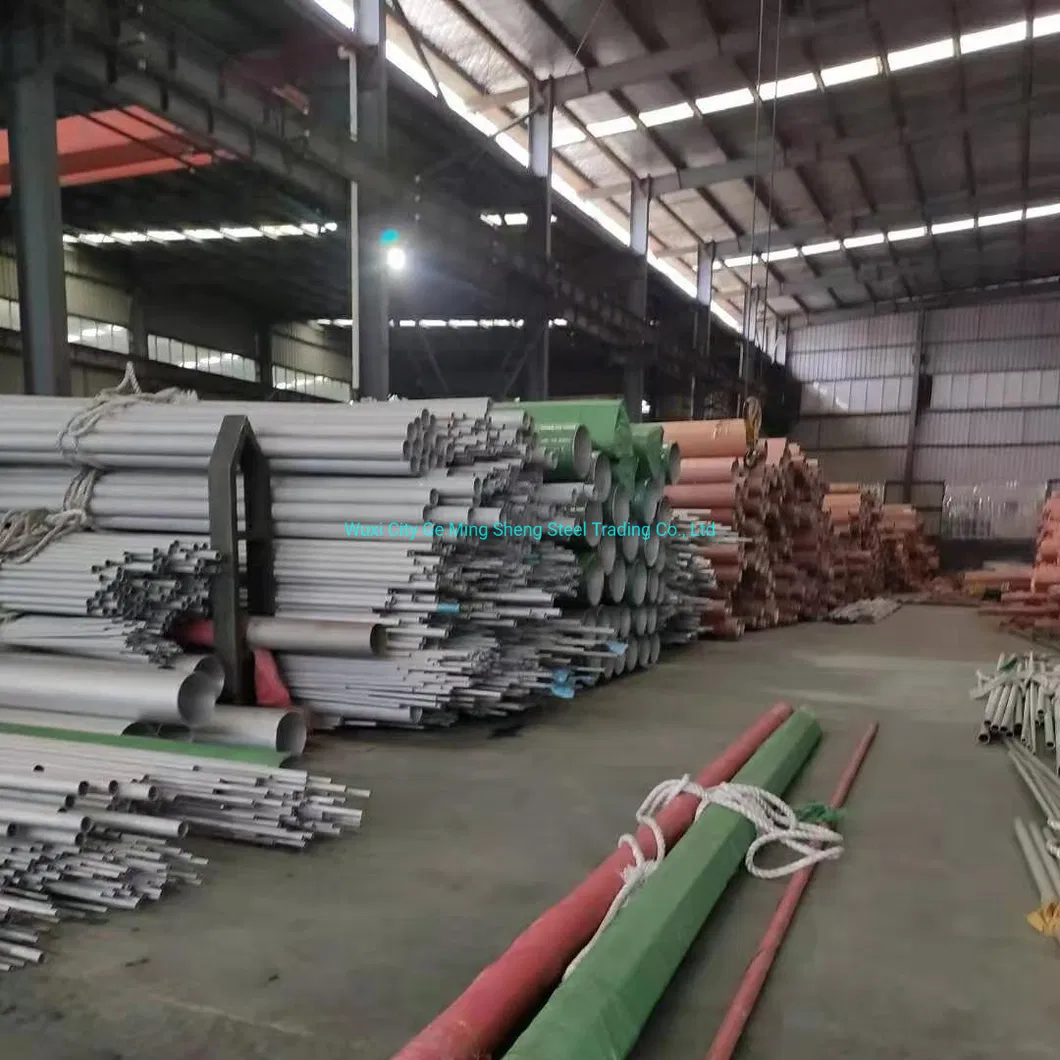

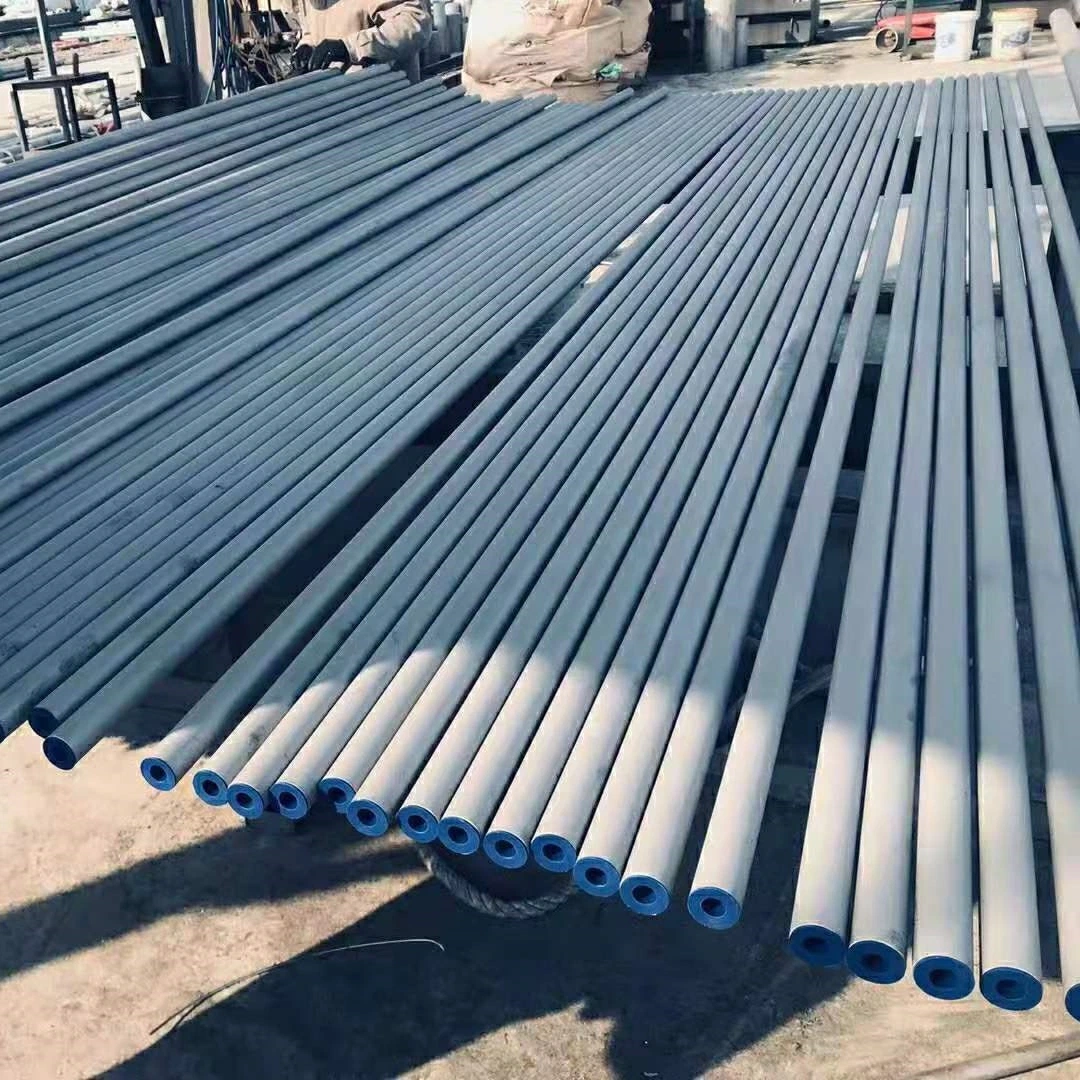

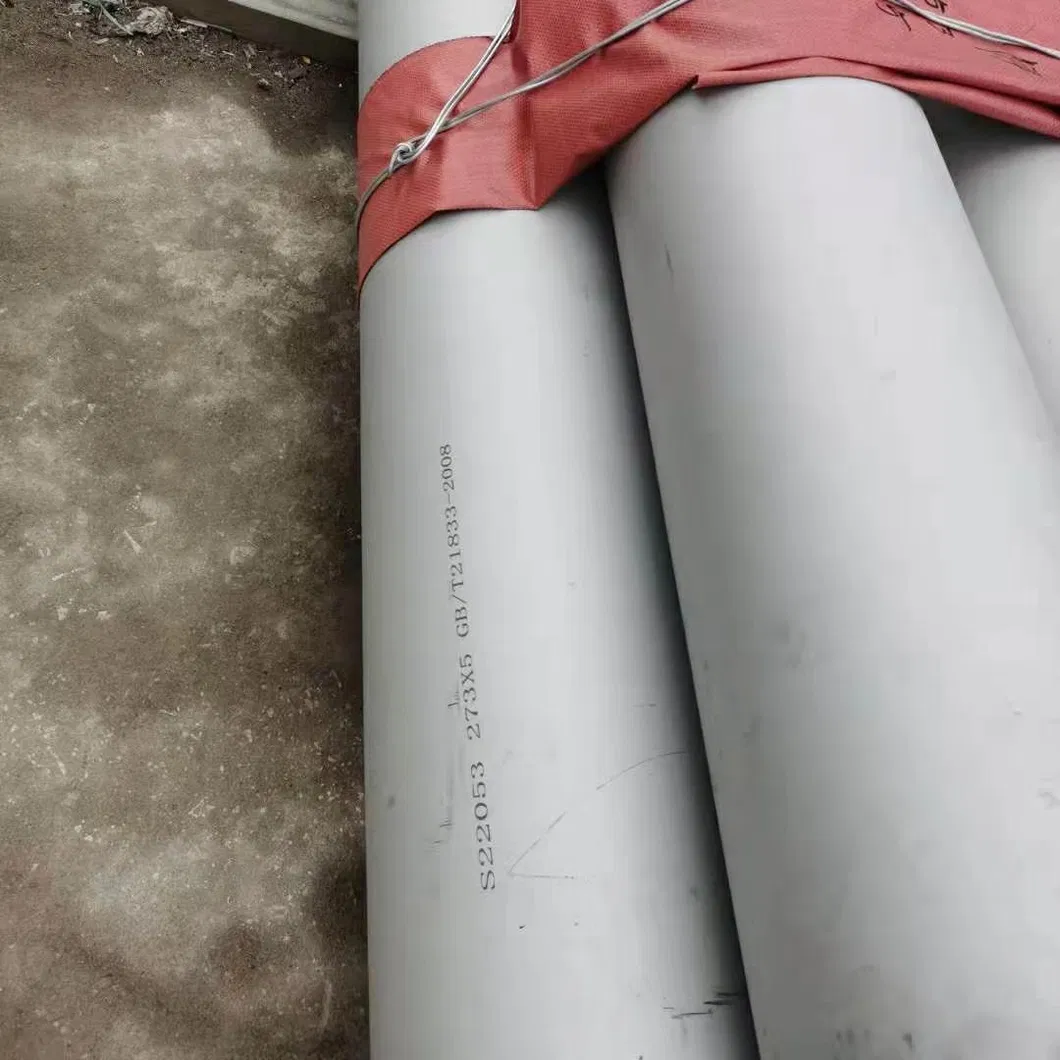

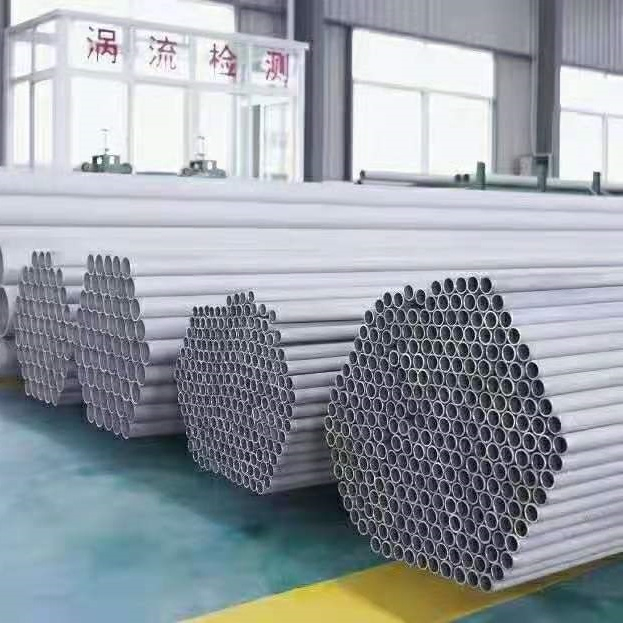

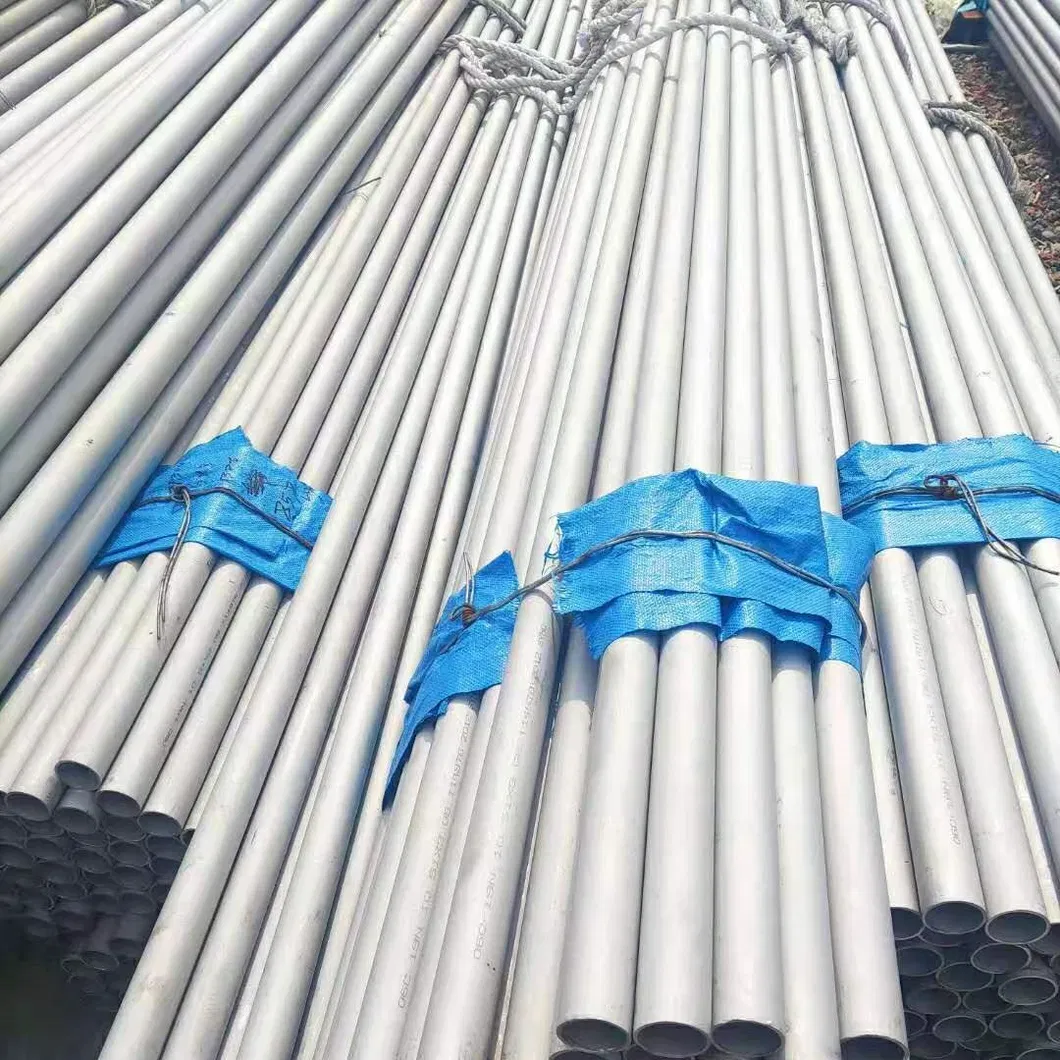

Product picture
About Our Company:
Our company specializes in selling stainless steel pipe, square pipe, rod, elbow, flange and accessories. Is a professional sales seamless stainless steel tube unit, in recent years in the leadership of the concern and the support of friends from all walks of life, my company has a strong sales force, long-term distribution of seamless stainless steel tube, perennial inventory of about 500 tons, annual sales of more than 6000 tons, complete specifications, Products are suitable for construction, petroleum, medicine, food, paper, machinery, chemical, tableware and other industries.
The material is 304 304L 309S 310S 316L 316Ti 317L 347 2205 2507 904L, etc., the specification is 6x1mm-630x30mm, there are more than 350 kinds of spot specifications, You can also customize all kinds of stainless steel pipe, containers, square tubes, rectangular tubes, polishing pipe, flag pole, non-standard pipe, thick-walled pipe, alloy pipe, high-frequency welded pipe, etc., to produce supply stainless steel pipe, and generally well received by users, warmly welcome new and old customers coming patrons, close cooperation, common development, to provide you with quality service, to create a seamless stainless steel pipe industry a better future.
