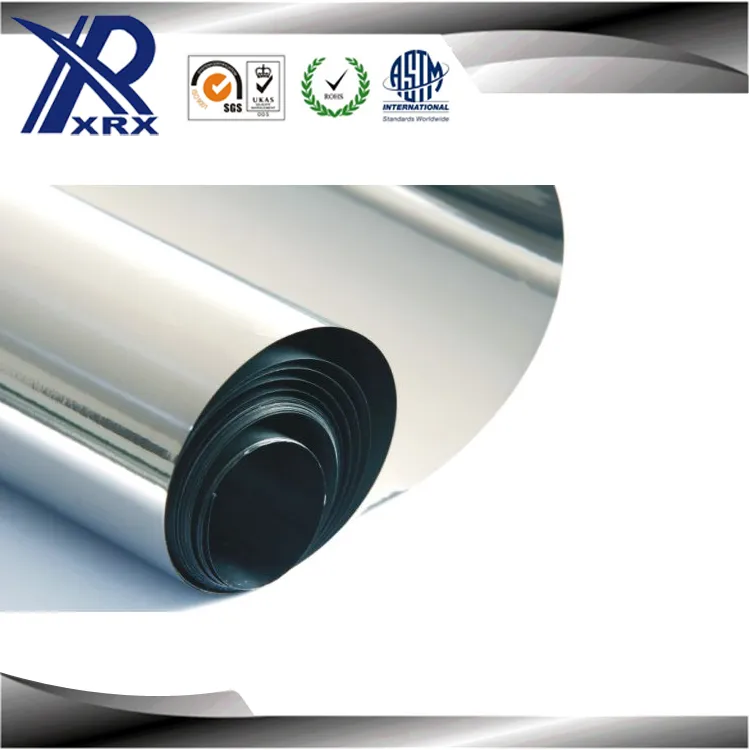

China Factory Manufacturers Provide Stainless Steel Coil Foil with High Quality and Competitive Price

Product Description

Product Decription-----------------------------------------------------------------------------
Material: 301
Thickness: 0.05-0.08mm
Width: 100-600mm
Length: according to customer's request
Surface: 2B

Xinrixin Metal Material (Shenzhen) Co.,Ltd produces high precision super thin metal electronic materials, which are primarily used in the 3C industry, including computer hard disk components, printer parts, disk drive parts, TFT-LCD frames, monitor parts, screen frames, mobile handset springs. Furthermore, such foils are widely used in automobile gaskets, engine components, home appliance parts, foil wraps for optical fiber cables, mini laser system parts, medical tubes, etc.Xinrixin can manufacture high quality stainless steel strips as thin as 0.02 - 1.5 mm with widths from 80 - 400 mm. The annual capacity exceeds 10,000 tons.

SUS301 Mechanical properties in the annealed condition

Thickness(mm)	Width(mm)	Hardness(hv)	Tensile Strength(mpa)	Yield Strength(mpa)
0.05-1.5	<500	<200	>700	>205

Chemical composition-----------------------------------------------------------------------------

Main Ingradient	Ni	Cr	Mn	C
Reference No.	6.00/8.00	16.00/18.00	≤2.0	≤0.15

301 stainless steel common material list

Item	SUS301-S	SUS301-1/4H	SUS301-1/2H	SUS301-3/4H	SUS301-H
Hardness	<200	250-290	310-360	370-420	430-460
Hardness Code	S	1/4H	1/2H	3/4H	H
Thickness	Common thichness:0.1/0.12/0.15......1.5(Irregular thickness can be customized)
Surface	2B,2D,BA,HL,NO.3,NO.4,TR

301 ultar thin, super-hard material list

Item	Hardness	Hardness Code	Thickness
SUS301-EH	470-520	EH	0.08…0.03
SUS301-SEH	>521	SEH	0.08…0.03

304 ultar thin, super-hard material list

Item	Hardness	Hardness Code	Thickness
XRX-SUS304-EH	>410	EH	0.08…0.03

Factory Manufacturers Provide Stainless Steel Coil Foil with High Quality and Competitive Price

Surface Finished-------------------------------------------------------------------------------------------

Surface Finished	Characteristics	Application
BA	Bright heat treatment after cold rolling.	Ktchen utenstil, Kitchen ware, Architectural purpose.
2B	Finished by heat treatment, pickling after cold rolling, followed by skin pass line to more brighter and smooth surface.	General application medical instruments, Tableware.
NO.1	Finished by hot-rolling, annealing and pickling, characterized by white pickled surface.	Chemical industry equipment, Industrial tanks.
8K(Mirror)	A mirror-like reflective surface by polishing with finer abrasives over 800 mesh.	Refletor, Mirror, Interior- Exterior decoration for building.
Hair Line	Finished by continuous linear polishing.	Architecture industries, Escalators, Kitchen ware, Vehicles

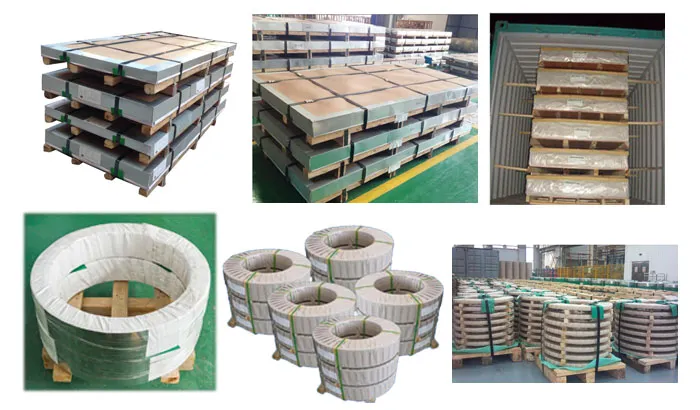

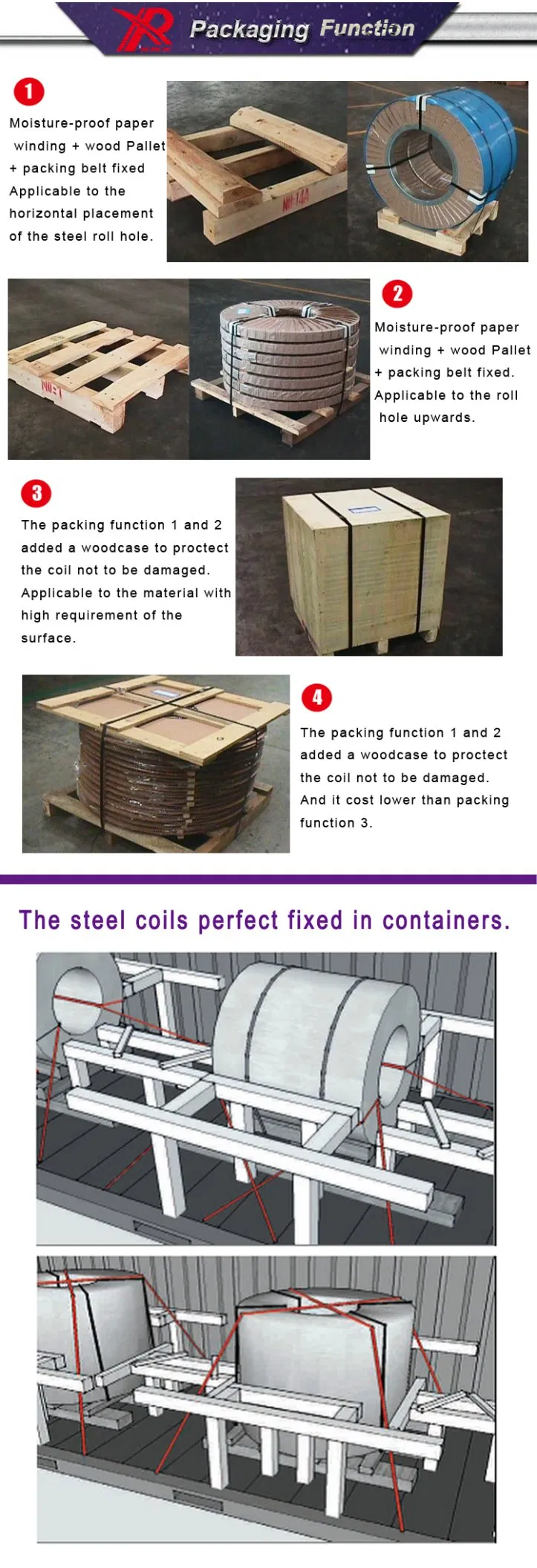

Packing&Shipping-----------------------------------------------------------------------------------
