Product Description
ASTM A312 TP316L Stainless Steel Pipe / 316L Stainless Steel with EN 10204-3.1 Certificate
Product Description:
| Products Name | 316L Stainless Steel Pipe |
| Type | Seamless Pipe / Wedled Pipe |
| Shape | Round |
| Diameter | OD6 - 630mm |
| Wall thickness | SCH5 SCH10 SCH40 SCH80 SCH160 or custom as request |
| Length | 6m/pc or custom cutting as request |
| Standard | ASTM DIN EN GB |
| Mainly Grade | 304 304L 309S 310S 316L 316Ti 316LN 317L 321 329 347 410 2205 2507 904L C276.etc |
| Company Type | Storage and Factory |
| Service | Cutting Polishing |
About 316L Stainless Steel
Grade 316L, the low carbon version of 316 and is immune from sensitization (grain boundary carbide precipitation). Thus it is extensively used in heavy gauge welded components (over about 6mm). There is commonly no appreciable price difference between 316 and 316L stainless steel.
The austenitic structure also gives these grades excellent toughness, even down to cryogenic temperatures.
Difference of 316 and 316L
316 and 316L stainless steels are molybdenum-containing stainless steels. The content of molybdenum in 316L stainless steel is slightly higher than that of 316 stainless steel. Because of the molybdenum in steel, the overall performance of this steel is better than 310 and 304 stainless steel. Stainless steel has a wide range of uses. 316 stainless steel also has good resistance to chloride attack, so it is usually used in the marine environment. 316L stainless steel has a maximum carbon content of 0.03, which can be used in applications that cannot be annealed after welding and require maximum corrosion resistance.
Chemical Composition Compared:
| Material | C | Si | Mn | P | S | Ni | Cr | Mo | N |
| 316 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.035 | ≤0.03 | 10.0~14.0 | 16.0~18.5 | 2.00~3.00 | ≤0.10 |
| 316L | ≤0.03 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 10.0~14.0 | 16.0~18.0 | 2.00~3.00 | ≤0.10 |
Mechanical Properties Compared:
| Grade | UNS | Tensile Strength (MPa) min | Yield Strength (MPa) min | Elongation (%) min | Brinell Hardness (HB) max | Rockwell Hardness (HRB)max |
|---|---|---|---|---|---|---|
| 316 | S31600 | 515 | 205 | 40 | 217 | 95 |
| 316L | S31603 | 485 | 170 | 40 | 217 | 95 |

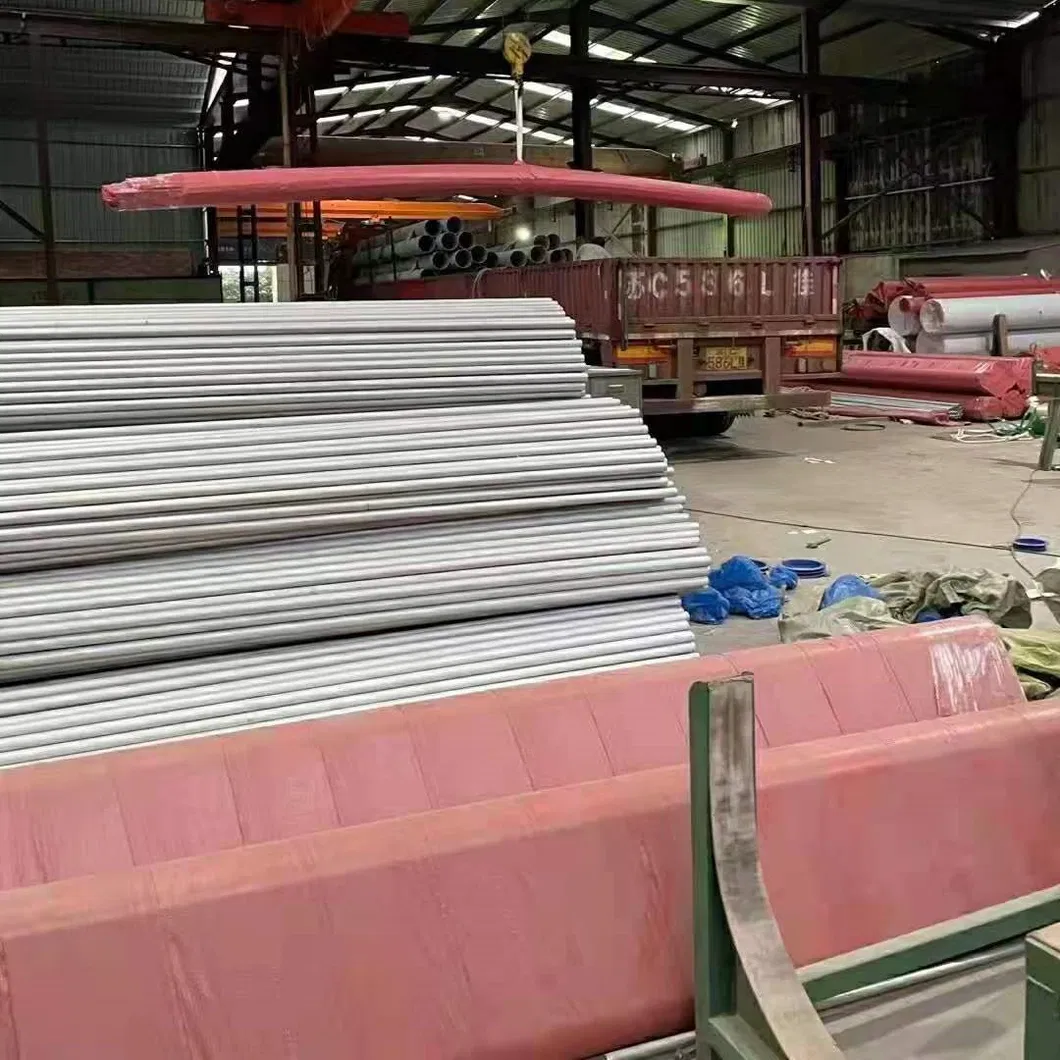

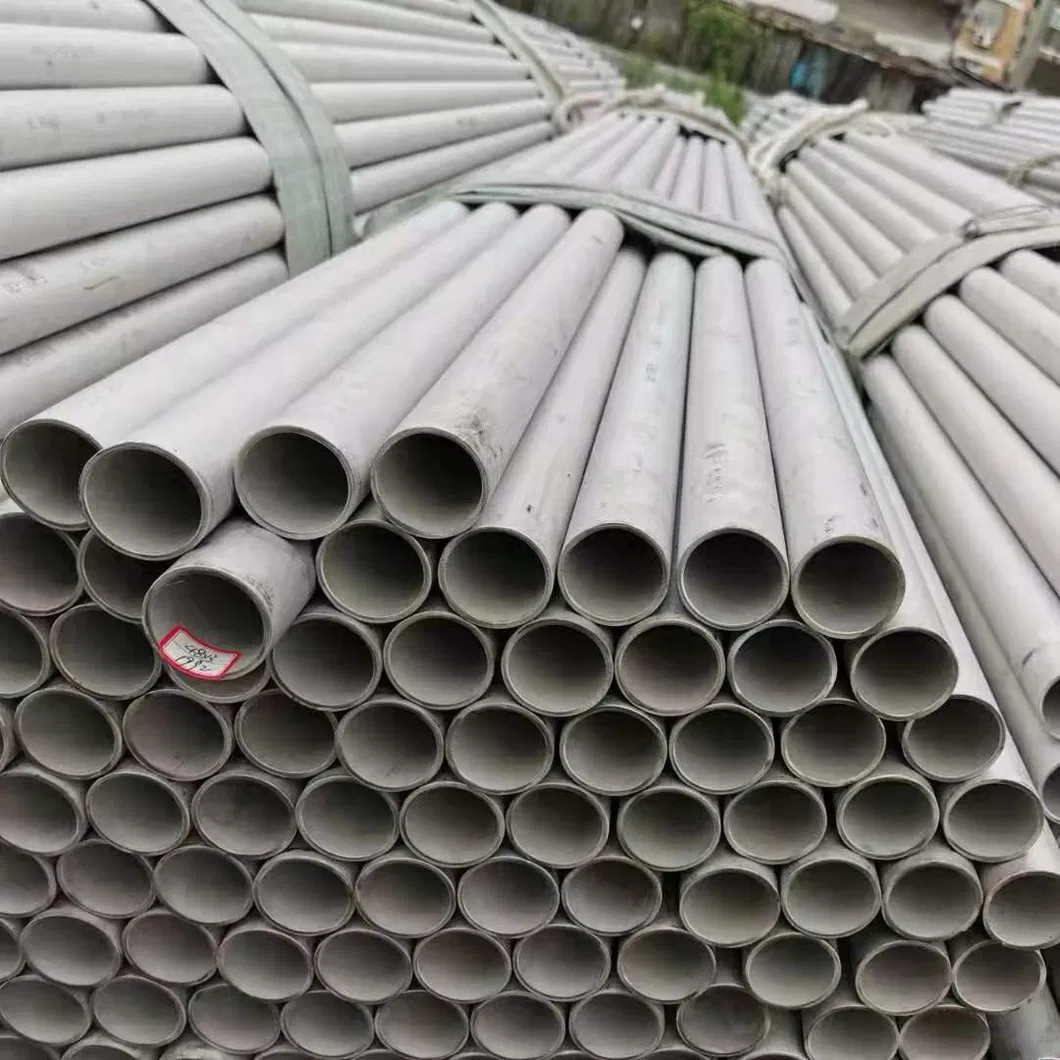

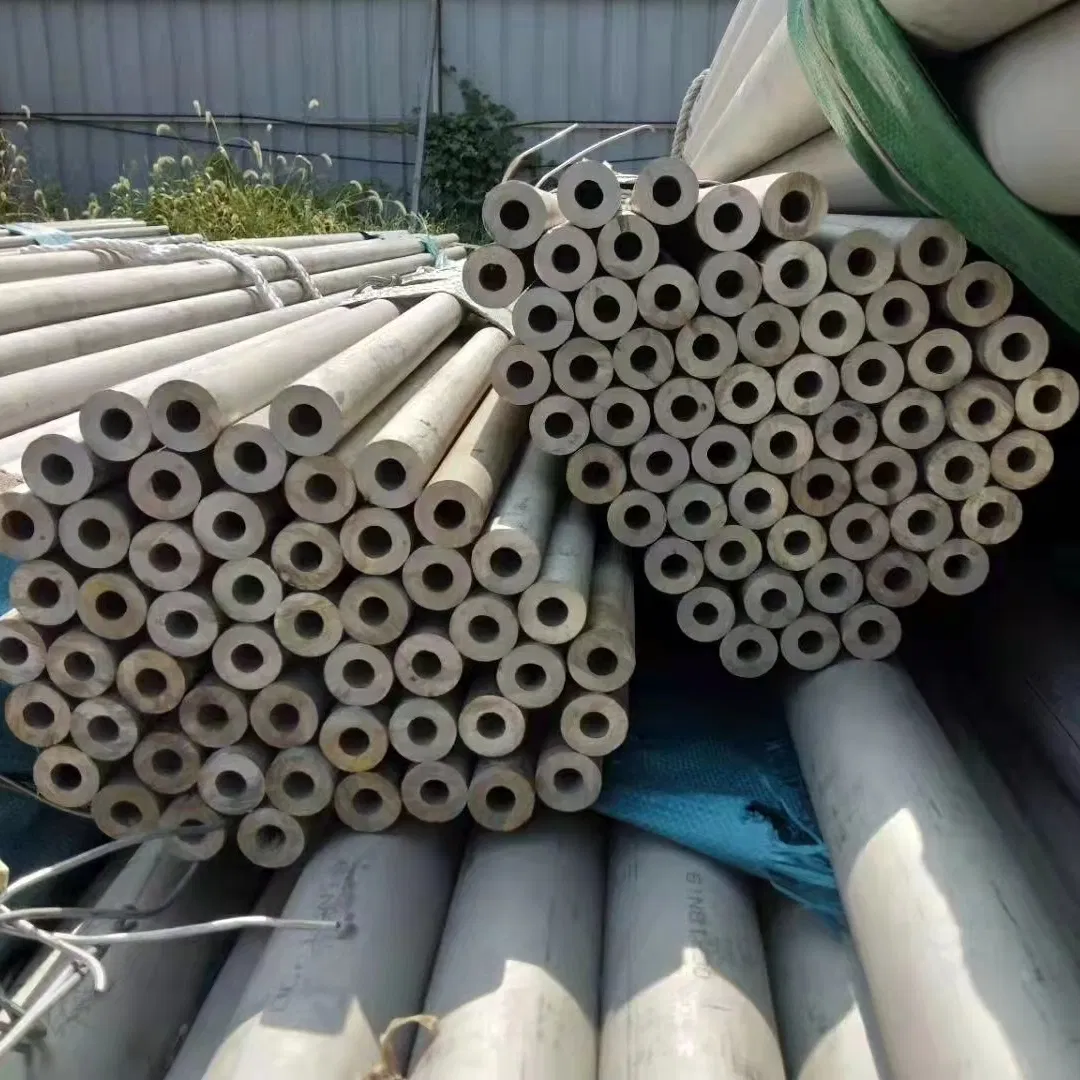

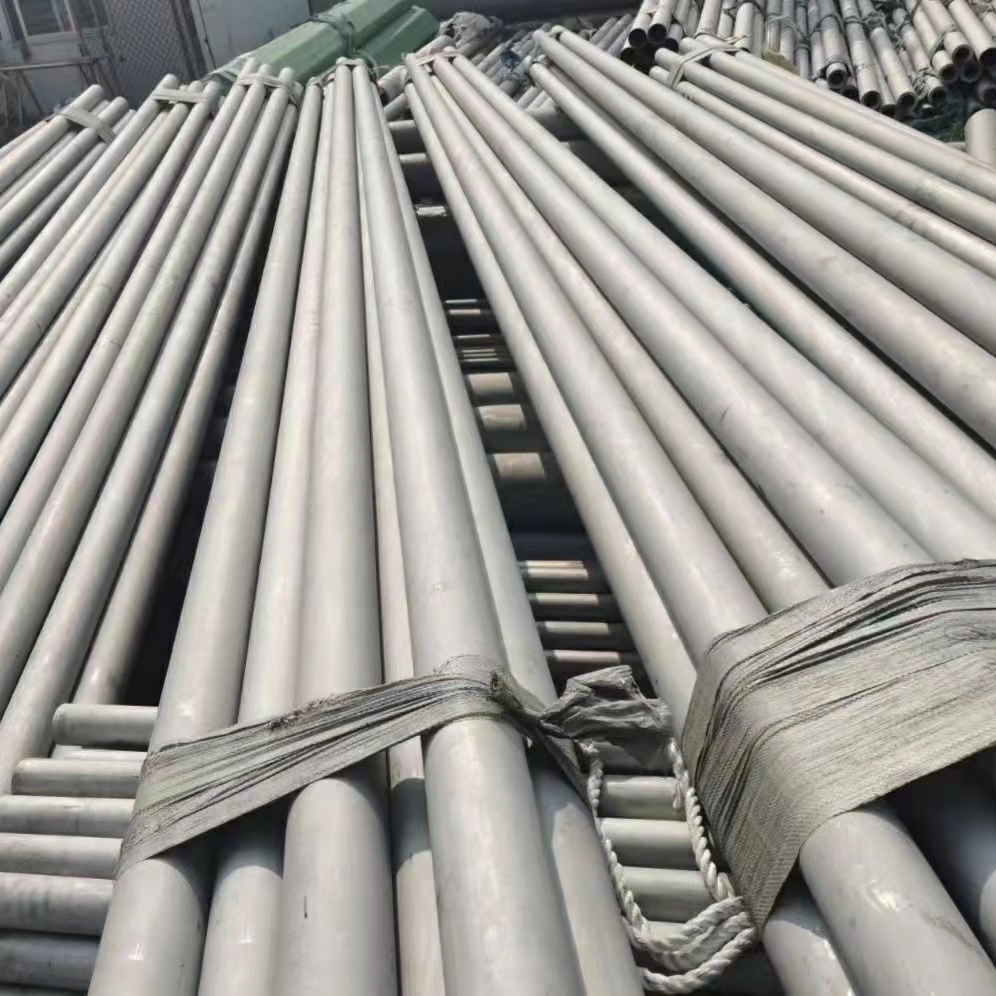

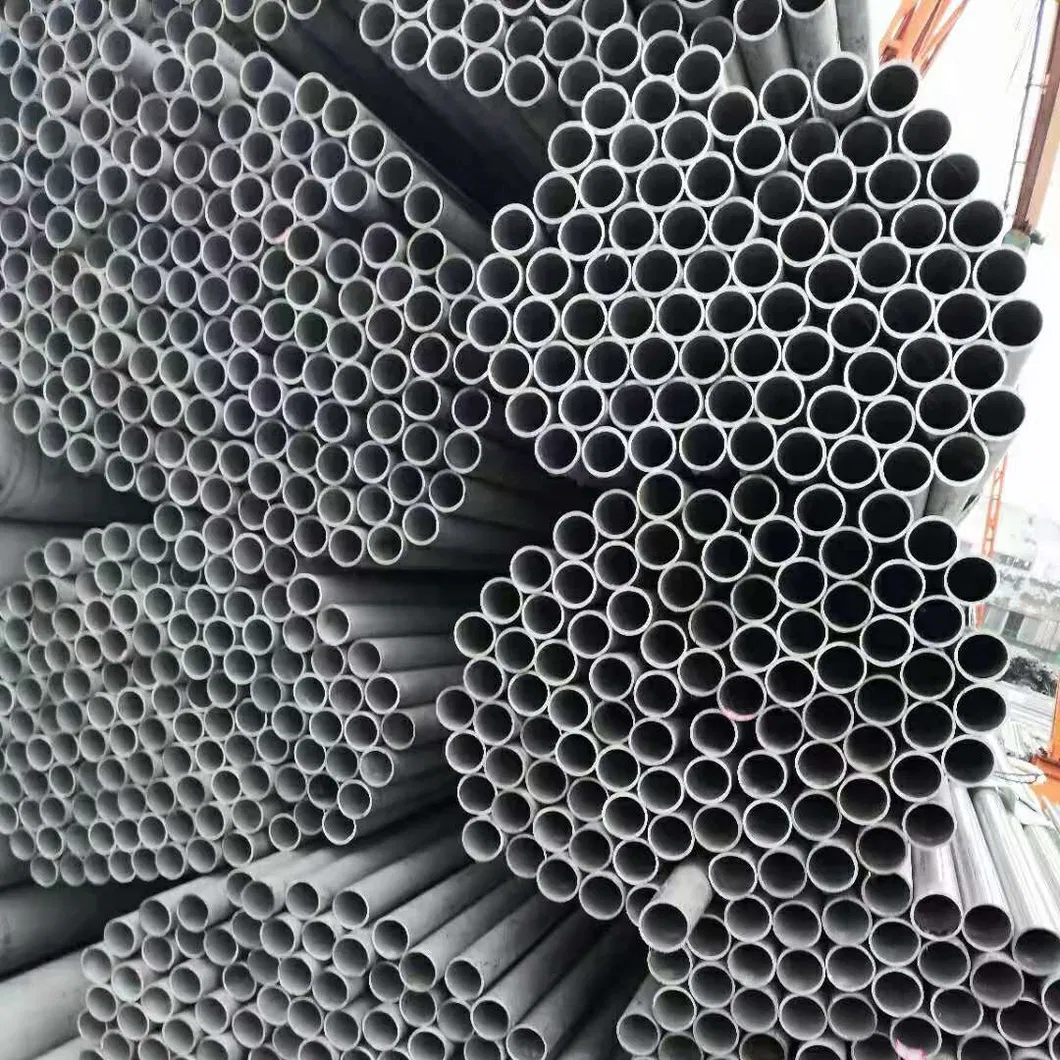

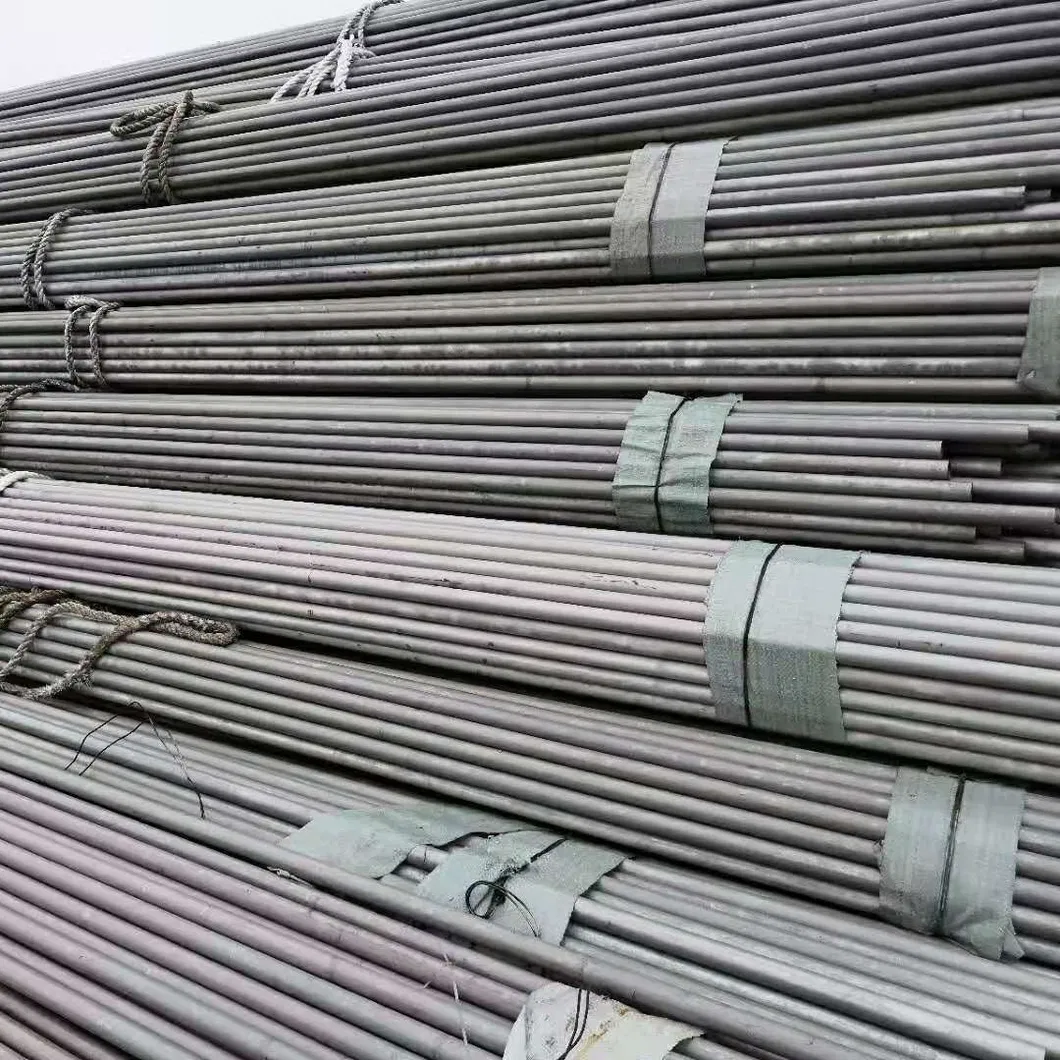

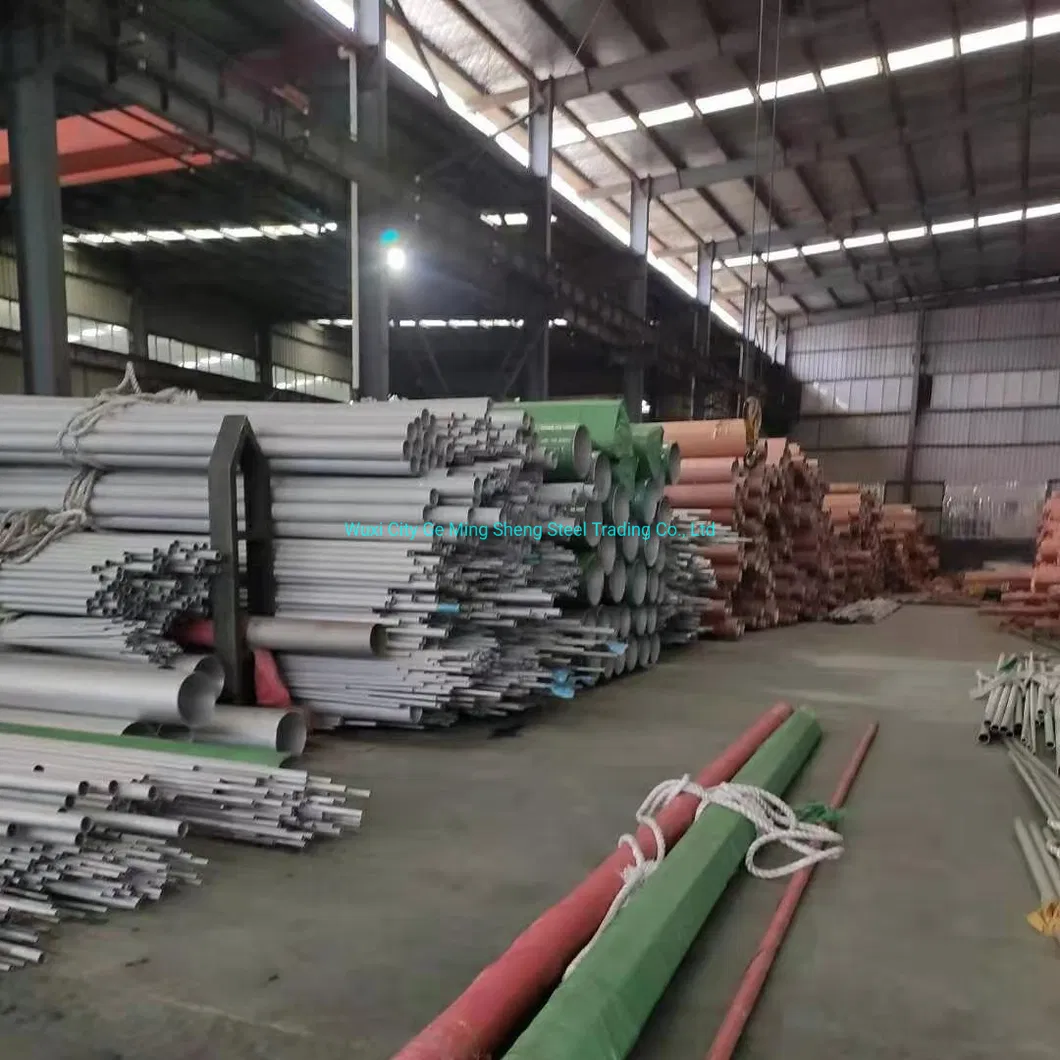

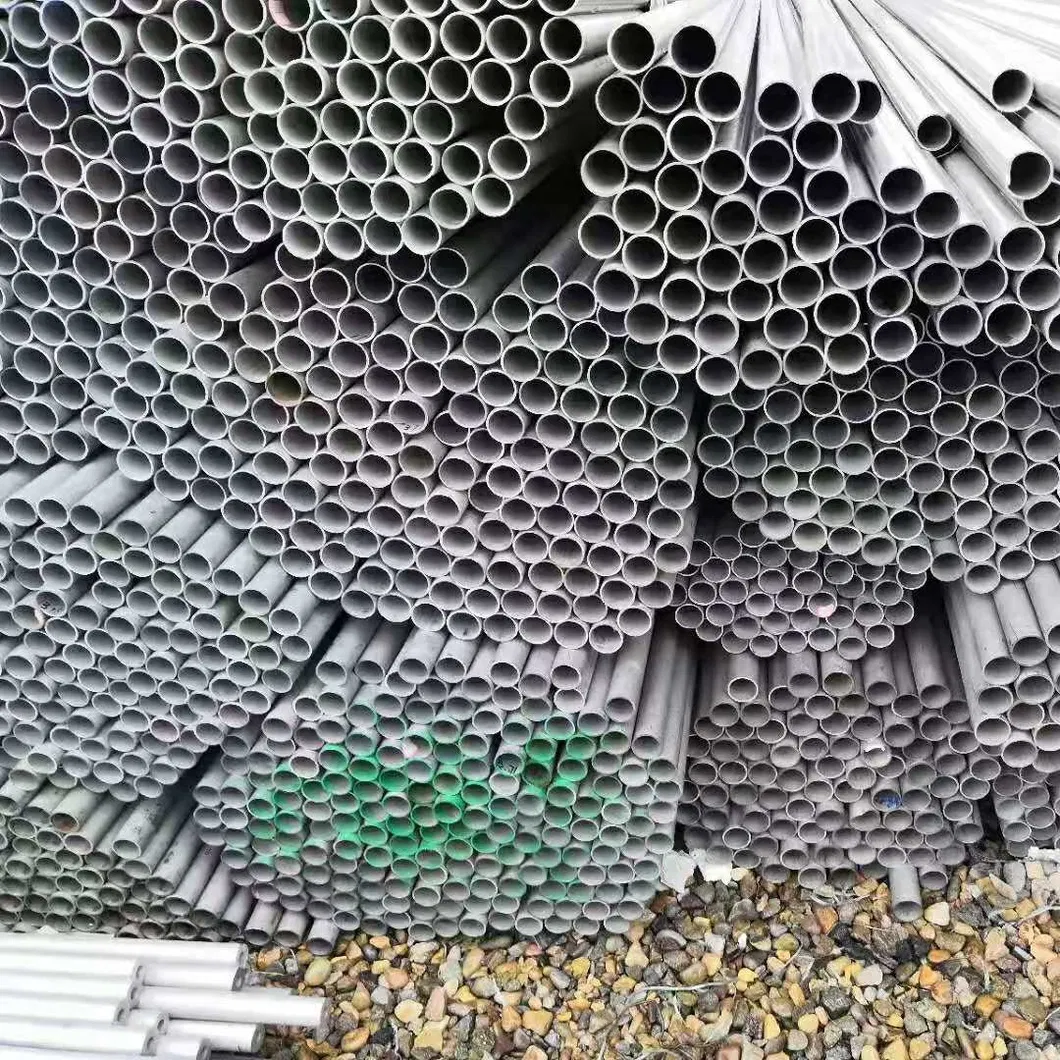

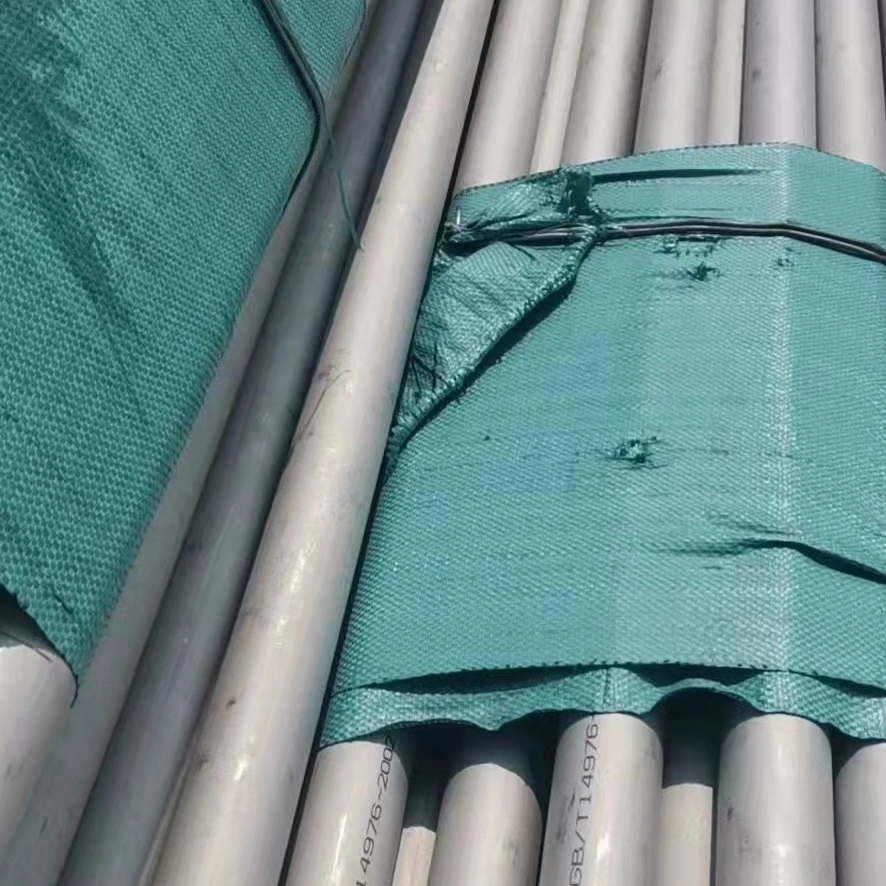

Product Photos:
About Our Company
Our company has an annual output of 25,000 tons of stainless steel seamless pipe production line, 20,000 tons of welded pipe production line, 5,000 tons of pipe fittings production line and so on. According to GB, ASTM, JIS, DIN and other standards production φ 6 ~ φ 762×0.5 ~ 70mm stainless steel seamless pipe, φ 15 ~ φ 2200×0.5 ~ 80mm stainless steel welded pipe, pipe fittings and other products.Mainly grade include TP321, TP316Ti, S32205, TP347H, TP316L, TP310S, TP304, TP304L, 321, S32750, 904L,C276, 254SMO and so on.
Our company has modern technology and equipment, the introduction of foreign advanced technology, constantly forge ahead, strive to the top, so that our product quality is rising steadily, has become one of the most competitive enterprises in the industry. "
