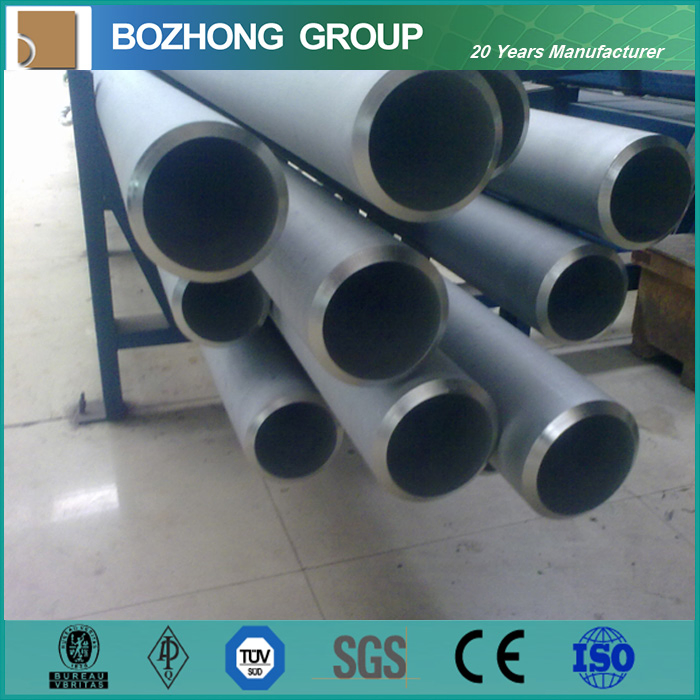

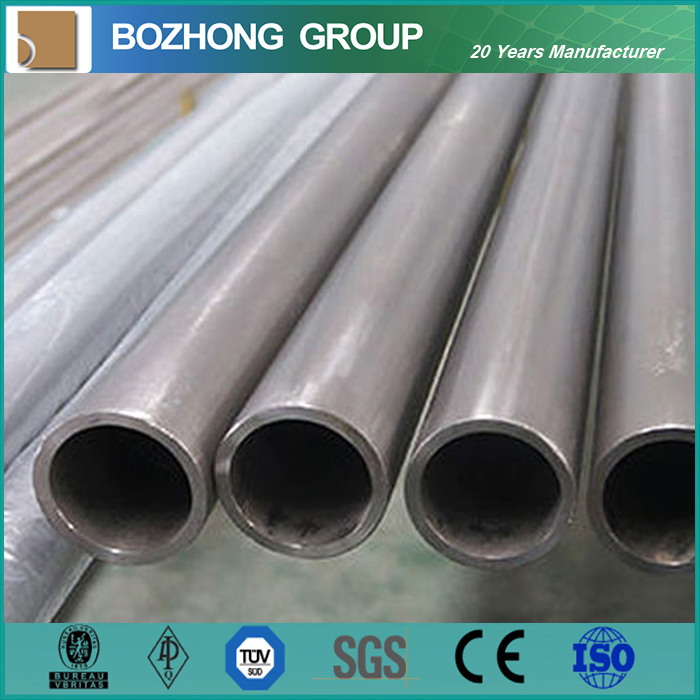

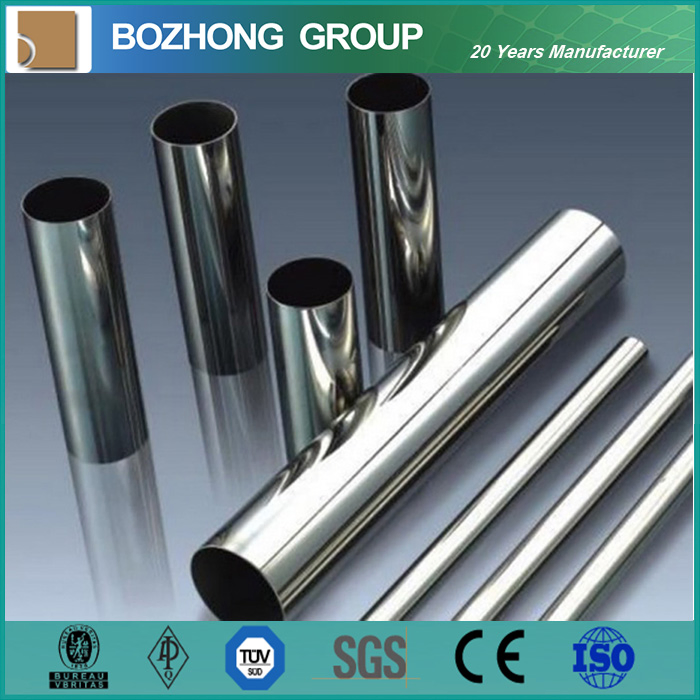

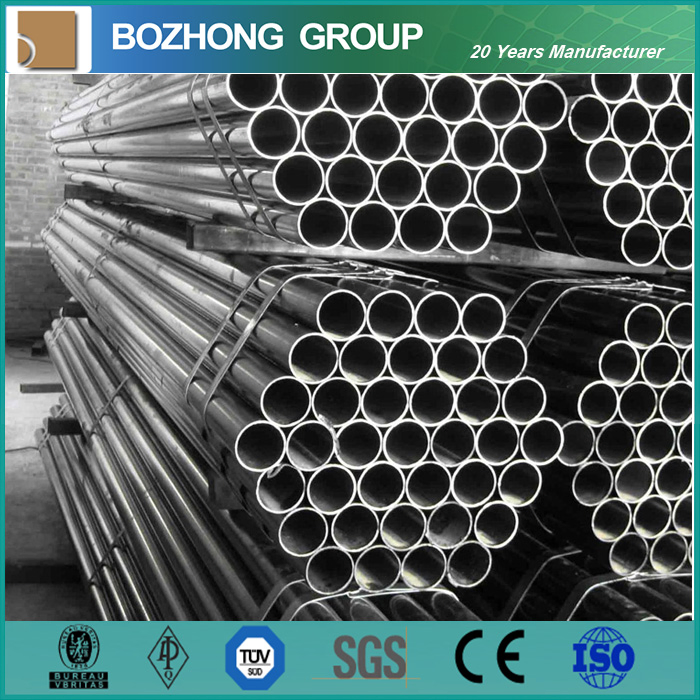

1.4547 S31254 Super Austenite Stainless Steel Pipe and Tube
IntroductionStainless steel grade 254 SMO™ is a very high end austenitic stainless steel. It is designed with a combination of impact toughness resistance to chloride stress corrosion cracking, and pitting and crevice corrosion with strength that is twice that of the s......
Send Inquiry
Product Description
| Introduction Stainless steel grade 254 SMO™ is a very high end austenitic stainless steel. It is designed with a combination of impact toughness resistance to chloride stress corrosion cracking, and pitting and crevice corrosion with strength that is twice that of the stainless steel 300 series. For certain applications, grade 254 SMO™ has been reported to be a cost-effective substitute for high nickel and titanium alloys. It is known to possess excellent workability as well. The following sections will discuss in detail about stainless steel grade 254 SMO™. Chemical Composition The chemical composition of stainless steel grade 254 SMO™ is outlined in the following table.ElementContent (%)
The physical properties of stainless steel grade 254 SMO™ are tabulated below.PropertiesMetricImperial
The following table shows mechanical properties of stainless steel grade 254 SMO™.PropertiesMetricImperial
The thermal properties of stainless steel grade 254 SMO™ are tabulated below.PropertiesMetricImperial
Other designations that are equivalent to stainless steel grade 254 SMO™ include the following.
Machinability Stainless steel grade 254 SMO™ is quite tough to machine due to the extremely high work hardening rate and lack of sulfur content; however using sharp tools, overpowered machine tools, positive feeds, good amount of lubrication, and slow speeds tend to provide good machining results. Welding Welding of stainless steel grade 254 SMO™ requires filler material without which it results in poor strength properties. Filler metals such as AWS A5.14 ERNiCrMo-3, and alloy 625 are recommended. Electrodes used in the process, have to match with AWS A5.11 ENiCrMo-12. Annealing Annealing of this material should be performed at 1149-1204°C (2100-2200°F), which should be followed by a water quench. Hot Working Forging, upsetting and other operations relating to this material can be performed at 982 - 1149°C (1800 - 2100°F). It is recommended that temperatures do not exceed this range as it would result in scaling and reduction in the workability of the material. To re-attain maximum corrosion resistant properties, it is advisable to perform post-process annealing. Cold Working Cold working can be carried out using all the traditional methods; however the process would be tough due to its high work hardening rate. The result will provide the material with increased strength and toughness. Hardening Stainless steel grade 254 SMO™ does not respond to heat treatment. Hardening is possible only through cold reduction. Applications Stainless steel grade 254 SMO™ is used in the following areas: Saltwater handling Tall oil distillation columns Flue gas desulfurization scrubbers Components used in petroleum production Food processing equipment Process equipment in chemical industry Bleaching equipment in the pulp and paper industry Flue-gas cleaning Desalination Heat exchangers |
