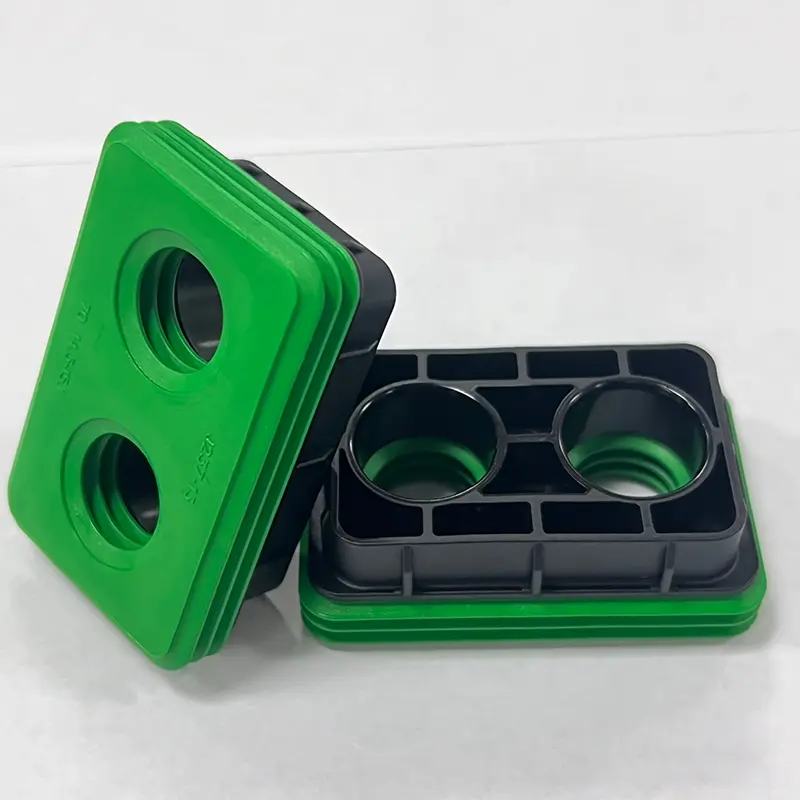

How Do Overmolded Plastic and Rubber Seals Change The Game For Connector Reliability?

When I audit failing automotive connectors, I usually find the same culprits—micro-leaks, dust ingress, and vibration-induced loosening. That is exactly where Overmolded Plastic and Rubber Seals earn their place. At Guoming Rubber, I have watched customers move from separate gaskets and single wire seals to integrated solutions that lock the interface together instead of merely “padding” it. As projects scale, the Guoming Rubber team and I prefer to start the stack with an overmolded design, then tailor wall thickness, durometer, and rib geometry to the platform’s vibration profile. The result is a cleaner assembly path and a connector that stays seated even after thousands of kilometers of shake, splash, and grit.

Why Do I Choose Overmolding Instead Of Separate Seals?

• I need the sealing geometry and the housing to behave like one body during thermal cycling, so differential expansion does not pull the lip away.

• I want fewer touchpoints on the line. Overmolding reduces parts count and handling, which cuts scrap from misloaded gaskets.

• I care about stability under road vibration. The overmolded anchor points resist micro-fretting and back-out better than loose elastomer rings.

• I can tune shore hardness across zones. A firm backbone supports latch forces, while softer lips maintain conformity on rough mating faces.

What Problems Do Customers Really Want Solved?

• Ingress after months, not minutes
  A connector may pass day-one testing but develop capillary leaks after repeated pressure-wash cycles and mud exposure.

• Connector walk-off on corrugation roads
  Vibration causes gradual loss of retention; overmolding adds mechanical interlock that resists micro-movement.

• Assembly variability
  Separate seals depend on perfect seating and orientation. Overmolding fixes position by design.

• Service complexity
  Fewer small loose parts means faster field replacement and fewer “mystery leaks.”

Where Does An Overmolded Design Pay Off In My BOM?

• High-vibration zones near engine mounts, battery trays, wheel wells.

• IP67–IP69K programs where spray, steam, or road salt challenge conventional seals.

• Export platforms that face rail, sea, and truck transport with stacking vibration before the first ignition.

How Do I Pick Materials That Survive The Real World?

• Elastomers I consider

  • EPDM for steam and water spray durability.

  • HNBR for oil and fuel splash resistance.

  • FKM for high-temp and aggressive fluids.

• Plastics I pair with the elastomer

  • PA66 GF for structural stiffness and heat aging.

  • PBT for dimensional stability and hydrolysis resistance.

• Adhesion choices

  • Use TPEs and bonding-grade elastomers compatible with the substrate so the interface does not delaminate after thermal shock.

Which Design Levers Actually Move The Needle?

• Dual-durometer zoning
  Soft sealing lip with a firm carrier ring overmolded to the plastic boss.

• Anti-backout ribs
  Fine ribs at the skirt create frictional damping against vibration.

• Drain and vent logic
  Micro-vents reduce pressure spikes without inviting ingress.

• Flash control features
  Witness lines and cold-slug traps built into the tool keep critical lips clean.

What Testing Do I Use To Prove It Works?

• Ingress and pressure
  IP67 immersion, IP68 extended submersion, IP69K high-pressure spray. Supplement with 20–30 kPa pressure decay across temperature cycles.

• Thermal and vibration
  −40 °C to 125 °C cycling with concurrent random vibration to capture differential expansion plus shake.

• Chemicals
  Fuel B, DEF, brake fluid, engine oil, and road salt spray exposure with post-soak compression set checks.

• Mating durability
  50–100 mate–unmate cycles while monitoring insertion force drift and latch retention.

How Does An Overmolded Seal Compare With Traditional Options?

What Production Mistakes Do I Avoid From Day One?

• I do not force the same durometer across every lip; zone it.

• I never ignore knit lines around critical sealing edges; I move gates or add overflow wells.

• I keep tolerance chains short; the overmolded seal becomes the datum that matches the housing.

• I pre-bake moisture-sensitive substrates like PA66 to keep voids out of the bondline.

How Do I Size The Seal Without Over-compressing It?

• Compression target
  15–25% for static lips; I only exceed 30% when thermal expansion is low.

• Lip geometry
  Knife-edge lips seal at low force; bulb lips tolerate rougher surfaces.

• Boss height control
  I let the plastic boss act as a hard stop to prevent over-crush during mating.

Where Do Connector Overmolded Seals Fit In My Portfolio?

I treat the overmolded variant as the “lock-in” solution when vibration and transport combine with high IP demands. Our common connector seal, connector gasket, and single wire seals still solve waterproofing, dust control, and anti-fouling on many platforms. The difference shows up when a vehicle runs long stretches of broken pavement: a standard connector can slowly loosen, while the integrated overmolded body keeps the interface seated and resists shake-down during shipping and daily use.

What Does A Typical Development Path Look Like?

1. Define the threat model
   Map splash zones, thermal envelopes, and vibration spectra from the platform.

2. Select material pair
   Choose bonding-grade elastomer to match the plastic substrate and fluids.

3. Prototype and gate study
   Print housing surrogates, cut soft tools, run gate trials to eliminate weld lines at lips.

4. DV testing
   Combine IP, thermal shock, vibration, and chemical soaks; tune durometer and ribs.

5. PV and line validation
   Confirm insertion forces, leak rates, and assembly takt time on real fixtures.

What SEO-Friendly FAQs Do My Customers Actually Ask?

• Can overmolded seals be reworked after damage
  Usually no. I recommend full connector replacement to protect IP rating.

• Will the bond delaminate in hot–cold cycles
  Not when the elastomer-to-plastic pairing and gate placement are correct.

• Do I need overmolding on every connector
  No. Use it where vibration and pressure wash combine, or where transport shake is severe.

How Can We Start If I Already Have A Legacy Connector?

• Send a short brief with your connector model, fluids, target IP, and a note on where the vehicle routes the harness.

• Share any current leak data and photos of dirty tracks or corrosion on pins.

• I can propose an overmolded conversion with material, lip geometry, and boss changes, plus a pilot plan that does not slow your SOP.

Would You Like A Quick Technical Check And A Quote?

If you are wrestling with leaks or vibration-related loosening, let’s review your connector together. Guoming Rubber builds integrated solutions around Overmolded Plastic and Rubber Seals that survive real roads, not just lab benches. Tell me your environment and timeline, and I will suggest a material stack and test plan that fits your line speed and cost target. Contact us to request samples, drawings, or a fast DFM review—leave an inquiry with your connector specs, and we will get the right seal working for you.
