Yg8 Od23 *65mm 89.5hra 8% Co Tungsten Carbide Sintered Rod

Product Description

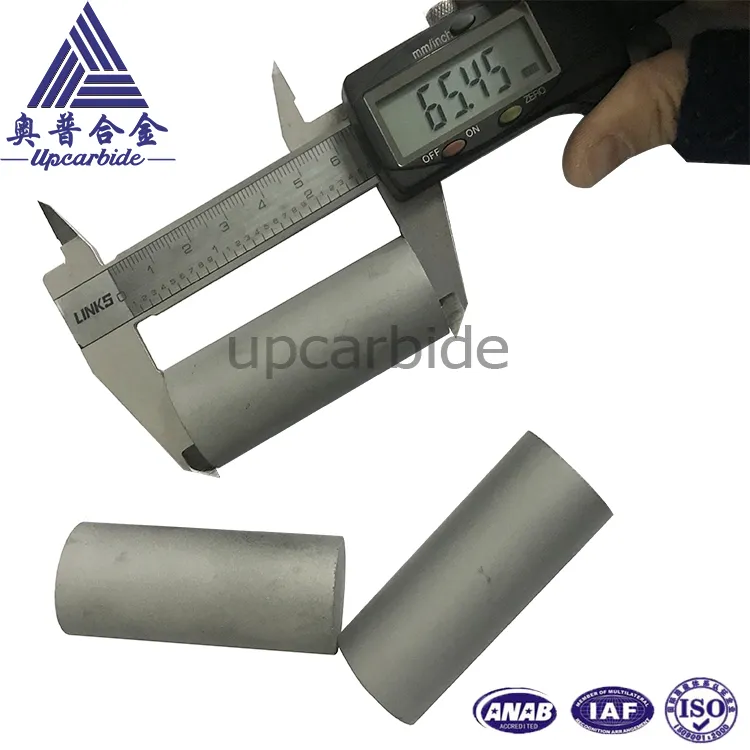

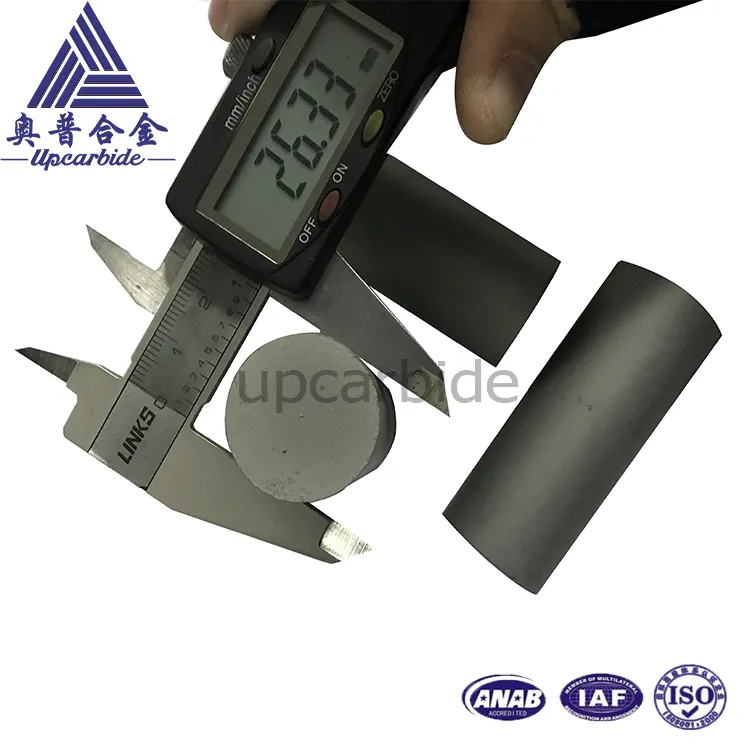

YG8 OD23*65mm 89.5hra 8% Co tungsten carbide sintered rod
YG8 OD23*65mm 89.5hra 8% Co tungsten carbide sintered rod

Products description

1. Grade: YL10.2,YG10X,YG12X,YG15,YG20,YG10,YG8,YG8 etc.
2. diameter from 0.3mm~100mm,
3. length from 10mm~1000mm
4. tolerance for diameter (.-0.05~+0.05),tolerance for length (0~+0.2mm).
5. also can make angles of tips are 30º,60º,90º

Product Name	YG8 OD23*65mm 89.5hra 8% Co tungsten carbide sintered rod
Material	tungsten carbide
Color	grey
Standard	DIN GB ISO JIS BA ANSI
Grade	YL10.2,YG10X,YG12X,YG15,YG20,YG10,YG8,YG8 etc
Brade	ZZUP
Grain size	0.6um
Used	for milling 45HRC,50HRC,60HRA metals

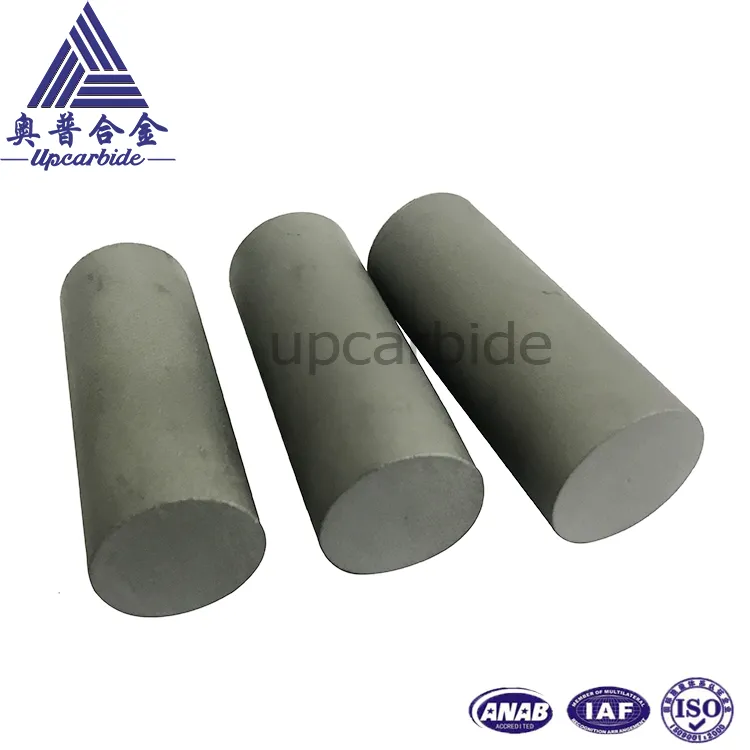

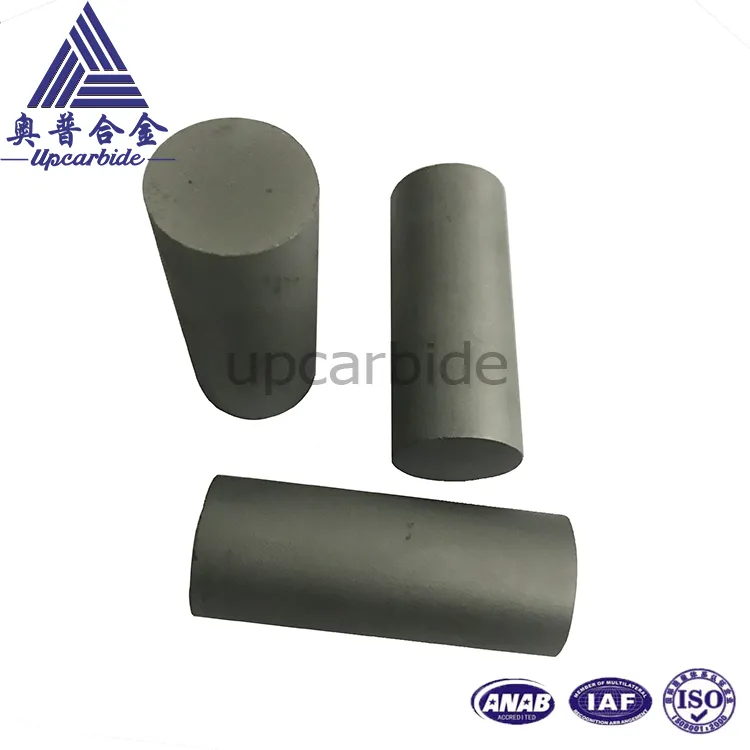

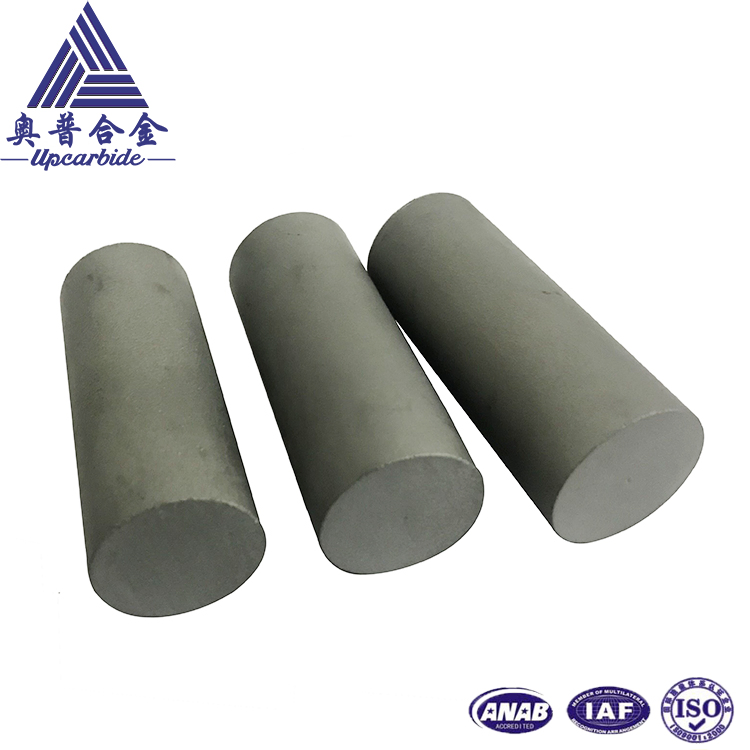

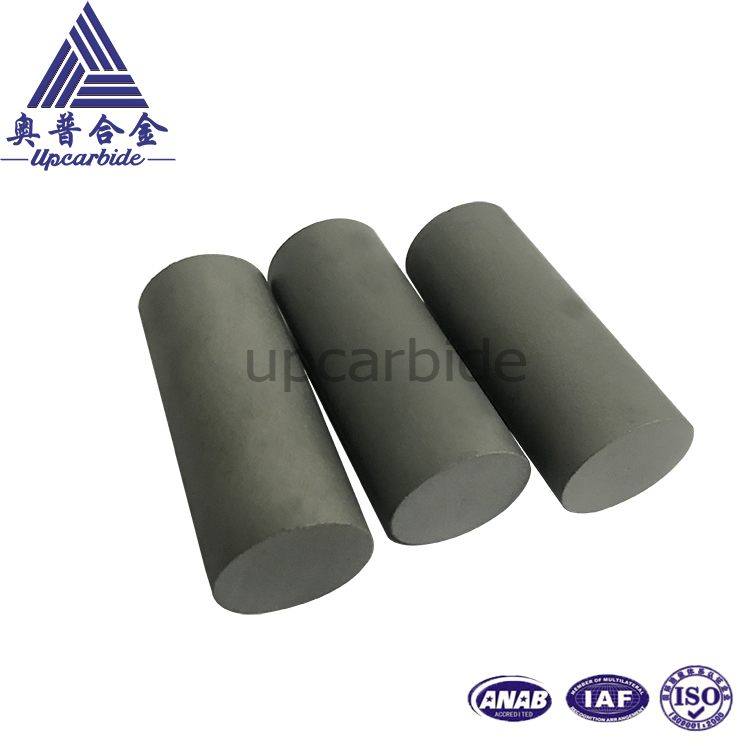

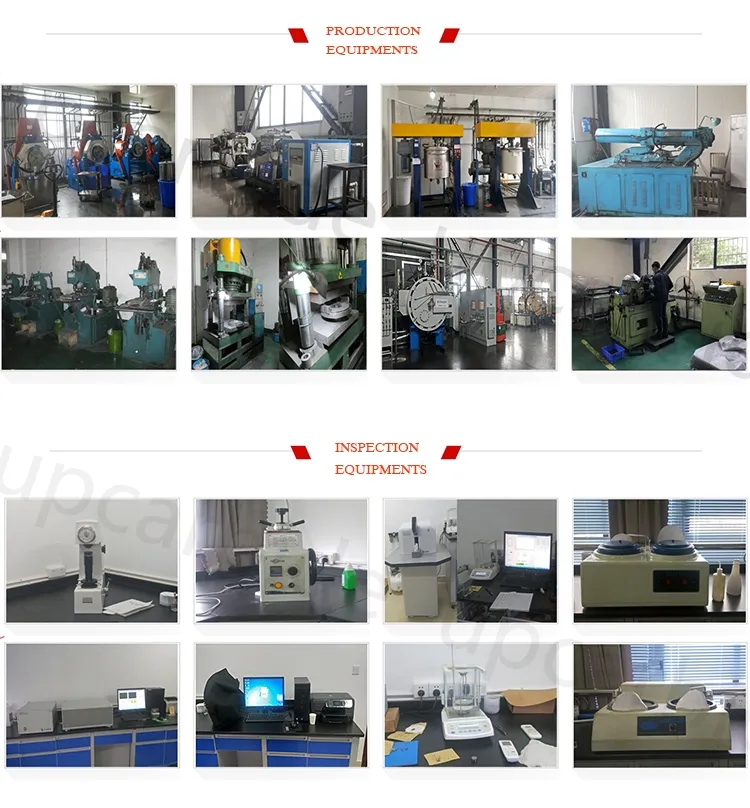

Products Show

Yg8 Od23*65mm 89.5hra 8% Co Tungsten Carbide Sintered Rod

Grade specification

Grade	Density(g/cm3)	Hardness (HRA)	T.R.S (MPa)	Grain size (μm)	Composition (%)	Equal to ISO
YU12	14.1~14.15	.≥92.5	≥4000	0.2~0.5	12% CO 88% WC	K40~K50
YL10.2	14.4~14.6	≥92.2	≥4000	0.6~0.8	10% CO 90% WC	K20~K30
YG6X	14.85~15.0	≥92.0	≥3860	0.8~1.0	6% CO 94% WC	K05
YG15	14.0~14.1	≥85.0	≥2800	1.2~2.0	15%Co 85% WC	K30~K40
YG10	14.5~14.6	≥85.5	≥2600	1.2~2.0	10%Co 90% WC	K20
YG8	14.65~14.85	≥89.5	≥2320	1.2~2.0	8% CO 92% WC	K20
YG6	14.85~15.05	≥90.0	≥2150	1.2~2.0	6% CO 94% WC	K10
